Lcd Display Legend - Oceanic DATA PLUS Owner's Manual

®
1c
1b
7
6
1a
5
DATA
PLUS
3a
3b
12
16
8
2c
M
FT
MAX
M
FT
MAX
GLO
3c

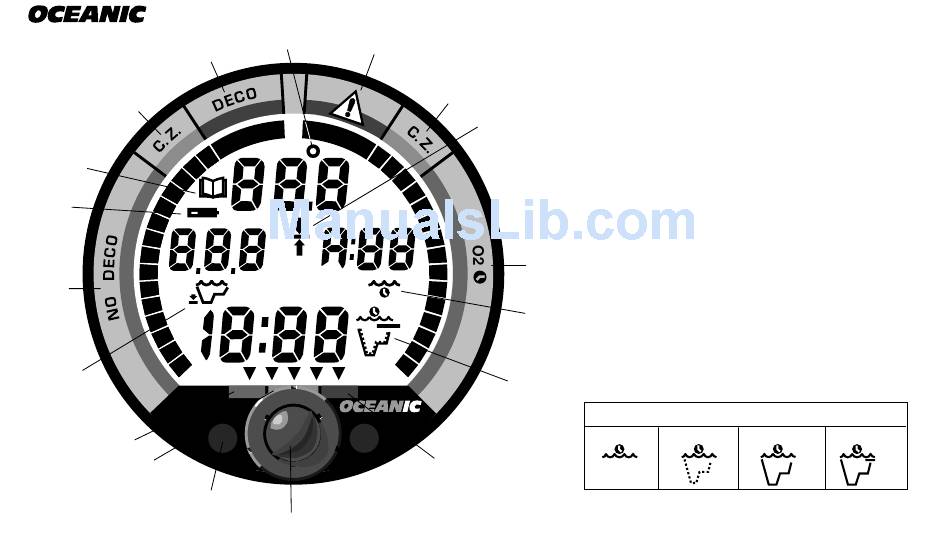

LCD Display Legend

11
1a. TLBG - (Green - No Decompression zone)
1b. TLBG - (Yellow - Caution zone)
1c. TLBG - (Red - Decompression zone)
2b
2a. O2 Bar Graph - (Green - safe O2 zone)
9
2b. O2 Bar Graph - (Yellow - Caution zone)
2c. O2 Bar Graph - (Red - Danger zone)
3a. VARI - (Green - rate/speed normal/safe)
3b. VARI - (Yellow - rate/speed excessive)
3c. VARI - (Red - rate/speed 'Too Fast')
4. Icon - Operating Mode - (See Detail A)
5. Icon - Maximum Depth
6. Icon - Low Battery
2a
7. Icon - Log Mode
8. Icon - Temperature
9. Icon - Deco Stop Ceiling
10
10. Icon - Elapsed Dive Time
11. Control Button
12. Infrared Interface Ports (PC download)
4
Detail 'A' - Operating Mode Icons
Surface PDPS Deco Dive
No Deco Dive
