2.2.1.3 Running the Singlewire-enabled Speaker with Auxiliary Power
In Figure
Network connection or from an external source.
Operations Guide
2-6, the power for the Singlewire-enabled Speaker can either come from an 802.3af

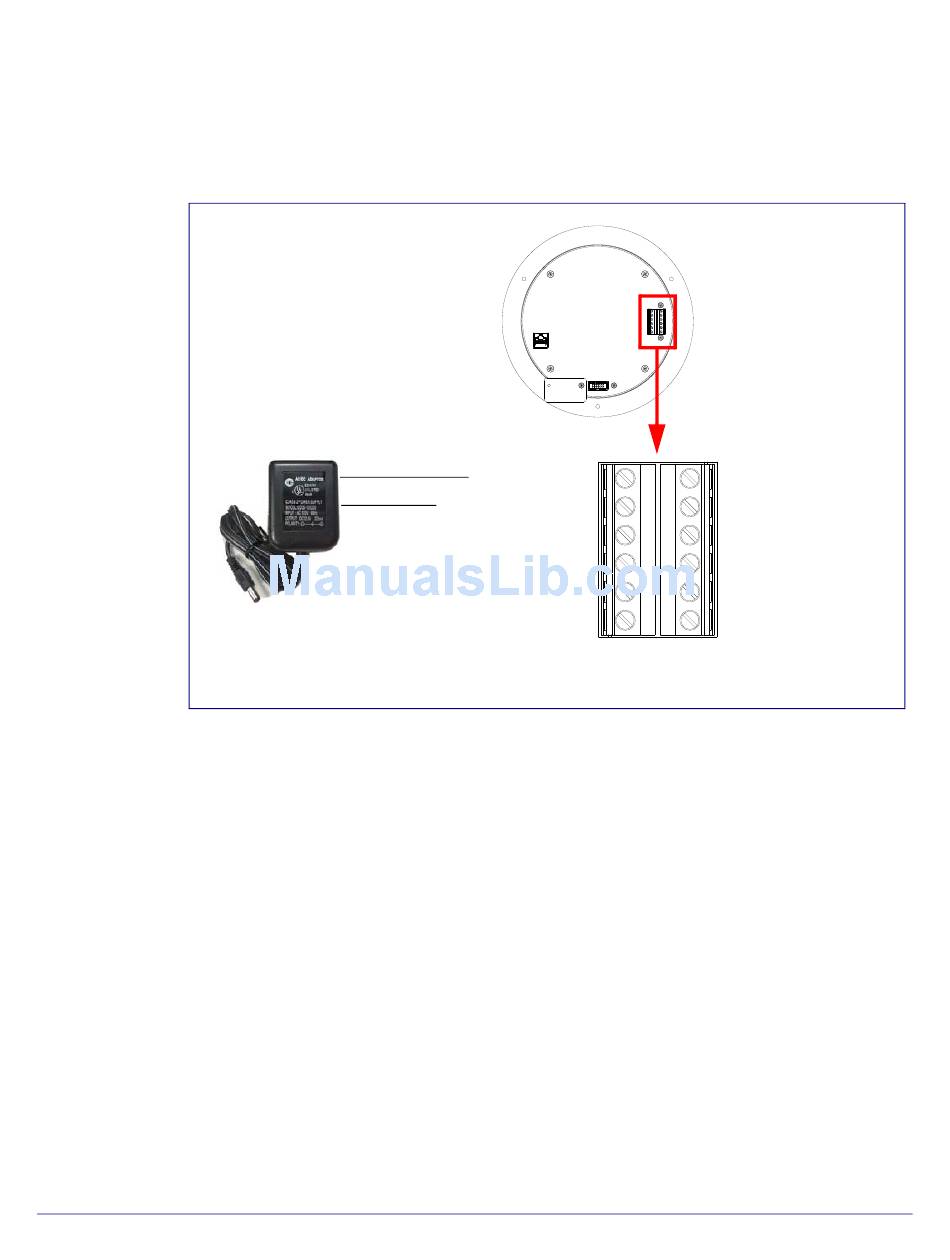

Figure 2-6. Running the V2 Speaker with Auxiliary Power
12-14 VDC
GND
AC adaptor
12-14 VDC @ 3 Amps
Speaker
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
J10
930320E
Installing the Singlewire-enabled Speaker
Set Up and Test the Speaker
AUX SPEAKER (-)
AUX SPEAKER (+)
LINE OUT (-)
LINE OUT (+)
J9
