Chapter 1 – Product Description and Specifications

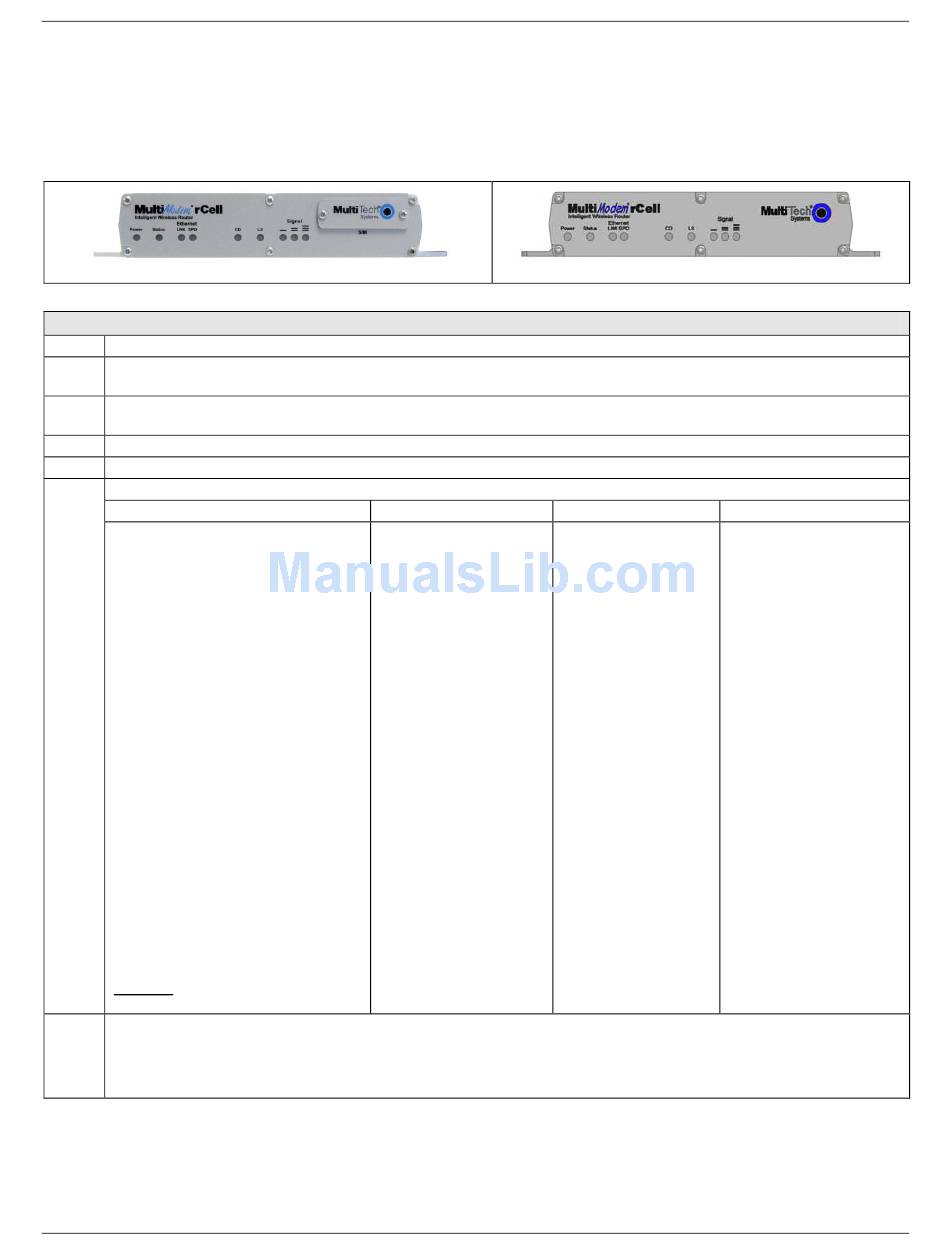

Front Panel

The front panel contains Power and Status LEDs, two Ethernet LEDs, two modem LEDs, and three signal LEDs. The Power
LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. The two Ethernet LEDs
indicate transmit and receive activity and connection speed of 10 or 100Mbps on the Ethernet link. The two modem LEDs
indicate carrier detection and link status. The three signal LEDs display the signal strength level of the wireless connection. The
SIM door on the right side of the router provides access to the SIM card holder on the E1, G2, and H4 versions.
Model MTCBA-E1/G2/H4-EN2
Power
Indicates presence of DC power when lit.
Status The LED is a solid light when the rCell is booting up, saving the configuration, restarting, or updating the firmware.
When the Status LED begins to blink, the router is ready.
LNK Link. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is a
valid Ethernet connection.
SPD Speed. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the Ethernet is linked at 10 Mbps.
CD Carrier Detect. Lit when data connection has been established.
LS
-E1 version* (AT^SSYNC=1)
Permanently off. ME is in one of
the following modes: Power Down
mode, Airplane mode Non-Cyclic
Sleep mode with no temporary
wake-up event in progress.
600 ms on/600 ms off
Limited Network Service: No SIM
card inserted or no PIN entered, or
network search in progress or
ongoing user authentication, or
network login in progress.
75 ms on/3 sec off
Idle mode: The mobile is registered
to the GSM network (monitoring
control channels and user
interactions). No call is in progress.
75 ms on/ 75 ms off/75 ms on/3
sec off
One or more GPRS contexts
activated.
500 ms on/ 25 ms off
Packet switched data transfer in
progress.
Permanently on
CSD call – Connected to remote
party.
Signal ALL OFF - Unit is off, not registered on network, or extremely week signal (0 < = RSSI < 6).
1 Bar "ON" – Very weak signal (7 < = RSSI <14)
1 Bar and 2 Bar "ON" – Weak signal (15 < = RSSI <23)
1 Bar, 2 Bar, and 3 Bar "ON" – Good signal (24 <= RSSI > = 31)
* To be accurate, the AT^SSYNC command must be set to 1 so that the factory default LED timings are used.
8
LED Indicators
Link Status Dependent on Model
G2 version
Permanently On: Not
registered on network.
Flashing states:
200 ms on/2 sec off
Registered on network.
200 ms on/600 ms off
Registered on the
network and
communications in
progress
100 ms on/200 ms off
Software downloaded
is either corrupted or
non-compatible ("bad
software")
Software downloaded
is either corrupted or
non-compatible ("bad
software")
Multi-Tech Systems, Inc. MultiModem rCell User Guide
Model MTCBA-C1/EV2-EN2
C1version -H4 and EV2 versions
Permanently On: Permanently On:
Not registered on Powered on and
network. connected, but not
transmitting or receiving.
Flashing states:
Slow flashing state
200 ms on/2 sec off
(5 Seconds)
Registered on
Powered on searching
network.
for a connection.
200 ms on/600 ms
Fast flashing state
off
(0.3 seconds)
Registered on the
Transmitting and
network and
receiving.
communications in
progress
100 ms on/200 ms
off
