Chapter 8 Setup Mode

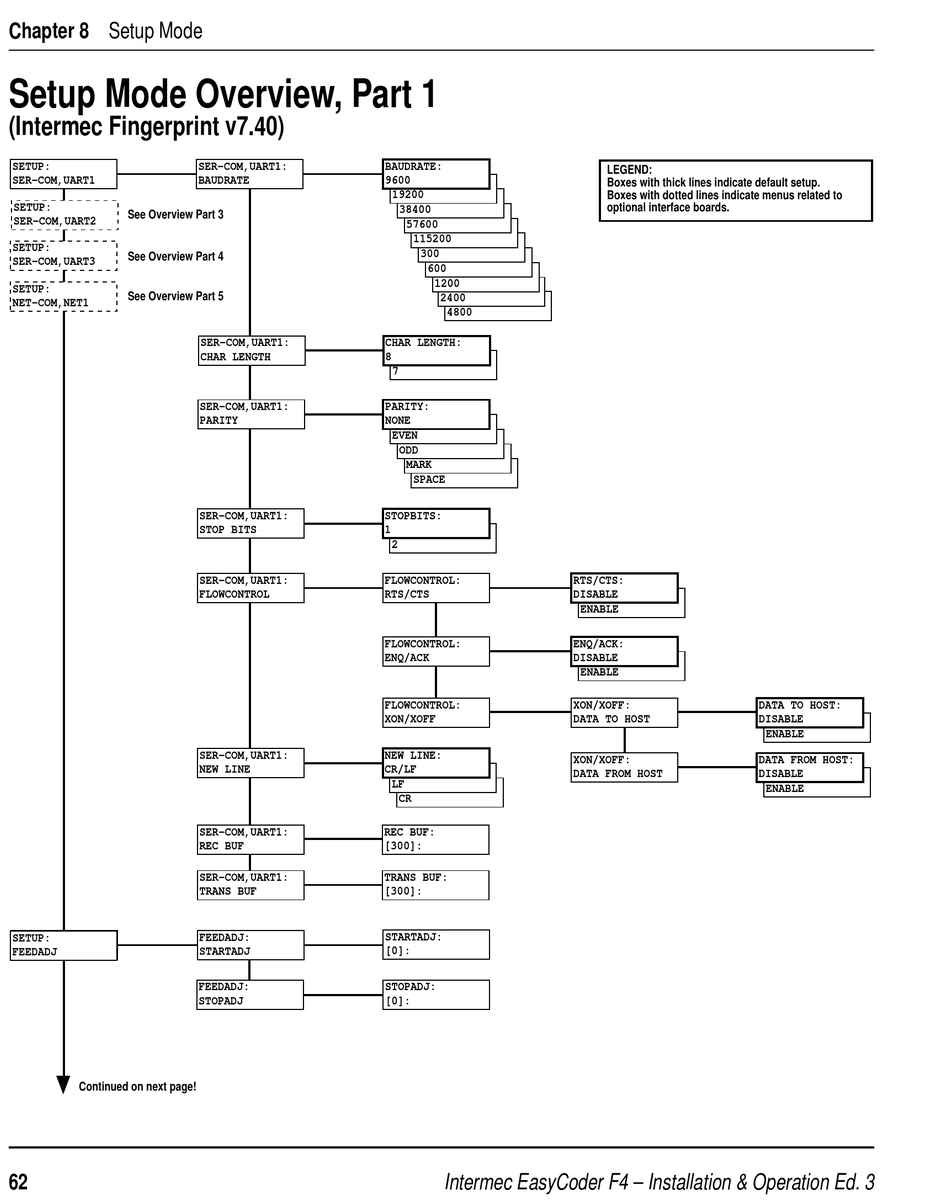

Setup Mode Overview, Part 1
(Intermec Fingerprint v7.40)
SETUP:
SER-COM,UART1
SETUP:
See Overview Part 3
SER-COM,UART2
SETUP:
See Overview Part 4
SER-COM,UART3
SETUP:
See Overview Part 5
NET-COM,NET1
SETUP: DETECTION:
FEEDADJ FEEDADJ
Continued on next page!
62
SER-COM,UART1:
BAUDRATE
SER-COM,UART1:
CHAR LENGTH
SER-COM,UART1:
PARITY
SER-COM,UART1:
STOP BITS
SER-COM,UART1:
FLOWCONTROL
SER-COM,UART1:
NEW LINE
SER-COM,UART1:
REC BUF
SER-COM,UART1:
TRANS BUF
FEEDADJ:
STARTADJ
FEEDADJ:
STOPADJ
BAUDRATE:
9600
19200
38400
57600
115200
300
600
1200
2400
4800
CHAR LENGTH:
8
7
PARITY:
NONE
EVEN
ODD
MARK
SPACE
STOPBITS:
1
2
FLOWCONTROL:
RTS/CTS
FLOWCONTROL:
ENQ/ACK
FLOWCONTROL:
XON/XOFF
NEW LINE:
CR/LF
LF
CR
REC BUF:
[300]:
TRANS BUF:
[300]:
STARTADJ:
[0]:
STOPADJ:
[0]:
