Peel-Off, cont.
7

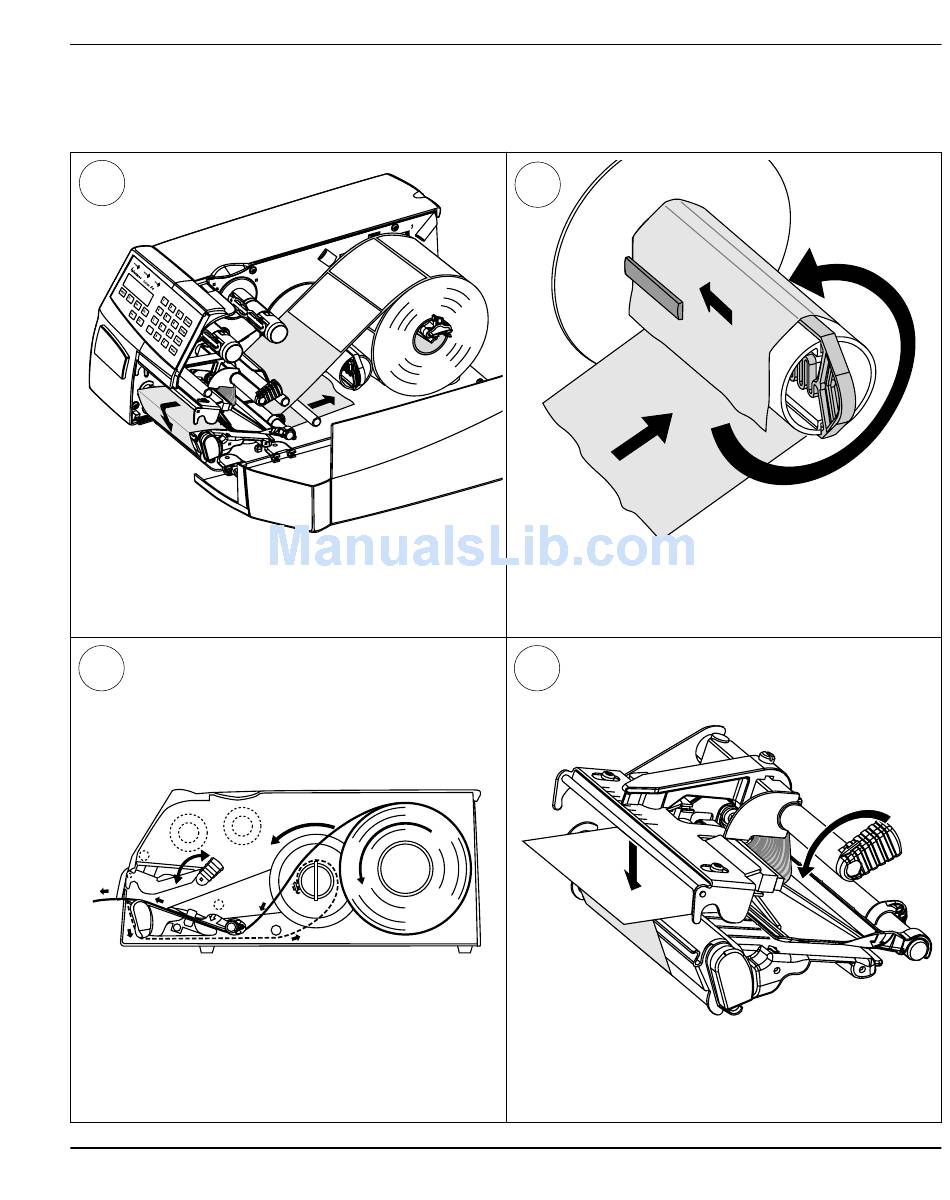

Route the liner around the tear bar and the
liner drive roller and back under the print
mechanism and guide shaft.
9
This diagram shows the media and liner paths.
Intermec EasyCoder F4 – Installation & Operation Ed. 3
8
Insert the start of the liner under the lip of the
takeup hub, then rotate the hub counterclock-
wise a few turns to wind up some of the liner.
10
Turn the printhead lift lever counterclockwise
to engage the printhead
