Chapter 5 Media Load
Peel-Off, cont.
3

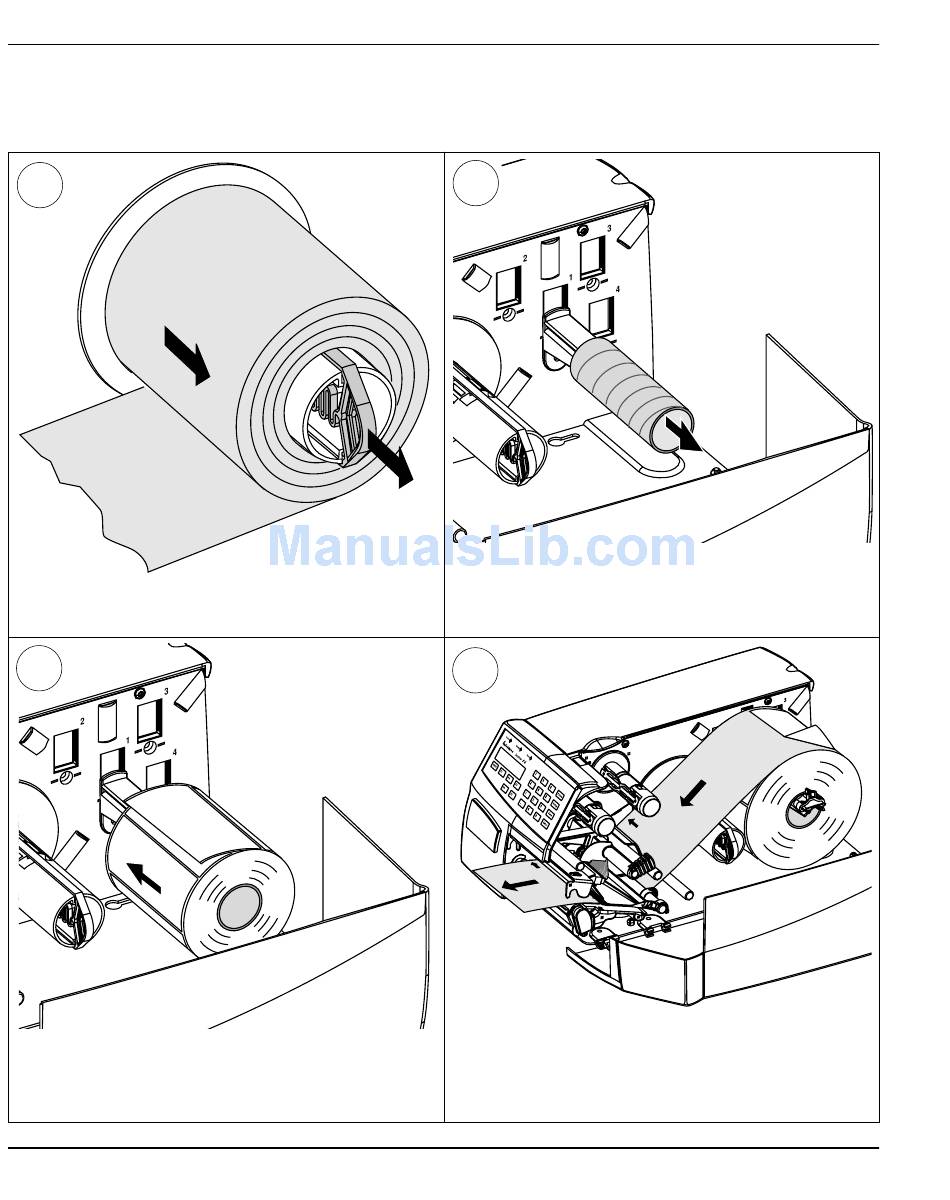

Pull out the handle to collapse the takeup hub,
then remove any liner.
5
Fit a new roll of labels on the supply post and
adjust the edge guide so the roll becomes fl ush
with the center section.
36
4
Remove any empty core from the media roll
supply post. Remove the edge guide if neces-
6
Remove labels from the fi rst 50 cm (20 inches)
of the liner. Route the liner through the print
mechanism and push it inwards.
Intermec EasyCoder F4 – Installation & Operation Ed. 3
sary.
