8. EXTERNAL SYNC

When using the camera with external sync, connect a composite video signal (C-VIDEO)
to the EXT SYNC terminal on back of the camera control unit. When the camera accepts
external sync, it is automatically switched from the internal sync to the external sync.
(1) External sync signal input conditions
C-VIDEO
(75 unbalanced)
(2) External sync frequency range
Within ±50 ppm in reference to PAL standard frequency
(H frequency 15624.2 Hz to 15625.8 Hz)
(3) Using the camera with external sync signal
When using more than two cameras in external synchronization, this adjustment allows
matching of color tone between two cameras. Adjust H (horizontal) phase and SC (sub
carrier) phase if necessary.

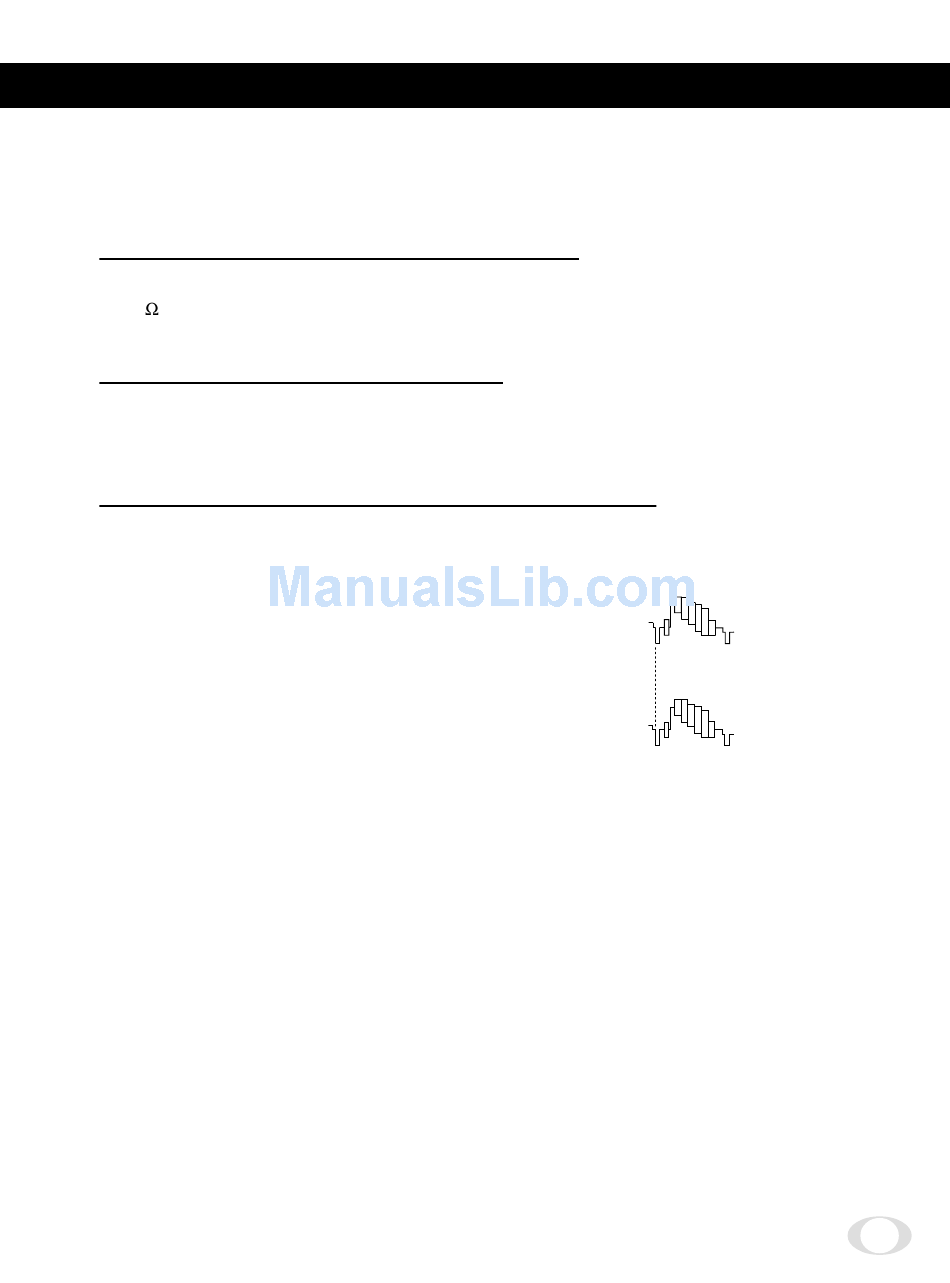

(3.1) H (horizontal) phase adjustment
Observe the external sync signal and video out-
put signal on the camera with a dual trace oscil-
loscope, and adjust "H-PHS" of "SYNC" on the
screen menu so that the H phase matches.
(3.2) SC (sub carrier) phase adjustment
Perform a coarse adjustment for 0, 90, 180, or 270 degrees in "SC-PHS" on the screen
menu and then perform a fine adjustment with "SC-FINE". Using a vector scope for the
phase adjustment will provide more accuracy.
: SYNC section
BURST section
0.3 ± 0.1V
0.3 ± 0.1V
Match
the phase.
External
sync. signal
Camera
video output
21
