Servicing Instructions for

13. CONNECTION TO CAMERA HEAD (IK-M50H)

When connecting to the camera head (IK-M43H/IK-C43H), select the internal switch inside
the camera controller following to the procedures below.
1 After turning off the power, remove all the
cables connected to the camera control-
ler.

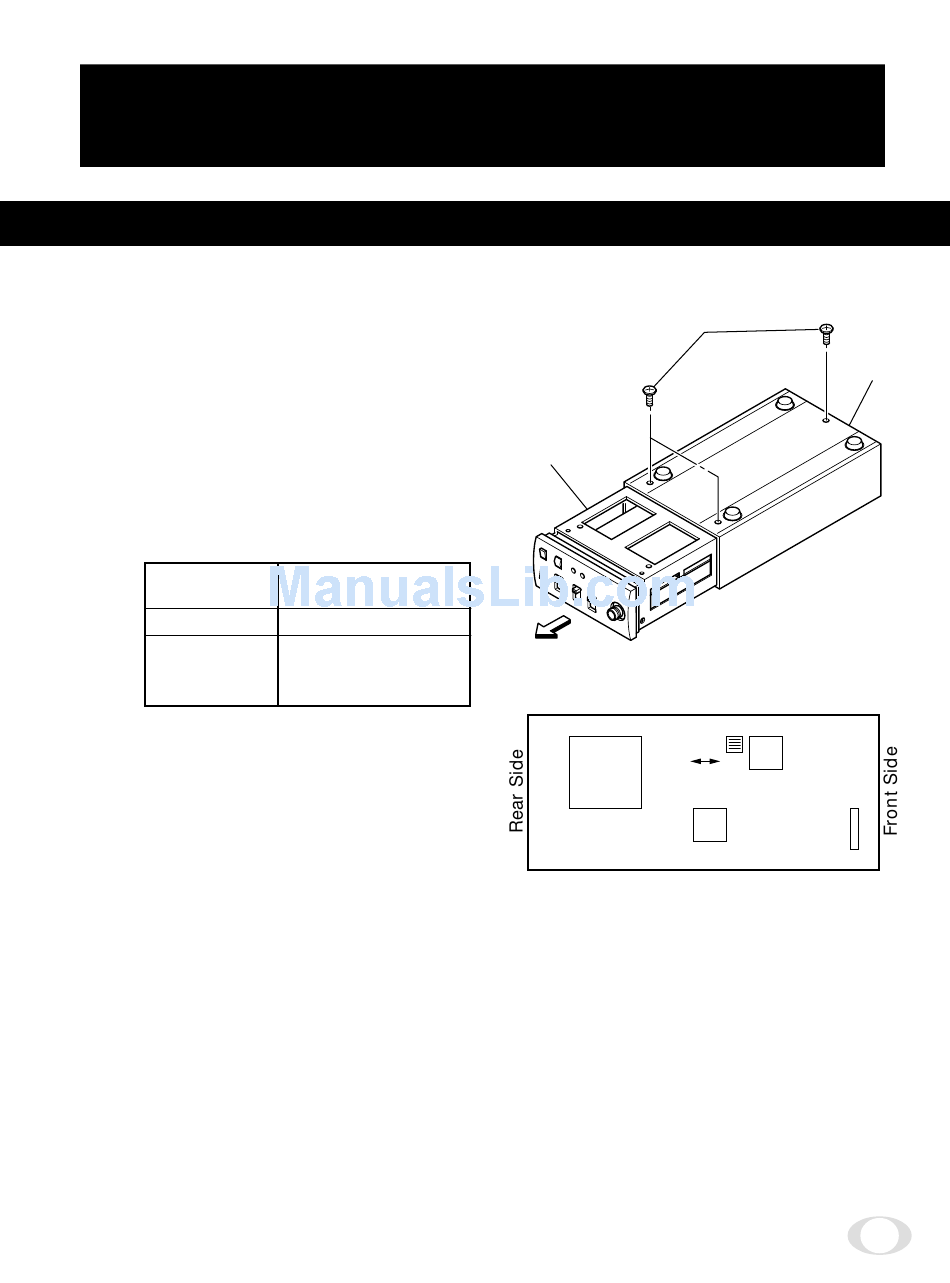

2 Remove three screws on the bottom chas-
sis of the camera control unit to remove
the internal unit.
3 Turn off No. 3 of S101 switch located on
the component side of the internal circuit
unit PC board.
No3 of S101
switch
OFF
ON
Note: Do not change the switch settings
other than S101. If you change the set-
tings, the normal image may not be
obtained.
4 Perform the reverse procedures to as-
semble.
Service Personnel
Applicable camera
head to connect
IK-M50H
IK-M51H
IK-UM51H
IK-SM50H
(2)
(3)
H101
S101
ON
Q503
(1)
OFF
Q508
P101
25
