4.3 Connection on Back Panel

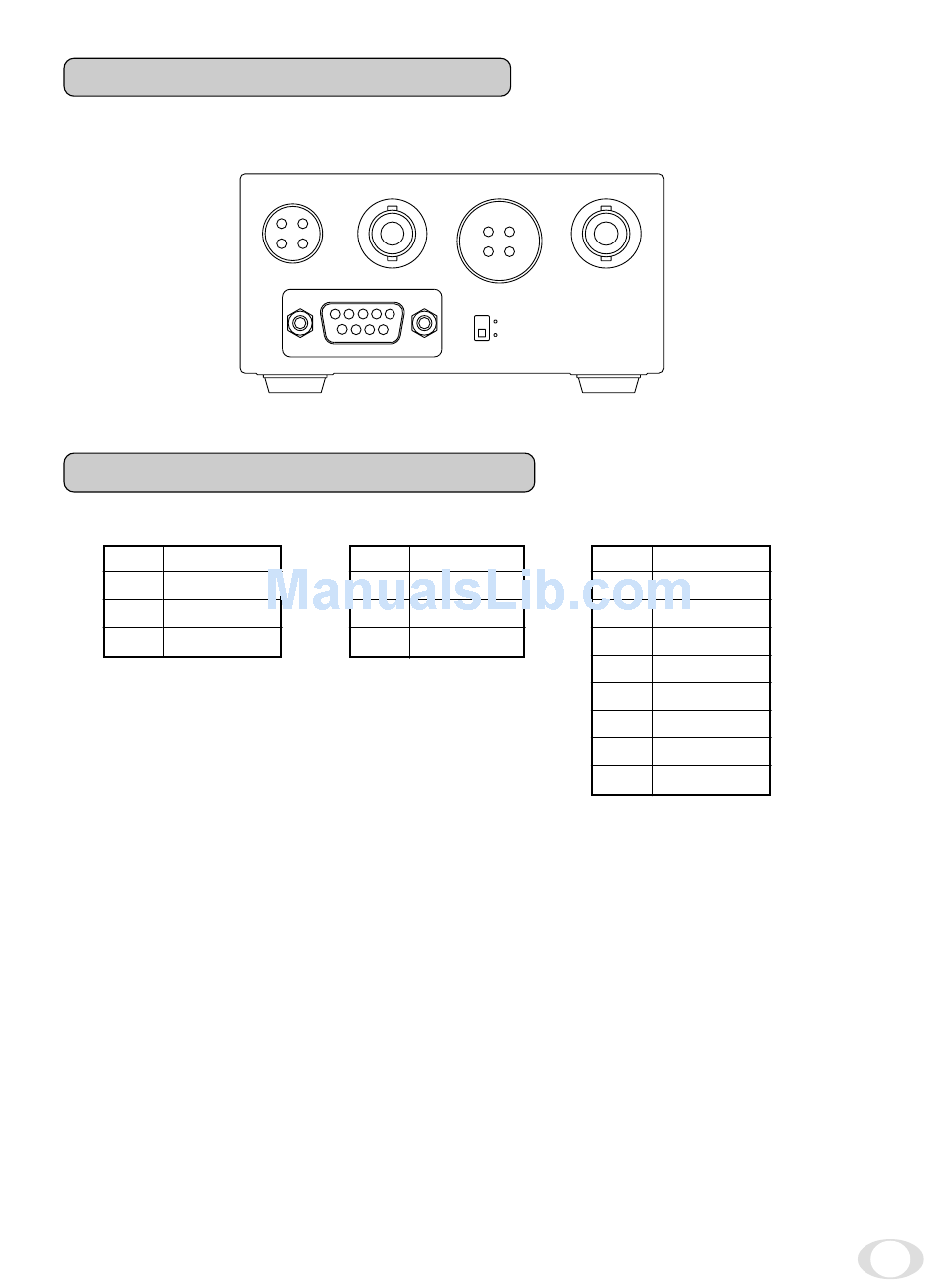

The figure below shows the back panel connection terminals of the camera control unit.

4.4 Connector Pin Assignments

DC IN 12V
1 +12V
2 +12V
3 GND
4 GND
* When using the REMOTE terminal, please consult with your dealer.
DC IN 12V EXT SYNC
1 3
2 4
REMOTE
5 4 3 2 1
9 8 7 6
S-VIDEO
1 GND
2 GND
3 Y
4 C
S-VIDEO VIDEO
4 3
2 1
FUNC LOCK
ON
OFF
REMOTE
1
2
3
4
5
6
7
8
9
NC
TXD
RXD
DSR
GND
DTR
CTS
RTS
NC
9
