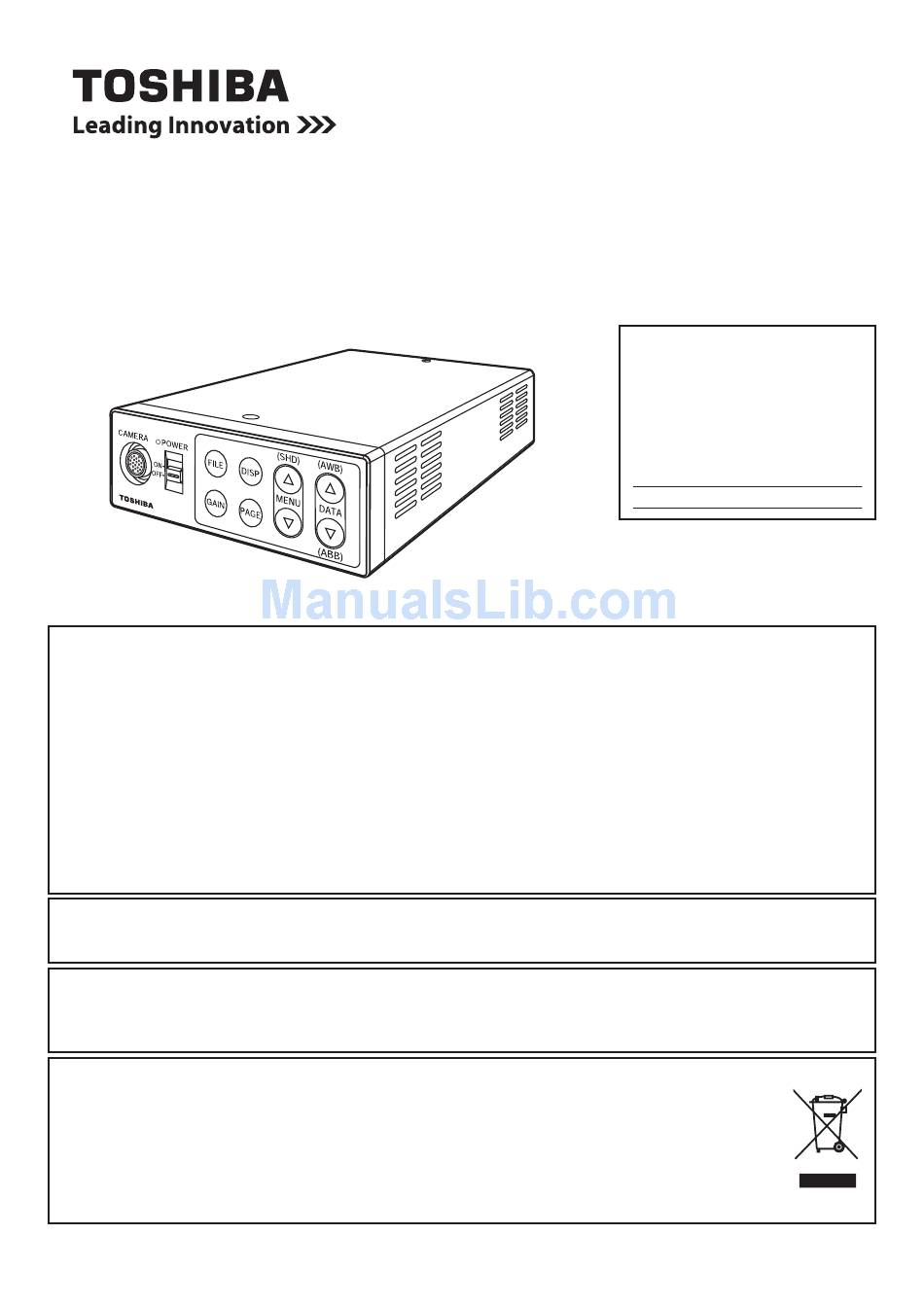

CAMERA CONTROL UNIT
IK-HD2C
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party responsible for compliance to
Part 15 of the FCC Rules.
Canada ICES-003 Compliance Lable:
CAN ICES-3 A/NMB-3A
Following information is only for EU-member states:
In residential areas this product may cause radio interference, therefore this product must not be used
in residential areas.
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about the take-
back and recycling of this product, please contact your supplier where you purchased the
product or consult.
This manual is made from recycled paper.
INSTRUCTION MANUAL
For Customer Use
Enter below the Serial No.
w h i c h i s l o c a t e d o n t h e
bottom of the cabinet. Retain
this information for future ref-
erence.
Model No.: IK-HD2C
Serial No.:

Advertisement

Table of Contents
loading

Related Manuals for Toshiba IK-HD2C

Summary of Contents for Toshiba IK-HD2C

  • Page 1 Retain this information for future ref- erence. Model No.: IK-HD2C Serial No.: FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursu- ant to Part 15 of the FCC Rules.

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Safety icons This manual contains safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and the icons highlight these instructions as follows: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 3 5. Repairs or modifications made by the user or caused to be made by the user and carried out by an unauthorized third party. 6. Notwithstanding the foregoing, Toshiba’s liabilities shall not, in any circumstances, exceed the purchase price of the product.

  • Page 4: Table Of Contents

    Accordingly, [Toshiba] disclaims any and all liability arising out of the use of the product in any critical applications.
  • Page 5 (6) SYNC........................... (6.1) INT screen......................(6.2) Changing EXT. setting ..................(7) OPTION........................(7.1) Changing OUTPUT mode .................. (7.2) Changing shading correction mode ..............(7.3) Changing manual shading correction mode ............(7.4) Changing RGB SYNC ..................(7.5) Changing detail signal output ................(7.6) Changing RS232C baud rate ................

  • Page 6: Cautions On Use And Installation

    1. CAUTIONS ON USE AND INSTALLATION Handling the unit. The following descriptions are for a camera head "IK-HD1H" connected to this camera control unit. Do not drop, jolt, or vibrate, as this may result in damage to the unit and cause problems. Treat Do not shoot intense light.

  • Page 7: Items Controlled By The On Screen Display

    3 ITEMS CONTROLLED BY THE ON SCREEN DISPLAY MODE AUTO, MANUAL, SS MANUAL AUTO level -100 – 0 – 100 AUTO peak/average 00 : 10 – 05 : 05 – 10 : 00 05 : 05 AUTO response speed 1 – 10 – 20 PRESET A, PRESET B, PRESET C, PRESET D, AUTO area PRESET E, USER...

  • Page 8: Names And Functions

    4. NAMES AND FUNCTIONS FILE button DISP button POWER switch MENU UP (SHD) button POWER LED DATA UP (AWB) button Camera cable for “IK-HD1H” DATA DOWN terminal (ABB) button GAIN button MENU DOWN (SHD) button PAGE button [Front] /B terminal /R terminal Y/G terminal KEY LOCK switch...

  • Page 9: Connection

    5 CONNECTION 1 Standard Connection 5. 1 -1 Analog Connection Three Coaxial Lens Cables 75 IK-HD2C (option) (option) Camera Cable for IK-HD2C Camera DC IN 12V Control unit option IK-HD1H option HD monitor DC power supply analog TV (option) (option) 5.

  • Page 10: Cautions On Connection

    5 2 Caution on Connection Only use optional camera head model # IK-HD1H with this camera controller. The use of another head may cause damage to the control unit and camera head. When connecting the camera cables, be sure to turn off the camera control unit and any other equipment connected to it.

  • Page 11: Operation

    6 OPERATION A camera head "IK-HD1H" needs to be connected to this camera control unit from this section on. Refer to the item “5. CONNECTION”, connect the equipment correctly. Turn on the connected equipment and the camera. When using the camera for the first time and when replacing the camera cable and the camera head, be sure to perform the ABB adjustment, refer to the item “6.1 Automatic Black Balance”.

  • Page 12: White Balance

    6 2 White Balance For white balance adjustment of this unit, ATW (Automatic Tracking White balance), AWB (Automatic White Balance) and MANUAL (Manual white balance) adjustments are provided. Refer to the items “7.2 (3) WHT BAL (White Balance), 7. MODE SETTING BY THE ON SCREEN DISPLAY”, select the desired mode.
  • Page 13 Display Meaning AWB OK Automatic white balance adjustment finished correctly. AWB NG Automatic white balance adjustment cannot be performed because the video level is LEVEL LOW too low. Adjust the video level by increasing the illumination or opening the lens iris. AWB NG Automatic white balance adjustment cannot be performed because the video level is LEVEL HIGH...

  • Page 14: Scene File

    6 3 Scene File 6 4 Gain...

  • Page 15: Shading Correction

    Note: White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just certain characteristics of the CCD becoming more visible. 6 5 Shading Correction Due to the lens used or the environmental condition, color shading may occur at the upper and lower edge of the screen.

  • Page 16: Mode Setting By The On Screen Display

    7 MODE SETTING BY THE ON SCREEN DISPLAY Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is unnecessary to set again when using the unit next time.

  • Page 17: Menus

    7 2 Menus Select the menu to change the setting by referring to the item “7.1 Using the Menus”. When the [MENU UP], [MENU DOWN] buttons are pushed, the “ ” on the screen moves up and down. Move the “ ” to the item whose setting you wish to change. SHUTTER Electronic shutter The electronic shutter has four modes;...

  • Page 18: (1.1) Changing The Setting In Auto Mode

    1 1 Changing the setting in AUTO mode Move up and down Select the desired by pushing value by pushing MENU UP,DOWN DATA UP,DOWN Shutter mode AUTO, MANUAL, SS Video level adjustment -100 to 100 -- 1 SHUTTER -- <FILE A> Peak and average ratio adjustment 00 10 to 10 00 MODE AUTO...
  • Page 19 (d) Changing the automatic shutter zone area Move the “ ” to AREA by pushing [MENU UP], [MENU DOWN] buttons. Select the measurement light area by pushing [DATA UP], [DATA DOWN] buttons. DATA UP PRESET A PRESET B PRESET C PRESET D PRESET E USER...

  • Page 20: (1.2) Changing The Setting In Manual Mode

    1 2 Changing the setting in MANUAL mode Move up and down Select the desired by pushing value by pushing MENU UP,DOWN DATA UP,DOWN Shutter mode AUTO, MANUAL, SS -- 1 SHUTTER -- <FILE A> Shutter speed setting OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s, MODE MANUAL 1/3000s, 1/5000s, 1/10000s, 1/30000s, 1/50000s...

  • Page 21: Gain (Video Gain)

    2 GAIN (Video gain) GAIN has three modes; AUTO, MANUAL, OFF. Move the “ ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the three modes : AUTO, MANUAL, OFF. In the OFF mode, gain is fixed to 0dB. 2 1 Changing maximum gain in AUTO (Automatic gain control) mode Move up and down Select the desired...

  • Page 22: Wht Bal(White Balance)

    3 WHT BAL(White Balance) The WHT BAL has three modes; AWB, ATW, MANUAL. Move the “ ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the three modes : AWB, ATW, MANUAL. 3 1 Changing the setting in AWB(Automatic White Balance) mode Move up and down Select the desired by pushing...

  • Page 23: (3.2) Changing The Setting In Atw (Automatic Tracking White Balance) Mode

    The available picture area is shown by the shading correction on the screen that is divided into 64 parts. PRESET A PRESET B PRESET C PRESET D Custom Selection PRESET E USER (e) Confirming the contents of the zone area selected by AWB Set the “...

  • Page 24: (3.3) Changing Gain In Manual Mode

    (b) Changing B PAINT Move the “ ” to B PAINT by pushing [MENU UP], [MENU DOWN] buttons. Select the desired value of blue paint by pushing [DATA UP], [DATA DOWN] buttons. DATA UP Blue is increased. Blue is decreased. DATA DOWN 3 3 Changing gain in MANUAL mode Move up and down...

  • Page 25: Process

    4 PROCESS Move up and down Select the desired by pushing value by pushing MENU UP,DOWN DATA UP,DOWN Gamma correction ON, OFF -- 4 PROCESS -- <FILE A> Gamma correction level setting -10 to 10 Detail gain setting -7 to 7 GAMMA ON/OFF GAMMA Master pedestal setting -200 to 200...

  • Page 26: (4.3) Changing Black Gamma Correction Level

    4 3 Changing black gamma correction level * When OFF is selected in GAMMA ON/OFF selection line, the display BLACK GAMMA turns off automatically. So the black gamma correction level change cannot be changed. 4 4 Changing detail (outline) gain 4 5 Changing pedestal (a) Changing master pedestal Move the “...

  • Page 27: Matrix(Matrix Color Correction)

    5 MATRIX(Matrix color correction) Move up and down Select the desired by pushing value by pushing MENU UP,DOWN DATA UP,DOWN Matrix color correction ON, OFF Red hue setting Yellow hue setting -- 5 MATRIX -- <FILE A> Red gain setting Yellow gain setting MATRIX Green hue setting...

  • Page 28: Sync

    6 SYNC When an external sync signal is input, the display changes from INT (internal sync) to EXT.(external sync) automatically. 6 1 INT screen -- 6 SYNC -- <FILE A> MODE 6 2 Changing EXT. setting Move up and down Select the desired by pushing value by pushing...

  • Page 29: (7.1) Changing Output Mode

    7 OPTION Move up and down Select the desired by pushing value by pushing MENU UP,DOWN DATA UP,DOWN OUTPUT Y/P , RGB -- 7 OPTION <FILE A> SHADING MODE SET, MANUAL, OFF OUTPUT Detail signal output ON, OFF SHADING RS232C baud rate 9600bps, 19200bps DTL OUT BAUD RATE 9600bps...

  • Page 30: (7.4) Changing Rgb Sync

    -- 7 OPTION <FILE A> OUTPUT RGB SYNC SHADING DTL OUT BAUD RATE 9600bps OSD OUTPUT ALL ON 7 4 Changing RGB SYNC * When Y/P is selected at OUTPUT, RGB SYNC change cannot be adjusted. 7 5 Changing detail signal output 7 6 Changing RS232C baud rate 7 7 Changing OSD OUTPUT mode...

  • Page 31: Setting User Area

    8 Setting USER area When USER is selected for the AREA of the automatic shutter or for AWB, the light measurement zones can be changed. The USER area is composed of 64 zones with 8 (vertical) x 8 (horizontal) areas, and each area can be set to ON/OFF.

  • Page 32: Returning To Factory Settings

    9 Returning to factory settings The contents set of each scene file can be returned to the factory default status (preset status). (1) Select a scene file to set to the factory default status by pressing the [FILE] button. (2) If the color bar pattern or characters are displayed on the screen, press the [DISP] button to disable the color bar pattern and character display.

  • Page 33: Before Making A Service Call

    8. BEFORE MAKING SERVICE CALL Symptom Items to be checked Is power supplied correctly? No picture Is the power switch on, and the power LED illuminated? Is the lens iris adjusted correctly? Are the camera and video cables connected correctly? Is the shutter mode set correctly? Is the monitor on, and in working condition? Is the monitor adjusted correctly?

  • Page 34: Specifications

    9. SPECIFICATIONS * These conditions are only satisfied when the camera control unit is connected to camera head model # IK-HD1H. Power supply 12V DC Power consumption Approx. 10.3 W (Including a camera head, when the DC power supply is 12V) Image-acquisition method RGB, 3CCD, Micro prism system Image sensor...

  • Page 35: External Appearance Diagram

    10. EXTERNAL APPEARANCE DIAGRAM Unit : mm [inch] [Front] [Rear]...
  • Page 36 Memo...
  • Page 37 Limited Warranty – TOSHIBA Camera Control Unit The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranty with regard to this Camera Control Unit ("Product"). These limited warranties apply to the Original End-User ("You").
