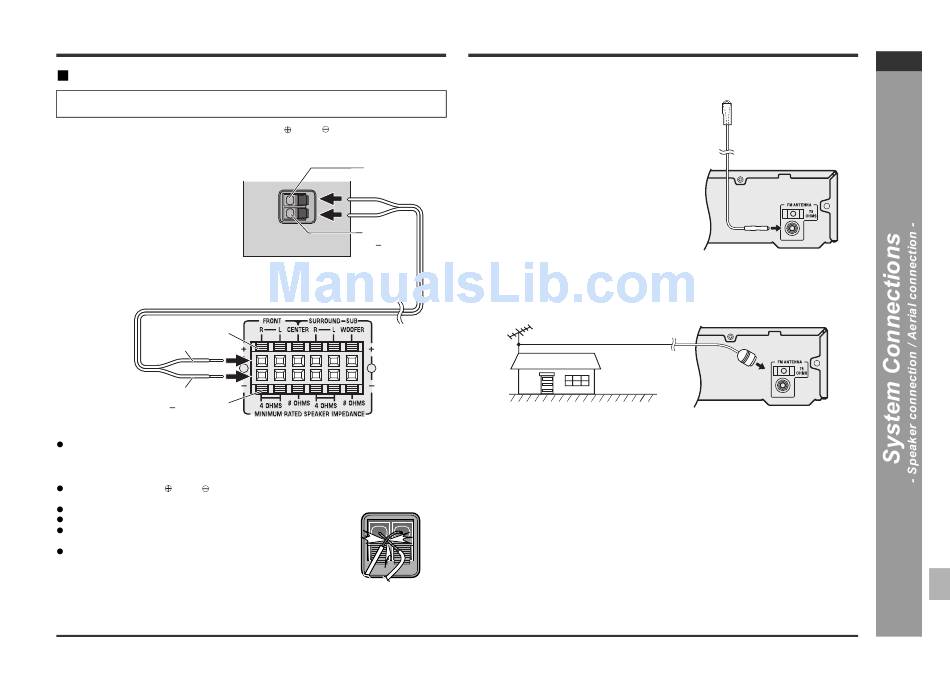

Connecting speaker wires
Make sure to leave the AC power lead disconnected when connecting the
speakers.
To prevent accidental short circuits between
speaker wires to the speakers first and then to the unit.
1
Connect the wires to the speakers.
2
Connect the other end to the main
unit.
Red
Red
(+)
Black
( )
Black
Caution:
The supplied speaker for HT-CN550DVW3 is designed exclusively for
HT-CN550DVW3. Do not connect speakers for HT-CN550DVW3 to other equip-
ment. Also, do not connect other speakers to HT-CN550DVW3. It may cause mal-
function.
Do not mistake the and , and right and left terminals of the speaker wires.
(The right speaker is placed on the right when you face the unit.)
Do not let the bare speaker wires touch each other.
Do not stand or sit on the speakers. You may be injured.
Do not short-circuit the speaker wires. If the power is
turned on, malfunction may occur.
When disconnecting the speaker wires, unplug the AC
power lead, and then disconnect the speaker wires from
the main unit.

Aerial connection

Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
socket and position the FM aerial wire in the
direction where the strongest signal can be
received.
and terminals, connect the
Note:
Placing the aerial on the unit or near the AC
power lead may cause noise pickup. Place the
Red
aerial away from the unit for better reception.
(+)
Black
( )
External FM aerial:
Use an external FM aerial if you require better reception. Consult your dealer.
Incorrect
External FM aerial
HT-CN550DVW3
