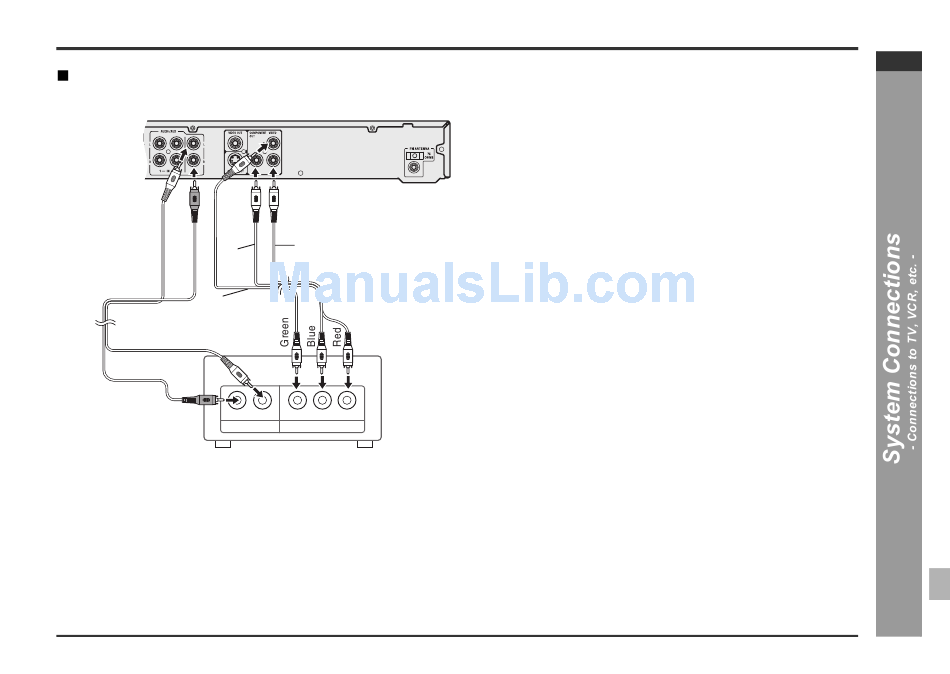

Connecting to a TV with Progressive-scan capability
Your TV must be capable of handling progressive scanning and have component video input capability.
Red
Audio cable
(supplied)
Green
White
Red
To audio
R
input sockets
AUDIO INPUT
1. Connect the DVD main unit to the component video input sockets of the TV. (The VIDEO INPUT or S-VIDEO OUT sockets connection is not encourage.)
2. You also need to connect the left and right audio cables to the AUDIO OUT sockets of DVD main unit and the Audio input sockets of the TV.
3. Set the DVD main unit to the PROGRESSIVE position. (See page 20)
Blue
*Component video cable
(not supplied)
To COMPONENT
VIDEO INPUT sockets
TV with
progressive-scan
L Y P P
B R
capability
COMPONENT VIDEO INPUT
* Please consult your local audio/video dealer.
