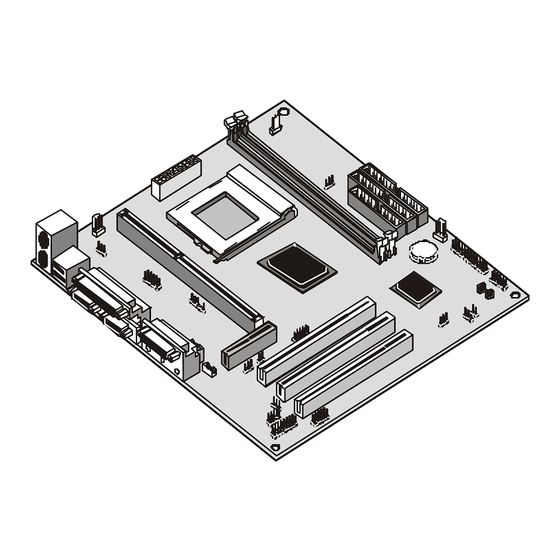

MATSONIC MS7023D Manual
  1. Manuals
  2. Brands
  3. MATSONIC Manuals
  4. Motherboard
  5. MS7023D
  6. Manual

MATSONIC MS7023D Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Important Information

Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved.
Neither this manual, nor any of the material contained herein, may be
reproduced without the express written consent of the manufacturer.
Disclaimer
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Further, the
manufacturer reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft
Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.
VGA, OS/2, PS/2 are registered trademarks of International Business
Machines.
AMD, K5, K6 are registered trademarks of Advanced Micro Devices Inc.
Cyrix, M1 are registered trademarks of Cyrix Corporation.
Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS7023D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MATSONIC MS7023D

Summary of Contents for MATSONIC MS7023D

  • Page 1: Important Information

    Important Information Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. Disclaimer The information in this document is subject to change without notice.

  • Page 2: Canadian Department Of Communications

    Safety Compliance Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    Contents Chapter 1: Introduction ........... 1 Welcome..............1 About the Manual............2 Checklist ..............3 Standard Items -------------------------------------------------------3 Recommendations ............ 3 Features..............4 Chapter 2: Installation..........8 Quick Installation Table..........8 Quick Jumper Setting Reference........ 9 Before You Begin............11 Static Electricity ------------------------------------------------------11 Choosing a Case-----------------------------------------------------11 How to Set Jumpers ------------------------------------------------12...
  • Page 4 Utility Folder Installation Notes ........65 CMI8X38 Folder Installation Notes ......66 Audio Software--------------------------------------------------------66 Modem Driver and Software-------------------------------------67 Peripheral Folder Installation Notes......67 Intel Folder Installation Notes........67 Mainboard (MS7023D) Installation Notes....68 Appendix 1: Quick Jumper Setting Reference..... 68...

  • Page 5: Chapter 1: Introduction

    10BaseT/100BaseTX LAN adapter. The board has three PCI expansion slots and a full set of I/O ports. The MS7023D lets system assemblers create a low-cost, high-performance network-ready workstation using very few additional components.

  • Page 6: About The Manual

    This chapter contains the following information: q About the Manual explains how the information in this manual is organized q Checklist comprises a list of the standard and optional components that are shipped with this mainboard q Recommendations lists some Do’s and Don’ts from the manufacturer to help ensure reliability and performance from this product q Features highlights the functions and components that make this...

  • Page 7: Checklist

    Compare the contents of your mainboard package with the standard checklist below. If any item is missing or appears damaged, please contact the vendor of your mainboard package. Standard Items ü 1 x MS7023D Mainboard ü 1 x Cable/Bracket Pack Diskette drive ribbon cable IDE drive ribbon cable ü...

  • Page 8: Features

    Choice of Intel Processors Functioning as a platform for a value PC, the MS7023D is ideally placed for the installation of PPGA (Plastic Pin Grid Array) Celeron processor. The PPGA Celeron has 32k of internal cache memory, 128K of external cache memory, and operates over a 66MHz system bus.
  • Page 9 audio system or the integrated fax/modem. Finally, the 82802AB Firmware Hub allows the system and video BIOS to be stored (eliminating the need for non-volatile CMOS memory) for faster execution, and provides a random number generator to enable strong encryption routines. Inexpensive Memory The board has two DIMM sockets for the installation of 168-pin, 3.3V non-buffered DIMM memory modules.
  • Page 10 as data transmissions. In order to use the built-in fax/modem, you must install an extension bracket that supplies the RJ11 sockets for LINE and TELEPHONE. Up-to-date Expansion Options This is a micro-sized ATX board with a reduced set of current technology expansion slots.
  • Page 11 Programmable Firmware The mainboard includes Award BIOS which allows BIOS setting of CPU parameters. The fully programmable firmware enhances the system features and allows users to set power management, CPU and memory timing, Modem wake-up alarms, and so on. The firmware can also be used to set parameters for different Celeron processor clock speeds so that you don’t need to change mainboard jumpers and switches.

  • Page 12: Chapter 2: Installation

    Quick Installation Table This chapter explains how to successfully install the mainboard into a computer case and build a working system. The installation procedure is as follows: Quick Jumper Provides a quick reference for the jumper Setting Reference settings on this mainboard. Before you Begin Provides advice on choosing a case, avoiding static electricity damage, and setting...

  • Page 13: Quick Jumper Setting Reference

    Quick Jumper Setting Reference If you are familiar with most of the material in this chapter, you can begin preparing the mainboard for installation by using this quick reference to begin the setting the jumpers. A detailed description of the jumper setting appears later in this chapter.
  • Page 14 JP6: Audio codec select jumper Use this jumper to select if the system uses the audio codec chip integrated on the mainboard, or an audio codec chip located on an optional AMR card. Function Jumper Cap 1 2 3 Turn on onboard codec Short Pins 1-2 Turn off onboard codec Short pins 2-3...

  • Page 15: Before You Begin

    Before You Begin Before you begin to install your MS7023D mainboard, take some precautions to ensure that you avoid the possibility of damage to the product from static electricity. Ensure too that you are installing the mainboard into a suitable case.

  • Page 16: How To Set Jumpers

    How to Set Jumpers A jumper consists of two or more pins mounted on the mainboard. Some jumpers might be arranged in a series with each pair of pins numbered differently. Jumpers are used to change the electronic circuits on the mainboard.

  • Page 17: Preparing The Mainboard

    Preparing the Mainboard Mainboard Guide Use the following illustration and key to identify the components on your mainboard. DIMM2 CPUFAN1 DIMM1 ATX1 PWRFAN1 JP12 Socket-370 IDE2 JP13 FDD1 Slot-1 SIR1 IDE1 CDIN2 CASFAN1 CDIN1 PANEL PCI1 WOL1 PCI2 SPDIF1 PCI3 WOM1...
  • Page 18 Key to Mainboard Components Component Description Slot-1 Slot for Slot-1 processor cartridge Socket-370 Socket for PPGA Celeron Processor PCI 1,2,3 Three 32-bit PCI Slots Slot for an AMR (Audio Modem Riser) card. DIMM 1, 2 Two slots for 168-pin SDRAM memory modules FDD1 Connector for floppy disk drives IDE1, IDE2 Primary and secondary IDE channels...

  • Page 19: I/O Ports Side View

    I/O Ports Side View PS2KBM LPT1 COM1 VGA1 USB1 Key to I/O Ports Component Description PS2KBM1 PS/2 port for pointing device (upper port) PS/2 port for keyboard (lower port) LPT1 External parallel port J2 (Upper) External game/MIDI port J2 (Lower) Audio jacks for (left to right) line out, line in, microphone VGA1 External display monitor port...

  • Page 20: Check The Jumper Settings

    Check the Jumper Settings Check all the mainboard jumpers to ensure that the board is configured correctly. JP13 JP12 JP1 Clear CMOS Memory Jumper This jumper lets you erase the system setup settings that are stored in CMOS memory. You might need to erase this data if incorrect settings are preventing your system from operating.
  • Page 21 JP3: Keyboard Power On Jumper This jumper lets you use a typed-in password as a power switch to turn your system on. If you enable this property, you need to define the password or the hot keys using the setup utility. See Chapter 3. Function Jumper Cap Disable keyboard power on...
  • Page 22 JP6: Select audio codec jumper Use this 3-pin jumper to select if the system uses the audio codec chip installed on the mainboard, or an audio codec chip located on an optional AMR (Audio Modem Riser) card. Function Jumper Cap Turn on onboard codec Short pins 1-2 Turn off onboard codec...

  • Page 23: Install The Mainboard In The Case

    JP13: Select Normal/Flexible setting for socket-370 jumper Use this 2-pin jumper to set the socket-370 to the normal setting or the flexible setting. Some future high-performance socket-370 processors require the flexible setting. Function Jumper Cap JP13 Flexible PGA-370 Short Pins 1-2 Normal Open Pins 1-2 Install the Mainboard in the Case...
  • Page 24 The illustration below shows the mainboard installing into a tower-type case. Power Supply Unit Drive Cage Template Expansion Slots...

  • Page 25: Connecting Power, Chassis Fans, Panel, Auxiliary Usb Ports And Case Open Detect Circuit

    Connecting Power, Chassis Fans, Panel, Auxiliary USB Ports and Case Open Detect Circuit After you have installed the mainboard into the system case, connect the power cable from the case power supply unit to the mainboard power connector ATX1. Connect the chassis/power fans (if your case has them) to the 12V power supply connectors CASFAN1or PWRFAN1 on the mainboard.
  • Page 26 Case Open Detect Alarm If your case has an alarm circuit to detect if the system chassis has been opened, connect the cable from the alarm into the mainboard case open detect circuit through the 2-pin connector J3. J5: Auxiliary USB Connector This mainboard has two built-in USB ports on the rear edge of the board.

  • Page 27: Install Other Hardware

    Install Other Hardware Start installing the essential hardware required to get your system started. Install the Processor This mainboard has a Slot1 processor slot and a Socket-370 processor socket. You can only install one processor however, so you must choose what kind of processor to run on this.
  • Page 28 Intel SEPP Celeron SEPP stands for Single Edge Processor Package. The SEPP Celeron is similar to a Pentium-II except that it only has 128K of external cache memory. The first generation of SEPP Celerons had no external cache memory at all and ran at 266 MHz. These Celerons do not ship currently but are still supported by this mainboard.

  • Page 29: Installing A Slot1 Processor

    Installing a Slot1 Processor This board has a SLOT1 processor cartridge slot. The slot must be installed with a cartridge holder that supports the processor cartridge. The cartridge holder may be already installed on your mainboard with the support brackets folded over. In this case simply pull the support brackets into the upright position.
  • Page 30 Install the Processor Cartridge After you have installed the cartridge holder, follow the instructions supplied with the processor cartridge to insert the cartridge into the holder. If the processor has a cooling fan, connect the power cable of the fan to the power supply connector on the mainboard CPUFAN1. Processor Cartridge CPUFAN1...

  • Page 31: Installing A Socket-370 Processor

    Installing a Socket-370 Processor If you have decided to install the mainboard with a socket-370 processor, follow the steps below. Locate the Socket-370 and CPUFAN1 Socket-370 CPUFAN1 Pin-1 corner Locking lever 1. On the mainboard, locate the socket-370 and CPUFAN1. 2.
  • Page 32 Socket-370 processor with heatsink/cooling Cooling fan fan assembly power cable CPUFAN1 cooling fan power supply Socket-370 with locking lever in upright position The mainboard must be configured to deliver the correct clock speed and the correct system bus for the kind of processor that you have installed.

  • Page 33: Install The Memory Modules

    Install the Memory Modules For this mainboard, you must use 168-pin 3.3V non-buffered Dual In-line Memory Modules (DIMMs). The memory chips must be standard or registered SDRAM (Synchronous Dynamic Random Access Memory). The memory bus runs at 100 MHz, you must install PC-100 memory that also operates over a 100 MHz bus.

  • Page 34: Install A Hard Disk Drive And Cd-Rom

    Install a Hard Disk Drive and CD-ROM This section describes how to install IDE devices such as a hard disk drive and a CD-ROM drive. Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector. If the connector is not keyed make sure that you match the pin-1 side of the cable connector with the pin-1 side of the device connector.
  • Page 35 Installing a Hard Disk Drive 1. Install the hard disk drive into the drive cage in your system case. 2. Plug the IDE cable into the primary IDE channel on the mainboard IDE1. 3. Plug one of the connectors on the IDE cable into the IDE connector on the back edge of the hard disk drive.
  • Page 36 Installing a CD-ROM/DVD Drive 1. Install the CD-ROM/DVD drive into the drive cage in your system case. Plug the IDE cable into the primary IDE channel on the mainboard IDE1. 2. Plug one of the connectors on the IDE cable into the IDE connector on the back edge of the CD-ROM/DVD drive.

  • Page 37: Installing A Floppy Diskette Drive

    Installing a Floppy Diskette Drive The mainboard has a floppy diskette drive interface and it ships with a diskette drive ribbon cable that supports one or two floppy diskette drives. You can install a 5.25” drive or a 3.5 ” drive with various capacities. The floppy diskette drive cable has one type of connector for a 5.25”...

  • Page 38: Using The Expansion Slots

    Using the Expansion Slots This mainboard has three 32-bit PCI expansion slots and one AMR slot. PCI Slot: The PCI slot can be used to install add-in cards that have the 32-bit PCI (Peripheral Components Interconnect) interface. AMR Slot: The AMR (Audio Modem Riser) slot is an industry standard slot that allows for the installation of a special audio/modem riser card.
  • Page 39 6. Secure the metal bracket of the card in the empty slot in the system case with a screw. 7. For some add-in cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the add-in card.

  • Page 40: Add-In Card Options

    Add-in Card Options The mainboard has two features that can be used if you have installed either a fax/modem card or a network adapter card. WOL1: Wake on LAN If you have installed a network adapter (LAN adapter), you can use the cable provided with the card to plug into the WOL1 connector on the mainboard.

  • Page 41: Install Options And Extension Brackets

    Install Options and Extension Brackets This mainboard has a number of special connectors that allow you to add optional features to your system. You can install any of the following items: Fax/modem card option Network adapter extension bracket Infrared port 24-bit digital audio extension bracket (SPDIF) Fax/modem Card You must install the fax/modem card in order to use the built-in...
  • Page 42 The fax/modem card is an optional item supplied with this mainboard. 1. Locate the J4 fax/modem connector on the mainboard. 2. Remove the expansion slot blanking plate from the system chassis that is adjacent to the fax/modem connector. 3. Install the fax/modem card on to the J4 connector as shown below. The RJ11 Line and Telephone sockets on the bracket are positioned in the expansion slot with the removed blanking plate.
  • Page 43 Infrared Port This option can be purchased from third-party vendors. SIR1 1. If you are installing an optional serial infrared port, connect the cable from the optional IR port to the SIR1 connector on the mainboard. 2. After you have connected the cable, secure the optional IR port to the appropriate place on your system case.
  • Page 44 Digital Audio Extension Bracket You can purchase an optional 24-bit digital audio extension bracket from a third-party vendor. You can use the audio RCA jacks to connect to digital audio devices. If your CD-ROM/DVD drive has digital audio output, you can connect it to the input pins of the SPDIF connector. Audio Input Pins SPDIF1...

  • Page 45: Make The External Connections

    Make the External Connections After you have installed the mainboard, make the connections to the external ports. PS2KBM1 LPT1 USB1 COM1 VGA1 1. PS2KBM1 is a stack of two PS/2 mini-DIN ports. The upper port can be used by a PS/2 mouse or pointing device. The lower port can be used by a PS/2 keyboard.

  • Page 46: External Connector Color Coding

    External Connector Color Coding To help identify the external connectors, many connectors now use standard colors as shown in the table below. Connector Color Analog VGA Blue Audio line in Light blue Audio line out Lime Digital monitor / flat panel White IEEE 1394 Grey...

  • Page 47: Chapter 3: Setup

    About the Setup Utility This chapter explains how to use and modify the BIOS setup utility that is stored on the mainboard. The setup utility stores data about the mainboard components and the configuration of devices that are connected to it. This information is used to test and initialize components at start-up time and to make sure everything runs properly when the system is operating.
  • Page 48 Some options (marked with a triangle) lead to tables of items that usually have a value on the right side. The value of the first item is highlighted, and you can use the cursor arrow keys to select any of the other values in the table of items.

  • Page 49: How To Flash A New Bios

    How to Flash a New BIOS You can install an updated BIOS for this motherboard that you can download from the manufacturer’s website. New BIOS may provide support for new peripherals, improvements in performance or fixes to address known bugs. Install a new BIOS as follows: 1.

  • Page 50: Standard Cmos Features Option

    9. In the opening dialog box, type in the filename of the new BIOS and follow the onscreen directions to flash the new BIOS to the motherboard. 10. When the installation is complete, remove the floppy diskette from the diskette drive and restart your computer. If your mainboard has a Flash BIOS jumper, don’t forget to reset the jumper to protect the newly installed BIOS from being overwritten.
  • Page 51 IDE HDD Auto-Detection Press Enter while this item is highlighted if you want the setup utility to automatically detect and configure a hard disk drive on the IDE channel. IDE Primary/Secondary Master/Slave If you leave this item at Auto, the system will automatically detect and configure any IDE devices it finds.

  • Page 52: Advanced Bios Features Setup Option

    Halt On Default: All Errors This item defines the operation of the system POST (Power On Self Test) routine. You can use this item to select which kind of errors in the POST are sufficient to halt the system. Base Memory, Extended Memory, Total Memory These items are automatically detected by the system at start up time.
  • Page 53 External Cache Default: Enabled Most processors that can be installed in this system use external (L2) cache memory to improve performance. The exceptions are older SEPP Celeron CPUs running at 266 or 300 MHz. Enable this item for all but these two processors. CPU L2 Cache ECC Checking Default: Enabled This item enables or disables ECC (Error Correction Code) error checking on the...

  • Page 54: Advanced Chipset Features Option

    Typematic Rate Setting Default: Disabled If this item is enabled, you can use the following two items to set the typematic rate and the typematic delay settings for your keyboard. Typematic Rate (Chars/Sec) Default: 6 If the item Typematic Rate Setting is enabled, you can use this item to define how many characters per second are generated by a held-down key.
  • Page 55 SDRAM CAS latency Time Default: 3 SDRAM Cycle Time Tras/Trc Default: 6/8 SDRAM RAS-to-CAS Delay Default: 3 SDRAM RAS Precharge Time Default: 3 These four items set the timing and wait states for SDRAM memory. We recommend that you leave these items at the default value. System BIOS Cacheable Default: Enabled Video BIOS Cacheable...

  • Page 56: Integrated Peripherals Option

    * On Board Display Cache Setting * The items under this heading are used to set the parameters for Display cache memory which may be optionally installed on your mainboard. If you have display cache memory, we recommend that you leave these items at the default setting.
  • Page 57 IDE Primary Master UDMA Default: Auto IDE Primary Slave UDMA Default: Auto IDE Secondary Master UDMA Default: Auto IDE Secondary Slave UDMA Default: Auto Each IDE channel supports a master device and a slave device. This motherboard supports UltraDMA. UltraDMA technology provides faster access to IDE devices.
  • Page 58 Onboard FDC Controller Default: Enabled Use this item to turn on or off the floppy disk controller that is built into this mainboard. Onboard Serial Port 1 Default: 3F8/IRQ4 This item lets you disable the built-in serial port 1, or enable it by assigning an I/O address and an Interrupt Request Line (IRQ).

  • Page 59: Power Management Setup Option

    Power Management Setup Option This option displays items that let you control the system power management. Modern operating systems take care of much of the power management. This mainboard supports ACPI (advanced configuration and power interface). The system has various power saving modes including powering down the hard disk, turning off the video, suspending to RAM, and a software power down that allows the system to be automatically resumed by certain events.
  • Page 60 ACPI Function Default: Enabled This mainboard supports ACPI (Advanced Configuration and Power management Interface). Use this item to enable or disable the ACPI feature. ACPI Suspend Type Default: S1 (POS) Use this item to define how your system suspends. In the default, S1(POS), the suspend mode is equivalent to a software power down.
  • Page 61 Wake Up by PCI Card Default: Disabled If you enable this item, it allows activity on an add-in card in one of the PCI slots to resume the system from a power-saving mode. Power On by Ring Default: Disabled If this item is enabled, it allows the system to resume from a software powerdown or a power-saving mode whenever there is an incoming call to an installed fax/modem.

  • Page 62: Pnp/Pci Configuration Option

    PNP/PCI Configuration Option This option displays a table of items that configures how PNP (Plug and Play) and PCI expansion cards operate in your system. Reset Configuration Data Default: Disabled If you enable this item and restart the system, any PNP configuration data stored in the BIOS setup is cleared from memory.

  • Page 63: Pci Health Status Option

    PCI/VGA Palette Snoop Default: Disabled This item is designed to overcome some problems that can be caused by some non-standard VGA cards. This board includes a built-in VGA system that does not require palette snooping so you must leave this item disabled. PCI Health Status Option On mainboards which support hardware monitoring, this item lets you set parameters for critical voltages, critical temperatures, and fan speeds.

  • Page 64: Frequency Voltage Control Option

    Frequency Voltage Control Option This item allows you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system. Auto Detect DIMM/PCI Clk Default: Enabled When this item is enabled, BIOS will disabled the clock signal of free DIMM and PCI slots.

  • Page 65: Load Fail-Safe Defaults Option

    Load Fail-Safe Defaults Option This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the whole setup utility. Press the Y key and then Enter to install the defaults. Press the N key and then Enter to not install the defaults.

  • Page 66: Save And Exit Setup Option

    press Enter, or just press Enter if you are deleting a password that is already installed. 5. If you typed the password correctly, the password will be installed. Save And Exit Setup Option Highlight this item and press Enter to save the changes that you have made in the setup utility and exit the setup program.

  • Page 67: Chapter 4: Software

    The folder for this mainboard is stored in the MS7023D folder. Note: Never try to install software from a folder that is not specified for use with your mainboard.
  • Page 68 WINDOWS NT 4.0 IDE Driver: This folder has software for configuring the hardware IDE channels when using Windows NT 4.0. MS7023D Folder You can use the software in the following sub-folders: q MONITOR : Hardware monitoring software for Windows 95/98, and Windows NT4.0/5.0...

  • Page 69: Running The Support Cd-Rom

    Running the Support CD-ROM 1. Place the disk in your CD-ROM drive. If you are running Windows with Autoplay enabled, the opening screen of the CD appears automatically. Click on READ ME to read the latest instructions. 2. Click on the item BROWSE THE CD TITLE. This uses Windows Explorer to show the contents of the support CD.

  • Page 70: Cmi8X38 Folder Installation Notes

    PC-Cillin Anti-Virus Utility Anti-virus software is provided for DOS, for WIN95, and WIN 98. Log on to the appropriate directory for your operating system. For DOS, copy all the files in the DOS folder to your hard disk drive. For Windows 95, log on to the Disk 1 folder and run SETUP.

  • Page 71: Modem Driver And Software

    Modem Driver and Software Install the Modem driver from the sub-folders for Windows 95/98 or Windows NT4.0. Windows 95/98 The modem is a plug and play device so Windows 95/98 will automatically detect the presence of your modem. When the Plug and Play wizard begins to look for modem drivers, click on the button that says Have Disk and then browse or type in the pathname to the CMI8x58\modem\win9x folder.

  • Page 72: Mainboard (Ms7023D) Installation Notes

    Mainboard (MS7023D) Installation Notes Most of the sub-folders in this folder are empty, with a short README file giving directions to alternate folders for the appropriate software. Two folders contain software that you can install. Monitor Sub-folder The software in this folder provides a graphical interface to the hardware monitoring feature of this mainboard.

  • Page 73: Appendix 1: Quick Jumper Setting Reference

    Appendix 1: Quick Jumper Setting Reference JP1: Clear CMOS memory jumper Use this 3-pin jumper top clear all the current data stored in the CMOS memory. Function Jumper Cap Normal operation Short pins 1-2 Clear CMOS Short pins 2-3 JP3: Keyboard power on jumper Use this 3-pin jumper to enable keyboard power on with hot keys or password.
  • Page 74 JP6: Audio codec select jumper Use this jumper to select if the system uses the audio codec chip integrated on the mainboard, or an audio codec chip located on an optional AMR card. Function Jumper Cap 1 2 3 Turn on onboard codec Short Pins 1-2 Turn off onboard codec Short pins 2-3...
  • Page 75 Panel Connector The mainboard PANEL connector has a standard set of switch and indicator connectors that are commonly found on ATX system cases. Use the illustration below to make the correct connections to the case switches and indicators. PANEL 22 21 Power SW 21-22 SMI Button 19-20 Reset SW 17-18...
