To program a multi-fixture chase
1 Connect the fixtures and Detonator.
2 Select the fixture to start the flash sequence and set it to master mode as
described above.

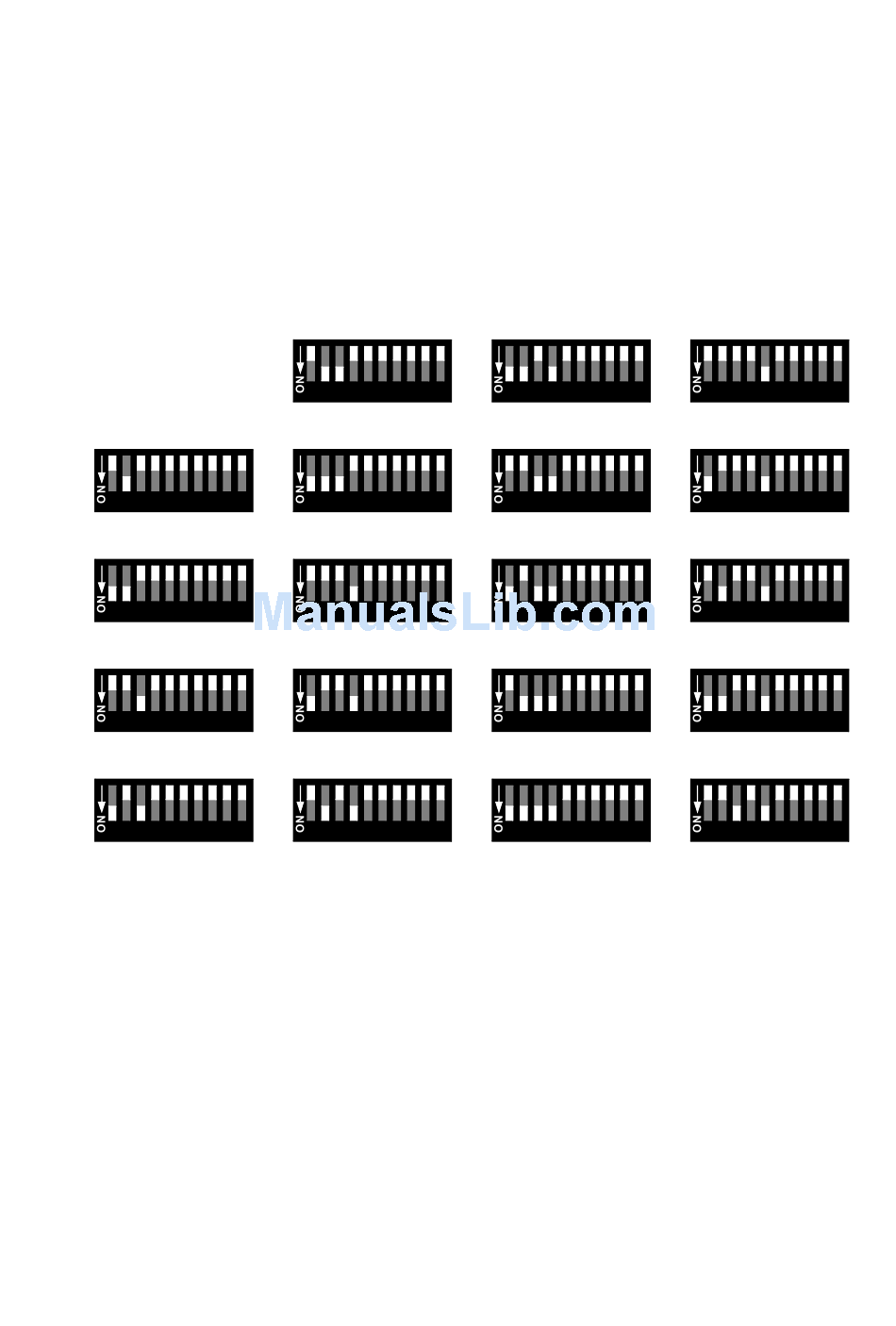

3 Set the number of fixtures in the chase on the master fixture's Address DIP
switch. There may be 2 to 20 fixtures in a chase.
4 Set each additional fixture to slave mode on its Mode DIP switch. On its
address DIP switch, set the slave's position in the chase sequence. Set 2 on
the second fixture to flash, 3 on the third fixture, and so on up to 20.
