D M X
The DMX control options are selected on the Mode DIP switch.
1-channel DMX mode allows you to strobe from 0
flashes per second to the maximum flash rate and
trigger the blinder effect from the controller. To select
1-channel DMX operation, set pin 5 of the Mode DIP
switch to on; set pins 1 to 4 to off.
3-channel DMX mode provides control of flash
intensity, flash duration, and flash rate for more
advanced control than 1-channel mode. To select 3-
channel DMX operation, set pins 1 to 5 of the Mode
DIP switch to off.
4-channel DMX mode provides six special effects in
addition to flash intensity, duration, and rate control. To
select this 4-channel DMX operation, set pins 1, 2, 3,
and 5 to off; set pin 4 to on.
C
O N T R O L A D D R E S S
The control address, also known as the start channel, is the first channel used to
receive instructions from the controller. The address may be any channel from 1
to 511 and is set on the Address DIP switch.
The Atomic 3000 uses 1, 3, or 4 channels depending on the control mode. For
independent control, each fixture must be assigned its own address and non-
overlapping control channels. Two or more Atomic 3000s may share the same
address if individual control is not required.
To set the DMX addr ess
1 Select an address for the fixture on your controller. Look up the DIP switch
setting for the address in the table below.
2 Set pins 1 through 9 ON (1) or OFF (0) as listed in the table. Set pin 10 to OFF.
Atomic 3000 user manual

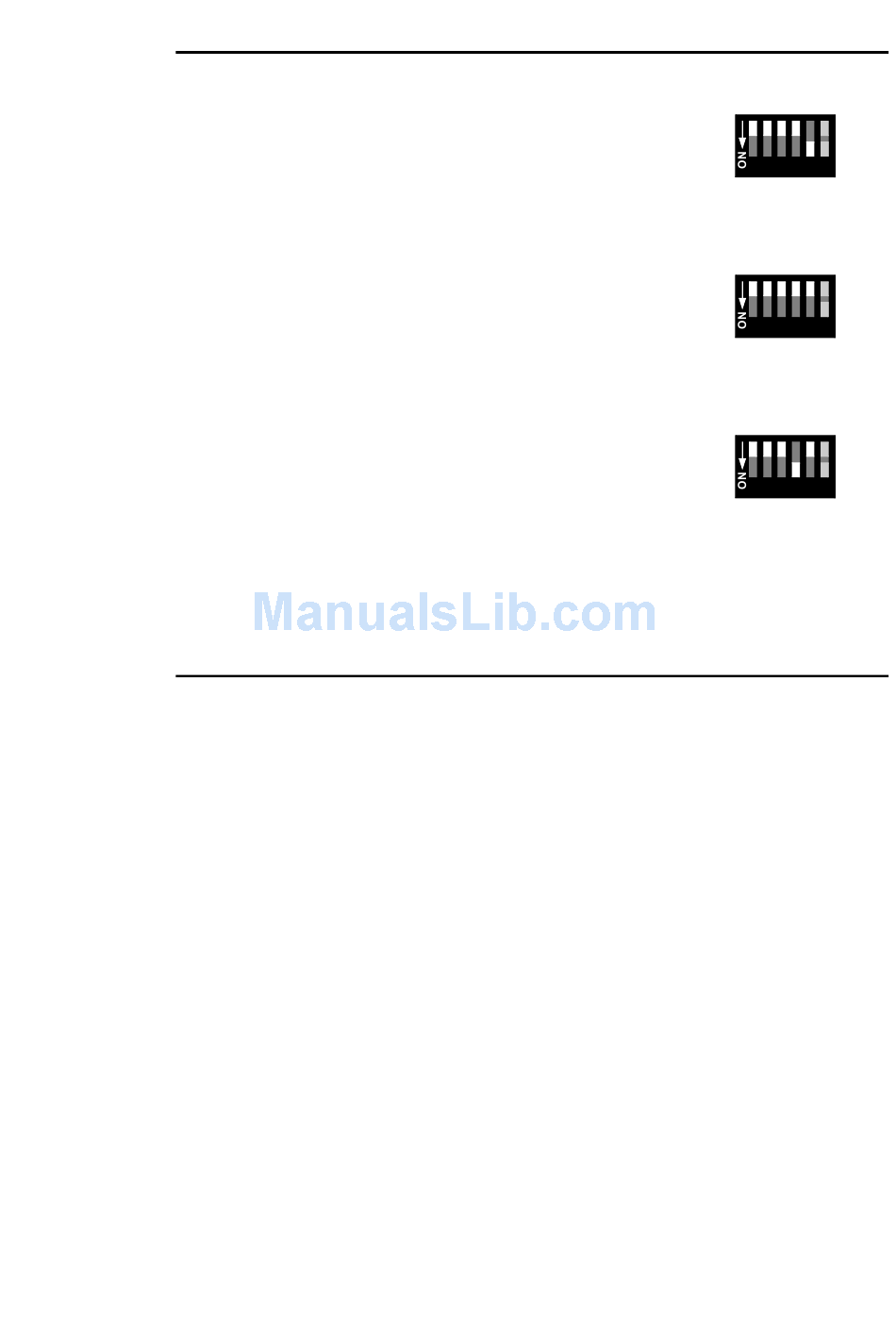

C O N T R O L M O D E S
Controller operation
1
2 3 4 5
6
1-channel DMX
mode setting
1
2 3 4 5
6
3-channel DMX
mode setting
1
2 3 4 5
6
4-channel DMX
mode setting
13
