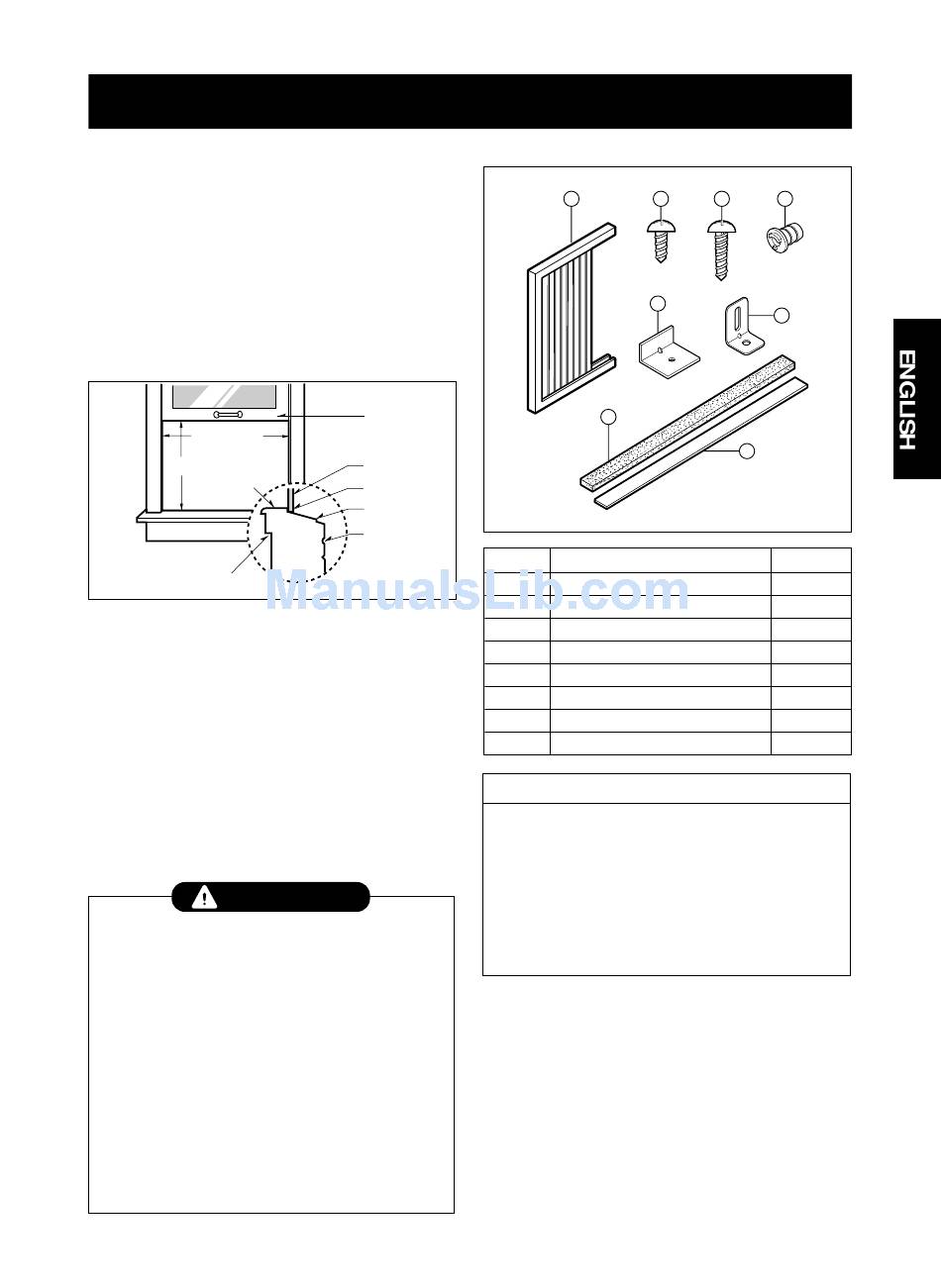

INSTALLATION REQUIREMENTS

Your air conditioner will install into standard double
hung windows with actual clear opening widths of
22 to 36 inches (558mm to 914mm) (FIG. 1).
Lower sash must open sufficiently to allow a clear
vertical opening of 13 inches (330mm). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
22" to 36"
13" min
Inner sill
Interior wall
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown on
the unit nameplate (found on left side of cabinet).
All models are equipped with a 3-prong service plug to
provide proper service and safe positive grounding. Do
not change plug in any way. Do not use an adapter
plug. If your present wall outlet does not match your
plug, call a qualified electrician to make the necessary
corrections. SAVE CARTON and this OWNER'S
MANUAL for future reference. The carton is the best
way to store unit during winter or when not in use.
CAUTION
To avoid risk of personal injury, property damage, or
product damage due to the weight of this device and
sharp edges that may be exposed:
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• Carefully inspect location where air conditioner will
be installed. Be sure it will support the weight of
the unit over an extended period of time.
• Handle air conditioner with care. Wear protective
gloves whenever lifting or carrying the unit. AVOID
the sharp metal fins of front and rear coils.
• Make sure air conditioner does not fall during

installation.

INSTALLATION
INSTALLATION HARDWARE
Sash
Winddow
Offset
Sill
Exterior
ITEM
FIG. 1
A
B
C
D
E
F
G
H
REQUIRED TOOLS:
• Tight Fitting gloves
• Standard screwdriver
• Phillips screwdriver
• Pliers
• Sharp knife
- 5 -
F
A
B
C
E
D
NAME OF PARTS
SHORT SCREW
WOOD SCREW
L BRACKET
FOAM STRIP
FOAM SEAL
SIDE CURTAIN
DRAIN PIPE
SUPPORT BRACKET
• 3/8-inch open end
wrench or adjustable
wrench
• 1/4-inch hex socket
and ratcher
• Tape measure
• Electric drill
• 1/4-inch drill bit
G
H
Q'TY
11
5
3
1
1
2
1
1
