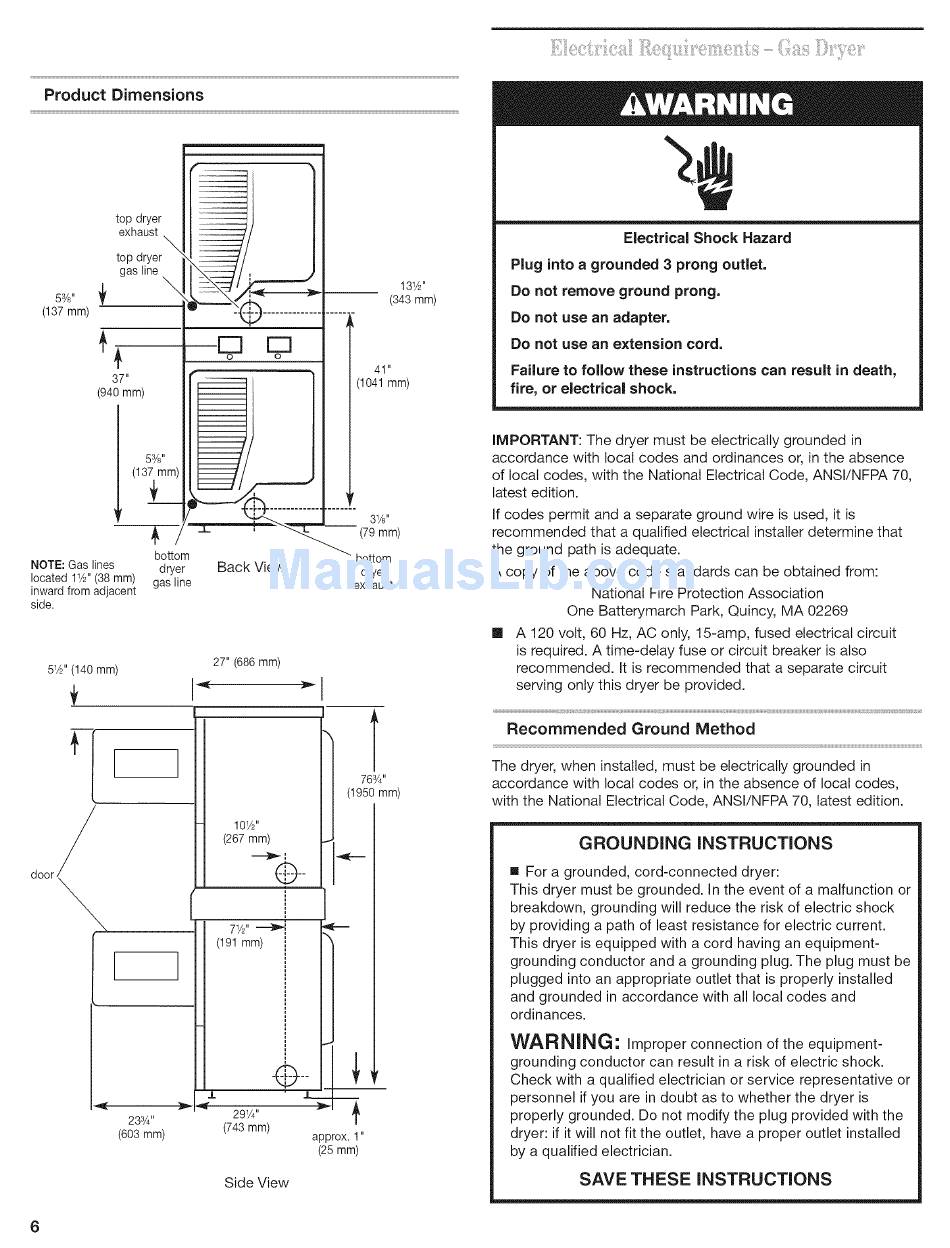

Product
Dimensions
53/8 ''
(137 mm)
top dryer
exhaust
\
top dryer
gasline
+
37"
(940 mm)
53/8 ''
(13_mm)
NOTE: Gas lines
located 11/2 '' (38 mm)
inward from adjacent
side.
bottom
dryer
gas line
131A"
(343 mm)
41"
(1041mm)
31/8.
'
(79mm)
bottom
Back View
dryer
exhaust
51/2 '' (140 mm)
door_
233/4''
(603 mm)
27" (686 mm)
101/2 ''
(267 mm)
----}_
_
@--
71/2 ''
(191mm)
J.
T
763/4 ''
(1950 mm)
m
O
291/4,,
_"
(743mm)
approx. 1"
(25mm)
Side View
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical
shock.
IMPORTANT: The dryer must be electrically grounded in
accordance with local codes and ordinances or, in the absence
of local codes, with the National Electrical Code, ANSl/NFPA 70,
latest edition.
if codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park, Quincy, MA 02269
[]
A 120 volt, 60 Hz, AC only, 15-amp, fused electrical circuit
is required. A time-delay fuse or circuit breaker is also
recommended,
it is recommended
that a separate circuit
serving only this dryer be provided.
Recommended
Ground
Method
The dryer, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSl/NFPA 70, latest edition.
GROUNDING
INSTRUCTIONS
[] For a grounded, cord-connected
dryer:
This dryer must be grounded, in the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
WARNING:
improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative or
personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with the
dryer: if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
SAVE THESE
INSTRUCTIONS
