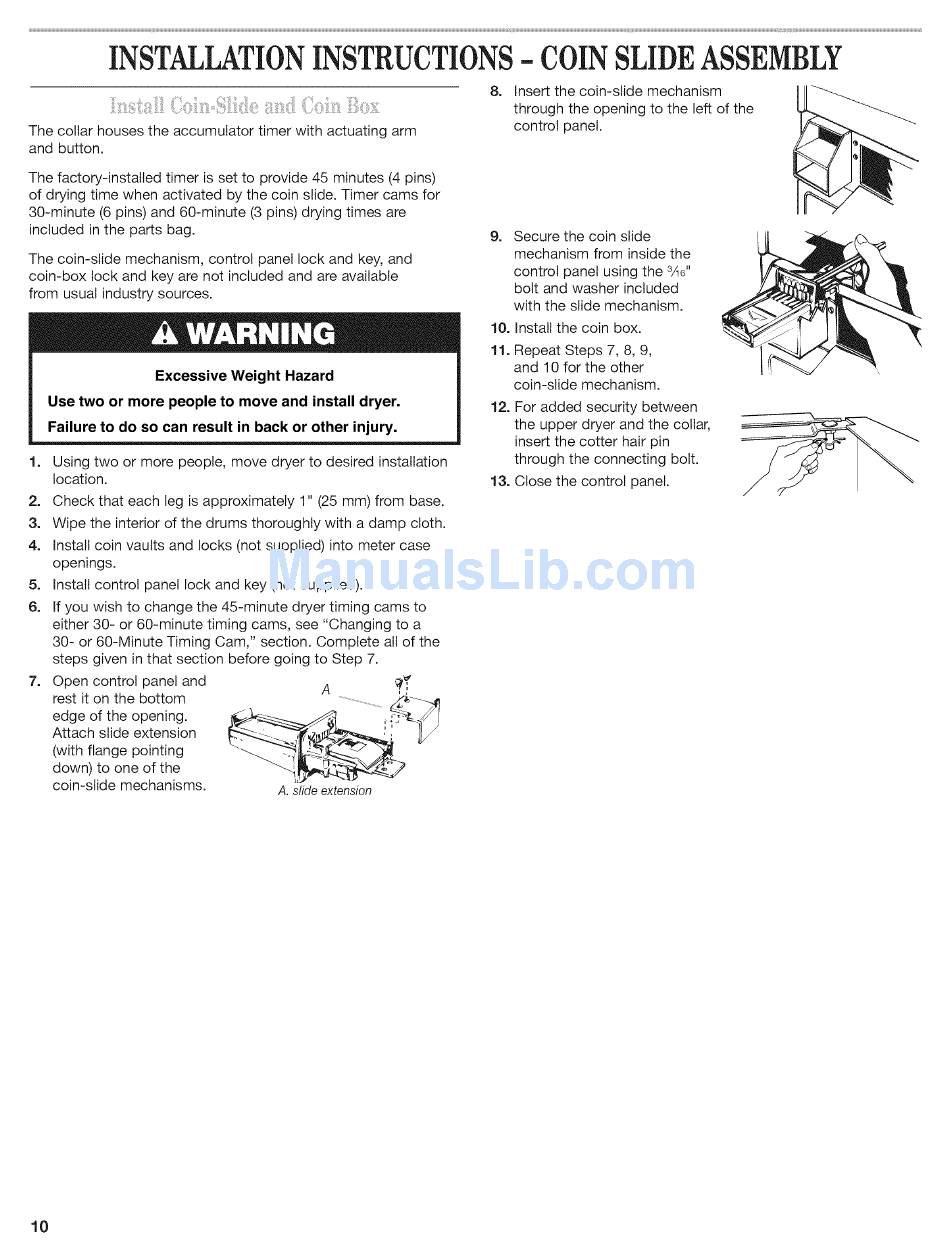

INSTALLATION INSTRUCTIONS - COINSLIDEASSEMBLY
The collar houses the accumulator timer with actuating arm
and button.
8=
Insert the coin-slide mechanism
through the opening to the left of the
control panel.
The factory-installed
timer is set to provide 45 minutes (4 pins)
of drying time when activated by the coin slide. Timer cams for
30-minute (6 pins) and 60-minute (3 pins) drying times are
included in the parts bag.
The coin-slide mechanism, control panel lock and key, and
coin-box lock and key are not included and are available
from usual industry sources.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1=
Using two or more people, move dryer to desired installation
location.
2. Check that each leg is approximately
1" (25 mm) from base.
3. Wipe the interior of the drums thoroughly with a damp cloth.
4. Install coin vaults and locks (not supplied) into meter case
openings.
5. Install control panel lock and key (not supplied).
6. If you wish to change the 45-minute dryer timing cams to
either 30- or 60-minute timing cams, see "Changing to a
30- or 60-Minute Timing Cam," section. Complete all of the
steps given in that section before going to Step 7.
7=
Open control panel and
A
,,
rest it on the bottom
edge of the opening.
___
Attach slide extension
(with flange pointing
down) to one of the
coin-slide mechanisms.
A. slideextension
X
9. Secure the coin slide
mechanism from inside the
control panel using the ,_A0"
bolt and washer included
with the slide mechanism.
10. Install the coin box.
11. Repeat Steps 7, 8, 9,
and 10 for the other
coin-slide mechanism.
12. For added security between
the upper dryer and the collar,
insert the cotter hair pin
through the connecting bolt.
13. Close the control panel.
10
