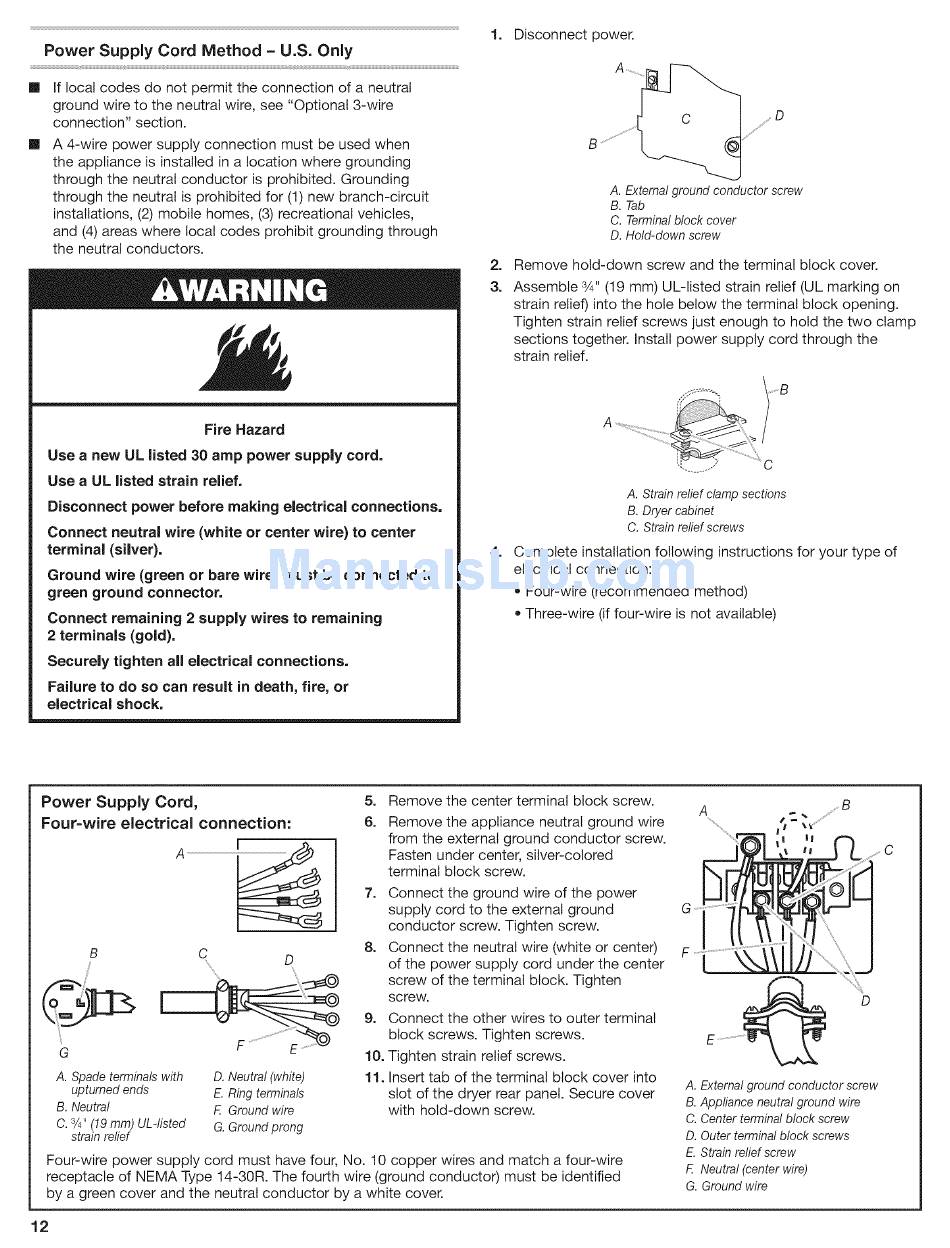

1. Disconnect power.
Power
Supply
Cord Method
= U.S. Only
[]
[]
If local codes do not permit the connection of a neutral
ground wire to the neutral wire, see "Optional 3-wire
connection"
section.
A 4-wire power supply connection must be used when
the appliance is installed in a location where grounding
through the neutral conductor is prohibited. Grounding
through the neutral is prohibited for (1) new branch-circuit
installations, (2) mobile homes, (3) recreational vehicles,
and (4) areas where local codes prohibit grounding through
the neutral conductors.
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal
(silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals
(gold).
Securely tighten
all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
2=
3.
A. External ground conductor screw
B. Tab
C. Terminal block cover
D. Hold-down screw
Remove hold-down screw and the terminal block cover.
Assemble 3A" (19 mm) UL-listed strain relief (UL marking on
strain relief) into the hole below the terminal block opening.
Tighten strain relief screws just enough to hold the two clamp
sections together. Install power supply cord through the
strain relief.
4=
A. Strain relief clamp sections
B. Dryer cabinet
C. Strain relief screws
Complete installation following instructions for your type of
electrical connection:
• Four-wire (recommended method)
Three-wire (if four-wire ts not available)
Power
Supply Cord,
Four=wire
electrical
connection:
G
B
J
s
D
.... •
E", _
A. Spade terminals with
D. Neutral (white)
upturned ends
E. Ring terminals
B. Neutral
F. Ground wire
C. ¾" (19 mm) UL-fisted
G.Ground prong
strain relief
5. Remove the center terminal block screw.
6. Remove the appliance neutral ground wire
from the external ground conductor screw.
Fasten under center, silver-colored
terminal block screw.
7. Connect the ground wire of the power
supply cord to the external ground
conductor screw. Tighten screw.
8. Connect the neutral wire (white or center)
of the power supply cord under the center
screw of the terminal block. Tighten
screw.
9. Connect the other wires to outer terminal
block screws. Tighten screws.
10. Tighten strain relief screws.
11. Insert tab of the terminal block cover into
slot of the dryer rear panel. Secure cover
with hold-down screw.
Four-wire power supply cord must have four, No. 10 copper wires and match a four-wire
receptacle of NEMA Type 14-30R. The fourth wire (ground conductor) must be identified
by a green cover and the neutral conductor
by a white cover.
0
E ......................
A. External g roundconductorscrew
B. Applianceneutralground wire
C. Centerterminal b lock screw
D. Outerterminalblock screws
E. Strainreliefscrew
F. Neutral(centerwire)
G. Groundwire
12
