Whirlpool CSP2940 Installation Instructions Manual

Commercial stacked dryer gas (120 v, 60 hz) or electric (120/240 v, 60 hz)

Hide thumbs

page of 36

/ 36
Bookmarks

Quick Links

Download this manual

CSP2940

CSP2970

CSP2941

CSP2971

TABLE OF CONTENTS

DRYER SAFETY ............................................................................2

TOOLS & PARTS ...........................................................................5

DIMENSIONS/CLEARANCES ...................................................6

LOCATION REQUIREMENTS ....................................................7

GAS DRYER ELECTRICAL REQUIREMENTS .......................8

GAS REQUIREMENTS ...............................................................9

ELECTRIC DRYER ELECTRICAL

REQUIREMENTS (U.S.A. ONLY) ............................................10

DRYER VENTING REQUIREMENTS ......................................12

INSTALLING LEVELING LEGS .................................................15

LEVELING ......................................................................................16

GAS SUPPLY CONNECTION ...................................................16

ELECTRIC DRYER ELECTRICAL

CONNECTIONS (FOR U.S.A. ONLY) .....................................18

COMPLETE INSTALLATION .....................................................24

REVERSING DRYER DOOR SWING (OPTIONAL) ............25

MAINTENANCE INSTRUCTIONS ...........................................26

IF YOU NEED ASSISTANCE ....................................................26

ELECTRONIC CONTROL SETUP INSTRUCTIONS ............27

WARRANTY ..................................................................................33

INSTALLATION

INSTRUCTIONS

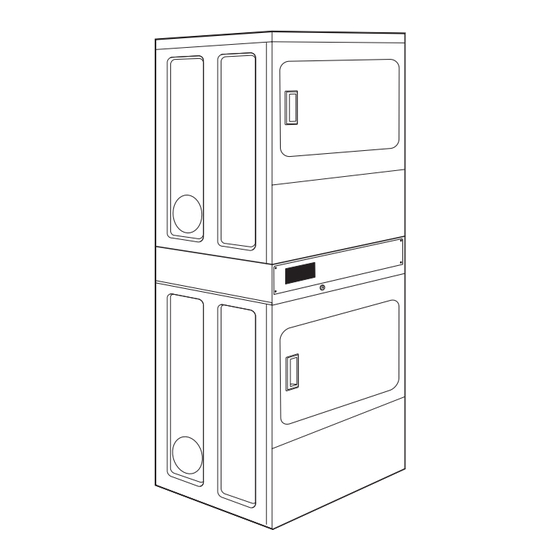

Commercial Stacked

Dryer Gas (120 V, 60 Hz)

or Electric

(120/240 V, 60 Hz)

www.whirlpoolcommerciallaundry.com

W11255762B

W11255763B-SP

Need help?

Do you have a question about the CSP2940 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool CSP2940

Page 1 INSTALLATION INSTRUCTIONS Commercial Stacked Dryer Gas (120 V, 60 Hz) or Electric (120/240 V, 60 Hz) CSP2940 CSP2970 CSP2941 CSP2971 TABLE OF CONTENTS DRYER SAFETY ................2 TOOLS & PARTS ................5 DIMENSIONS/CLEARANCES ...........6 LOCATION REQUIREMENTS ............7 GAS DRYER ELECTRICAL REQUIREMENTS .......8 GAS REQUIREMENTS ...............9...
Page 2 DRYER SAFETY ■ It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer smells gas. This information should be obtained from your gas supplier. Post the following warning in a prominent location. ■...
Page 3 DRYER SAFETY WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Page 4 DRYER SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following: Read all instructions before using the dryer. Do not install or store the dryer where it will be exposed to ■...
Page 5 TOOLS & PARTS Tools Needed: 8" (200 mm) 8" (200 mm) or 10" (250 mm) Flat-blade screwdriver Phillips screwdriver or 10" (250 mm) Adjustable wrench Pipe wrench that opens to 1" (25 mm) TORX security 1" (25 mm) Hex-head 5/16" (8 mm) Socket wrench Pliers (that open to ®...
Page 6 DIMENSIONS/CLEARANCES Dimension: Front View Side View Back View 27" (686 mm) " (1950 mm) PD Models (1950 mm Coin Models " Coin Models (1886 mm) Coin Models Non-Coin / Card-Ready Models Non-Coin / Card-Ready Non-Coin / Models Card-Ready Models Minimum Clearance: Front View, Recessed Opening Side View, Recessed In Closet 0"...
Page 7 LOCATION REQUIREMENTS When installing a gas dryer: WARNING IMPORTANT: Observe all governing codes and ordinances. Check code requirements: Some codes limit or do not permit ■ installation of clothes dryers in garages, closets, or sleeping quarters. Contact your local building inspector. Make sure that lower edges of the cabinet, plus the back and ■...
Page 8 GAS DRYER ELECTRICAL REQUIREMENTS Gas Dryer Grounding IMPORTANT: The dryer must be electrically grounded in accordance with local codes and ordinances or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, latest edition, or Canadian Electrical Code, CSA C22.1. If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate.
Page 9 GAS REQUIREMENTS Gas Supply WARNING Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve. Securely tighten all gas connections. If connected to propane, have a qualified person make sure gas pressure does not exceed 13" (33 cm) water column.
Page 10 ELECTRIC DRYER ELECTRICAL REQUIREMENTS (U.S.A. ONLY) It is your responsibility: Electric Dryer Grounding To contact a qualified electrical installer. ■ To be sure that the electrical connection is adequate and in ■ conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances. ■...
Page 11 ELECTRIC DRYER ELECTRICAL REQUIREMENTS (U.S.A. ONLY) Electric Dryer Power Supply Cord Direct Wire WARNING WARNING Fire Hazard Fire Hazard Use 10 gauge copper wire. Use a new UL listed 30 amp power supply cord. Use a UL listed strain relief. Use a UL listed strain relief.
Page 12 DRYER VENTING REQUIREMENTS Elbows: WARNING 45° elbows provide better airflow than 90° elbows. ■ Better Good Fire Hazard Use a heavy metal vent. Do not use a plastic vent. Do not use a metal foil vent. Failure to follow these instructions can result in death or fire.
Page 13 DRYER VENTING REQUIREMENTS Vent Hoods 4" (102 mm) Diameter Exhaust Hoods Exhaust hood must be at least 12" (305 mm) from the ground or any object that may be in the path of the exaust (such as flowers, rocks, bushes, or snow). Box hood Louvered hood Angled hood...
Page 14 DRYER VENTING REQUIREMENTS If an Exhaust Hood Cannot be Used Multiple Dryer Venting The outside end of main vent should have a sweep elbow directed A main vent can be used for venting a group of dryers. The main vent downward.
Page 15 INSTALLING LEVELING LEGS 2. Screw in leveling legs Examine leveling legs and find diamond marking. Screw legs into leg holes by Diamond hand. Use an adjustable wrench or Marking 1'' (25 mm) hex-head socket wrench to finish turning legs until diamond marking is no longer visible.
Page 16 LEVELING Leveling your dryer properly reduces excess noise and vibration. 2. Grip dryer from top and rock back and forth, making sure all four feet are firmly on floor. Repeat, rocking dryer from side to side. If dryer rocks, adjust leveling feet. 1.
Page 17 GAS SUPPLY CONNECTION Type of Gas This dryer is equipped for use with natural gas. It is certified by UL for use with propane gas with appropriate conversion. No attempt shall be made to convert dryer from gas specified on serial/rating plate for use with a different gas without consulting the serving gas supplier.
Page 18 ELECTRIC DRYER ELECTRICAL CONNECTIONS (FOR U.S.A. ONLY) Power Supply Cord Connection Remove Terminal Block Cover WARNING Fire Hazard Use a new UL listed 30 amp power supply cord. Use a UL listed strain relief. Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center Before you start, disconnect power.
Page 19 ELECTRIC DRYER ELECTRICAL CONNECTIONS Power Supply Cord Connection (cont.) 2. Insert power cord into strain relief. Put power supply cord through the strain relief. Be sure that the wire insulation on the power supply cord is inside the strain relief. The strain relief should have a tight fit with the dryer cabinet and be in a horizontal position.
Page 20 ELECTRIC DRYER ELECTRICAL CONNECTIONS Connecting 3-Wire Connection: Power Supply Cord (cont.) 2. Connect white neutral wire (white or center) (D) to center 3. Connect remaining wires with outer terminal block screws (F). terminal block. Tighten screw. Tighten screws. Finally, re-install terminal block cover and tighten hold-down screw.
Page 21 Remove Terminal Block Cover 2. Insert conduit into strain relief and tighten clamp. Put direct wire cable through the strain relief. The strain relief should have a tight fit with the dryer cabinet and be in a horizontal position. Tighten strain relief screw against the direct wire cable. Before you start, disconnect power.
Page 22 ELECTRIC DRYER ELECTRICAL CONNECTIONS Connecting 4-Wire Connection: Direct Wire IMPORTANT: A 4-wire connection is required where local codes do Connecting Direct Wire Ground not permit the use of 3-wire connections. 3. Connect ground wire (green or bare) (E) with external ground Direct wire cable must have 5 ft.
Page 23 ELECTRIC DRYER ELECTRICAL CONNECTIONS Connecting 3-Wire Connection: Direct Wire Use where local codes permit connecting cabinet-ground conductor to neutral wire. Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer can be moved if needed. Strip 31⁄2" (89 mm) of outer covering from end of cable. Strip insulation back 1"...
Page 24 COMPLETE INSTALLATION 1. Check the electrical requirements. Be sure that you have the 7. Open the dryer door. Check that the inside of the dryer is warm. correct electrical supply and the recommended grounding If the burner does not ignite and you can feel no heat inside method.
Page 25 REVERSING DRYER DOOR SWING (OPTIONAL) You can change your door swing from a right-side opening to 7. Be certain to keep cardboard spacer centered between doors. left-side opening, if desired. Reattach outer door panel to inner door panel so handle is on the side where hinges were just removed.
Page 26 MAINTENANCE INSTRUCTIONS Clean lint screen before and after each cycle. ■ If dryer does not operate, check the following: Removing accumulated lint: ■ Electrical supply is connected. ■ From inside the dryer cabinet: Circuit breaker is not tripped or house fuse is not blown. ■...
Page 27 The machines come minutes are displayed. pre-configured from the factory: MODEL CSP2940/41 are PD (coin drop or free vend see Accumulator Pricing note):These models are configured for 30 min dryer cycle time at a If the price is set to one coin 1, then accumulator pricing is in effect cost of $1.50 per cycle as default from factory.
Page 28 Fixed Cycle With Top Off Pricing A dryer set to offer “Top Off” capability will allow time to be added to an existing dry cycle in increments equal to the number of minutes of dry time per quarter (coin 1), up to the maximum minutes, regardless of the cost required to start the dryer.
Page 29 ELECTRONIC CONTROL SETUP INSTRUCTIONS Control Setup Procedures Code Explanation IMPORTANT: Read all instructions before operating. REGULAR CYCLE PRICE The fabric setting buttons along with the digital display are used to Mode 6 allows you to set up how many quarters (coin 1) you want set up the dryer controls.
Page 30 ELECTRONIC CONTROL SETUP INSTRUCTIONS OPTIONS 3.XX – 9.XX TO USE IF SPECIAL PRICING Code Explanation IS SELECTED. If not in special pricing these options Mode 1.00 turns on how much money machine has collected if you are ignored and defaults back to Mode 6 & 7 times. would like to keep track of that.
Page 31 ELECTRONIC CONTROL SETUP INSTRUCTIONS Code Explanation Code Explanation 7. 00 SPECIAL PRICE START HOUR b. 05 VALUE OF COIN 1 NOTE: Uses military time or 24 hr. clock. Mode b is where you set up how much 1 coin value is in nickles for coin1 input-this is the default (i.e.
Page 32 ELECTRONIC CONTROL SETUP INSTRUCTIONS Code Explanation END of SETUP PROCEDURES J. Cd PAYMENT MODE (COIN/DEBIT OPTION) EXIT FROM SETUP MODE Mode J is the mode that the control is in, a PD model Stacked Models: Turn access panel key back to original =JCd(default) and a PR model =_d (default) for debit.
Page 33 DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.
Page 34 NOTES...
Page 35 NOTES...
