- Page 1 User Guide...
-
Page 2: Table Of Contents
Contents Welcome inspiro inspiro and accessories Important inspiro figures Operating time and charging Operating range (FM transmission) Controls Getting started Charging inspiro Low battery alarms Wearing inspiro Attaching the clip to the inspiro Attaching the lavalier to the inspiro Wearing iLapel iLapel wearing position Wearing iBoom Switch ON inspiro... - Page 3 Using inspiro Talking SoundCheck Muting the microphone Using inspiro with an MP3 player, TV set, GPS, computer or HiFi Synchronizing receivers Individual inspiro configuration Setting the alarm time Setting the preferred date format Adjusting the settings of the LCD display Selecting a desktop picture Selecting your language Brief description of the menu items...
- Page 4 Contents DynaMic DynaMic and accessories Important DynaMic figures Operating time and charging Operating range (FM transmission) Controls Getting started Charging DynaMic Battery status indication Vibration alarm indication Switch ON DynaMic Using DynaMic Common use situations Passaround microphone Talking Colored rings DynaMic DataLogging FM Programming The MultiTalker Network in school...
- Page 5 How to use a MultiTalker Network Leaving a MultiTalker Network Practical tips FM receivers The MLxi Lock MLxi Push button Identifying receivers Other Phonak FM receivers Troubleshooting inspiro DynaMic Important notices Service and warranty Declaration of conformity Phonak distributors worldwide...
-
Page 6: Welcome
Soft keys, an alarm clock, different wearing options and a wealth of other details reflect Phonak’s passion for user friendliness. DynaMic, the inspiro passaround microphone, is designed to work exclusively alongside inspiro in the MultiTalker Network. - Page 7 FM systems aim to provide assistance in daily life. J www.phonak.com This is Phonak home page. Go on the product section and click on the FM systems. You can find useful information about inspiro and DynaMic as well as FM receivers.
-
Page 8: Inspiro

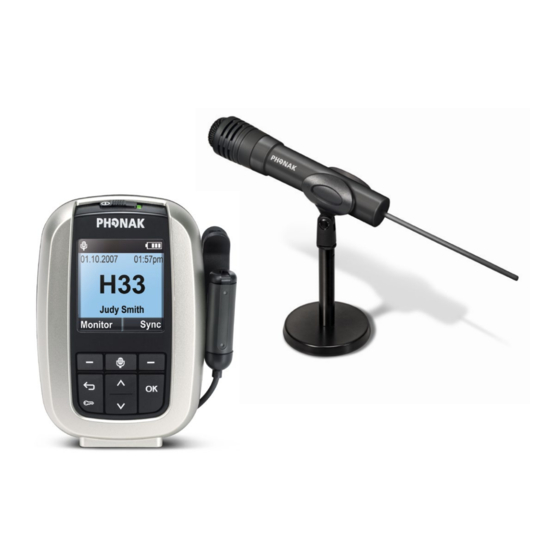

inspiro inspiro and accsessoires inspiro is delivered with either the iBoom or the iLapel microphone, depending on the customer wish. All the accessories can also be ordered separately. a inspiro b Microphones: iBoom or iLapel c inspiro wearing options: Belt clip and lavalier cord d Audio cable e Charging unit f Home and travel case... -
Page 9: Important Inspiro Figures
Important inspiro figures Operating time and charging: J Operating time when the battery is fully charged: e approx. 12 hours J Charging time for an 80% charge: e approx. 1 hour J Charging time for a 100% charge: e approx. 2 hours Operating range (FM transmission): J Inside a building: e approx. -
Page 10: Controls
Controls inspiro a ON/OFF slider 01.10.2008 01:57pm b Color LCD c Soft Keys Rebecca Woods d Keypad lock key Monitor Sync e Microphone mute key f 3.5 mm audio input g mini-USB for charging... - Page 11 h Button to attach the belt clip and the lavalier i Cable wrapper iLapel microphone j Microphone openings (do not cover!) k Wearing clip iBoom microphone l Adjustable ear loop m Microphone (do not cover!)
-
Page 12: Getting Started
Getting Started Charging inspiro inspiro contains a re-chargeable built-in state-of-the art lithium polymer battery with fast-charge capability. A fully-discharged battery will charge to 80% in one hour and 100% in 2 hours. Select an easily accessible socket outlet and plug the charging unit into the socket outlet. - Page 13 Use only the original Phonak charging unit for insprio. The segments in the battery symbol flash during charging. The battery cannot be over-charged. If the charging unit is removed from the inspiro, the segments 01.10.2008 01:57pm in the battery symbol show the actual capacity.
-
Page 14: Low Battery Alarms
Getting Started Low battery alarms inspiro provides an automatic vibra alarm if the battery is low. J Approximately 1 hour before battery is empty: A vibrating alarm is activated. Check the message on the LCD and follow the instructions. J Approximately 15 minutes before battery is empty: If inspiro has not been charged after the first alarm, the second vibrating alarm is automatically activated before the battery is completely exhausted. -
Page 15: Wearing Inspiro
Wearing inspiro inspiro can either …or around the neck be worn on the belt by using the lavalier by using the clip… (see page 16) (see page 18) -
Page 16: Attaching The Clip To The Inspiro
Getting Started Attaching the clip to the inspiro: “click” Attach the clip to the button on the backside of the inspiro. Make sure the clip holds securely on the inspiro. Fix the clip to the belt or trousers. Make sure the clip on the inspiro holds securely. - Page 17 The clip can also be fixed to the belt or trousers before the inspiro is attached. Make sure the clip is secured to the inspiro. To remove the clip from the inspiro, press the button on the clip and carefully remove the clip from the inspiro.
-
Page 18: Attaching The Lavalier To The Inspiro
Getting Started Attaching the lavalier to the inspiro: Attach the lavalier to the button... -
Page 19: Wearing Ilapel
Wearing iLapel iLapel is an easy-to-use directional lapel microphone which provides excellent sound quality. a) Unwind the iLapel from the inspiro. b) Fix the iLapel to your shirt and make sure the distance between the microphone and your mouth is approximately 8 inches (20 cm). -
Page 20: Ilapel Wearing Position
Getting Started iLapel wearing position: Wrong! Do not cover the two microphone openings! If you are uncertain whether the iLapel is in the correct position, activate the SoundCheck feature in inspiro. SoundCheck helps to position the iLapel correctly. -
Page 21: Wearing Iboom
Wearing iBoom iBoom is an ultra-lightweight boom microphone. Extremely comfortable to wear, it can be worn on the left or right ear and adjusts easily to fit all ear and head sizes. How to fit the iBoom to the ear: a) Slightly enlarge the diameter of the ear loop. - Page 22 Getting Started b) Open the loop carefully and attach the iBoom to the left or right ear. c) Hold the iBoom with one hand and slightly pull the black lever with the other hand to reduce the diameter of the ear loop until the iBoom holds securely.
- Page 23 d) Adjust the boom arm in order to bring the microphone as close to the mouth as possible. e) Fix the clip on your clothes as depicted and make sure the cable is not stretched between the clip and the ear. Do not bend the boom arm!
-
Page 24: Switch On Inspiro
Getting Started Switch ON inspiro To switch ON, push the slider to the left until the green mark appears and the LCD is illuminated. To save power, the backlight of the inspiro LCD is switched OFF after a certain time. Press any button to activate the LCD backlight. -
Page 25: Activate The Key Pad Lock
Activate the key pad lock 01.10.2008 01:57pm It is recommended to activate the key pad lock whenever Rebecca Woods Monitor Sync possible. To activate the key pad lock, go to the highest menu level as shown above and press the key showing the key symbol, then press OK. -
Page 26: Monitoring
Getting Started Monitoring Monitoring is a simple and easy way to check the functionality of FM receivers. We recommend monitoring receivers every day. By pressing the Monitor soft key, the inspiro reads the information from a child’s FM receivers (one or two FM receivers). The procedure is as follows: J Hold the inspiro close to the child, at a distance of approxi- mately 20 cm / 8 inches from the receivers. - Page 27 ON. Monitoring will only work with Phonak Dynamic FM receivers, like MLxi, ML9i, ML10i, ML11i, ML12i, MLxi Baha. If you are not sure that your receivers are Phonak Dynamic FM receivers, ask your hearing care professional.
-
Page 28: Using Inspiro
Using inspiro Talking Before you start talking to the children, make sure of the following: J the microphone is properly positioned (see page 20) J the inspiro is turned ON (see page 24) J and the microphone is active, not muted (see page 30) We also recommend activating the keypad lock. -
Page 29: Soundcheck
SoundCheck The SoundCheck lets you verify whether the microphone is properly positioned, as well as checking the noise level in the classroom. The required procedure is as follows: J Activate the SoundCheck in the top menu level. Then follow the instructions shown on the inspiro’s LCD display. J Talk continuously until the inspiro stops measuring. -
Page 30: Muting The Microphone
Using inspiro Muting the microphone The inspiro’s microphone can be muted simply by pressing the microphone key on the device. If you have forgotten to activate the microphone, inspiro will warn you with a vibrating alarm after 15 minutes. 01.10.2008 01:57pm 01.10.2008 01:57pm... -
Page 31: Using Inspiro With An Mp3 Player, Tv Set, Gps, Computer Or Hifi
Using the inspiro with an MP3 player, TV set, GPS, computer or Hifi The inspiro can be directly connected to any audio equipment via the audio input socket on the inspiro. a Plug in to the television’s headphone jack b Plug in to the audio jack AUDIO c Audio cable (standard accessory) MICRO... - Page 32 Please refer to the television’s operating instructions for details. J Certain pieces of audio equipment feature a Scart or Cinch audio output. Phonak offers an optional adapter for connecting the audio cable to Scart or Cinch sockets. Scart adapter...
-
Page 33: Synchronizing Receivers
Synchronizing receivers If you change the channel of the inspiro transmitter, you should always make sure that the channel of the receivers is synchronized to the new inspiro channel. In order to synchronize the receivers, the inspiro needs to be close to the receivers (at a distance of approximately 20 cm / 8 inches). -
Page 34: Individual Inspiro Configuration
Individual inspiro configuration Setting the alarm time The inspiro includes an alarm function. As with mobile phones, an alarm time can be entered and the alarm can be either activated or deactivated. The alarm will only be displayed if the inspiro is switched on! In order to set an alarm time, proceed as follows: J Enter the Settings menu and then select Alarm. -
Page 35: Setting The Preferred Date Format
If an alarm sounds, the inspiro will vibrate and a message will pop up on the screen. Confirm this message using the OK button. Setting the preferred date format A choice of two date formats is available on the inspiro: DD.MM.YYYY or MM/DD/YYYY J Enter the Settings menu and then select Date &... -
Page 36: Adjusting The Settings Of The Lcd Display
Individual inspiro configuration Adjusting the settings of the LCD display The settings of the inspiro’s LCD display are pre-set. Should you wish to change the presets, please proceed as follows: J Enter the Settings menu and then select Display. J Select the Backlight menu to increase or decrease the level of brightness of the backlight of the LCD display. -
Page 37: Selecting A Desktop Picture
If the inspiro is turned ON but the LCD display is OFF or the backlight is OFF, press the OK key to activate the LCD display! Selecting a desktop picture The inspiro offers a choice of three desktop pictures. One of these three pictures is already active in your inspiro. -
Page 38: Selecting Your Language
Individual inspiro configuration Selecting your language The inspiro offers a choice of nine different languages. Should you wish to change the current inspiro language, then proceed as follows: J Enter the Settings menu and then select Language. J You will now see the nine different languages available listed on the LCD display. -
Page 39: Channels
Brief description of the menu items inspiro can be used in the following two operating modes: J Standard operating mode This is the mode for standard use, as well as for use by all parents and teachers who do not require any special features. J Extended operating mode This is the mode for all users who require access to special FM features, such as the MultiTalker Network, etc. -
Page 40: Brief Description Of The Menu Items
Brief description of the menu items... -
Page 41: Receiver Options
ON. A beeping sound marks the end of the check. Monitoring works only with Phonak Dynamic FM receivers. J Set beep tone Choose between the different beeping tones available to indicate when the Dynamic FM receivers are being synchronized or monitored. -
Page 42: Soundcheck
Brief description of the menu items SoundCheck J This check determines the volume level of speech and of background noise. Adjust the position of the iLapel microphone until you get the best result. Settings J Language Choose the language of the inspiro menu. J Alarm Sets the alarm time. -
Page 43: Help
J Audio input To select the special audio input setting for certain audio devices, such as the iPod nano, go into the “Audio device” sub-menu. Select “Set microphone Mute” if you want to mute the iLapel or iBoom microphone when an audio input signal is detected. - Page 44 Brief description of the menu items...
-
Page 45: Multitalker Net
J Hotline Provides the phone number to call in case you have questions or problems. J About inspiro Shows the device’s serial number, the software version, the hardware version, the DSP setting and the menu setting (Standard/Extended). Additional features in Extended operating mode MultiTalker Net J MultiTalker Net If a network has already been set up, you can choose to... -
Page 46: Receiver Options
Brief description of the menu items J List of participants In the inspiro managing the network, you can check the names of other teachers or speakers in the MultiTalker network. Receiver options J Scan for channels Searches for an existing transmission from another transmitter, e.g. -
Page 48: Dynamic
DynaMic DynaMic and accessories DynaMic is supplied with the following accessories: J Desk stand J Clamp 3/8”, 5/8” J Colored rings (for easy microphone identification) These accessories can be ordered separately. a DynaMic microphone b Desk stand with clamp c Colored rings (red, yellow, green) d Charging unit e Replacement microphone head... -
Page 49: Important Dynamic Figures
Important DynaMic figures General: Operates only with inspiro on the MultiTalker Network Length: 21 cm (8 inches) Antenna length: 15 cm (6 inches) Weight: 110 g Operating time and charging: J Operating time if the battery is fully charged: e up to 10 hours J Charging time for 80% charge e approx. -
Page 50: Controls
Controls a Slider OFF/MUTE/ON The slider puts DynaMic in one of its three modes. b RESET button This allows DynaMic to be reset. The parameters stored are not affected by this operation. Use a pen to press the button. c Built-in vibration alarm The vibration alarm provides information on the status of the battery and operation. -
Page 51: Getting Started
A fully-discharged battery takes one hour to charge up to 80% of its full capacity and two hours for a 100% charge. Use only the original Phonak charging unit for inspiro/ DynaMic. To simultaneously charge your inspiro and DynaMic we recommend using the twin charger. -
Page 52: Battery Status Indication
Getting Started J During charging the LED flashes two short green pulses every 5 seconds. When charging is complete, the LED displays a static green light. We recommend fully charging DynaMic. The battery cannot be over-charged. Battery status indication DynaMic activates an automatic vibration alarm when its battery level is low. -
Page 53: Vibration Alarm Indication
Vibration alarm indication DynaMic provides a vibration alarm if: J The battery is low J The device is out the range of the initiator inspiro in the MultiTalker Network further than 8 m J The microphone is muted for more than 15 minutes J There is no FM transmission –... -
Page 54: Switch On Dynamic
Getting Started Switching ON DynaMic DynaMic is a passaround microphone designed for use with inspiro in the MultiTalker Network. It is not a standalone FM transmitter. To switch ON DynaMic, follow the steps below: J inspiro and DynaMic are both OFF J Switch ON inspiro: push the slider to the left until the green mark appears and the LCD is activated (see page 24). - Page 55 J Start DynaMic by pushing the slider from OFF to ON during the auto pairing time window of 8 seconds. RESET MUTE Rebecca Woods J After the initiation is complete, the name of DynaMic appears. Press OK. DynaMic joins the MultiTalker Network as a secondary trans- mitter.
-
Page 56: Using Dynamic
J DynaMic situated on a child’s desk, using the supplied table stand J Holding DynaMic in the hand J Wearing the remote mic with a lavalier – not supplied by Phonak J Using a floor stand – not supplied by Phonak Passaround microphone DynaMic can be passed from one speaker to the next. -
Page 57: Colored Rings
Colored rings With the red, blue and green rings it is possible to personalize your DynaMic for quick identification. You may use only 2 rings on one DynaMic. Do not place these rings over the grill openings of the microphone’s cap. DynaMic DataLogging FM DynaMic automatically logs its usage times. -
Page 58: The Multitalker Network In School
The MultiTalker Network in school The MultiTalker Network One or more inspiro/DynaMic transmitters can participate in a MultiTalker Network (up to ten transmitters in total). A maximum of nine DynaMic microphones can be used on the MultiTalker Network (MTN). J The MultiTalker Network is available in the inspiro’s Extended Operating Mode. -
Page 59: Initiating A Multitalker Network
Initiating a MultiTalker Network Initiating or setting up a MultiTalker Network should be performed in the classroom before the lesson begins. The procedure to follow is straightforward and the inspiro menu guides you through the necessary steps. See the chapter “Switching ON DynaMic”. -
Page 60: How To Use A Multitalker Network
Multiple talkers in one classroom How to use a MultiTalker Network J The inspiro that has set-up (initiated) the network has first priority; all other transmitters inspiro/DynaMic that joined the network have second priority. The teacher with first priority can interrupt any teacher or student that has second priority;... -
Page 61: Practical Tips
If you switch OFF one DynaMic, it will be deleted from your participants list. The MultiTalker Network will continue with all other DynaMic and inspiro transmitters. Should you unintentionally move outside the range of the Multi- Talker Network, you will be alerted by an alarm. You can then choose to either return inside the network’s operating range (i. - Page 62 Multiple talkers in one classroom J If an inspiro reverts to single teaching mode, it automatically utilises the FM channel used previously. J If the initiating inspiro alters the FM channel in MultiTalker Network mode for any reason, this new channel will automatically be sent to the other inspiro and DynaMic transmitters in the network and then activated.
-
Page 63: Fm Receivers
FM transmitter, while the MLxi is an FM receiver. J The MLxi is a universal device and can be used with Phonak, as well as with nearly all other BTE brands. J In order to connect an MLxi to the hearing device, you will need an audio shoe (audio boot). -
Page 64: Lock Mlxi Push Button
FM receivers Lock MLxi push button The MLxi push button can be either locked or activated. This action can be performed by either the hearing care professional or the inspiro user. J In this mode, the MLxi functions automatically. J This mode is recommended for all children. The required procedure is as follows: J Select Lock push button in the Receiver menu. -
Page 65: Other Phonak Fm Receivers
J The identification data should now be shown on the inspiro’s LCD display. This feature is particularly useful in schools. Other Phonak FM receivers inspiro/DynaMic are compatible with all Phonak FM receivers. If you have questions concerning a specific receiver, please consult your hearing care professional or visit: www.eschooldesk.com We do not recommend using the inspiro/DynaMic with FM receivers produced by other manufacturers. -
Page 66: Troubleshooting
Troubleshooting inspiro Problem The inspiro cannot be switched ON. Poor speech intelligibility. Speaker’s voice is inaudible even though the inspiro is turned ON. - Page 67 Most probable cause Solution The battery is empty. Charge the inspiro for a period of at least two hours. The microphone has not been Move the microphone closer positioned properly. to the speaker’s mouth. Activate the SoundCheck feature. The microphone mute has Check the inspiro’s LCD been activated or the hearing display and press the micro-...
- Page 68 Troubleshooting inspiro Problem Insufficient operating range. Radio interference. A second person’s voice can also be heard. inspiro does not respond to commands...
- Page 69 Most probable cause Solution Microphone cable has not Unwind the microphone cable. been unwound. External cause: Change the FM channel. Use radio antenna or similar the ChannelFinder to locate an interfering devices nearby. unused and interference-free FM channel. Another FM user is using the Change the FM channel.
-
Page 70: Dynamic
Troubleshooting DynaMic Problem The DynaMic cannot be switched ON. Poor speech intelligibility. Speaker’s voice is inaudible even though DynaMic is turned ON. - Page 71 Most probable cause Solution The battery is empty. Charge DynaMic for at least two hours. The microphone has not been Move DynaMic closer to the positioned properly. speaker’s mouth. DynaMic’s antenna or cap are Uncover DynaMic’s antenna partially covered. and cap. The colored rings are covering Move DynaMic’s colored rings the acoustic openings.
- Page 72 Troubleshooting DynaMic Problem Radio interference. A second person’s voice can also be heard. DynaMic is not responding to commands.
- Page 73 Most probable cause Solution Radio antenna or similar Proceed as for inspiro. interfering devices are nearby. Another FM user is using the Proceed as for inspiro. same FM channel nearby. Make sure DynaMic is turned ON. Then reset it using the RESET button.
-
Page 74: Important Notices
Important notices inspiro and DynaMic transmitters collect and store internal technical data. This data may be read by a hearing care professional in order to check the transmitters, as well as to support you in being able to use inspiro and DynaMic in the ideal manner. - Page 75 Do not use water or other liquids to clean inspiro or DynaMic. Use only original Phonak accessories. Use only the original Phonak charger for inspiro and DynaMic. inspiro and DynaMic should only be repaired by an authorized service center. Dropping inspiro or DynaMic can damage the transmitters.
-
Page 76: Service And Warranty
Service and warranty Phonak provides a manufacturer’s limited warranty for your inspiro and DynaMic. This covers all manufacturing and material defects. Problems with inspiro and DynaMic arising from improper handling or care and repairs made by an unauthorized party are not covered by the warranty. -
Page 77: Declaration Of Conformity
Directive 1999/5/EC. To obtain a copy of the Declaration of conformity, please contact the local Phonak AG representative whose address can be taken from the list of Phonak distributors worldwide. This device complies with part 15 and part 95 of the FCC rules and with RSS 210 of Industry Canada. -
Page 78: Phonak Distributors Worldwide
France Phonak France SA, 69500 Bron Germany Phonak GmbH, 70736 Fellbach- Oeffingen, EC Representative India Phonak India Pvt. Ltd., 100 034 New Delhi Italy Phonak Italia S.r.l., 20159 Milano Japan Phonak Japan Co., Ltd., Tokyo 101-0044 Jordan Phonak Middle East, 11181 Amman Mexico Phonak Mexicana, S.A. - Page 79 Phonak Turkey A.S., 34357 Istanbul United Kingdom Phonak UK Limited Warrington, Cheshire WA1 1PP Phonak LLC, Warrenville, IL 60555-3927 Independent A complete list of Phonak distributors is general available at Phonak‘s Internet site: distributors: www.phonak.com Please visit us or ask your hearing care professional for information.
- Page 80 The CE symbol is confirmation by Phonak AG that this Phonak product meets the require- ments of directive 93/42/EEC on medical devices and the R&TTE Directive 1999/5/EC on Radio and Telecommunication Terminal Equipment. The alert sign means that potential restrictions on its use are applicable in one or more EU Member States.
- Page 81 Operating These products have been designed for trouble- conditions free operation without restrictions when used as intended, unless otherwise stated in this user guide. Transportation Temperature should not exceed limits of and storage –20°/60° Celsius at a relative air humidity conditions of 65% for extended periods during transportation and storage.
- Page 82 Personal notes...
- Page 84 www.phonak.com...
