User Guide
DynaMic
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DynaMic and is the answer not in the manual?

Questions and answers

Related Manuals for Phonak DynaMic

Summary of Contents for Phonak DynaMic

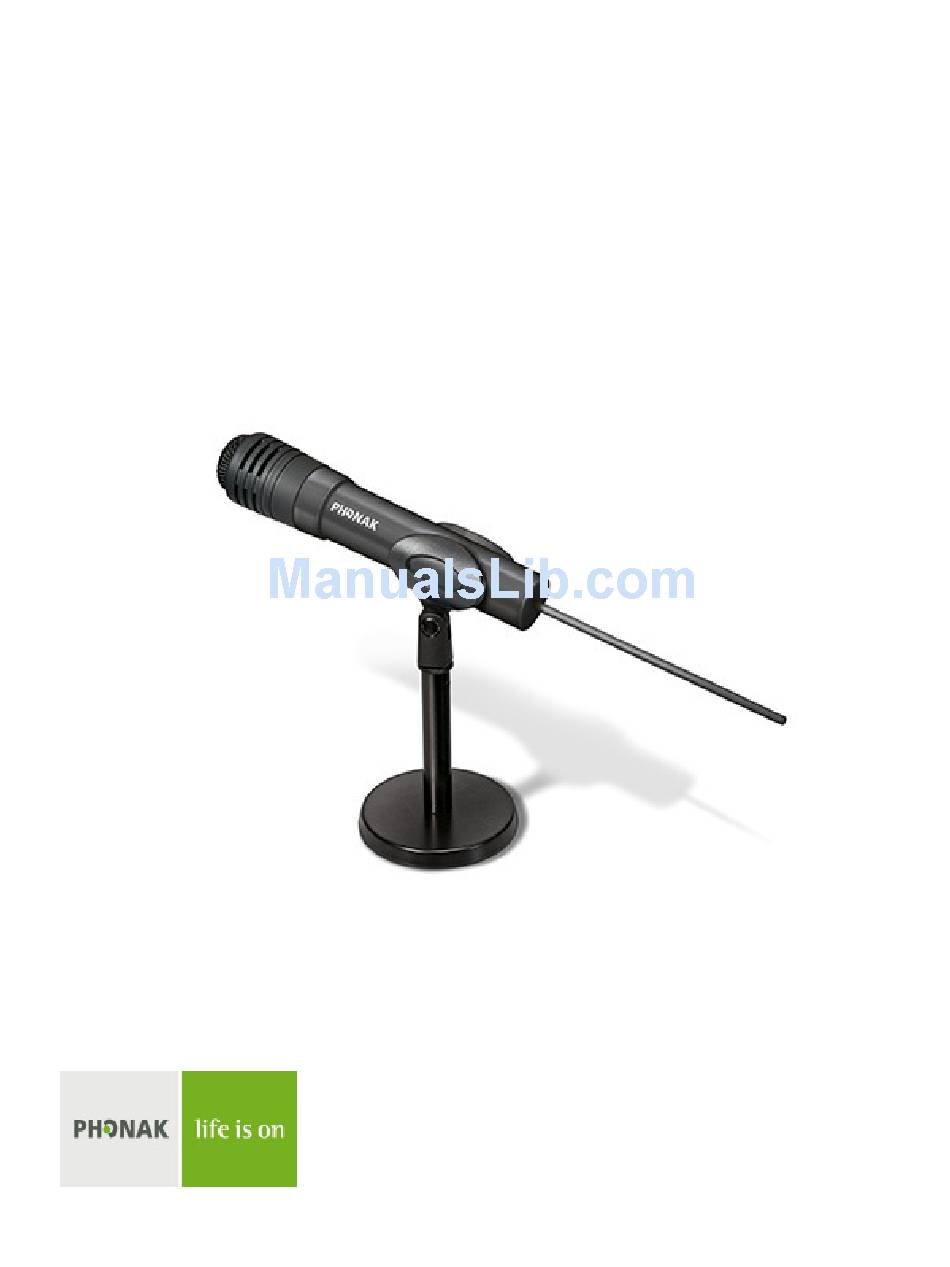

  • Page 1 User Guide DynaMic...
  • Page 2 Contents Welcome DynaMic and accessories Important DynaMic figures Controls Getting starting Charging DynaMic Battery status indication Vibration alarm indication Switch on DynaMic Using DynaMic User cases Pass around microphone Talking Colored rings DynaMic Data Logging Programming The MultiTalker Network Initiating a MultiTalker Network...
  • Page 3 Welcome DynaMic FM transmitter is ideally suited to the needs of teachers and suitable for use in regular schools as well as special schools. DynaMic, the inspiro’s passaround microphone is designed to work exclusively alongside inspiro in the MultiTalker Network. With its simple, robust and childproof design DynaMic integrates insprio’s high performance FM technology.

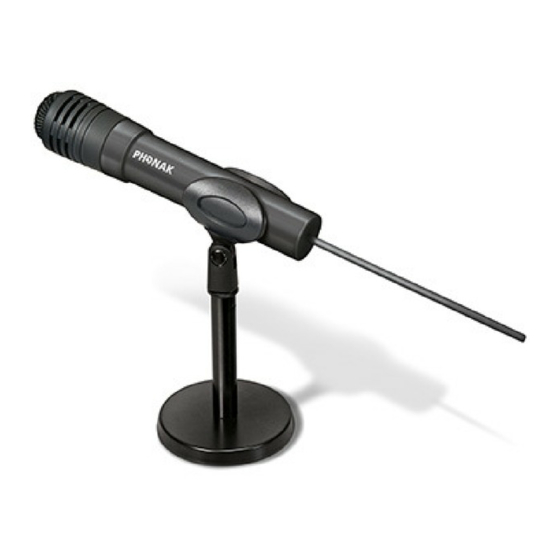

  • Page 4 DynaMic and accessories DynaMic is delivered with: • Desk stand • Clamp 3/8”, 5/8” • Colored rings All the accessories can also be ordered separately. DynaMic microphone Desk stand (base and legg) with clamp Colored rings: red, yellow, green Charging unit...
  • Page 5 Important DynaMic figures General: Operates only with inspiro in MultiTalker Network Length 21 cm Antenna length: 15 cm Weight: 110g Operating time and charging: • Operating time if the battery is fully charged: up to 10 hours • Charging time for an 80% charge approx.
  • Page 6 The slider puts the DynaMic in one of the three mode. 2. Reset button This button gives the possibility to reset the DynaMic. The parameters stored in the flash are not affected by this operation. Use a pen to press the button.
  • Page 7 Select an easily accessible socket outlet and plug the charging unit into the socket outlet. Connect the Mini USB plug from the charging unit to the DynaMic. During charging the LED flashes two short green pulses every 5 sec.
  • Page 8 Ca. 15 min before battery is empty: It needs to charge DynaMic immediately. The LED indicates 10 orange flashes and the vibra alarm starts vibrating. If the battery is not being charged at that time, DynaMic switches off automatically after flashing 10 flashes.
  • Page 9 • Switch on inspiro: push the slider to the left until the green mark appears and the LCD starts up. • Set-up the MultiTalker Network. Initiate your Multitalker Network by pressing “OK”. • Start your DynaMic by pushing the slider from Off to On.
  • Page 10 As described earlier in the chapter “Switching on inspiro” pg 25, it is recommended to activate the key pad lock whenever possible. Mute: If the DynaMic is On, it is possible to mute the microphone. Switch the slider from On to Mute.

  • Page 11: Using Dynamic

    • On a child’s desk using the supplied table stand • Holding the DynaMic in the hand • Wearing the remote mic with a lavalier* - not supplied by Phonak • Using the floor stand*- not supplied by Phonak Pass- around microphone DynaMic can be passed from one child to the next.
  • Page 12 DynaMic Data Logging DynaMic logs automatically the usage time. It is stored every 15 minutes. The first log entry is stored after the transmitter has worked for 15 minutes. A usage data log contains e.g. name, timestamp, MTN mode, average noise level.

  • Page 13: The Multitalker Network

    The MultiTalker Network One or more inspiro and one or more DynaMic transmitters can participate in a MultiTalker Network. A maximum of nine DynaMic microphones can take part into a MultiTalker Network. • The MultiTalker Network is available in the inspiro’s Extended operating mode.
  • Page 14 See the chapter “Switch on DynaMic”. • Make sure that you have on the desk all the inspiro and DynaMic transmitters you plan to include in the network. Ensure that all inspiro/ DynaMic transmitters are switched off.
  • Page 15 MultiTalker Network will remain in MultiTalker Network mode. If you are switching off one of the DynaMic, it will be deleted from your participants list. The MultiTalker Network could continue with all other DynaMic and inspiro transmitters.

  • Page 16: Troubleshooting

    Troubleshooting Inspiro Problem Most likely cause Solution The inspiro cannot be The battery is run down. Charge the inspiro for at least switched on. two hours. Poor speech The microphone has not been Move the microphone closer to intelligibility positioned properly. the speaker’s mouth.
  • Page 17 The colored rings are covering the Placed only 2 colored rings to acoustic part. personalize your DynaMic. Speaker’s voice is DynaMic is muted or the hearing Check the DynaMic is not inaudible even though device has not been set to the right muted.

  • Page 18: Important Notices

    The data may be read by a hearing care professional in order to check the transmitters, as well as to support you in being able to use inspiro and DynaMic in the ideal manner. Do not use your inspiro and DynaMic in a place where it is prohibited to use electronic devices.

  • Page 19: Service And Warranty

    Directive 1999/5/EC. To obtain a copy of the Declaration of conformity, please contact the local Phonak AG representative whose address can be taken from the list of Phonak distributors worldwide.
  • Page 20 Warning: Changes or modifications made to this equipment not expressly approved by Phonak may void the user’s authority to operate the equipment. Your hearing care professional www.phonak.com 029-3042/V1.002/2009-01 Printed in Switzerland Phonak AG, All rights reserved...
