Service Manual
inspiro V3 and higher
File:
Page:
1 of 20
Date of print:
technical.support@phonakcom.com
Contact:
This document is produced and reserved for Phonak service centers and for trained authorized service departments exclusively
Electrostatic discharge sensitive devices
Take ESD precautionary measures whenever handling electronic devices

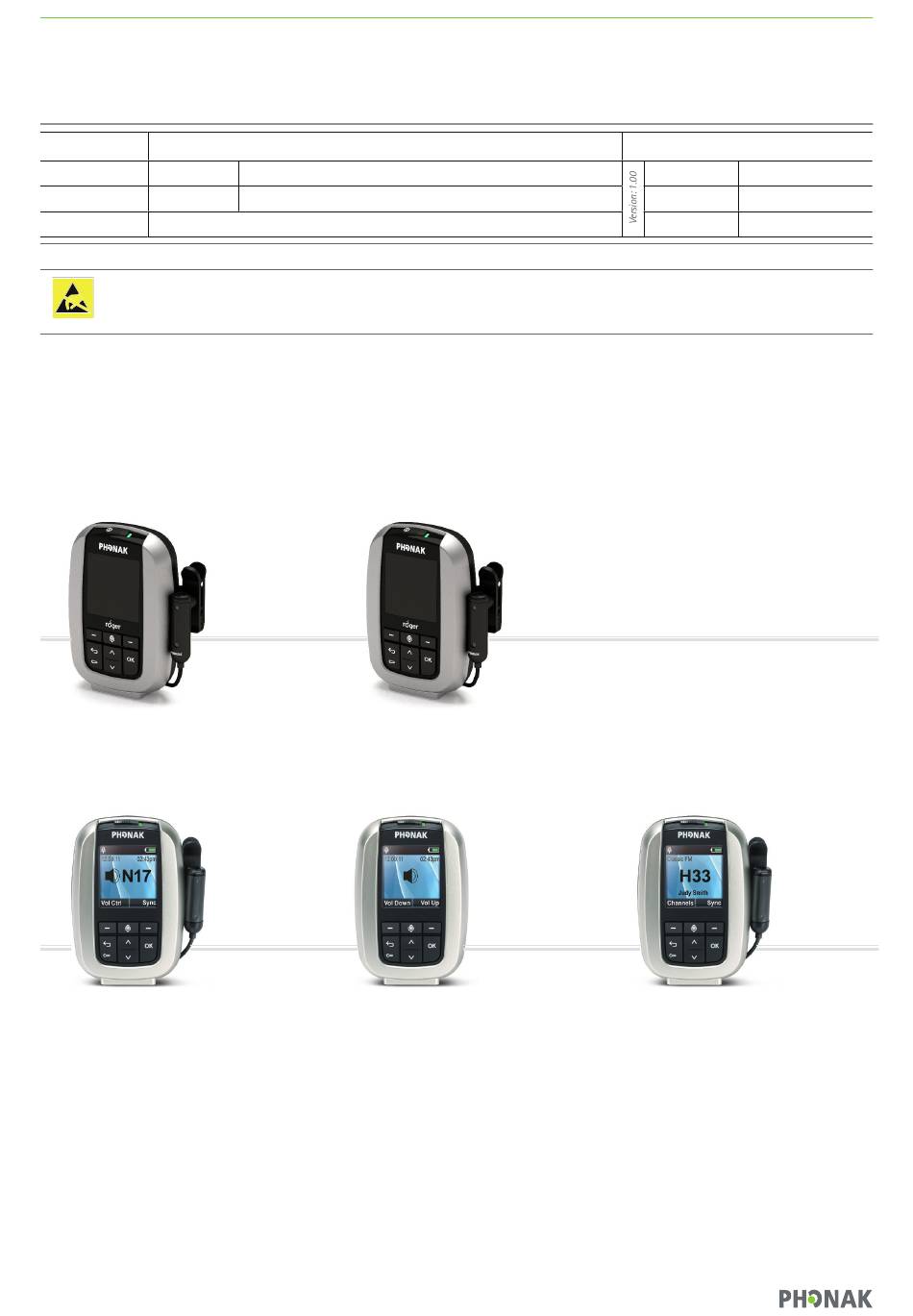

Products and Models

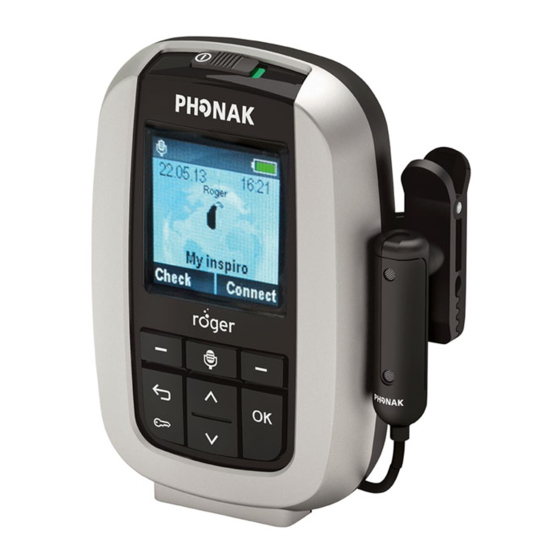

inspiro is a teacher microphone which transmits the speech of a talker wirelessly to FM receiver, Roger receivers and Sound-
Field speakers.
Roger inspiro
inspiro Premium
000.000.004.342.pdf
Number of local copies:
Uncontrolled copy if printed
Roger inspiro SoundField
inspiro SoundField
Version 2.10
Written:
2011-08-25 BeH
Approved:
2011-09-19 MkB
Released:
2011-09-22 OlJ
inspiro Classic
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phonak inspiro V3
Summary of Contents for Phonak inspiro V3
-
Page 1: Products And Models
Contact: Released: 2011-09-22 OlJ This document is produced and reserved for Phonak service centers and for trained authorized service departments exclusively Electrostatic discharge sensitive devices Take ESD precautionary measures whenever handling electronic devices Products and Models inspiro is a teacher microphone which transmits the speech of a talker wirelessly to FM receiver, Roger receivers and Sound- Field speakers. -
Page 2: Table Of Contents
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 2/20 Table of Contents Description Page Products and models Table of contents General information - Equipment and materials - Product information - Firmware version and compatibility Diagnostics guideline... -
Page 3: General Information
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 3/20 General Information Equipment and Materials Category Description Part no. / Download Service tools Torx screwdriver 026-0272 Standard flat screwdriver Software FM SuccessWare 4.6.3 or Phonak DigiWare 1.1... -
Page 4: Firmware Version And Compatibility
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 4/20 General Information Firmware Version and Compatibility MultiTalker Network Receivers Education systems compatibility matrix Type and FW version Mode FM+SF ... -
Page 5: Diagnostics Guideline
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 5/20 Diagnostics Guideline Visual inspection all models Housing Replace housing OK ? Printing on keys OK? Replace top housing Clip OK? Replace clip Unwind the microphone cable. Microphone cable/... -
Page 6: Functional Inspection All Models
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 6/20 Diagnostics Guideline Functional Inspection all models Switch on inspiro Content on display visible? Plug in a charger and charge for 15min - Reset inspiro Content on display visible? -
Page 7: Listening Inspection Roger Inspiro
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 7/20 Diagnostics Guideline Listening Inspection Roger inspiro Plug the Roger X service reference receiver into the MLx Audio Checker and switch on the Checker Switch on Roger inspiro... -
Page 8: Listening Inspection Inspiro Premium And Inspiro Classic
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 8/20 Diagnostics Guideline Listening Inspection inspiro Premium and inspiro Classic Plug a MLxi into the MLx Audio Checker Switch on inspiro Hold inspiro 1m away from the FM receiver and press ‘Sync’... -
Page 9: Listening Inspection Inspiro Soundfield
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 9/20 Diagnostics Guideline Listening Inspection inspiro SoundField Pair inspiro with your DigiMaster - Check Firmware compatibility - Check installtion guide Pairing OK? - Reset inspiro and DigiMaster Replace SRM inspiro SoundField... - Page 10 000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 10/20 inspiro all models Explosion inspiro Premium with iLapel 052-3335 inspiro Premium without microphone 052-3337 inspiro SoundField with iLapel 052-3159 inspiro SoundField without microphone 052-3338 inspiro Classic with iLapel...
-
Page 11: Spare Part List Roger Inspiro
Top housing inspiro ‘Roger’ 004-3551-001 Frame inspiro V3 (10 pcs) 045-3327-1 Display inspiro V3 (1 pcs) 045-3268-1 SRM inspiro V3 Premium (GC only) 045-3515-1 SRM inspiro V3 SoundField (GC only) 005-3105-1 Rubber inspiro V3 (10 pcs) 004-3904-001 Bottom shell inspiro V3 (10 pcs) -
Page 12: Spare Part List Inspiro Premium
Shell top inspiro V3 004-3551-001 Frame inspiro V3 (10 pcs) 045-3327-1 Display inspiro V3 045-3268-1 SRM inspiro V3 Premium (GC only) 045-3515-1 SRM inspiro V3 SoundField (GC only) 005-3105-1 Rubber inspiro V3 (10 pcs) 004-3904-001 Bottom shell inspiro V3 (10 pcs) -
Page 13: Spare Part List Inspiro Classic
045-3327-1 Display inspiro V3 SRM not available 005-3105-1 Rubber inspiro V3 (10 pcs) 004-3904-001 Bottom shell inspiro V3 (10 pcs) 002-3058-1 PT Screw black K15 x 6 (10 pcs) 070-3045 Replacement battery 3.7V/1000mAh (10 pcs) 004-3903-001 Accu lid inspiro V3 (10 pcs) -
Page 14: Accessories
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 14/20 Accessories inspiro Accessories Packaging 052-0392 Home and Travel case 017-3271 Slider Roger inspiro 017-3290 Sticker Roger inspiro SoundField 017-3259-1 Slider inspiro Premium (10 pcs) 017-3260-1 Slider inspiro SoundField (10 pcs) -
Page 15: Repair Instructions
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 15/20 Repair Instructions Disassembly Screwdriver Switch off inspiro. Push down the mechanical stopper with a screwdriver (A)and Unscrew the knob (A) and detach the bottom plate (B). the pull out the microphone cable (B). -
Page 16: Replace The Display
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 16/20 Repair Instructions Lift the bottom housing shell. Take out the electronics. Replace the display Open the flex holder. Unplug the flex print of the display. Screwdriver Open the brace which holds the display with a flat screw- Remove the display driver. -
Page 17: Assembly
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 17/20 Repair Instructions Add the new display. Insert the flex print into the holder. Close the flex print holder. Assembly Insert the electronics into the top housing shell. Make sure the Check that the display frame is laid inside the top housing. - Page 18 000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 18/20 Repair Instructions Torx Screwdriver Add the bottom shell. Screw in the five housing screws. Do not screw them too tight, as this will damage the hole in the top shell.
-
Page 19: Serial Number Sticker
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 19/20 Repair Instructions Plug in the microphone cable. Check that the microphone cable is correctly plugged in. There must not be a cap. Add the bottom plate and screw the knob tight. -
Page 20: Revision History
000.000.004.342.pdf File: Version: 2.10 Service Manual inspiro V3 and higher Title: Page: 20/20 Revision History Revision History Version: Details: Written: Approved: Released: 1.00 First Release (Reviewed on 2011-09-06 by ChS) see page 1 see page 1 see page 1 2.00...
