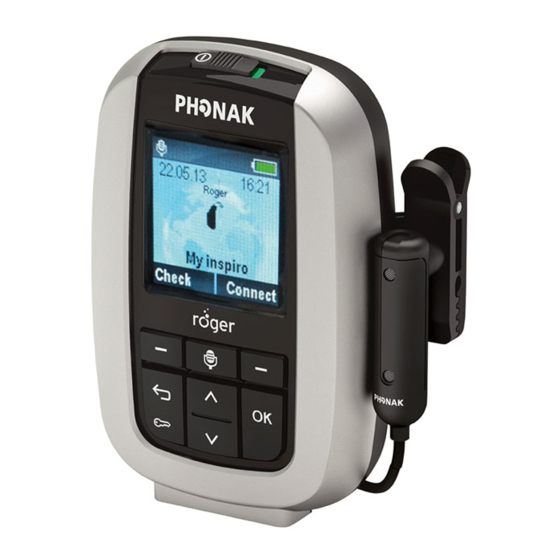

Phonak inspiro User Manual

1. On/Off Sliding Button
2. Display
3. Soft Keys
4. Keypad lock and Back Button.
5. Microphone Mute.
6. Audio input jack (3.5mm)
7.
Mini USB port for charging
Charging the inspiro.
inspiro contains a re-chargeable built-in state-of-the art
lithium polymer battery with fast-charge capability.
A fully-discharged battery will charge to 80% in one hour
and 100% in 2 hours.
Select an easily accessible socket outlet and plug the
charging unit into the socket outlet.
inspiro Summary User Guide
.
Connect the MiniUSB plug from the charging unit to the
inspiro.
Note: Use only the original Phonak charging unit for
inspiro. Use of any other USB charger may damage the
inspiro and void the warranty.
Operating range (FM transmission)
The inspiro uses the microphone cable as an antenna.
Therefore, always ensure that the cable is unwound while
you are using the inspiro.
Used with Phonak FM receivers, the inspiro should
operate over a range up to 40 meters (120 feet)
depending on the surroundings.
Note: High-power electronic equipment, large electronic
installations and metallic structures may impair and
significantly reduce the operating range.
Using Monitor
1. Dynamic receiver (MLxi, ML9i, ML10i, ML11i)
must be attached to hearing aid
2. Turn hearing aid on
3. Attach hearing aid to listening stethoscope.
4. Ensure hearing aid is in FM program if necessary
5. Hearing aid with Dynamic FM receiver and
inspiro transmitter must be close together (less
than 20 cm)
6. Press Monitor.
Outcome of Monitor Test.
1. "No receiver responded...". This means the
dynamic receiver and inspiro transmitter are too
far apart. This message also occurs if you have
a traditional receiver (eg MLxS, MicroMLxS,
ML9S...anything that does not have a letter "i").
2. : This means there is a problem. Click "OK"
and scroll through the results of the test. Most
common reason for this result is that the battery
of the hearing aid is dead, or the channel of the
receiver does not match the transmitter
(Synchronization)
