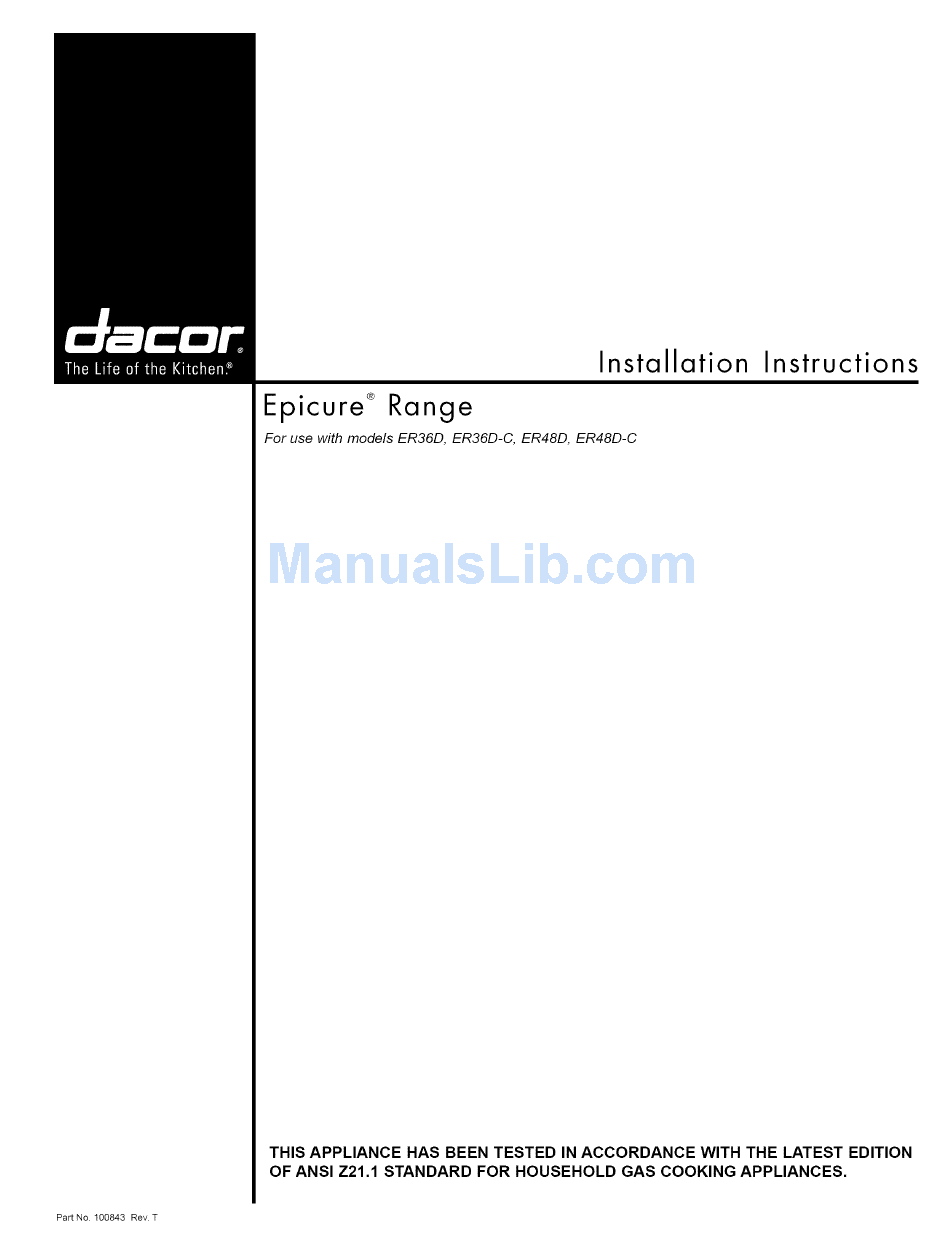

- Page 1 Installation Instructions Epicure ®Range For use with models ER36D, ER36D-C, ER48D, ER48D-C THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1 STANDARD FOR HOUSEHOLD GAS COOKING APPLIANCES. Part No. 100843 Rev. T...
-
Page 2: Table Of Contents
Customer: Keep these installation instructions for future reference and the local building inspector's use. Specifications contained within are subject to change without notice. No liability is assumed by Dacor ® for changes in specifications. © 2007 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
Use common sense and caution when installing, maintaining or operating this or any other appliance Always contact the Dacor Customer Service Team about problems WARNING - NEVER cover any slots, holes or passages on and cond=t=ons that you do not understand... - Page 4 General Safety Precautions To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety _recautions, including the following: Read the accompanying use and care manual before operating this appliance. •...
-
Page 5: Customer Service Information
If you have questions or problems with installation, contact your Model Identification Dacor dealer or the Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the Dacor Distinctive Service line. Whenever you call, have the model and serial number of the appliance ready. -
Page 6: Planning The Installation
Have a minimum rating of 250 Volts @ 30 Amps for make sure it is equipped for high altitude operation. Refer to model ER36D, 250 Volts @ 50 amps for model ER48D the range rating label and the table on page 3 to determine the correct model. -
Page 7: Product Dimensions
1 1/16" (27 mm) to cooking Backguard** surface (top of grates) from 40 mm) top of trim 37" (940 mm) Finished side 35 3/4" panel (908 mm) ** Optional ,,1t_-- Width: ER36D - 35 7/8" (911 mm) ER48D - 47 7/8" (1216 mm) dacar... -
Page 8: Cabinet Layout
Access to the gas shut-off valve when the unit is installed. operation. • Access to the remote circuit breaker panel/fuse box, when the • The range may be installed flush to the rear walt. Dacor range is in place. strongly recommends installing a non-combustible material •... -
Page 9: Preparing For Installation
The mounting location varies according to the model. See the diagram below for location. Range Back of right side range panel ANTI-TIP BRACKET PLACEMENT Dimension ER36D- ER48D 7 1/2" (191 mm) 19" (483 mm) 6 1/2" (165 mm) 6 1/4" (159 mm) dacar... - Page 10 • Install the backguard before making the range gas and electrical connections. • Dacor recommends that the 24 inch backguard be installed by at least two people. To install a backguard: Remove the thirteen (13) screws on the front and back of the island trim and slide the trim off the unit.
- Page 11 Fasten the backguard and the stainless steel trim piece in Removing the Oven Door place with the five (5) existing chrome plated screws. Secure the rear of the backguard to the back of the range with the eight (8) existing hex screws. Chrome plated screw, 5 places NOTE: When installing a backguard, always install it before sliding...
-
Page 12: Electrical Connection
Electrical Connection Refer to the range rating label (see page 3) for power requirements. There are four possible ways to wire the range: • 4 wire conduit • 3 wire conduit (where local codes permit) • 4 wire appliance cord (where local codes permit) •... - Page 13 L1terminal Neutral terminal L2terminal \ o .., o Jumper removed Grounding screw Red wire Green wire White wire Black wire Conduit strain relief nut Connecting 4 Wire Conduit to Range L1 terminal Neutral terminal Jumper link L2 terminal Black wire White wire Red wire Bare wire...
- Page 14 Electrical Connection (Continued) Connection to Connecting the Conduit to the House power supply Electrical Junction Box Junction box Wire nut NOTES: 4 places The power supply must be properly polarized• Reverse WHITE polarity wilt result in continuous sparking of the electrodes, even after flame ignition•...
- Page 15 Separate No. 10 (minimum) Connection to power supply copper grounding wire Junction box Wire nut 4 places Connection to appliance (Page 1O) 4 Wire Conduit Connection to Junction Box with External Ground No. 4 Meter copper wire Metal water pipe Clamps Bare metal...
- Page 16 Slide the end of the appliance cord into the strain relief from Electrical Connection (Continued) the bottom of the box. Connecting an Appliance Wire to the Connect the white (neutral) wire to the neutral terminal in the box. Range-Where Local Code Permits Connect the L1 wire to the L1 power supply terminal in the box.
-
Page 17: Gas Supply Connection
Gas Connection L1 terminal Neutral terminal _ 1_2terminal Jumper link NOTE: The gas pressure regulator is pre-set at the factory for the type of gas intended for use with the appliance. To verify that L1 wire the appliance is compatible with the type of gas available, check White wire the range rating label (see page 3 for location). -
Page 18: Final Installation
Final Installation Installing the Burner Knobs Peel the protective coating off of the range, including the door. Adjust the legs to the desired height. Carefully slide the range into position in the cut-out. The rear anti-tip leg should engage the anti-tip bracket. the Oven Door(s) Re-installing NOTE: When installing the knobs, align the "D"... -
Page 19: Installing The Burner Components
Stack burner • Gently set the grates on top of the spill tray. Put the legs of each grate inside the corresponding dimples. On model ER36D, the largest grate goes in the center. Ridge on bottom of burner cap STEP 3: Install burner cap. -
Page 20: Verifying Proper Operation
Repeat the above bake test or burner ignition test. If the appliance still does not work, contact Dacor Distinctive Service at (877) 337-3226. Do not attempt to repair the appliance yourself. Have the model and serial numbers available when you call. - Page 21 dacar 19...
- Page 22 20 _a=ar...
- Page 23 The Life of the Kitchen? American Made*FamiIy Owned Dacor • 600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 • Phone: (800) 793-0093 • Fax: (626)403-3130 • www.Dacor.com...
