RANGE MODELS: ER30D, ER36D AND ER48D
DANGER:
WARNING: To avoid burns, do not disassemble the range until it has cooled.
WARNING: To avoid personal injury, wear safety glasses during installation.
CAUTION: To prevent damage to the range, use only the tools indicated in these instructions.
NOTE: It is not necessary to pull the range out from the wall to change the trim color.
Use these instructions to change the trim color on the ER30D, ER36D and ER48D series ranges.
Tools Required
•
Phillips Head Screwdriver (4-40)
•
Torx Driver (T20)
•
2 Clamps

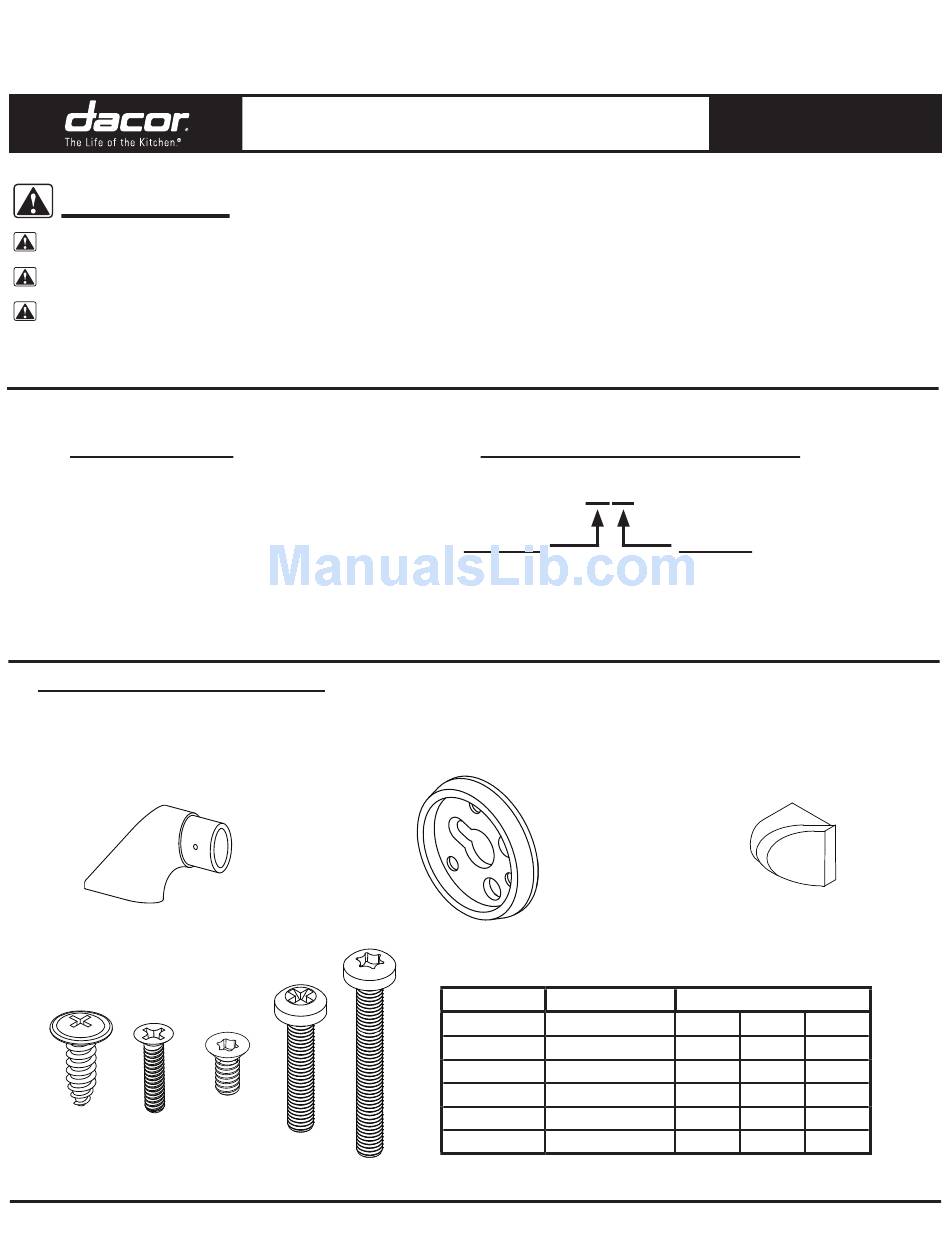

Parts included with this kit
Door End Caps
30 and 36-Inch Ranges (2)
48-Inch Ranges (4)
Extra Screws
Part #
Part #
83571
101505
Trim Replacement Kit
AERTK30, AERTK36, AERTK48
Electric shock hazard! Before installation, disconnect power
at the circuit breaker or fuse box.
Part #
Part #
Part #
83669
100385
100026
Kit Part Number Identification
AERTKXXYY
Range Size
Trim Rings
30-Inch Ranges (4)
36 and 48-Inch Ranges (6)
Screw Part #
101505
83571
83669
Handle End Caps
100385
Handle Mounting
100026
Handle Mounting
INSTALLATION
INSTRUCTIONS
Trim Color
CH = Chrome
CP = Copper
BR = Brass
BC = Black Chrome
Range End Caps (2)
Use
Quantity
ER30D
ER36D
End Caps
2
Trim Rings
12
2
2
ER48D
2
2
18
18
2
4
2
4
Part No. 101516 Rev. E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor ER30D
Summary of Contents for Dacor ER30D
- Page 1 CAUTION: To prevent damage to the range, use only the tools indicated in these instructions. NOTE: It is not necessary to pull the range out from the wall to change the trim color. Use these instructions to change the trim color on the ER30D, ER36D and ER48D series ranges. Tools Required Kit Part Number Identification •...
- Page 2 For Models ER36D and ER48D, put the knobs with the words “MAX GRIDDLE” on them on the inner (center burner) valve shafts. For ER30D, place the “MAX GRIDDLE” knobs in the 2 right hand valve shafts. Put the remaining knobs on the remaining valve shafts.
- Page 3 STEP 12: Open the oven door to the horizontal position. STEP 13: On model ER30D and ER48D, to prevent damage to the door glass and door: Firmly tape or clamp both sides of the door three (3) inches from the top to prevent it from coming apart when the handle screws are removed.
- Page 4 STEP 20: Thread the two (2) screws through the door and into the handle. Tighten them into place. Do not overtighten. Damage to the door or the door glass may result. STEP 21: On model ER36D: Replace the screw covers. STEP 22: Remove the clamps or tape from the door. Dacor ● 600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.Dacor.com...
