Dacor DR30D Instruction Manual

Cooktop and Range Models: DR30D, DRT304S, DYRP36DS, DYRP48DS,
DYRTP366, DYRTP486, EG366, EG486, ER30D, ER30DSR, ER30G,

WARNING: Do not touch the grill when hot.

WARNING: Do not use water on grease fires. A violent steam explosion may result. Smother any
flames with a lid, cookie sheet or flat tray. Use baking soda or a foam extinguisher to extinguish flam-
ing grease. Be careful to avoid getting burned.
WARNING: Non-stick coatings, when heated, can be harmful to birds. Remove birds to a separate,
well-ventilated room during cooking.
CAUTION: Place the grill only in the position shown in these instructions. Setting the burner flames
higher than the MAX GRIDDLE level or putting the grill in the wrong position may damage it perma-
nently. Some appliances do not come with knobs marked with the MAX GRIDDLE setting. The grill kit
for these appliances comes with MAX GRIDDLE knobs. Install them prior to use.
Knob Installation -
Grills for the above listed cooktops/ranges come with knobs with the words MAX GRIDDLE on them. Install them
before using the grill to prevent damage. All other models come with the MAX GRIDDLE knobs already installed.
STEP 1
Remove the existing two knobs on the right side of the control panel.
Grasp each one and pull straight back. Leave the other two knobs
in place. NOTE: If you have difficulty removing any knobs, a rubber
grip (strip) is included with the kit. To use, peel the protective backing
off of the rubber strip and wrap the adhesive side around the knob as
shown. The grip can be peeled off and reapplied to the other knobs.
STEP 2
Put the new knobs from the kit, with the words MAX GRIDDLE on them, on the valve shafts in place
of the knobs removed in step 1. When installing the knobs, align the "D-shaped" opening on the back
of the knob with the end of the valve shaft. Carefully push in on each knob until it stops. The old knobs
may be discarded.
DRT304 Cooktop
ER30GI, ER36D and ER48D
Grill Models: AEGR30, AEGR36,
AEGR3648, AGDRT14 and AGRG14
Cooktop/Range Models DR30D, DRT304S, ER30G and ER30GI Only

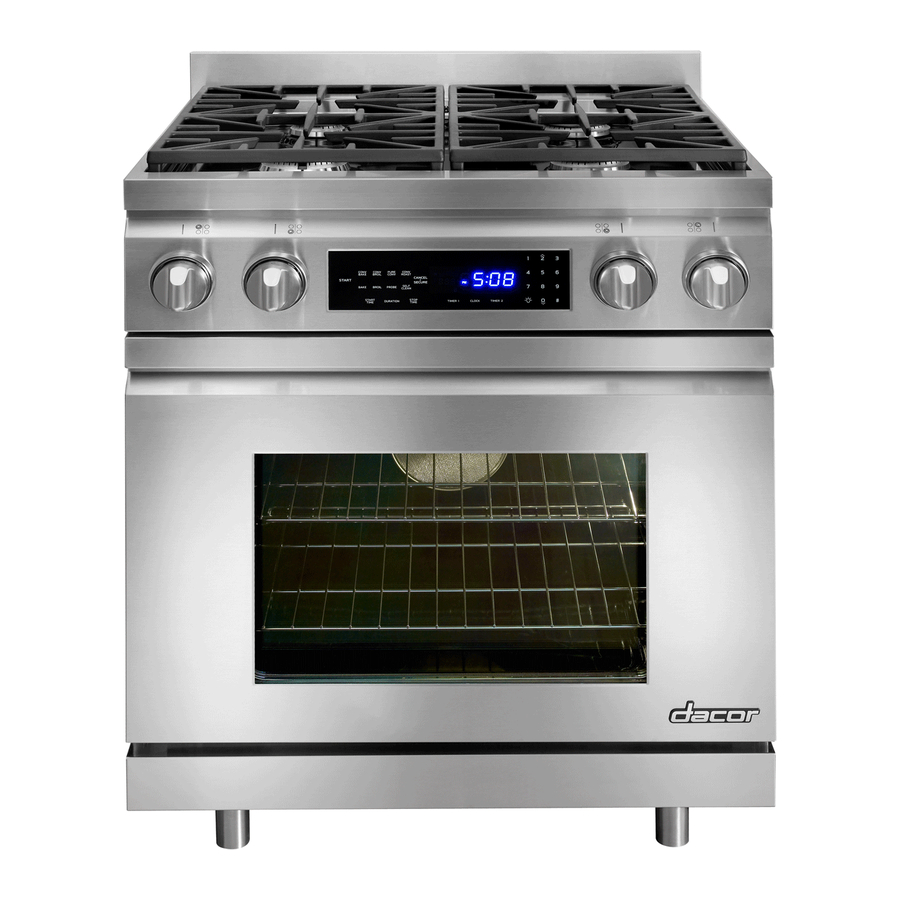

DR30D Range
INSTRUCTIONS
Knob Grip
Installation
ER30G[I] Range
Part No. 102331 Rev. J
