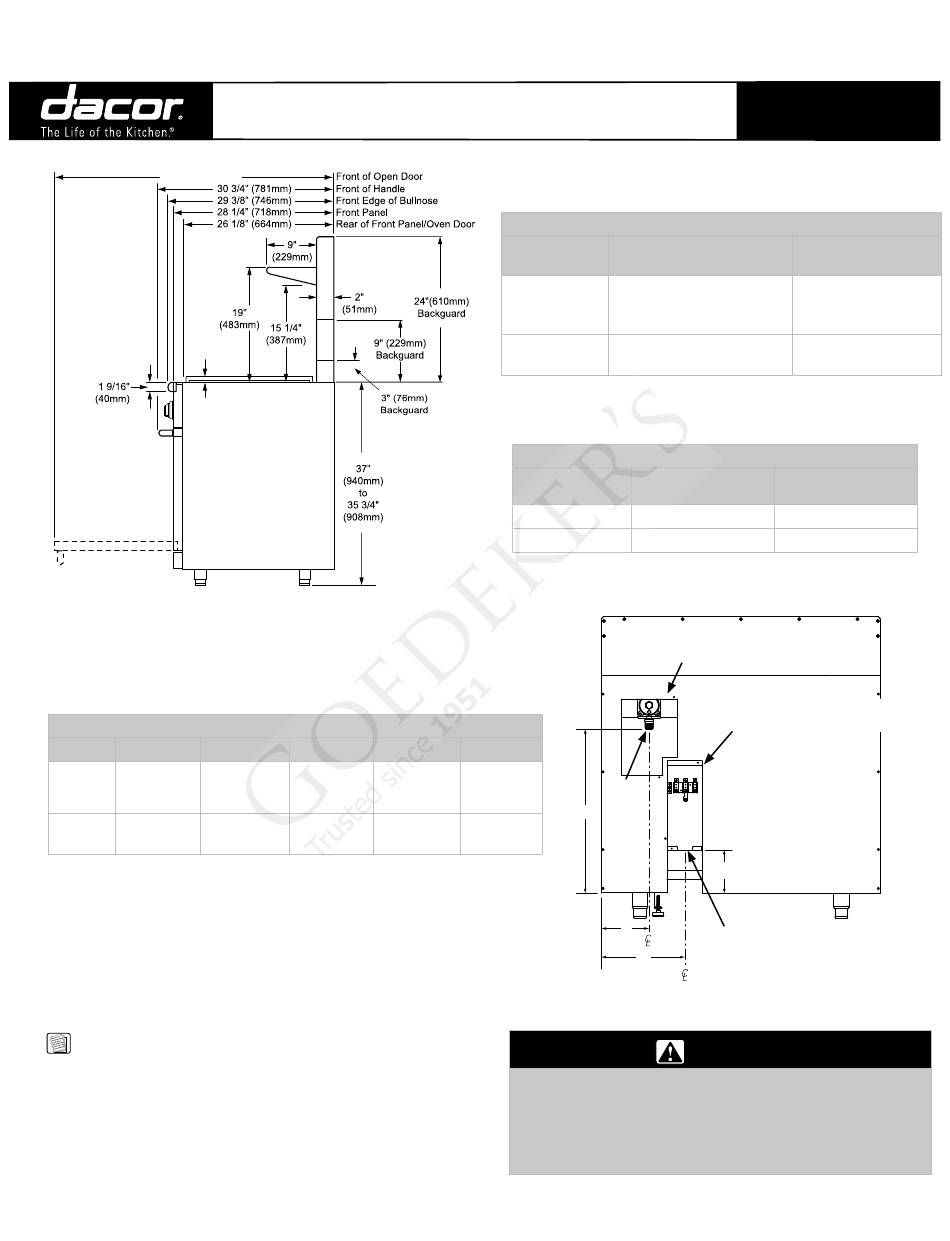

Dacor Epicure ER36D Planning Manual

Revised
03/10/09
48" (1219mm)
1 1/16" (27mm) to cooking
surface (top of grates) from
top of trim
Finished Side
Width: ER36D - 35 7/8" (911mm)
ER48D - 47 7/8" (1216mm)
GAS - ELECTRICAL ACCESS DIMENSIONS
Model A
5 5/8" 18 3/8"
ER36D
(142.9mm) (466.7mm)
3 13/16" 18 11/16"
ER48D
(96.8mm) (474.7mm)
* The diameter on models equipped for use in Canada is ¼"
(6.4mm) larger than those stated. Canadian units come from
the factory pre-wired with an appliance cord. When installing an
appliance cord on models that are not pre-wired, the hole size must
be increased to 1 1/8" (1 3/8" for model ER48D) by removing the
conduit bracket inside the range electrical access box.
NOTES:
1. When installing a backguard, always install it
before sliding the range into place.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
ER36D, ER48D
Epicure
Panel
B C D
10 3/4" 13 11/16"
(273.0mm) (347.7mm)
9 3/8" 13 3/4"
(238.1mm) (349.3mm)
Ranges
®
All tolerances: +/- 1/16" (+/- 1.6mm) unless otherwise stated
Range Model
ER36D
**
** ER48D
* 4-wire, two 120 Vac hot (L1 and L2), one neutral, one ground
**
GAS SUPPLY PRESSURE REQUIREMENTS*
Gas Type
Natural Gas
Propane (LP)
** Optional
* Maximum gas supply pressure 1/2 p.s.i. for all models
E*
7/8"
(22.2mm)
B
1 1/8"
(28.6mm)
◊ Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
◊ This appliance must be installed in accordance with the
accompanying installation instructions.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
1/2
ELECTRIC CIRCUIT REQUIREMENTS
Circuit Required
240 Vac, 4-wire* 60 Hz,
30 Amp. (Min.) 40 Amp.
(Recommended)
240 Vac, 4-wire* 60 Hz,
50 Amp.
Manifold Pressure
5" Water Column
10" Water Column
Gas Regulator Access,
Cover Removed
Range Electrical Access,
Cover Removed
Inlet
Back of Range
D
A
E Electrical Connection
Hole in Bottom
C
WARNING
GUIDE
Total Connected Load
6.5 kW (28 Amp.)
10.0 kW (42 Amp.)
Minimum Gas
Supply Pressure
6" Water Column
11" Water Column
5.15
