MEITRACK MVT600 User Guide
MEITRACK MVT600 User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVT600 and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack MVT600

Summary of Contents for MeiTrack MVT600

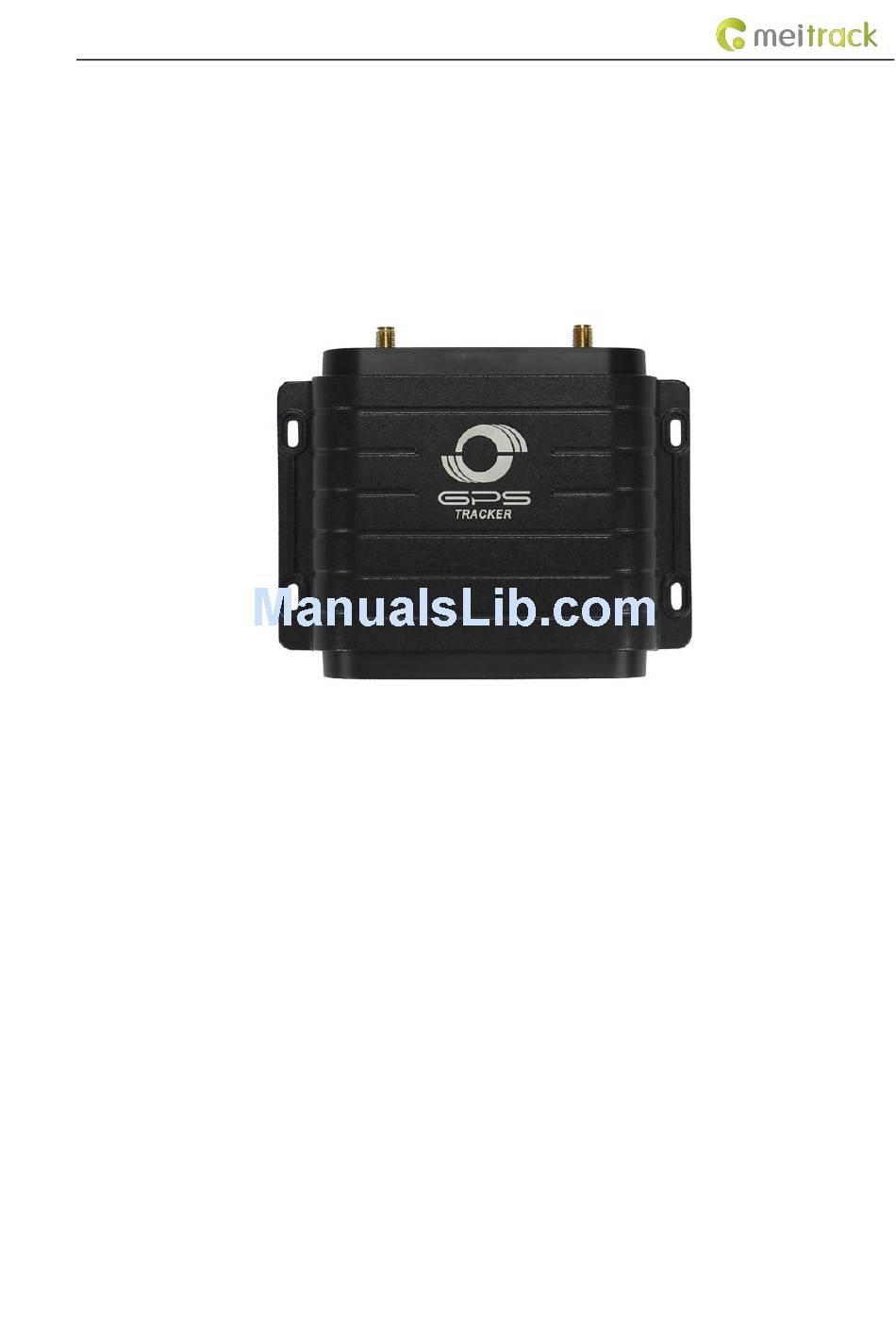

  • Page 1 MEITRACK MVT600 User Guide MEITRACK MVT600 User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK MVT600 User Guide Created By Renny Lee Project MVT600 Creation Date 2010-08-30 Update Date 2015-01-08 Subproject User Guide Total Pages Version V3.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    3.1.3 Optional Accessory Function ...........................- 5 - 3.1.4 Other Functions ...............................- 5 - 3.2 Specifications ..................................- 5 - 4 MVT600 and Accessories ................................- 6 - 5 Appearance....................................- 6 - 6 First Use ......................................- 7 - 6.1 Installing the SIM Card ................................- 7 - 6.2 Charging ....................................- 7 -...

  • Page 4: Copyright And Disclaimer

    2 Product Overview The MVT600 is a high-end GPS vehicle tracker supporting GPS, GSM, and GPRS functions. It can connect to a variety of peripherals, such as the camera, handset, LCD display, LED display, and RFID reader. This ensures high expansion.

  • Page 5: Optional Accessory Function

    GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy I/O port 3 inputs (2 negative inputs and 1 positive input) 1 analog detection input 1 fuel sensor detection input Copyright © 2015 Meitrack Group All rights reserved. - 5 -...

  • Page 6: Mvt600 And Accessories

    (at most eight temperature sensors) 5 Appearance GPS indicator SIM card slot Mircophone/Loudspeaker slot GSM indicator GSM antenna Micro SD card Power button GPS antenna connector USB port connector slot Copyright © 2015 Meitrack Group All rights reserved. - 6 -...

  • Page 7: First Use

    6.2 Charging When you use the MVT600 for the first time, connect the MVT600 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the MVT600 is charged at least three hours. Eight hours are recommended.

  • Page 8: Indicator

    GSM indicator (blue) (green) Power button To start the MVT600, press and hold down the power button for 3s to 5s, or connect the MVT600 to external power supply (11 V to 36 V). GPS Indicator (Blue) Steady on One button is pressed or one input is activated.

  • Page 9: Location Tracking

    6.5.1 Tracking on a Mobile Phone Call or send an SMS command (0000,A00) to the MVT600 SIM card number. An SMS with a map link will be received. Click the SMS link. The location will be displayed on Google Maps on your mobile phone.

  • Page 10: Setting A Combined Function Phone Number - A71

    If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. More SMS commands You can configure the MVT600 on a mobile phone or on a computer by using Meitrack Manager. For details, see section 6.4 "Configured on a Computer."...

  • Page 11: Setting The Smart Sleep Mode - A73

    0000,A12,6,0 to the tracker SIM card number.  Configured by Meitrack Manager: Connect the tracker to a PC, run Meitrack Manager to enter the main screen, and click the Tracking tab to set parameters. Visit ms02.trackingmate.com, and enter the user name and password. Contact us if you have no account or forget the password.

  • Page 12: Installing The Mvt600

    MEITRACK MVT600 User Guide Obtain the tracker IMEI number from the packing or Meitrack Manager, register a device, set the parameters shown in the following figure, and then click Save. Double-click a device in the panel on the right, and check whether data is updated in Status.
  • Page 13 Maximum current for output low voltage: 500 mA Connects to an external relay to remotely cut off the vehicle fuel cable or engine power supply. 12 (Digital Blue TTL3.3V level Copyright © 2015 Meitrack Group All rights reserved. - 13 -...

  • Page 14: Installation/Connection Diagram

    Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 8.2.2 Checking Vehicle Door Status and Trunk Status (PIN4/5, Negative Triggering) 8.2.3 Checking Engine Status (PIN3, Positive Triggering) Copyright © 2015 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Fuel And Power Cut-Off (Pin7/9/11)

    Note: The RS232 port supports peripherals, such as the A21 LCD display and LED display. For details about peripheral functions, see the A21 LCD display or LED display user guide. Copyright © 2015 Meitrack Group All rights reserved. - 15 -...

  • Page 16: Installing A Camera (Rs232 Port)

    Power output Output voltage: 5 V Black Ground wire Yellow The camera sends data to the MVT600 through the RS232 port. Green The MVT600 sends data to the camera through the RS232 port. Camera 2 RS232 Port Pin Number Color...

  • Page 17: Installing The Rfid Reader (Start The Engine)

    Yellow Wiegand data 1 Remarks: The MVT600 RFID reader is not compatible with the T1 RFID reader. The T1 RFID reader is an RS232 port. For details about an RFID reader, see the RFID user guide. 8.3 Installing GPS and GSM Antennas...
  • Page 18 MEITRACK MVT600 User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 18 -...
