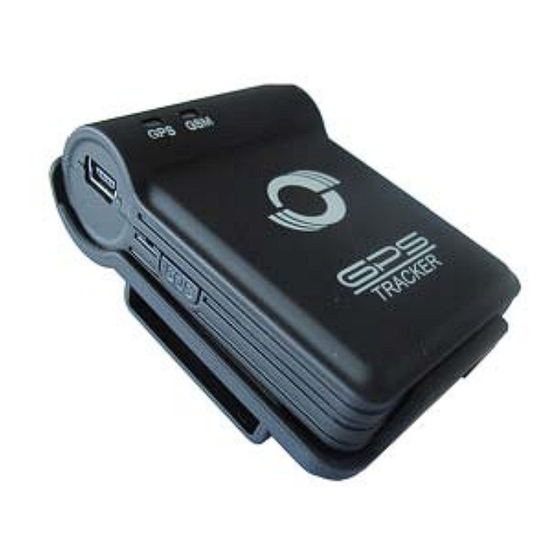

MeiTrack MT80i User Manual

Gps personal tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MEITRACK® GPS Personal Tracker
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved.
File Name:
MEITRACK MT80i User Guide
Project:
MT80i
Sub Project:
User Guide
Revision:
V2.2
User Guide V2.2
MT80i
Creator:
Cavana Cheung
Creation Date:
Update:
Page:
Confidential:
External Documentation
2010-10-10
2012-07-03
- 1 - of 15
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for MeiTrack MT80i

Summary of Contents for MeiTrack MT80i

  • Page 1 File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date: 2010-10-10 Update: 2012-07-03 Sub Project: User Guide Page: - 1 - of 15 Revision: V2.2 Confidential: External Documentation MEITRACK® GPS Personal Tracker User Guide V2.2 MT80i Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved.

  • Page 2: Table Of Contents

    Product Function and Specifications ......................- 3 - 3.1 Product Function ............................- 3 - 3.2 Specifications ............................- 4 - MT80i and Accessories ..........................- 4 - View ................................- 5 - First Use ................................ - 5 - 6.1 Install SIM Card ............................- 5 - 6.2 Charging ..............................

  • Page 3: Copyright And Disclaimer

    Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation.

  • Page 4: Specifications

    File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date: 2010-10-10 Update: 2012-07-03 Sub Project: User Guide Page: - 4 - of 15 Revision: V2.2 Confidential: External Documentation GPS Blind Area Alarm  Low Battery Alarm ...

  • Page 5: View

    If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the MT80i, please make sure the SIM installed supports displaying caller ID. Before installing the SIM card, turn off the power for MT80i.

  • Page 6: Track By Calling

    V2.2 Confidential: External Documentation 6.4 Track by Calling Make a call to MT80i and it will report with one SMS. For example, Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329 &ie=UTF8&z=16&iwloc=addr&om=1 Click on the link then the location can be shown directly on Google Maps on your mobile phone.

  • Page 7: Multiple Phone Numbers- A71

    Password is 4 digits only and defaulted as 0000. You can change the password by Parameter Editor and SMS command. MT80i will only accept commands from a user with the correct password and report SMS report to the user. If preauthorized phone number was set, only this phone number can receive SMS reports.

  • Page 8: Sleep Mode- A73

    File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date: 2010-10-10 Update: 2012-07-03 Sub Project: User Guide Page: - 8 - of 15 Revision: V2.2 Confidential: External Documentation Authorize a phone number to make a silent call to the tracker. The tracker will answer the call automatically and allows the caller to listen in to what is happening around the tracker.

  • Page 9: Configure By Computer

    ‘Prolific USB-to-Serial Comm Port’ as the following picture shows. Note: Remember this Com number. It needs to be input into the MEITRACK Parameter Editor. It is COM3 in this example and it would be COM4 or COM5… in your computer.

  • Page 10: Sms Tracking

    Click ‘Read Settings’ button to show the default or previous settings of the tracker. Note: MEITRACK Parameter Editor is in the CD. The language will be automatically adjusted to be the same as your PC operation system’s language. Please use “Ctrl+L” to switch the language.
  • Page 11 File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date: 2010-10-10 Update: 2012-07-03 Sub Project: User Guide Page: - 11 - of 15 Revision: V2.2 Confidential: External Documentation Item Description User Password SMS password for sending SMS commands and defaulted as 0000.
  • Page 12 A phone number to receive selected event’s SMS reports. Event Selected event’s SMS reports will be sent to authorized phone number. For more details, please refer to MEITRACK GPRS/SMS Protocol. For description of events from SOS/Input 1 Active to Tow Alarm, please refer to tap II GPRS Tracking.

  • Page 13: Gprs Tracking

    Report when MT80i exits Geo-fence. Geo-fence can be changed on tap III Main Settings. No GPS Signal Report when MT80i enters GPS blind area or no GPS signal. Get GPS Signal Report when MT80i exits GPS blind area or get GPS signal.
  • Page 14 Interval = 0, stop tracking by time interval. Max time interval = 65535*10 seconds GPRS Report Times = 0, report without limit. = [1,65535], set report times, MT80i will stop reporting when reaching the times. IP & Port Input server’s IP address and port number.
  • Page 15 Report when MT80i exits Geo-fence. Geo-fence can be changed on tap III Main Settings. No GPS Signal Report when MT80i enters GPS blind area or no GPS signal. Get GPS Signal Report when MT80i exits GPS blind area or get GPS signal.
