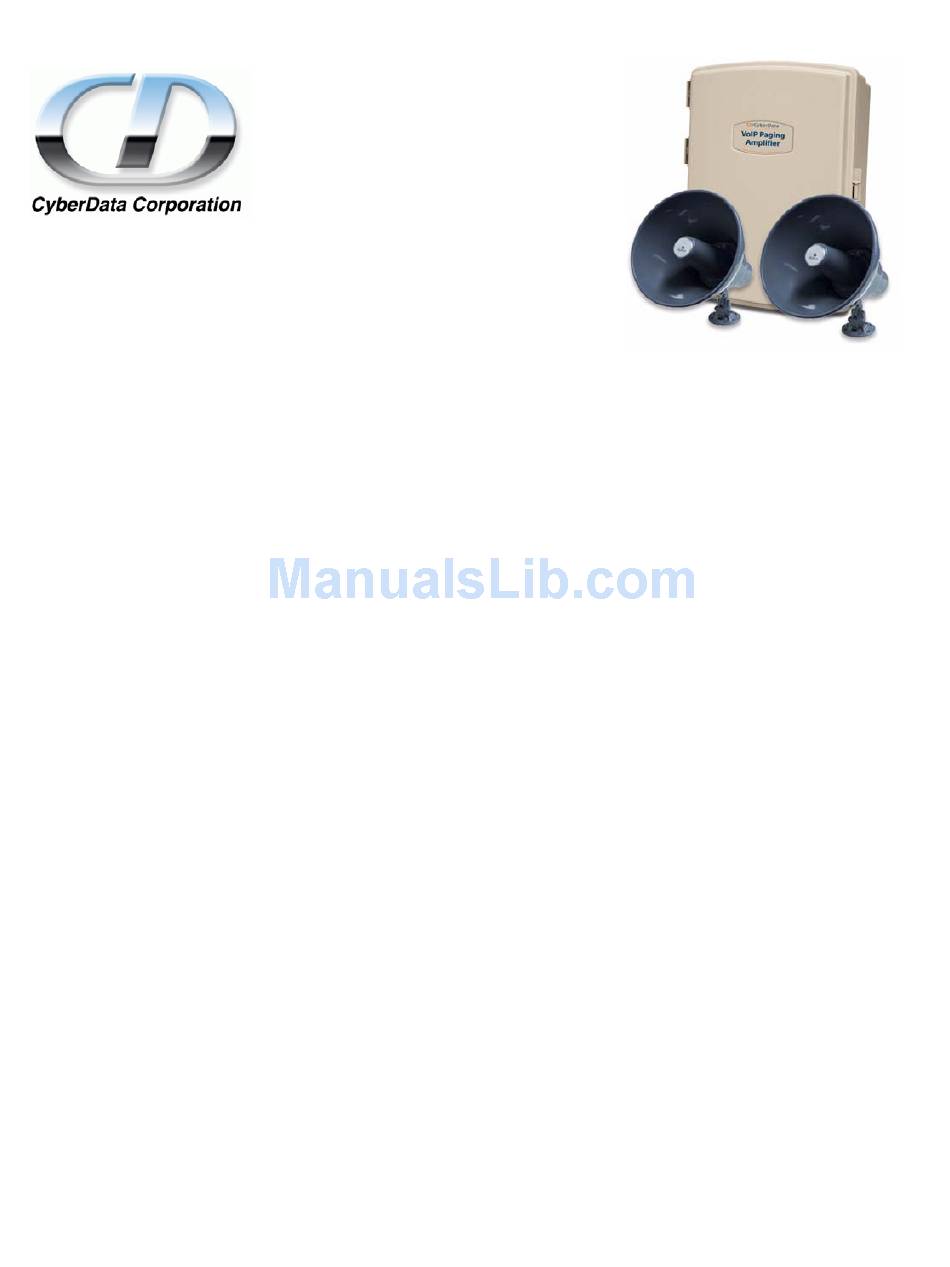

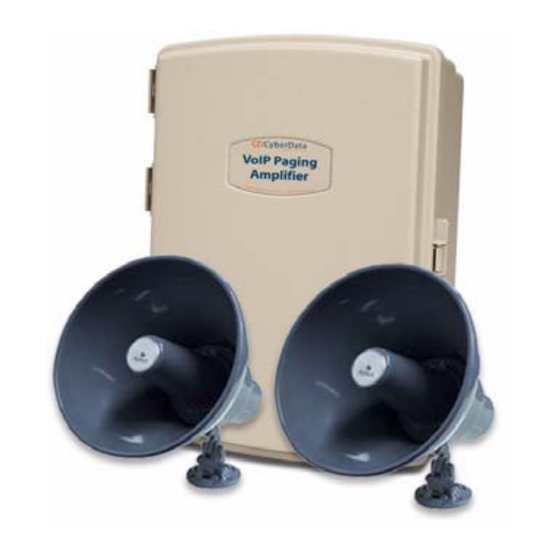

- Page 1 VoIP Loudspeaker Amplifier Operations Guide (Wireless, AC Powered) Part #010860 930112A...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Revision History
Revision History Revision Date Released Description of Changes 11/06/06 This is the first release of this manual. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... - Page 4 CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 5: Table Of Contents
4.0.1 In a LINUX Environment ......................29 4.0.2 In a Windows Environment ....................29 Chapter 5 Troubleshooting/Technical Support 5.1 Frequently Asked Questions (FAQ) ....................31 5.2 Documentation .............................31 5.3 Contact Information ..........................31 5.4 Warranty ..............................32 Index VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 6 Contents CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 7: Chapter 1 Product Overview
VoIP Loudspeaker Amplifier (Wireless, AC Powered) is normally installed as part of a public address system. Figure 1. Public Address System Generic PoE Hub VoIP Loudspeaker Amplifiers—Wireless, AC Required Server VoIP Phone VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... -
Page 8: Product Features
PCMU (G.711 mu-law) PCMA (G.711 A-law) Packet Time 20 ms 1.4 Supported SIP Servers The following link contains information on how to configure the loudspeaker amplifier for the supported SIP servers: http://www.CyberData.net/support/voip CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... -
Page 9: Product Specifications
8 W PoE/16 W with internal power supply Port Baud Rate 10/100 Mbps Power Requirement 802.3af compliant Protocol SIP RFC 3261 Part Number 010859 Dimensions 14” x 10” x 4” Weight 4.4 lbs. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 10 Product Overview CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 11: Chapter 2 Installing The Voip Loudspeaker Amplifier
Table 2-1. Parts List Quantity Part Name Illustration Loudspeaker Amplifier Assembly Installation Quick Reference Guide Loudspeaker Amplifier Mounting Accessory Kit (part #070057A) which includes: 3 x #8 x 1-1/4” truss head screws VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... -
Page 12: Loudspeaker Amplifier Setup
Installing the VoIP Loudspeaker Amplifier 2.2 Loudspeaker Amplifier Setup Set up and configure each loudspeaker amplifier before you mount it. CyberData delivers each loudspeaker amplifier with the factory set default values indicated in Table 2-2: Table 2-2. Factory Default Settings... -
Page 13: Loudspeaker Amplifier Jumpers
OFF -> Low Power (21V) Position B -> Low Power Table 2-4. Jumper Settings—High Power—Non-PoE Compliant Jumper Setting ON -> High Power (21V) ON -> High Power (21V) Position A -> High Power VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... -
Page 14: Connect The Loudspeaker Amplifier
Figure 2-3. Connect a Loudspeaker *This AC connection needs to be Ethernet Hub AC Input* installed by a certified electrician. Optional 2 Speaker Configuration Standard 1 Speaker Configuration 8 Ohms 8 Ohms CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... -
Page 15: Loudspeaker Type
● down connector for 14 AWG solid copper wire. a.Consult a licensed electrician for local electrical code requirements. 2.2.3.1 Loudspeaker Type The CyberData VoIP Loudspeaker Amplifier supports an 8 Ohm Bogen or equivalent unamplified loudspeaker. See Figure 2-4. Figure 2-4. Hornspeaker 2.2.3.2 Cabling/Wiring... -
Page 16: Confirm Operation
Link Green/Yellow The Link LED is illuminated green for a 10Mb link or yellow/green for a 100Mb link when the network link to the loudspeaker amplifier is established. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... -
Page 17: Confirm The Ip Address, Test The Audio, And Check The Volume
IP Address, test that the audio is working, and check the volume. Figure 2-7. RTFM Switch RTFM switch To announce a loudspeaker amplifier’s current IP address: 1. Press and hold the RTFM switch until it beeps (after one second). VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... -
Page 18: Adjust The Volume
Section 2.5, "Restore the Factory Default Settings" 2.2.6 Adjust the Volume To adjust the loudspeaker amplifier volume, turn the Volume dial (Figure 2-8) on the loudspeaker amplifier face. Figure 2-8. Volume Control Volume control CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... -
Page 19: Configure The Loudspeaker Amplifier Parameters
Make sure that the PC is on the same IP network as the loudspeaker amplifier. Note 2. When prompted, use the following default Web Access Username and Web Access Password to access the Home Page (Figure 2-9): Web Access Username: admin Web Access Password: admin VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 20 Default Gateway Shows the current default gateway address. Link to the Speaker Setup page. Link to the Network Setup page. Link to the SIP Setup page. Link to the Upgrade Firmware web page. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 21: Configure The Network Parameters
Enter the DNS Server 2 address. Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 22 4. Connect the speaker to the target network. 5. From a system on the same network as the speaker, open a browser with the new IP address of the speaker. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 23: Set Up The Loudspeaker Amplifier
Changing a parameter that has an asterisk next to it will cause a system reboot when saved. Click on this button to do an audio test. Generates a voice message for testing the speaker audio quality and volume. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... -
Page 24: Configure The Sip Parameters
3. After changing the parameters, click Save Settings. 2.3.4 Configure the SIP Parameters 1. Click SIP Setup to open the SIP Setup page (Figure 2-12). Note For specific server configurations, go to the following URL: http://www.CyberData.net/support/voip CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide... - Page 25 Installing the VoIP Loudspeaker Amplifier Figure 2-12. SIP Setup Page VoIP Loudspeaker Amplifier VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation...
- Page 26 Link to the Speaker Setup page. Link to the Network Setup page. Link to the Upgrade Firmware page. Link to the Home page. 3. After changing the parameters, click Save Settings. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 27: Upgrade The Firmware And Reboot The Loudspeaker Amplifier
If you do not already have a TFTP server running on your network, see Chapter 4, “Setting up a TFTP Server”. 2. Retrieve the latest speaker firmware from the CyberData website: www.CyberData.net/support/voip 3. Unzip the speaker version file. This file may contain the following: •... - Page 28 Shows the current configuration. Bootname Shows the current boot loader filename. Kernel Shows the current kernel filename for partition 1 and 2. Application Shows the current application filename for partition 1 and 2. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 29: Reboot The Loudspeaker Amplifier
Section 2.3.1, "Log in to the Configuration Home Page". 1. Click Upgrade Firmware to open the Firmware Upgrade page (Figure 2-14). Use the Reboot System section on the right side of the page. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 30 Installing the VoIP Loudspeaker Amplifier Figure 2-14. Reboot System Section VoIP Loudspeaker Amplifier 2. Click Reboot. A normal restart will occur as per the Status LED section of Table 2-6. CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 31: Restore The Factory Default Settings
• Once the settings are restored, a voice message announces the restored default IP address: 192.168.3.10 • A voice message announces that the loudspeaker amplifier is rebooting. • The loudspeaker amplifier reboots. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 32 Installing the VoIP Loudspeaker Amplifier CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 33: Chapter 3 Mounting The Enclosure
Consult a certified electrician for details. Figure 3-1 to mount the enclosure. Note For mounting, use the three #8 SHEET METAL SCREWS to secure the enclosure. VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 34 Mounting the Enclosure Figure 3-1. Loudspeaker Amplifier Enclosure Assembly CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 35: Chapter 4 Setting Up A Tftp Server
4. You can find several options online for setting up a Solarwinds server. This example explains how to use the Solarwinds freeware TFTP server, which you can download at: http://www.CyberData.net/support/voip VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation... - Page 36 Setting up a TFTP Server CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
-
Page 37: Chapter 5 Troubleshooting/Technical Support
Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:... -
Page 38: Warranty
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor. -
Page 39: Index
SIP 18 IP address 6, 13, 15, 25 using Web interface 13 IP addressing 15 configuration home page 13 CyberData contact information, corporate, sales, tech support, service 31 jumpers, settings 7 default gateway 6, 13, 25 IP address 6, 13, 25... - Page 40 13 mounting 27 parts list 5 unregister, from SIP server 20 product features 2 user ID product overview for SIP server login 20 product features 2 user ID, SIP 20 CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
- Page 41 6, 13, 25 web access username 6, 13, 25 web configuration log in address 13 web-based loudspeaker amplifier configuration 13 weight 3 Windows, setting up a TFTP server on 29 VoIP Loudspeaker Amplifier Operations Guide 930112A CyberData Corporation...
- Page 42 CyberData Corporation 930112A VoIP Loudspeaker Amplifier Operations Guide...
