Rear Panel

007-5716-001

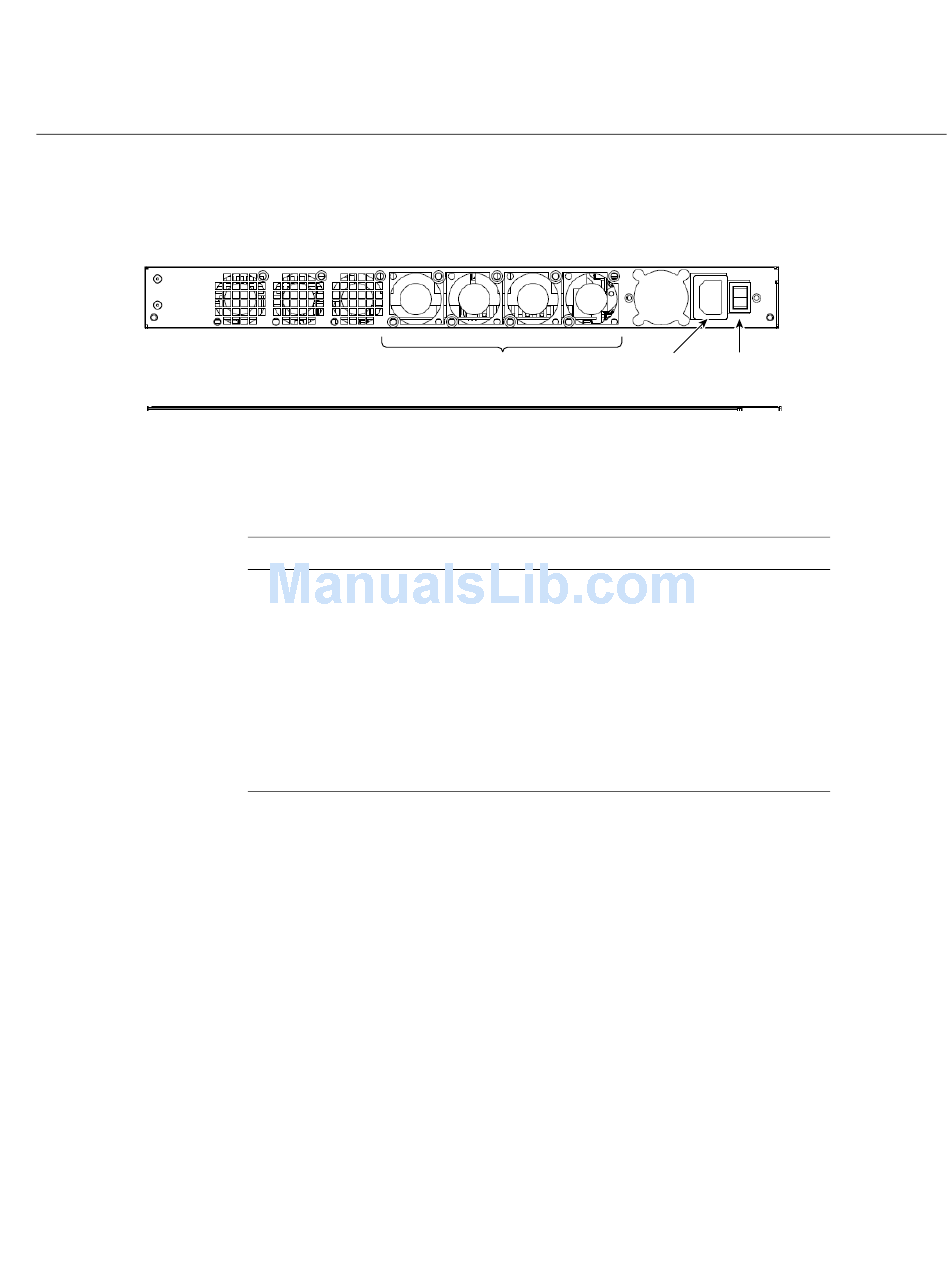

Figure 1-2 Rear Panel
Table 1-3 describes the various items illustrated in
Table 1-3 Rear Panel Components
Component
Power supply connector
Rear fans
Power switch
Rear fans
Description
Connect only 100-240 Volt AC, 5.5A maximum, 50-60 Hz.
Use a standard AC connector to connect power to the server.
An AC power cord is included in your documentation and
accessory kit.
Keep the area behind the fans clear and unobstructed. This
will ensure proper airflow to the components inside the
server chassis.
This power switch turns the server on and off. It controls the
power supply that is inside the chassis.
Key Components of Your 1U C1000 Server
Power Power
cord switch
connector
Figure 1-2.
