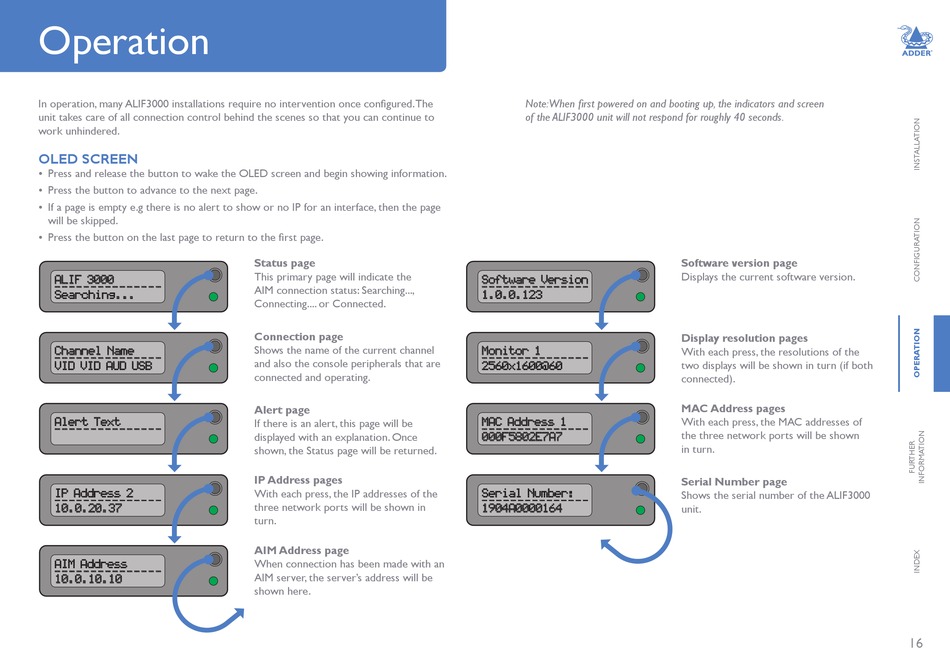

Operation

In operation, many ALIF3000 installations require no intervention once configured. The
unit takes care of all connection control behind the scenes so that you can continue to
work unhindered.

OLED SCREEN

• Press and release the button to wake the OLED screen and begin showing information.
• Press the button to advance to the next page.
• If a page is empty e.g there is no alert to show or no IP for an interface, then the page
will be skipped.
• Press the button on the last page to return to the first page.
ALIF 3000
–––––––––––––––
Searching...
Channel Name
–––––––––––––––
VID VID AUD USB
Alert Text
–––––––––––––––
IP Address 2
–––––––––––––––
10.0.20.37
AIM Address
–––––––––––––––
10.0.10.10
Status page
This primary page will indicate the
AIM connection status: Searching...,
Connecting.... or Connected.
Connection page
Shows the name of the current channel
and also the console peripherals that are
connected and operating.
Alert page
If there is an alert, this page will be
displayed with an explanation. Once
shown, the Status page will be returned.
IP Address pages
With each press, the IP addresses of the
three network ports will be shown in
turn.
AIM Address page
When connection has been made with an
AIM server, the server's address will be
shown here.
Note: When first powered on and booting up, the indicators and screen
of the ALIF3000 unit will not respond for roughly 40 seconds.
Software Version
–––––––––––––––
1.0.0.123
Monitor 1
–––––––––––––––
2560x1600@60
MAC Address 1
–––––––––––––––
000F5802E7A7
Serial Number:
–––––––––––––––
1904A0000164
Software version page
Displays the current software version.
Display resolution pages
With each press, the resolutions of the
two displays will be shown in turn (if both
connected).
MAC Address pages
With each press, the MAC addresses of
the three network ports will be shown
in turn.
Serial Number page
Shows the serial number of the ALIF3000
unit.
