RX video display

ALIF units support DVI digital
video signals and so use DVI-D
video connectors throughout.
• ALIF1000 models can support
a single high resolution DVI-D
video display at pixel clocks up
to 165MHz (equating to an
example display mode of 1920
x 1200 at 60Hz refresh).
• ALIF2000 models can simultaneously support up to two high resolution
video displays at pixel clocks up to 165MHz; or can alternatively support one
very high resolution video display (at pixel clocks up to 330MHz).

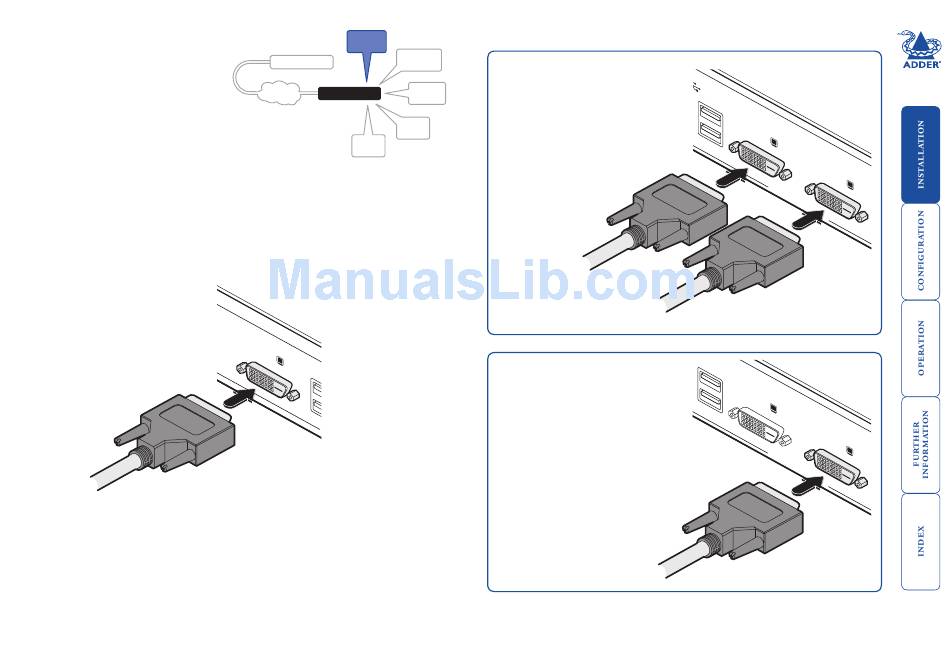

To connect a digital DVI video display
1 Connect the lead from the video display to the DVI-D socket on the rear
panel of the ALIF unit.
To video display
VIDEO
DISPLAY
MIC &
ALIF TX
SPEAKERS
USB
LINK ALIF RX
DEVICES
SERIAL
LINK
POWER
IN
[ALIF1000]
D V
I - D
[ALIF2000 when using two single link
DVI-D displays] Connect an additional
video input from the secondary video
port of the computer system using
the supplied secondary DVI-D link
cable.
To secondary video display
To primary video display
[ALIF2000 when using one very high
resolution DVI-D dual link display]
Use a DVI-D Dual Link cable (such
as Adder part: VSCD3) to connect
the video display to the DVI-D-1
connector of the ALIF2000 RX unit.
A dual link cable must also be used at
the TX unit.
When using dual link on DVI-D-1, the
DVI-D-2 port will be disabled.
If DVI-D-2 is already being used, then
it must be disconnected before dual
link operation can occur on DVI-D-1.
VSCD3 cable to primary
video display
