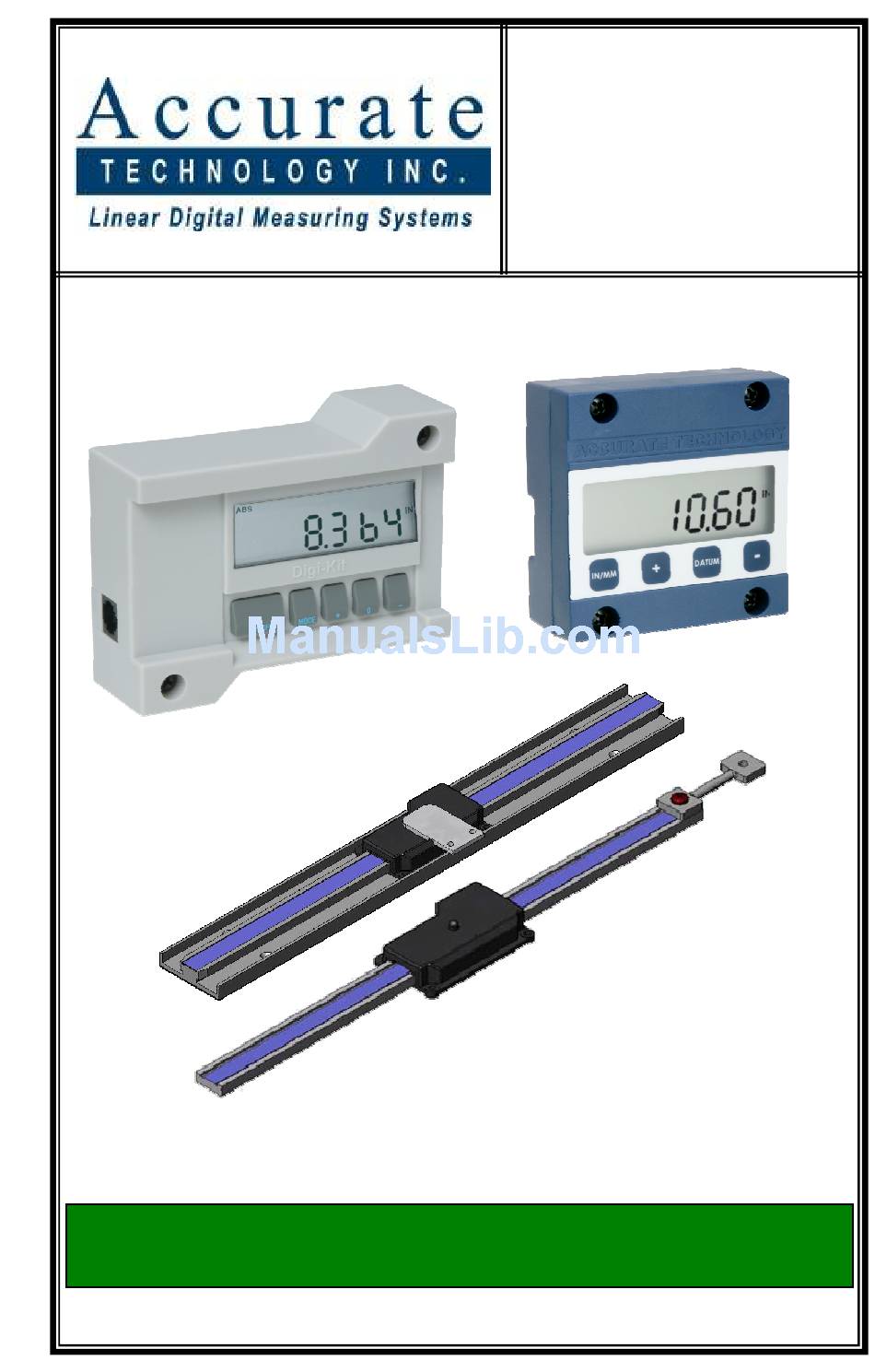

- Page 1 ™ DigiScale Models 18 & 28 User Manual...
- Page 2 Manual Part # 800-1404-001, Rev B Page 2 of 36...
- Page 3 Before installing DigiScale on any machinery: Turn off machine and disconnect power. P/N 800-1404-001, Rev B Copyright © 2010, Accurate Technology, Inc. All rights reserved. Accurate Technology DigiScale Models 18 & 28 User Manual Page 3 of 36...
-
Page 4: Table Of Contents
Table of Contents SECTION 1 GENERAL INFORMATION..........6 ................... 6 NTRODUCTION .................. 6 BOUT ANUAL ..................6 PECIFICATIONS ..................7 PECIFICATIONS ..................8 BOUT CALE Scale ....................8 Encoder....................8 Digital Readouts ................... 8 SECTION 2 INSTALLATION..............9 18 ....................9 ODEL 28 ....................11 ODEL... - Page 5 Pr 1 – Datum Key Value ................34 Pr 2 – Reading Direction................34 Pr 3 – Key Lockout................... 34 Pr 4 – Resolution ..................34 ERROR CODES..................35 Accurate Technology DigiScale Models 18 & 28 User Manual Page 5 of 36...
-
Page 6: General Information
ECTION ENERAL NFORMATION Introduction DigiScale is a general purpose linear measuring system It consists of three major parts: a , an and a SCALE ENCODER DIGITAL READOUT DigiScale is an ideal choice for most measuring requirements up to 60 inches where affordable digital precision (better than a tape measure) is desired. -
Page 7: Specifications
40 to 110 F Slew Rate: 60 inches/second Encoder cable: 72 inch * MEASUREMENT range is approximately 4 inches shorter than the PHYSICAL length of the aluminum scale extrusion. Accurate Technology DigiScale Models 18 & 28 User Manual Page 7 of 36... -
Page 8: About Digiscale
About DigiScale All DigiScale systems consist of a (or track), an , (or SCALE ENCODER readhead) and a (DRO). DIGITAL READOUT Scale DigiScale Models 18 & 28 The scale consists of a series of conductive patterns bonded to an aluminum extrusion. -
Page 9: Installation
Be sure connections are secure or inaccurate readings could Connector Link result. Plug the encoder cable into the readout. Accurate Technology DigiScale Models 18 & 28 User Manual Page 9 of 36... - Page 10 Stationary Scale installation If your application is better suited for the scale to be held stationary and the encoder moved along it during a measurement, you should use the Guide Clip to capture the encoder and move it along the scale (see illustration). Attach the scale to a fixed point in your application using the included screw.
-
Page 11: Model 28
Be sure the scale Guide Clip and encoder are properly aligned as the encoder is Accurate Technology DigiScale Models 18 & 28 User Manual Page 11 of 36... - Page 12 moved (the guide clip will compensate for slight misalignment in the direction perpendicular to movement). Adjust the scale alignment if necessary. Plug the encoder cable into the readout. Refer to the Digital Readout OPERATION manual that accompanied your DigiScale. M o v in g P a r t G u i d e C l ip E n c o d e r M o d e l 2 8 S ca le...
-
Page 13: Frequently Asked Questions
There is no calibration available or necessary for the DigiScale. System accuracy will depend on the accuracy of the DigiScale Scale itself and the quality of the installation. Accurate Technology DigiScale Models 18 & 28 User Manual Page 13 of 36... -
Page 14: Digi Readout
ECTION EADOUT This Section includes information for: Digital Readout, LCD, DIGI Part Number: 700-1600-D55 With Firmware Version d 2.xxx & higher (Firmware version is displayed on power-up) Mounting The Readout may be mounted: Using Velcro or Double sided tape Drilling out the 3 holes from the inside of the case Using any of the six holes on the back of the case which may tapped for M2 or 4-40 screws. -
Page 15: The Lcd
10 seconds UNITS with power off will perform a full segment LCD test, display the current firmware version, and RESET ALL PROGRAMMING PARAMETERS TO FACTORY DEFAULTS. Accurate Technology DigiScale Models 18 & 28 User Manual Page 15 of 36... -
Page 16: Changing The Batteries
Changing the Batteries A low battery indicator will appear in the lower left corner of the LCD. When battery voltage drops below approximately 2.6V the readout will turn itself off until the batteries are replaced. To replace the battery remove the screws in the upper right and lower left corners. -
Page 17: Circuit Board Jumpers
One end pin is labeled A and the other end pin is labeled B. FACTORY USE ONLY Programming Lockout Position A, Front Panel Programming is ENABLED Position B, Front Panel Programming is DISABLED Accurate Technology DigiScale Models 18 & 28 User Manual Page 17 of 36... -
Page 18: Operation
Operation Readout Keys TIMING The keys pictured above, are found on all Digi readouts, and some of them have multiple functions. Timing, which is how long a key is depressed, and the combination of the keys pressed is important. This manual uses the term ‘”momentarily” to describe a key press of shorter than 1 second. -
Page 19: And - Keys
If the readout decrements (reduces or goes negative) when it should be incrementing (increasing or going positive), the readout will need to be re-programmed for your application. See Section 3: Programming, Programming Parameter Pr2. Accurate Technology DigiScale Models 18 & 28 User Manual Page 19 of 36... -
Page 20: Incremental Measurements
INCREMENTAL MEASUREMENTS The readout has two measurement modes, or indexes. One is referred to as ABS or Absolute, and the other as INC, or Incremental. The absolute measurement mode allows the operator to read the current position of the encoder referenced from a fixed or known position-usually zero. The incremental mode allows the operator to make relative distance measurements from one arbitrary point to another. -
Page 21: Key Lock
10 seconds with readout power UNITS turned off. This will perform a full segment LCD test, display the current firmware version, and reset all programming parameters to factory defaults. Accurate Technology DigiScale Models 18 & 28 User Manual Page 21 of 36... -
Page 22: Programming
Programming Several functions of the Digi readout are user programmable. The following describes what features and functions are available and how to change the factory defaults to customize your DigiScale system. To enter Programming Mode: 1. Press and hold the key then momentarily press the key. -
Page 23: Programming Parameters
A value of 3 – High - will display x.xxx Default = 3 NOTES: Millimeters have a maximum of 2 places (even if parameter is set to 3.) This setting has no effect when displaying fractions. Accurate Technology DigiScale Models 18 & 28 User Manual Page 23 of 36... -
Page 24: Section 4 Compact Readout
ECTION OMPACT EADOUT This Section includes information for: Digital Readout, LCD, Compact Part Number: 700-1600-710 With Firmware Version b 2.xxx & higher (Press the key for 7 seconds to display Readout Firmware version) DATUM Mounting Surface Mount Configuration The Compact readout may be mounted: Using Velcro or Double sided tape Punch out any of the four holes from the inside of the back case. -
Page 25: Panel Mount Configuration
4 screws long enough to extend through the entire assembly and into the rear half case of the readout. Inches 2.0 Inches Cut out size Accurate Technology DigiScale Models 18 & 28 User Manual Page 25 of 36... -
Page 26: The Lcd
The LCD The above figure illustrates all the segments on the LCD display. (Not all segments are used on Compact Readouts) Changing the Battery A low battery indicator will appear in the lower left corner of the screen on the readout when a new battery is needed. -
Page 27: Circuit Board Jumpers
JP3 is used to select the proper voltage necessary for these systems to operate correctly. When using any Digi product or measuring system, this jumper must remain in position B. Accurate Technology DigiScale Models 18 & 28 User Manual Page 27 of 36... -
Page 28: Operation
Operation Readout Keys TIMING The keys on your readout, illustrated below, have multiple functions. Timing, (how long a key is depressed) is important. This manual uses the terms “momentarily” to describe a key press of less than 0.8 seconds and “press and hold”... -
Page 29: In / Mm Key
This allows for quick adjustments over a large range of values. These keys may be locked out to prevent accidental offset entries. See Section 4: Programming, Programming Parameter Pr3 Accurate Technology DigiScale Models 18 & 28 User Manual Page 29 of 36... -
Page 30: Datum Key
DATUM KEY Momentarily press key is used to change the currently displayed value. DATUM Momentarily pressing the key forces the readout to a user DATUM programmed value. This can be zero or any other displayable value. See Section 4: Programming, Programming Parameter Pr1 key can also be locked out to prevent accidental entries. -
Page 31: Readout Functions
4) Momentarily depress key to reset the readout and apply the offset entered previously, or momentarily depress the key to DATUM re-zero the display before the next measurement. Accurate Technology DigiScale Models 18 & 28 User Manual Page 31 of 36... -
Page 32: Key Lock
NOTES: 1. Offsets are stored when leaving the Incremental mode. Any offsets will be recalled the next time you switch from Absolute to Incremental mode. 2. While in Incremental mode, the Units of Measurement cannot be changed. If the display is reading mm when you enter the INC mode you cannot change to inches without first returning to the ABS mode. -
Page 33: Programming
To exit programming mode: Press and hold the key for 3 seconds. DATUM NOTE: The readout will automatically exit programming mode after 60 seconds of no key activity. Accurate Technology DigiScale Models 18 & 28 User Manual Page 33 of 36... -
Page 34: Programming Parameters
Programming Parameters Compact Readout Programming Parameters are listed below. Values in [ ] are the available range of values that may be programmed for that parameter. Factory defaults are shown in Bold Red. Pr 1 – Datum Key Value to + 999.999in] or to +9999.99mm] This value will be recalled and displayed when the key is pressed... -
Page 35: Error Codes
When the readout displays this message it means the battery voltage has dropped to a level where reliable programming is not possible. Install new batteries to clear this message. Accurate Technology DigiScale Models 18 & 28 User Manual Page 35 of 36... - Page 36 Fletcher, NC 28732 USA 828.654.7920 Please register your product at: http://www.proscale.com/registration.htm This manual is available online at: www.proscale.com Part # 800-1404-001 Rev B Copyright © 2010, Accurate Technology, Inc. All rights reserved. Manual Part # 800-1404-001, Rev B Page 36 of 36...
