Sending a Fax

With your data communications software, you can use your modem to send and
receive faxes directly from your computer. The following steps show you how to fax a
document directly from a Windows application without opening the data
communications program.
1. Create a document in a Windows application, such as Word, a graphics editor, or
a spreadsheet. Keep the application and the document open, and select Print
from the File menu.
2. Select CAPTURE FAX BVRP as the printer driver, and then click OK. The Send
Fax wizard appears.
3. In the Recipient section, type the required information or extract it from the
Phone Book by clicking this icon.
4. In the Template section, optionally select a cover page and type a cover message.
5. Select the document to be sent. The default file when sending from within a
Windows application is Capture.dgr.
6. Select the date and time to send the document, if you do not want to send it
immediately.
7. Click Finish to start the transmission.

About the LED Indicators

The modem has ten LED indicators on the front panel that indicate status and
activity:

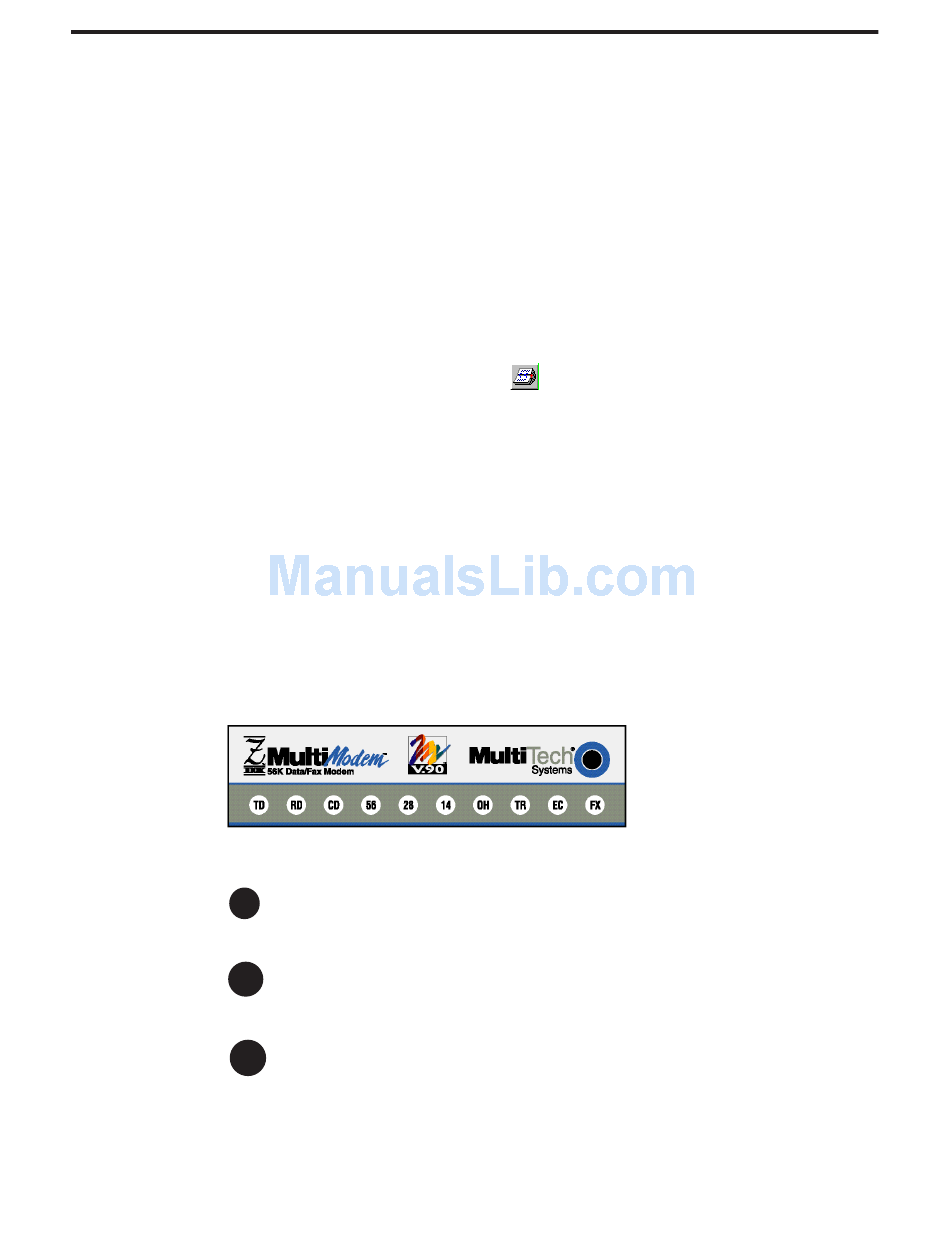

Figure 2–3. Front panel
TR
RD
CD
Transmit Data
Flashes when the modem is transmitting data to another modem.
Receive Data
Flashes when the modem is receiving data from another modem.
Carrier Detect
Lights when the modem detects a valid carrier signal from another modem. It
is on when the modem is communicating with the other modem, and off
when the link is broken.
