Connections for the MT5600ZDXV

1. Follow All of the Connection Directions for the MT5600ZDX

The add these steps:

2. Connect the Microphone

For voice mail or speakerphone applications, plug an unamplified microphone into

the MIC jack on the side of the modem. The microphone should have a stereo 1/8-

inch mini plug. Do not use a monophonic microphone.

3. Connect the Speaker

For speakerphone or voice mail applications, use a 1/8-inch-plug male-to-male

stereo patch cord to connect the SPKR jack on the side of the modem to the LINE IN

jack on your sound card. If your sound card does not have a LINE IN jack, use its

MIC jack. The stereo male-to-male patch cord can be purchased at a local PC retail

store.

If you do not have a sound card, you can plug an amplified speaker directly into the

SPKR jack.

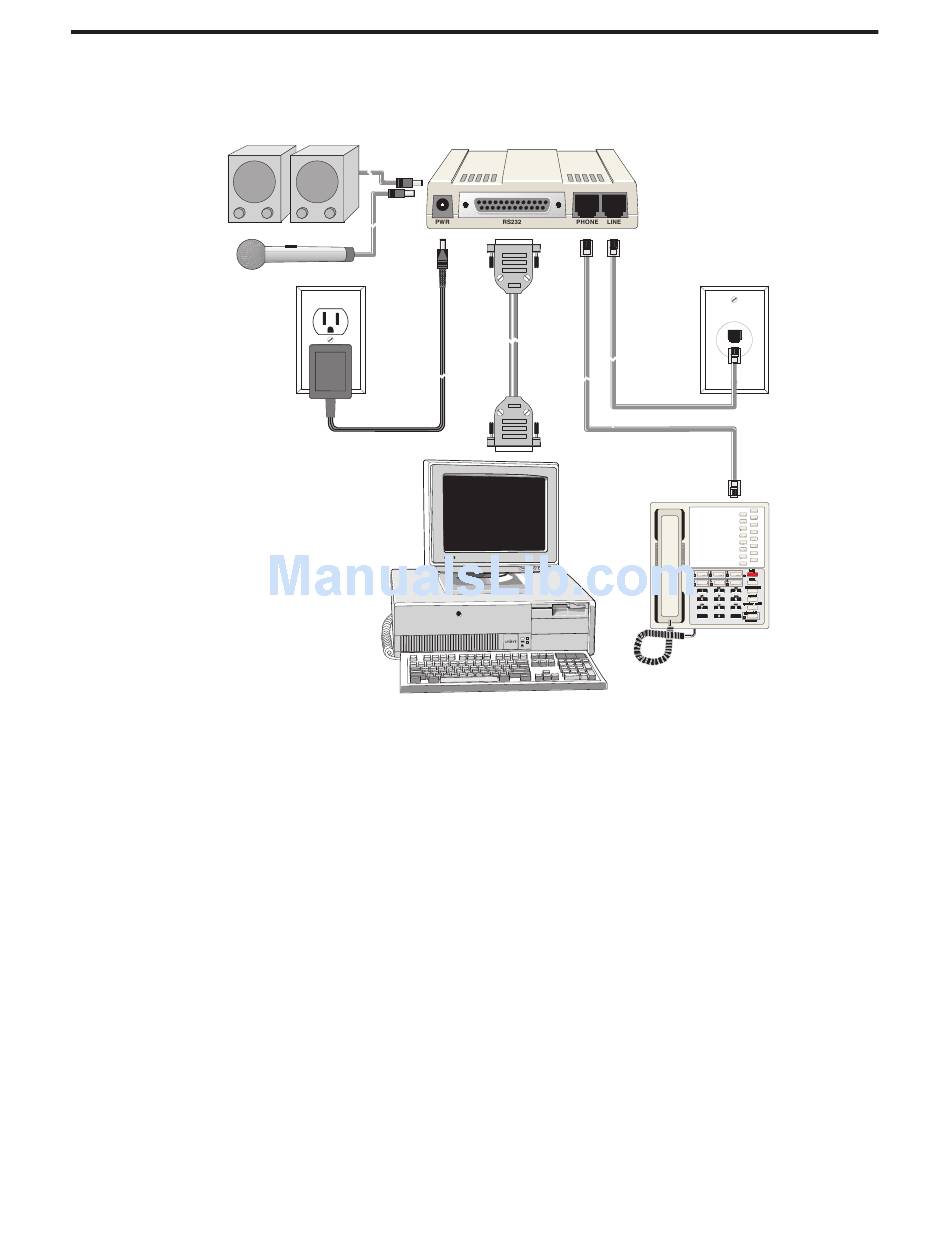

Figure 2–2. MT5600ZDXV Connections

2 Installation
