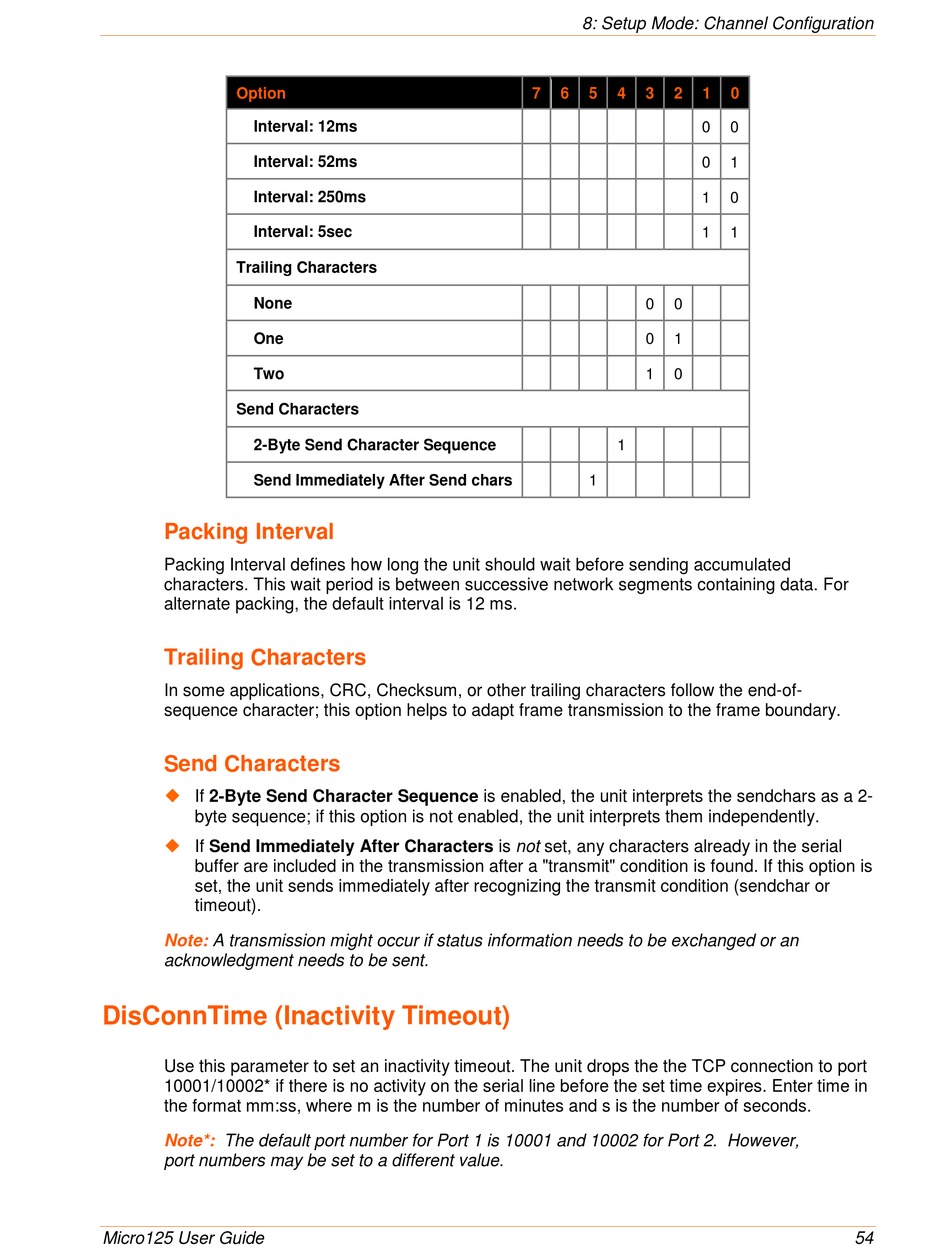

Packing Interval; Trailing Characters; Send Characters; Disconntime (Inactivity Timeout) - Lantronix Micro125 User Manual

Option
Interval: 12ms
Interval: 52ms
Interval: 250ms
Interval: 5sec

Trailing Characters

None
One
Two

Send Characters

2-Byte Send Character Sequence
Send Immediately After Send chars

Packing Interval

Packing Interval defines how long the unit should wait before sending accumulated
characters. This wait period is between successive network segments containing data. For
alternate packing, the default interval is 12 ms.
Trailing Characters
In some applications, CRC, Checksum, or other trailing characters follow the end-of-
sequence character; this option helps to adapt frame transmission to the frame boundary.
Send Characters

If 2-Byte Send Character Sequence is enabled, the unit interprets the sendchars as a 2-
byte sequence; if this option is not enabled, the unit interprets them independently.

If Send Immediately After Characters is not set, any characters already in the serial
buffer are included in the transmission after a "transmit" condition is found. If this option is
set, the unit sends immediately after recognizing the transmit condition (sendchar or
timeout).
Note: A transmission might occur if status information needs to be exchanged or an
acknowledgment needs to be sent.

DisConnTime (Inactivity Timeout)

Use this parameter to set an inactivity timeout. The unit drops the the TCP connection to port
10001/10002* if there is no activity on the serial line before the set time expires. Enter time in
the format mm:ss, where m is the number of minutes and s is the number of seconds.
Note*: The default port number for Port 1 is 10001 and 10002 for Port 2. However,
port numbers may be set to a different value.
