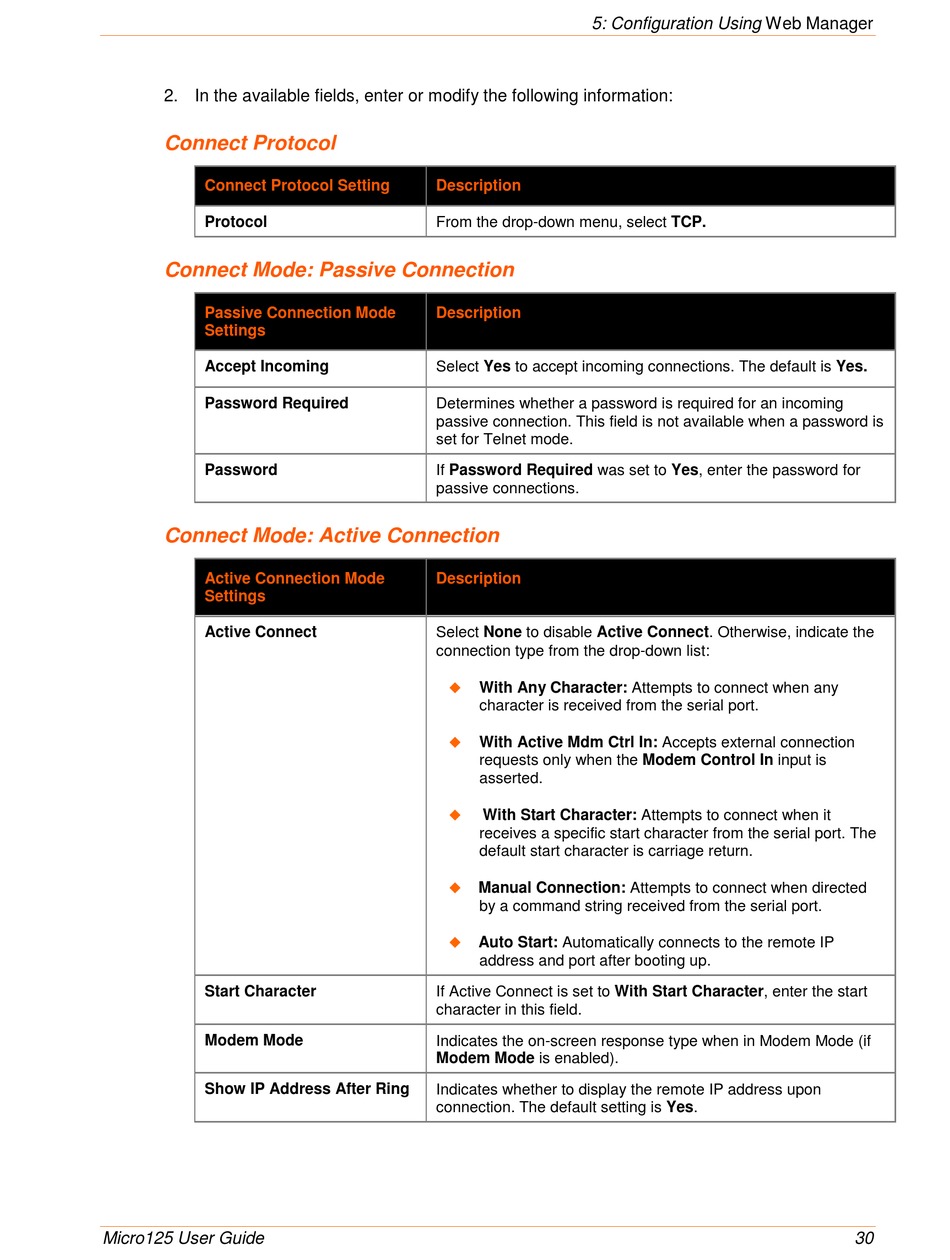

2. In the available fields, enter or modify the following information:

Connect Protocol

Connect Protocol Setting
Protocol
Connect Mode: Passive Connection
Passive Connection Mode
Settings
Accept Incoming
Password Required
Password
Connect Mode: Active Connection
Active Connection Mode
Settings
Active Connect
Start Character
Modem Mode
Show IP Address After Ring
Micro125 User Guide
5: Configuration Using Web Manager
Description
From the drop-down menu, select TCP.
Description
Select Yes to accept incoming connections. The default is Yes.
Determines whether a password is required for an incoming
passive connection. This field is not available when a password is
set for Telnet mode.
If Password Required was set to Yes, enter the password for
passive connections.
Description
Select None to disable Active Connect. Otherwise, indicate the
connection type from the drop-down list:

With Any Character: Attempts to connect when any
character is received from the serial port.

With Active Mdm Ctrl In: Accepts external connection
requests only when the Modem Control In input is
asserted.

With Start Character: Attempts to connect when it
receives a specific start character from the serial port. The
default start character is carriage return.

Manual Connection: Attempts to connect when directed
by a command string received from the serial port.

Auto Start: Automatically connects to the remote IP
address and port after booting up.
If Active Connect is set to With Start Character, enter the start
character in this field.
Indicates the on-screen response type when in Modem Mode (if
Modem Mode is enabled).
Indicates whether to display the remote IP address upon
connection. The default setting is Yes.
30
