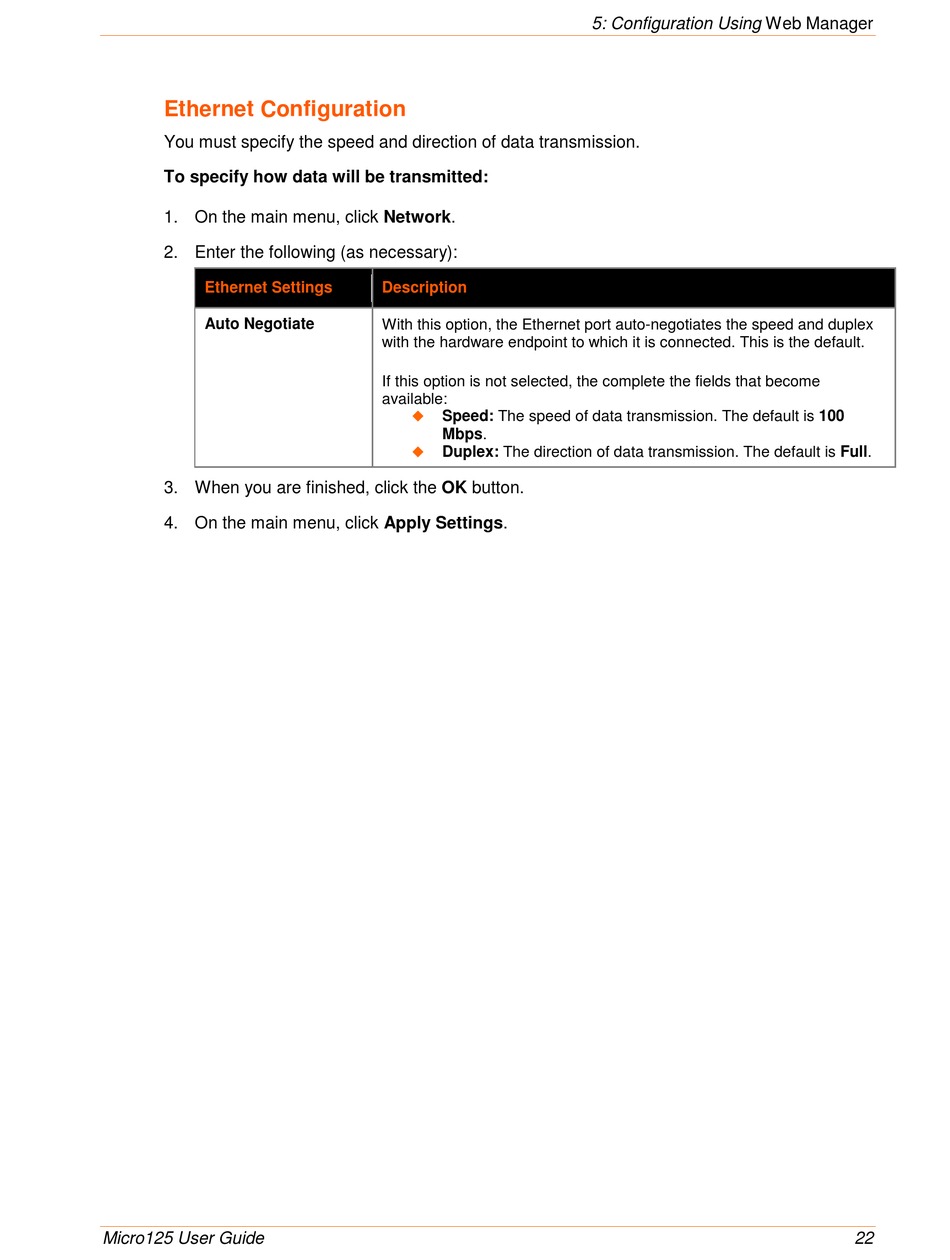

Ethernet Configuration - Lantronix Micro125 User Manual

Ethernet Configuration

You must specify the speed and direction of data transmission.
To specify how data will be transmitted:
1. On the main menu, click Network.
2. Enter the following (as necessary):
Ethernet Settings
Auto Negotiate
3. When you are finished, click the OK button.
4. On the main menu, click Apply Settings.
Micro125 User Guide
Description
With this option, the Ethernet port auto-negotiates the speed and duplex
with the hardware endpoint to which it is connected. This is the default.
If this option is not selected, the complete the fields that become
available:

Speed: The speed of data transmission. The default is 100
Mbps.

Duplex: The direction of data transmission. The default is Full.
5: Configuration Using Web Manager
22
