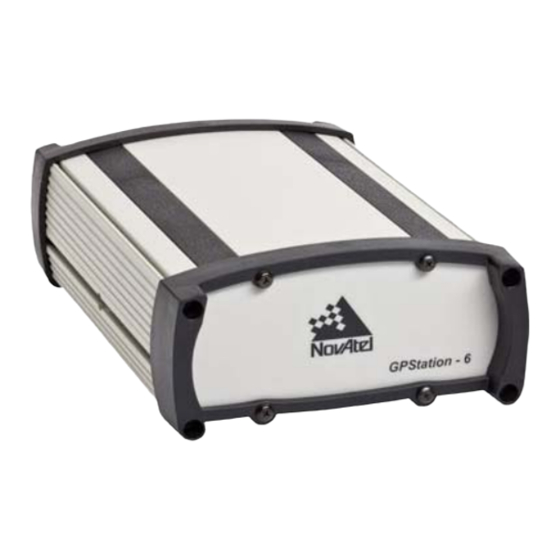

GPStation-6™
GNSS Ionospheric Scintillation
and TEC Monitor (GISTM)
Receiver

User Manual

OM-20000132
Rev 2
November 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPStation-6 and is the answer not in the manual?

Questions and answers

Related Manuals for Novatel GPStation-6

Summary of Contents for Novatel GPStation-6

  • Page 1: User Manual

    GPStation-6™ GNSS Ionospheric Scintillation and TEC Monitor (GISTM) Receiver User Manual OM-20000132 Rev 2 November 2012...

  • Page 2: Proprietary Notice

    This manual reflects GPStation-6 Firmware Version 6.2 To download the latest firmware and/or software visit: http://www.novatel.com/firmware. Warranty NovAtel Inc. warrants that its GNSS products are free from defects in materials and workmanship, subject to the conditions set forth on our web site: http://www.novatel.com/products/warranty/.

  • Page 3: Table Of Contents

    2.7.2 How does TEC affect GNSS? ..................25 2.7.3 Bias in TEC Measurements...................26 2.7.4 Determine Time of Day for Calibration ................26 2.7.5 Use GPStation-6 Auto Calibration Feature..............26 2.7.6 Apply Autocalibration Values to the Receiver..............27 2.8 Data Parsing Utilities .......................27 2.8.1 PARSEREDUCED.exe....................28 2.8.2 PARSERAW.exe ......................28...
  • Page 4 5.1.7 ISMCALIBRATIONSTATUS TEC self-calibration status ..........71 6 Technical Specifications 6.1 GPStation-6 Enclosure ......................73 6.2 Port Pin-Outs ...........................76 6.2.1 Cables..........................77 6.2.2 USB Serial Cable (NovAtel part number 01017664) .............80 6.3 Mounting Bracket Dimensions ....................81 Troubleshooting Index GPStation-6 User Manual Rev 2...
  • Page 5 List of Figures Figure1 Primary and Secondary Lightning Protection ..........10 Figure2 GPStation-6 Enclosure ................12 Figure3 Typical Receiver Installation ..............17 Figure4 Ionospheric TEC Characterized ..............25 Figure5 TEC Before and After Example ..............26 GPStation-6 User Manual Rev 2...
  • Page 6 Troubleshooting Based on Symptoms .............. 82 Table 24 Resolving a Receiver Error Word ..............83 Table 25 Resolving an Error in the Receiver Status Word ..........84 Table 26 Resolving an Error in the AUX1 Status Word ........... 86 GPStation-6 User Manual Rev 2...

  • Page 7: Customer Support

    If you have a technical issue, visit You can search for general information http://www.novatel.com/support/. about GNSS and other technologies, information about NovAtel hardware and software and installation and operation issues. Before Contacting Customer Support Before contacting NovAtel Customer Support about a software problem, perform the following steps:...

  • Page 8: Notices

    GPStation-6 has been tested and found to comply with the radiated and conducted emission limits for a Class B digital device. The Class B limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 9 Notices WEEE If you purchased your GPStation-6 in Europe, please return it to your dealer or supplier at the end of its life. The objectives of the European Community's environment policy are, in particular, to preserve, protect and improve the quality of the environment, protect human health and utilise natural resources prudently and rationally.

  • Page 10: Figure1 Primary And Secondary Lightning Protection

    Figure 1: Primary and Secondary Lightning Protection Ref # Description Ref # Description Primary lightning protection device GNSS Receiver Secondary lightning protection To ground device External antenna Grounding plate or grounding point at the building’s entrance GPStation-6 User Manual Rev 2...
  • Page 11 Where applicable, follow the electrical codes for the country of installation. Examples of country codes include: • USA National Electrical Code (NFPA 70) • Canada Canadian Electrical Code (CSA C22) • UK British Standards Institute (BSI 7671) GPStation-6 User Manual Rev 2...

  • Page 12: Introduction

    ), phase scintillation (σ ) and TEC statistics. ф The wealth of data generated by the GPStation-6 GISTM receiver can be used to enable an array of applications. For example: • Raw high-rate data can be used to develop real-time local ionospheric monitoring applications, where the primary goal may be to detect and report random ionosphere-induced disturbances in support of signal integrity.

  • Page 13: System Components

    Built on nearly 20 years of technological heritage and a collaborative partnership between NovAtel Inc. and GPS Silicon Valley, the GPStation-6 is the next offering in a long line of GISTM receivers. The GPStation-6 is a direct upgrade and product replacement for the GSV4004B GISTM receiver, a product sold and supported by GPS Silicon Valley since 2004 (no longer commercially available).
  • Page 14 GPStation-6 receiver and supporting utilities. In order to operate the GPStation-6 Software Utility toolkit, a Windows system is required. It should be noted that the GPStation-6 receiver itself has no reliance on any operating system and that interface and data processing software can be developed on a suitable processing platform.

  • Page 15: Installation

    Chapter 1 Installation Installation This chapter contains instructions and tips to setup your NovAtel GPStation-6 receiver and create a GNSS Ionospheric Scintillation and TEC Monitor (GISTM) receiver system. Required Equipment 1.1.1 Included Equipment The GPStation-6 package includes the following equipment for receiver operation: •...

  • Page 16: Choosing A Coaxial Cable For The Antenna

    1.1.5.1 GPStation-6 Enclosure The provided power cable and the accessory power adapter for the GPStation-6 is a 12 V power adapter with a built-in slow-blow fuse for use with a standard 12 VDC power outlet. If a different power supply is desired, the input range required is +11 to +18 VDC. The type of connector required to mate with the receiver’s power connector is a 4-pin LEMO socket connector labeled PWR.

  • Page 17: Installation Overview

    Mount the antenna on a secure, stable structure capable of safe operation in the specific environment • Choose an antenna location with a clear view of the sky so that each satellite above the horizon can be tracked without obstruction • For optimal performance, select a low multi-path environment GPStation-6 User Manual Rev 2...

  • Page 18: Connecting The Antenna To The Receiver

    Connect the antenna to the receiver using high quality coaxial cable (refer to “Choosing a Coaxial Cable for the Antenna” on page 16 for details). The GPStation-6 provides a TNC female connector which can be connected directly to the antenna using any of NovAtel’s coaxial cables.

  • Page 19: Additional Features And Information

    Click OK to accept the new policy. Click OK again to close the System Properties dialog. Unplug the NovAtel receiver USB cable, plug it back in and follow the installation instructions described in either the Firmware Updates and Model Upgrades section.

  • Page 20: Status Indicators

    The same 10 MHz OCXO signal is also output on the OSC port (BNC female) of the GPStation-6 enclosure and can be used as a frequency reference for other external equipment. The OSC port for the GPStation-6 enclosure is output only;...

  • Page 21: Operation

    The antenna is properly installed, powered and connected • The PC is properly connected to the GPStation-6 receiver using a serial or USB cable and its communications protocol is configured to match that of the GPStation-6 Supply power to the GPStation-6 only after the above checks are made. Allow the GPStation-6 internal OCXO sufficient time to warm-up before starting normal operation.

  • Page 22: Getting Started

     Install the GPStation-6 version of the PC Utilities provided on the CD. Although the latest version of NovAtel Connect (including Convert4) can be downloaded from the NovAtel web site, the GPStation-6 specific utilities are only available from this CD or directly from a NovAtel Customer Support representative.
  • Page 23 Console window can be used to enter configuration commands or request data logs. If desired, Connect can also be used to log specific GPStation-6 GISTM data to file for post-processing using the Save Data feature, available under the Tools menu.

  • Page 24: Novatel Slog Utility

    It is also used in long-term data collection/ monitoring installations where stability and organized archiving are important. SLOG is provided with the GPStation-6 (as it was with the GSV4004B), in particular due to its power and flexibility for long-term data collection/monitoring applications.

  • Page 25: Tec Calibration

    SLOG script is running a summary display including signal tracking information will be provided in the command window. SLOG will automatically log all raw data collected from the GPStation-6 receiver to *.GPS file(s) for post-processing. The NovAtel data parsing utilities described in the next section can be used along with Excel, MatLab or any other data processing software (including custom software) to process and analyze the raw data as desired.

  • Page 26: Bias In Tec Measurements

    Operation 2.7.3 Bias in TEC Measurements NovAtel recommends calibrating the TEC to remove biases from TEC measurements. Sources of TEC measurement bias include the GNSS antenna, antenna cable, amplifiers, splitters, connectors, working temperature and equipment aging. TEC measurement bias must be determined during the time of day when the Ionosphere shows the lowest amount of activity.

  • Page 27: Apply Autocalibration Values To The Receiver

    ISMTECCALIBRATION GLOL1CAL2CA 19.007484436 Data Parsing Utilities The GPStation-6 is provided with the following command line data parsing utilities which are used to parse the GISTM logs and output CSV data in organized and human-readable format: The input file accepted can be created using SLOG or NovAtel Connect.

  • Page 28: Parsereduced.exe

    The PARSERAW utility is used to process the raw GISTM data logs. It is executed from a command line window (similar to SLOG). Usage details are provided in the following screen shot: Command Line Example: PARSERAW G1 DATAFILE.GPS OUTPUTFILE.CSV (for GPS PRN 1) GPStation-6 User Manual Rev 2...

  • Page 29: Gistm Data Processing

    Operation GISTM Data Processing The GPStation-6 CD includes sample C++ files that can be used to support custom code development for decoding and processing the GISTM data. During initial evaluation of the product and data analysis, the parsing utilities described above create ISMR summary files in .csv format. Post- processing can then be done on the data using analysis software, such as Matlab or Microsoft Excel.

  • Page 30: Messages

    This allows for a great deal of versatility in the way the OEM6 family of receivers can be used. All NovAtel commands and logs can be entered, transmitted, output or received in any of the three formats. The receiver also supports RTCA, RTCMV3, RTCM, CMR, CMRPLUS and NMEA format messaging.

  • Page 31: Table 2 Field Types

    String is a variable length array of bytes that is null-terminated in the binary case and additional bytes of padding are added to maintain 4-byte alignment. The maximum byte length for each String field is shown in the row in the log or command tables. GPStation-6 User Manual Rev 2...

  • Page 32: Abbreviated Ascii

    COM2 RXSTATUSEVENTA ONNEW 0.000000 0.000000 NOHOLD < COM3 RXSTATUSEVENTA ONNEW 0.000000 0.000000 NOHOLD < COM1 LOGLIST ONCE 0.000000 0.000000 NOHOLD As you can see, the array of 4 logs are offset from the left hand side and start with ‘<’. GPStation-6 User Manual Rev 2...

  • Page 33: Ascii

    Please see “Chapter Responses” on page 598 for a list of response messages from the receiver. Message Structure: header; data field..., data field..., data field... *xxxxxxxx [CR][LF] The ASCII message header structure is described in Table 3.2 on the next page. GPStation-6 User Manual Rev 2...

  • Page 34: Binary

    Due to the inherent compactness of binary as opposed to ASCII data, messages are much smaller. The smaller message size allows a larger amount of data to be transmitted and received by the receiver’s communication ports. The structure of all GPStation-6 User Manual Rev 2...
  • Page 35 The 3 Sync bytes will always be: Byte Decimal First Second Third The CRC is a 32-bit CRC performed on all data including the header. The header is in the format shown in Table 5 on page 36. GPStation-6 User Manual Rev 2...

  • Page 36: Table 5 Binary Message Header Structure

    See Table 6 on page 38 (decimal values >=32 may be used) (lower 8-bits only) Message Ushort The length in bytes of the Length body of the message, not including the header nor the CRC. Continued on next page GPStation-6 User Manual Rev 2...
  • Page 37 This ENUM is not 4-bytes long but, as indicated in the table, is only 1-byte. d. These time fields are ignored if Field #11, Time Status, is invalid. In this case, the current receiver time is used. The recommended values for the three time fields are 0, 0, 0. GPStation-6 User Manual Rev 2...

  • Page 38: Table 6 Detailed Port Identifier

    COM3, virtual port 31 SPECIAL Unknown port, virtual port 0 . . . SPECIAL_31 Unknown port, virtual port 31 THISPORT Current COM port, virtual port 0 . . . THISPORT_31 Current COM port, virtual port 31 GPStation-6 User Manual Rev 2...
  • Page 39 Decimal port values 0 through 16 are only available to the UNLOGALL command and cannot be used in the UNLOG command or in the binary message header (refer to the OEM6 Firmware Reference manual). GPStation-6 User Manual Rev 2...

  • Page 40: Responses

    BESTPOSB. The example is in hex format. When you enter a hex command, you may need to add a ‘\x’ or ‘0x’ before each hex pair, depending on your code. For example: 0xAA0x440x120x1C0x010x000x02 and so on). GPStation-6 User Manual Rev 2...

  • Page 41: Table 7 Binary Message Response Structure

    String containing the ASCII response in variable hex coding to match the ID above (for example, 0x4F4B = OK) a. This ENUM is not 4-bytes long but as indicated in the table is only 1 byte. GPStation-6 User Manual Rev 2...

  • Page 42: Table 8 Binary Message Sequence

    Checksum DA8688EC From BESTPOSB AA44121C 2A000220 48000000 90B49305 B0ABB912 00000000 Receiver Header 4561BC0A BESTPOSB 00000000 10000000 1B0450B3 F28E4940 16FA6BBE 7C825CC0 Data 0060769F 449F9040 A62A82C1 3D000000 125ACB3F CD9E983F DB664040 00303030 00000000 00000000 0B0B0000 00060003 Checksum 42DC4C48 GPStation-6 User Manual Rev 2...

  • Page 43: 32-Bit Crc

    = 0; while ( ulCount-- != 0 ) ulTemp1 = ( ulCRC >> 8 ) & 0x00FFFFFFL; ulTemp2 = CRC32Value( ((int) ulCRC ^ *ucBuffer++ ) & 0xff ); ulCRC = ulTemp1 ^ ulTemp2; return( ulCRC ); GPStation-6 User Manual Rev 2...
  • Page 44 When you pass the data into the code that follows, exclude the checksum shown in bold italics above. ASCII: #include <iostream.h> #include <string.h> void main() char_*i_=_”BESTPOSA,COM2,0,77.5,FINESTEERING,1285,160578.000,00000020,5941,11 SOL_COMPUTED,SINGLE,51.11640941570,-114.03830951024,1062.6963,-16.2712, WGS84,1.6890,1.2564,2.7826,\"\",0.000,0.000,10,10,0,0,0,0,0,0"; unsigned long iLen = strlen(i); unsigned long CRC = CalculateBlockCRC32(iLen, (unsigned char*)i); cout << hex << CRC <<endl; GPStation-6 User Manual Rev 2...
  • Page 45 //Please note that this hex needs to be reversed due to Big Endian order where the most significant value in the sequence is stored first (at the lowest storage address). For example, the two bytes required for the hex number 4F52 is stored as 524F. GPStation-6 User Manual Rev 2...

  • Page 46: Commands

    Using a Command All NovAtel commands may be used for data input as normal or used to request data output (a unique OEM6 Family feature). GISTM specific commands, relevant to GISTM operation, may be in Abbreviated ASCII, ASCII or Binary format (refer to Messages on page 30 for details).

  • Page 47: Table 9 Gistm Commands

    Table 10 lists the GSV4004B legacy commands and their GPStation-6 equivalent commands. While some legacy commands are still fully supported in the GPStation-6, it is recommended to use the new commands to ensure access to all of the newest functionality available, including the modernized GNSS signals and systems.

  • Page 48: Clockadjust Enables Clock Adjustments

    All oscillators have some inherent drift. By default, the receiver will steer its clock to accurately match GPS time. The GPStation-6 receiver automatically locks to the 10 MHz reference signal generated by the OCXO internal to the enclosure. Therefore, when clock adjustments are enabled the receiver will steer the OCXO towards GPS time.

  • Page 49: Ismbandwidth Controls Detrending Filter Bandwidth

    Header command name or the message header depending on whether the command is abbreviated ASCII, ASCII or binary, respectively Phase bandwidth Phase filter bandwidth DOUBLE 8 (Hz) Amplitude Amplitude filter bandwidth DOUBLE 8 bandwidth (Hz) GPStation-6 User Manual Rev 2...

  • Page 50: Ismcalibrate Setup A Tec Self-Calibration

    Seconds to delay 604800 calibration start ULONG (Default = 0) Duration 1 to Calibration duration in 604800 seconds (Default = ULONG 21600) Elevation cutoff -90 to Elevation cutoff, in FLOAT H+12 degrees, for calibration (Default = GPStation-6 User Manual Rev 2...

  • Page 51: Ismsignalcontrol Controls Gistm Log Output

    Signal Type Signal type to configure ENUM (refer to Table 11, Signal Type) Do not output raw DISABLE measurement for this signal type Enable observations ENUM Enable output of raw ENABLE measurements for this signal type GPStation-6 User Manual Rev 2...

  • Page 52: Table 11 Signal Type

    GALE1 Galileo E1 code 10466 GALE5A Galileo E5A code 10499 GALE5B Galileo E5B code 10532 GALALTBOC Galileo AltBOC code 14753 QZSSL1CA QZSS L1 C/A code 14787 QZSSL2C QZSS L2C code 14820 QZSSL5Q QZSS L5Q code GPStation-6 User Manual Rev 2...

  • Page 53: Ismteccalibration Set Tec Calibration Value

    Table 12: Signal Combination Code Signal Signal Combination Combination Description (ASCII) (Binary) GPSL1CAL2Y GPSL1CA + GPSL2P(Y) GLOL1CAL2P GLOL1CA + GLOL2P GPSL1CAL2C GPSL1CA + GPSL2C GPSL1CAL5 GPSL1CA + GPSL5 SBASL1CAL5 SBAS L1 + SBAS L5 GLOL1CAL2CA GLOL1CA + GLOL2CA GPStation-6 User Manual Rev 2...

  • Page 54: Pllbandwidth Set The Phase Lock Loop Bandwidth

    “pops” that the PLL needs to react to. The GPStation-6 uses a low noise OCXO to minimize these jumps, but in extreme cases clock frequency “pop” could cause extra losses of lock in lower bandwidth PLLs.

  • Page 55: Table 13 Pll Aiding Parameters

    Commands Table 13: PLL Aiding Parameters Parameter Parameter Description (Binary) (ASCII) CURRENT Do not change the current PLL aiding selection AIDED Enable secondary channel PLL aiding INDEPENDENT Disable secondary channel PLL aiding GPStation-6 User Manual Rev 2...

  • Page 56: Setdiffcodebiases Sets Satellite Differential Code Biases

    4.2.8 SETDIFFCODEBIASES Sets satellite differential code biases The GPStation-6 measures TEC by differencing pseudo range measurements between frequencies. The code phase between different signals can have a bias as broadcast by the satellites. These biases typically vary by satellite and can change over time as satellites age or new satellites are introduced to replace older ones.

  • Page 57: Logs

    Table 16 lists the GSV4004B legacy logs and their modernized GPStation-6 equivalents. While all legacy logs are still fully supported in the GPStation-6, it is recommended to use the new logs to ensure access to all of the newest functionality available, including the modernized GNSS signals and systems.

  • Page 58: Table 16 Legacy Gsv4004B Logs

    Logs Table 16: Legacy GSV4004B Logs Legacy Log Description Equivalent Log DETRSIN Detrended phase and amplitude measurements ISMDETOBS ISMR 60 second reduced measurements ISMREDOBS/ ISMREDTEC RAWSIN Raw phase and amplitude measurements ISMRAWOBS/ ISMRAWTEC GPStation-6 User Manual Rev 2...

  • Page 59: Ismdetobs Detrended Phase And Amplitude Measurements

    These formulas yield a scale factor that can be anywhere from 1/2048 to 2048. So this gives a relative power range of ±33dB from the base power measurement. Structure: Message ID: 1395 Log Type: Asynch GPStation-6 User Manual Rev 2...
  • Page 60 32-bit CRC (ASCII and Binary only) H+8+ (chan # x 220) variable [CR][LF] Sentence terminator (ASCII only) a. Observation1 is not listed because Observation1 data is in the first ADR and first power fields. GPStation-6 User Manual Rev 2...

  • Page 61: Table 17 Satellite System

    Table 19: Power and ADR Bit Field Description Bits Field Description Units Format 31..20 Power Factor Change in power from the first value sign/magnitude 19..0 Delta ADR Change in ADR from the previous milli-cycles signed integer value GPStation-6 User Manual Rev 2...

  • Page 62: Ismrawobs Raw Phase And Amplitude Measurement

    These formulas yield a scale factor that can be anywhere from 1/2048 to 2048. So this gives a relative power range of ± 33dB from the base power measurement. Structure: Message ID: 1389 Log Type: Asynch Recommended Input: LOG ISMRAWOBSB ONNEW ASCII example: #ISMRAWOBSA,USB1,1,83.5,FINESTEERING,1666,424004.000,00000020,36d0,10283;GLON ASS,16,17,4,1,0,8799727.933294836,864769,f0f134c1,e0e134c6,ff3134b4,ff5134b4, e7713494,f3c13499,fc6134c2,f3613499, fca134c3,f85134a8,f3f134d5,ee4134b7,fed134ca,ec9134b0,f9e134b7,ed4134b0,7f513 4a6,ead13498,7d613498,fcd134b5,f4f1348f,fdd1349c,ed9134af,78f1349b,fad134ae,f 58134a9,ee313490,ff6134a2,f7713498,fec13494 ,f07134a0,f221349f,7b813486,f82134a8,fc01348b,f95134b8,ef4134b2,f99134c8,7701 34ad,fa0134b2,ee213495,fcf134b8,fdf134ad,f341349d,e89134a6,f8b134a8,ea513481, f83134a6,ed913489 GPStation-6 User Manual Rev 2...
  • Page 63 32-bit CRC (ASCII and Binary only) H+8+(c han # x 220) variable [CR][LF] Sentence terminator (ASCII only) a. Observation1 is not listed because Observation1 data is in the first ADR and first power fields. GPStation-6 User Manual Rev 2...

  • Page 64: Ismrawtec Raw Tec Measurements

    1-second interval, where ΔPR = 1.54573 (ΔADR – ΔADR ) cycles L1,carrier  The TEC measurements contained in this log are the raw, unsmoothed values. Structure: Message ID: 1390 Log Type: Asynch LOG ISMRAWTECB ONNEW Recommended Input: GPStation-6 User Manual Rev 2...
  • Page 65 Primary signal delta TEC at TOW (TECU) FLOAT H+16 Next record offset = H+4 + (chan # x 16) variable xxxx 32-bit CRC (ASCII and Binary only) H+4+(# chans x variable [CR][LF] Sentence terminator (ASCII only) GPStation-6 User Manual Rev 2...

  • Page 66: Ismredobs Reduced Phase And Amplitude Measurements

    60 seconds should be used with caution. However, in those cases, the code/carrier divergence measurements could be used to discard the data. Structure: Message ID: 1393 Log Type:Asynch Recommended Input: LOG ISMREDOBSB ONNEW GPStation-6 User Manual Rev 2...
  • Page 67 Sigma of code/carrier divergence (m) FLOAT H+28 Total S Total S FLOAT H+32 Corr. S Correction to total S FLOAT H+36 1-second phase 1-second phase sigma (radians) FLOAT H+40 sigma 3-second phase 3-second phase sigma (radians) FLOAT H+44 sigma GPStation-6 User Manual Rev 2...
  • Page 68 60-second phase sigma (radians) FLOAT H+56 phase sigma Next record offset = H+4+ (chan # x 56) variable xxxx 32-bit CRC (ASCII and Binary only) H+4+ (chan # x 56) variable [CR][LF] Sentence terminator (ASCII only) GPStation-6 User Manual Rev 2...

  • Page 69: Ismredtec Reduced Tec Measurements

    For GLONASS only. Range: -7 to +6 CHAR Satellite system Satellite system identifier (refer to Table 17, UCHAR Satellite System) Primary signal Primary signal type in TEC measurement UCHAR (refer to Table 18, Signal Mapping for Satellite Systems) GPStation-6 User Manual Rev 2...
  • Page 70 Delta-TECTOW Delta TEC measurement from TOW - 15 to FLOAT H+56 TOW (TECU) Next record offset = H+4+ (chan # x 56) variable xxxx 32-bit CRC (ASCII and Binary only) H+ 4+ chans x 56) variable [CR][LF] Sentence terminator (ASCII only) GPStation-6 User Manual Rev 2...

  • Page 71: Ismcalibrationstatus Tec Self-Calibration Status

    Standard deviation of TEC calibration (TECU) FLOAT H+20 8 ... Next record offset = H + 8 + (# records x variable xxxx 32-bit CRC (ASCII and Binary only) H+8+ (# records x 20) variable [CR][LF] Sentence terminator (ASCII only) GPStation-6 User Manual Rev 2...

  • Page 72: Table 20 Signal Combination Type

    Logs Table 20: Signal Combination Type Signal Combination Type Signal Combination Type (Binary) (ASCII) GPSL1CAL2Y GLOL1CAL2P GPSL1CAL2C GPSL1CAL5 SBASL1CAL5 GLOL1CAL2CA GPStation-6 User Manual Rev 2...

  • Page 73: Technical Specifications

    Chapter 6 Technical Specifications GPStation-6 Enclosure PHYSICAL Size 233 x 154 x 71 mm Weight 1.4 kg DIMENSIONS Top View Side View Front View GPStation-6 User Manual Rev 2...
  • Page 74 0 VDC and maximum 0.8 VDC High: minimum 2.0 VDC and maximum 3.6 VDC Conforms to USB 2.0 Electrical format Low (1.5 Mbps) and Full speed (12 Mbps) USB Bit rates USB D(+) and USB D (-) Signals supported GPStation-6 User Manual Rev 2...
  • Page 75 Technical Specifications INPUT/OUTPUT CONNECTORS TNC female jack, 50  nominal impedance Antenna Input +5 VDC, 100 mA max (output from GPStation-6 to antenna/LNA) 4-pin LEMO connector Enclosure Input Voltage: +11 to +18 VDC Power Consumption: 6 W Typical COM1 DB-9 male connector...

  • Page 76: Port Pin-Outs

    1. No flow control available on COM3. Table 22: I/O Port Pin-Out Descriptions Signal Connector Pin No. Signal Descriptions Name Reserved Pulse per second Reserved Mark input Valid position available Reserved Reserved ERROR Indicates a fatal error when high Digital ground GPStation-6 User Manual Rev 2...

  • Page 77: Cables

    +9 to +18 VDC Orange or Green +9 to +18 VDC Brown or White Ground Connector key marking Universal tip 12V adapter 6 Amp slow blow fuse Spring  NovAtel recommends tying to ground any floating input lines. GPStation-6 User Manual Rev 2...
  • Page 78 Null-Modem Cable (NovAtel part number 01017658) This cable allows the GPStation-6 to communication with a computer. The cable is equipped with a 9-pin connector at the receiver end which can be plugged into the COM1, COM2 or COM3 port. At the computer end, a 9-pin connector is provided to accommodate a computer serial (RS232) communication port.
  • Page 79 I/O Strobe Port Cable (NovAtel part number 01018519) The GPStation-6’s strobe lines can be accessed by inserting the male DB9 connector of the I/O strobe port cable into the I/O port. The other end of this cable is provided without a connector for maximum flexibility. The cable is approximately 2 m in length.

  • Page 80: Usb Serial Cable (Novatel Part Number 01017664)

    USB Serial Cable (NovAtel part number 01017664) The USB cable provides a means of interfacing between the COM1 port on the GPStation-6 and another serial communications device, such as a computer. At the enclosure end, the cable has a DB9 connector that plugs into a COM port.

  • Page 81: Mounting Bracket Dimensions

    Technical Specifications Mounting Bracket Dimensions Top View Ø6.6 ± 0.5 ± 0.5 173.4 ± 0.5 Side View Front View GPStation-6 User Manual Rev 2...

  • Page 82: Troubleshooting

    Try to resolve the problem using the troubleshooting guide in Table 23, then try our Knowledge Base at http:// www.novatel.com/support/. If you are still not able to resolve the problem, contact NovAtel Customer Support. Table 23: Troubleshooting Based on Symptoms...

  • Page 83: Table 24 Resolving A Receiver Error Word

    Tables 24 and 25 on pages 83 to 85 give you actions to take when your receiver has an error flag in either of these words. If you are not able to resolve the condition, contact NovAtel Customer Support.

  • Page 84: Table 25 Resolving An Error In The Receiver Status Word

    None. This bit is a status bit indicating if the receiver’s position has been manually fixed and does not represent a problem. Refer also to the FIX command in the OEM6 Family Firmware Reference Manual. Continued on the following page GPStation-6 User Manual Rev 2...
  • Page 85 Examining the AUX1 Status Word Table 26 provides actions to take when your receiver has an error flag in the AUX1 status word. If you are not able to resolve the condition, contact NovAtel Customer Support GPStation-6 User Manual Rev 2...

  • Page 86: Table 26 Resolving An Error In The Aux1 Status Word

    Connect the receiver via Ethernet 19-21 Reduce the amount of logging on the Ethernet ports 22-24 Reduce the amount of logging on the NTRIP ports 25-27 Reduce the amount of logging on the Virtual COM ports 28-31 (Reserved bits) GPStation-6 User Manual Rev 2...

  • Page 87: Index
