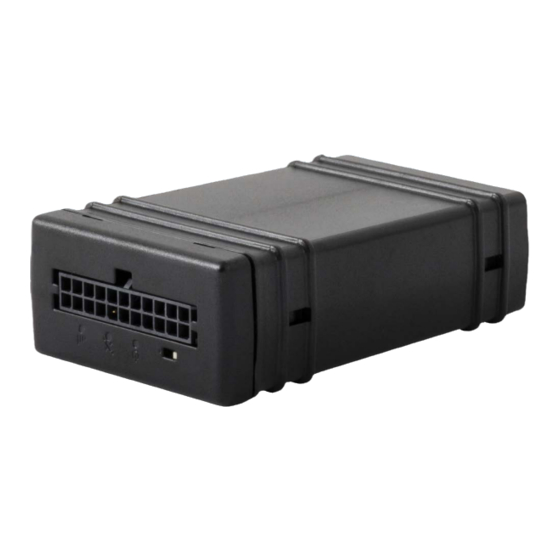

Page 1: User Guide
MT4100X-UG001 MT 4100 User Guide Version 1.3 April 9, 2015... - Page 2 Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its respective owners.
-
Page 3: Table Of Contents
Contents Introduction Description Technical Specifications Features and Functions Power LEDs 22-Pin I/O Connector Battery Disconnect Switch Low-Power Sleep Mode Accelerometer 1-Wire® Interface Device Check-In Garmin Fleet Management Interface (GFMI) Installation SIM Installation Device Installation Precautions and Guidelines Mounting Locations Mounting Methods Device Orientation Mounting and Installing the Device Network Test Procedure... - Page 4 Cable Wiring Guides 22-Pin I/O Connector Parameters Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance Battery Information and Safety Requirements...
-
Page 5: Introduction
Introduction Description Technical Specifications... -
Page 6: Description
MT 4100 remotely from almost anywhere in the world. The MT 4100 has a printed label on the top side of the device. The following figure shows a sample label with the type of information it includes. -
Page 7: Technical Specifications
900/2100 (Bands VIII, I) (ROW) GSM/GPRS/EDGE Fallback: 850/1900 Mhz Fallback (NA) 900/1800 Mhz Fallback (ROW) Packet Data Packet Data IS-95, IS-2000 SMS Functionality - HSDPA SMS: Text, PDU, MO/MT, Cell Broadcast - CDMA SMS: Text, MO/MT MT 4100 User Guide... - Page 8 ADC2: 10 bit, 0-32 V input range, +/- 1%, 40 V max scaling 0.0312 per bit (32 VDC/1023) Protocols Host Protocols: AT commands, UDP API, FOTA Internal Protocols: UDP API, TCP API API Control/Status: AT commands, UDP API, TCP API, AT commands over SMS MT 4100 User Guide...
-
Page 9: Additional Features
Low Power Sleep Mode Application Note ENF0000AN002 FOTA Application Note ENF0000CB001 API Reference ENF0000XG001 GFMI Technical Guide ENF0000AN014 Access the Novatel Wireless Test Server Application Note ENF0000AN010 MT Decoding NMEA Messages Application Note ENF0000AN018 1-Wire Interface Application Note Certifications FCC: RoHS Compliant:... -
Page 10: Features And Functions
Features and Functions Power LEDs 22-Pin I/O Connector Battery Disconnect Switch Low-Power Sleep Mode Accelerometer 1-Wire® Interface Device Check-In Garmin Fleet Management Interface (GFMI) -
Page 11: Gps
Accuracy, R 95%, Clear view of the sky, 24 hours < 15 meters For more information on NMEA and Binary Packets, see Novatel Wireless document MT Decoding NMEA Messages Application Note (ENF0000AN010). For more information on Virtual Odometer, see Novatel Wireless document API Reference (ENF0000AN010). -
Page 12: Power
Power The MT 4100 accepts 9-32 VDC, minimum 2 amps input power. This allows the device to be used on both 12 V and 24 V vehicles per SAE specifications, including protection for jump-starting 24 V vehicles. Pins 17 and 18 on the 22-Pin IO connector are the power input and pins 6 and 7 are ground. -
Page 13: Leds
This LED indicates power to the GPS module. LED is on ~1 second after powered on and PWR: the GPS module is operational. This LED is off when powered off or when the MT 4100 enters Low-Power Sleep mode. Note: If you disable the GPS module, you must apply power for this LED to turn on. -
Page 14: 22-Pin I/O Connector
RS-232 RTS1 In / Note: -25 VDC to 25 VDC RS-232 TX1 RS-232 TX1 In / Note: -25 VDC to 25 VDC RS-232 RX1 RS-232 RX1 Out / Note: Output only. Input voltages should not be applied. MT 4100 User Guide... -
Page 15: Battery Disconnect Switch
Move the switch toward the dot to place the battery in the ON position. Move the switch away from the dot to place the battery in the OFF position. The following figure shows the MT 4100 Battery Disconnection Switch in the OFF position. -
Page 16: Low-Power Sleep Mode
LPS mode when needed. The current draw during LPS is: < 1.5 mA @ 12 V You can configure the MT 4100 to exit Low-Power Sleep Mode when: Ignition detected Motion detected... -
Page 17: Accelerometer
Accelerometer The MT 4100 has two, three-axis digital accelerometers that provide the following features: Motion alert (towing alert) Driver behavior reporting Rapid acceleration Harsh braking Configurable thresholds Range settings Mode (Normal, Sleep, Wakeup) Wakeup pause (20 to 2560 msec) Sample Rate (0 to 25 per second) -
Page 18: 1-Wire® Interface
1-Wire® Interface The MT 4100 includes a 1-Wire® interface that enables the device to communicate with the following accessories: An iButton® receiver to allow for Driver ID (iButton® and receiver not included) Up to two 1-Wire Temperature Sensors For more information, see the Novatel Wireless document 1-Wire Application Note (ENF0000AN018). -
Page 19: Device Check-In
The server then configures the device using AT commands after establishing a UDP connection. This feature has AT$CHKIN command available and requires Novatel Wireless CMS software version 3.1 or higher. For more information, see MT 4100 R AT Command Reference (MT4100R-AT144) or MT 4100 U AT Command Reference (MT4100U-AT144). MT 4100 User Guide... -
Page 20: Garmin Fleet Management Interface (Gfmi)
The Garmin Fleet Management Interface (GFMI) feature is available for separate purchase. Contact your Novatel Wireless sales representative for information. GFMI provides the MT 4100 with a Wireless Network back-end to allow the Garmin Portable Navigation Device (PND) to communicate with a server. -
Page 21: Installation
Installation SIM Installation Device Installation... -
Page 22: Sim Installation
SIM. There is no external access to the SIM. NOTE: You must obtain a SIM card from your network service provider. The operator must provision the SIM card for data. Without the SIM installed, the MT 4100 modem cannot communicate with the network. NOTE: To prevent damaging the device, use the Metal Lever (Novatel Wireless part number K1T2418) when opening the MT 4100. - Page 23 Insert the curved foot of the Metal Lever into the gap between the lid and the body next to the retainer snaps on both sides of the device. Gently apply pressure upwards on the lever until the lid unsnaps. Carefully remove the cover from the device. MT 4100 User Guide...
- Page 24 Insert the SIM into the SIM holder of the MT 4100. CAUTION! Always take care to protect the SIM. Place the MT 4100 cover onto the base so that the LED symbols on the cover align with the LED placement inside the device. CAUTION! Take care not to disconnect the battery connector on devices with a backup battery.
-
Page 25: Device Installation
Mount all components properly or attach to the vehicle in a way that does not interfere with the normal operation of the vehicle. Never mount the MT 4100 in the engine compartment, directly on top of the AM/FM radio, by any moving parts, or in a location that would be exposed to the elements. -
Page 26: Mounting Locations
Mounting Locations When mounting the device, the Novatel Wireless label side must be facing up or out with an unobstructed view of the sky. (See instructions on the device label.) Select the best location for mounting the device within the vehicle, such as one of the following... -
Page 27: Mounting Methods
Excessive force in the middle of the device may cause damage to the device. If using rigid mounting hardware, apply pressure only to the ends of the device. Limit the mounting pressure only to the amount needed to secure the device. MT 4100 User Guide... -
Page 28: Device Orientation
If a mounting bracket is not used, you can mount the device using cable ties by fastening it directly to the vehicle. The MT 4100 case includes molded channels, as shown in the following image, to help secure it to a stable structure or wire bundle. The recommended cable tie size is 0.19” wide (4.75 mm). -
Page 29: Mounting And Installing The Device
You can insert the device with the label side up or down. Position the device so that the label side has the best unobstructed path to the sky. See notation on the device label. Connect the device to the power source. MT 4100 User Guide... -
Page 30: Network Test Procedure
Network Test Procedure Test Preparation Verifying Communications with the Computer Configuring the Modem to Access the GPRS Network Checking the Device Connection to the Cellular Network Configuring the Modem to Talk to the Test Server Verifying Server Connectivity... -
Page 31: Test Preparation
Test Preparation Use the following instructions to configure the Novatel Wireless modem to communicate with the Novatel Wireless test server using UDP. Before you begin, consider the following points: Most configurations are Mobile Originate only. A mobile modem initiates a conversation with a remote server before it can talk to the modem. -
Page 32: Verifying Communications With The Computer
The modem should respond with OK. ATE1 Use ATE1 if the modem doesn’t respond to AT The modem should respond with Novatel Wireless Inc Reset the modem to factory defaults AT&F Write current configuration to memory. The modem is now ready AT&W... -
Page 33: Configuring The Modem To Access The Gprs Network
Program the GPRS registration information into the device using the following commands. AT Command Command Action Inform the modem of the proper APN AT+CGDCONT=1,”IP”,”<APN>” Inform the modem of the user and AT%CGPCO=1,”<user>,<pwd>”,0 password AT$AREG=2 Enable auto GPRS registration Write current configuration to memory AT&W Reset the modem AT$RESET MT 4100 User Guide... -
Page 34: Checking The Device Connection To The Cellular Network
If AT$NETIP returns all zeros: No PDP reject cause (Everything should be working OK) Requested service option not subscribed (APN is incorrect or SIM has not been enabled for data mode.) User authentication failed (username/password is wrong) MT 4100 User Guide... -
Page 35: Configuring The Modem To Talk To The Test Server
Remote Server IP address = http://apitest.nvtl.com/UDPAPP/ Remote Server IP port = 1721 To configure the modem to talk to the Novatel Wireless Test Server: Program the device to communicate with the Novatel Wireless Test server using the following commands. AT Command Command Action AT$MDMID=”My_MT_Test”... -
Page 36: Verifying Server Connectivity
Start a web browser and navigate to the following URL: http://apitest.nvtl.com/udpapp/ The API Applet HTML page opens. In Port, enter the Server port. NOTE: This example uses 1721, as defined in AT$UDPAPI=,1721. In Modem ID (MDMID) command, enter the GSM/GPRS unit to monitor. Click Connect. MT 4100 User Guide... - Page 37 Clicking the Clear button erases the contents from the (ASCII Data) window. Enter the following command in the Command/Data text box: ATI Click Submit. Verify that you see the modem response: Novatel Wireless, Inc. If so, you have successfully configured the modem to talk with the server. MT 4100 User Guide...
-
Page 38: Accessories
Accessories Metal Lever Mounting Bracket Cables... -
Page 39: Metal Lever
Metal Lever Use the Metal Lever to open the device. For more information, see the SIM Installation section. MT 4100 User Guide... -
Page 40: Mounting Bracket
Mounting Bracket Use the Mounting Bracket to securely mount the device. For more information, see the Device Installation section. MT 4100 User Guide... -
Page 41: Cables
MT product before you connect to any auxiliary I/O device, otherwise your target I/O device could be damaged. The cable accessories for the MT 4100 are: CAB2448-01 and CAB2200-02. Both cables interface to the MT 4100 using the serial connector as shown below. -
Page 42: Power Cable
Power Cable The power cable for the MT 4100 (CAB2448-01) includes a fuse and ignition sense. MT 4100 User Guide... -
Page 43: Integration And Development Cable
Integration and Development Cable The MT 4100 uses the Integration and Development Cable (CAB2200-02) to program and test the device. It contains two RS232 9-pin interfaces (P2 and P4), an I/O connector, two power cables, two ground cables, and an ignition sense cable. -
Page 44: Cable Wiring Guides
Pin to I/O Header Wiring Guide Connector Header Function 1- Wire I/F ADC In #2 ADC In #1 Digital Input #2 Digital Input #1 Digital Output Digital Output Digital Output Digital Input #3 No Connect Power Ground MT 4100 User Guide... -
Page 45: 22-Pin I/O Connector Parameters
Maximum Low input threshold 0.39 Input range 32.0 Absolute Max Input without damage Digital Input Pull-up/Pull-down (Ref. 3.3 V/GND) kΩ Minimum-Maximum High input threshold Maximum Low input threshold 0.39 Input range 32.0 Absolute Max Input without damage MT 4100 User Guide... - Page 46 Input RangeOut / Note: Output only. Input voltages should not be applied. RS-232 CTS1 Input RangeOut / Note: Output only. Input voltages should not be applied. RS-232 CTS1 Input RangeOut / Note:Output only. Input voltages should not be applied. MT 4100 User Guide...
-
Page 47: Compliance And Regulatory
Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance Battery Information and Safety Requirements... -
Page 48: General Disclaimer
TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY From time to time, Novatel Wireless, in its sole discretion, may make available for download on its website (www.novatelwireless.com), or may transmit via mail or email, updates or upgrades to, or new releases of, the firmware, software or documentation for its products (collectively, 'New Materials'). -
Page 49: Warranty Information
(or to Novatel Wireless's authorized distributor). Purchaser shall bear the risk of loss or damage in transit to any product returned by purchaser to Novatel Wireless, or any returned product not found to be defective or covered under this warranty, and reshipped by Novatel Wireless to purchaser (or to Novatel Wireless's authorized distributor). - Page 50 (90) days, whichever is longer. If Novatel Wireless is unable to repair or replace a defective product covered by this limited warranty, Novatel Wireless will provide to purchaser a credit or a refund (at Novatel Wireless's option) of the original purchase price (excluding taxes and shipping charges).
- Page 51 This limited warranty shall be governed by the laws of the State of Texas, United States of America, without regard to conflict of laws principles. This limited warranty shall not be governed in any respect by the United Nations Convention on Contracts for the International Sale of Goods. MT 4100 User Guide...
-
Page 52: Regulatory Compliance
1.5 watts for personnel separation distance of at least 20 cm (7.9 in). Therefore, the maximum antenna gain cannot exceed +3.3dBi. If greater than 1.5 watts exists, then additional testing and FCC approval is required. MT 4100 User Guide... - Page 53 The information and instructions contained within this publication comply with all FCC, GCF, PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. Novatel Wireless disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party.
-
Page 54: Battery Information And Safety Requirements
Do not wrap the battery with conductive material. Properly dispose of the battery. Do not incinerate or burn the battery. Do not leave or discard the battery where it could get wet or become submerged in water. Do not damage the battery. MT 4100 User Guide... - Page 55 If touched, immediately rinse affected areas thoroughly with water. Leaked materials may cause skin irritation. Seek medical attention if irritation persists. If it contacts your eyes, do not rub your eyes. Rinse the eyes thoroughly with water, and see a doctor immediately. MT 4100 User Guide...
