MT3060X-UG001
MT 3060
User Guide
Version 1.2
May 31, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT3060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Novatel MT3060

  • Page 1 MT3060X-UG001 MT 3060 User Guide Version 1.2 May 31, 2015...
  • Page 2 Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its respective owners.
  • Page 3: Table Of Contents

    Contents Introduction Description Technical Specifications On-Board Diagnostics Overview Features and Functions LEDs Power Backup Battery Accelerometer GSM Radio New Event Reporting AT Commands Over SMS Installation SIM Installation Activating The Device Device Installation Accelerometer Calibration Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance Battery Information and Safety Requirements...
  • Page 4: Introduction

    Introduction Description Technical Specifications On-Board Diagnostics Overview...
  • Page 5: Description

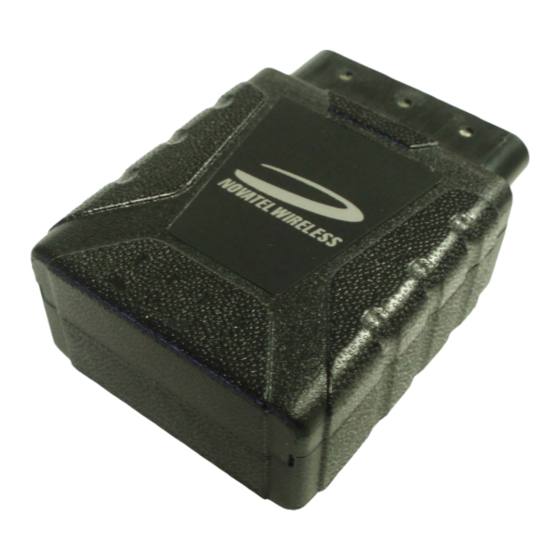

    Description Novatel Wireless designed the MT 3060 for the Usage-Based Insurance (UBI), telematics, and fleet management markets. The MT 3060 has a rugged plastic housing and includes a disconnect alert feature that uses an in-device backup battery. The MT 3060 is available in GSM/GPRS, 1xRTT, and HSDPA versions.
  • Page 6: Technical Specifications

    Technical Specifications General Name: MT 3060 Model: GSM2398, RTT2221, UMT2212, UMT2213-60, UMT2214 Approvals: FCC, CE, RoHS2, Industry Canada Housing: Rugged textured plastic enclosure UL94-Vo fire Dimensions: 55 x 49 x 29 mm Battery: Rechargeable lithium-ion battery (230mAh) Recharge Temperature Range: 0 to +45º...
  • Page 7 Components GPS Protocols: NMEA, Binary Buffered GPS Message Feature: Accelerometer: 3-axis digital (for driver behavior) 3-axis analog (impact detection) On-Board Diagnostics (OBDII): J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 KWP2000, and ISO-15765 CAN protocols supported, VIN, excessive engine speed (RPM), vehicle speed,vehicle battery voltage (low battery warning), check engine light (MIL alert), odometer (trip distance), idle time reporting, low fuel alert.
  • Page 8 Document References MT3060G-AT144 MT 3060 G AT Command Reference MT3060R-AT144 MT 3060 R AT Command Reference MT3060U-AT144 MT 3060 U AT Command Reference GSM0000AN019 GSM Network Configuration Worksheet ENF0000AN012 AT Commands Over SMS Additional Features GSM Registration GPS Status Input Event Counter GPRS Registration Timer GPS Overspeed...
  • Page 9: On-Board Diagnostics Overview

    On-Board Diagnostics Overview The Novatel Wireless MT 3060 connects to a vehicle's On-Board Diagnostics (OBDII) port and monitors the OBDII system using communication protocols. An On-Board Diagnostics (OBD) system controls engine functions and serves as the diagnostic control network of the vehicle. All cars built and sold in the United States since 1996 require the newer OBDII system.
  • Page 10: Features And Functions

    Features and Functions LEDs Power Backup Battery Accelerometer GSM Radio New Event Reporting AT Commands Over SMS...
  • Page 11 GPS functions include: NMEA update with all data points Novatel Wireless Binary Packets Buffered GPS message feature Geo-fencing Virtual odometer MT 3060 User Guide...
  • Page 12 LEDs The MT 3060 includes LEDs to indicate OBDII, Network, and GPS status. The following figures show the MT 3060 OBD II connector and LEDs. Figure 2-1: MT 3060 Connectors Figure 2-2: MT 3060 LEDs MT 3060 User Guide...
  • Page 13 The following table describes the LED operation. Description The OBD LED flashes at a fast rate when the unit is first connected to the OBD (Red) port for power.  Once a protocol is discovered through the OBD port, the LED flashes at a slow rate.
  • Page 14: Power

    Power The MT 3060 requires 9 to 16 VDC with a minimum 2 amps of input power. Pin 16 on the 16-Pin I/O connector is the positive power input, and pins 4 and 5 are ground. This device contains a battery. NOTE: This battery is not to be removed or replaced by the user.
  • Page 15: Backup Battery

    Backup Battery The MT 3060 comes with a backup battery installed. The battery is a 230 mAh rechargeable Lithium-ion. The primary function of the backup battery in the MT 3060 is to provide enough power to allow notification to a user when there is a loss of power to the device. Power loss can indicate device tampering or battery disconnection or removal.
  • Page 16: Accelerometer

    Accelerometer The three-axis digital accelerometer provides the following features: Motion alert (towing alert) Driver behavior reporting Rapid acceleration Harsh braking Configurable thresholds Range settings Mode (Normal, Sleep, Wakeup) Device Orientation Setup The three-axis analog accelerometer provides the following feature: Impact detection MT 3060 User Guide...
  • Page 17: Gsm Radio

    GSM Radio The MT 3060 (GSM2398) contains a quad-band (850/900/1800/1900 MHz) GSM radio. Class 4 (2W@850/900 MHz) Class 1 (1W@1800/1900 MHz) MT 3060 User Guide...
  • Page 18: New Event Reporting

    New Event Reporting For general event reporting information and for detailed information about these events, refer to the appropriate MT 3060 AT Command Reference. Vehicle Identification Number (VIN) The VIN is used as a unique identifier which is sent at first power-up with heartbeat messages and with events.
  • Page 19 Vehicle Battery Voltage (Low Battery Warning) The vehicle battery voltage alert is triggered when the vehicle’s battery is reported to be below a threshold (for example, 10.8 V) for a user-defined period of time in seconds (for example, 300 seconds). Example: The following AT Command example sets the low battery threshold to 10.8 volts.
  • Page 20 Low Fuel Alert The low fuel alert triggers when the vehicle’s fuel level falls below a defined threshold in percent (for example, 12%) for a defined period of time in seconds (e.g., 60 seconds). Example: The following AT Command example sets the low fuel alert threshold to 12% for 1 minute (60 seconds) with a clearance time of 30 seconds.
  • Page 21 Motion Detection You can configure motion alerts for vehicles to communicate that a vehicle is being towed. Motion detection, based on measuring movement through the accelerometer, occurs when the vehicle ignition is off and the vehicle is stationary. A motion alert is triggered when motion is detected for a defined period of time. OBDII Basic Event Data Five additional data items can be included with event messages: Firmware version ($PKG)
  • Page 22 Up / Down (Vertical Acceleration) Up and down accelerometer events can be triggered when the threshold is exceeded as determined by the accelerometer in milli-Gs (for example, 0.75) for a defined period of time in seconds (for example, 30 seconds). The command may also be configured to clear the event if it persists beyond a maximum duration.
  • Page 23: At Commands Over Sms

    AT Commands Over SMS A user can send AT commands to the MT 3060 via SMS.  Please refer to Novatel Wireless M2M Application Note AT Commands Over SMS (ENF0000AN012) for details. Store/Transmit Event Data The user can configure the MT 3060 to store event-generated data in its internal memory to be sent over the air to a remote server. ...
  • Page 24: Installation

    Installation SIM Installation Activating The Device Device Installation Accelerometer Calibration...
  • Page 25: Sim Installation

    SIM card for data. Without the SIM installed, the MT 3060 modem cannot communicate with the network. WARNING! To prevent damage to the device or harm to you, Novatel Wireless highly recommends that you use extreme caution when opening and closing the MT 3060. Tip: Use a 2.5 mm flat head precision screw driver to open the MT 3060.
  • Page 26 Bluetooth Antenna (Not currently supported) GPS Antenna Cellular Antenna After you have removed the device cover, locate the SIM holder within the device. Insert the SIM through the slot in the Cellular Antenna and into the SIM holder. Place the MT 3060 cover onto the base of the device as shown in the following figure. Apply gentle downward pressure to the back of the cover first and then carefully slide the cover into place.
  • Page 27 Apply gentle down and forward pressure to the front of the cover until it snaps shut. MT 3060 User Guide...
  • Page 28: Activating The Device

    Activating The Device NOTE: This task applies to the CDMA 1xRTT version of the MT 3060. Verizon Activation: To activate with Verizon, the user must contact Verizon and provide the MEID of the device to the provider. Once Verizon has acknowledged that the device is ready to activate, the user will then be required to send an activation string to the network.
  • Page 29: Device Installation

    Device Installation Instructions provided in this section describe the hardware installation of the MT 3060 device.  WARNING! The MT 3060 is NOT a waterproof or sealed device. Keep the device away from water or any other liquids. NOTE: Prior to installing the MT 3060, make sure the vehicle is parked on level ground with the ignition off.
  • Page 30: Accelerometer Calibration

    Accelerometer Calibration The accelerometer undergoes an automatic calibration sequence on the first drive after any of the following events: Device installation Software upgrade Vehicle battery replacement (or recharge if battery was fully discharged) Device auxiliary processor reset WARNING! Failure to follow the process below could cause an undesired behavior of the motion feature.
  • Page 31: Compliance And Regulatory

    Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance Battery Information and Safety Requirements...
  • Page 32: General Disclaimer

    TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY From time to time, Novatel Wireless, in its sole discretion, may make available for download on its website (www.novatelwireless.com), or may transmit via mail or email, updates or upgrades to, or new releases of, the firmware, software or documentation for its products (collectively, 'New Materials').
  • Page 33: Warranty Information

    (or to Novatel Wireless's authorized distributor). Purchaser shall bear the risk of loss or damage in transit to any product returned by purchaser to Novatel Wireless, or any returned product not found to be defective or covered under this warranty, and reshipped by Novatel Wireless to purchaser (or to Novatel Wireless's authorized distributor).
  • Page 34 (90) days, whichever is longer. If Novatel Wireless is unable to repair or replace a defective product covered by this limited warranty, Novatel Wireless will provide to purchaser a credit or a refund (at Novatel Wireless's option) of the original purchase price (excluding taxes and shipping charges).
  • Page 35 warranty gives the purchaser specific legal rights and the purchaser may have other legal rights that vary from jurisdiction to jurisdiction. This limited warranty shall be governed by the laws of the State of Texas, United States of America, without regard to conflict of laws principles. This limited warranty shall not be governed in any respect by the United Nations Convention on Contracts for the International Sale of Goods.
  • Page 36: Regulatory Compliance

    Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B.
  • Page 37 The information and instructions contained within this publication comply with all FCC, GCF, PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. Novatel Wireless disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party.
  • Page 38: Battery Information And Safety Requirements

    Battery Information and Safety Requirements Failure to comply with all of the following precautions could: Cause personal injury or property damage Cause abnormal chemical reactions which would make the battery overheat, smoke, distort, leak, or catch on fire Destroy internal protections built into the battery Shorten battery life Reduce battery performance Precautions...
  • Page 39 Do not weld or solder anything to the battery, the attached wires, or the connector. Do not use this battery in any device other than supplied. Use of this battery in other devices could result in unsafe conditions. Risk of explosion if battery is replaced by an incorrect type. Do not touch a leaking battery or materials that may have leaked from a battery.
