Page 1 OEM7 Installation and Operation User Manual OEM7 Installation and Operation User Manual v14 January 2020...
Page 2 Firmware Version: 7.07.03 / OM7MR0703RN0000 To download the latest firmware and/or software visit: www.novatel.com/support/firmware-downloads. Warranty NovAtel Inc. warrants that its GNSS products are free from defects in materials and workmanship, subject to the conditions set forth on our web site: www.novatel.com/products/warranty/ and for the following time periods: ®...
Page 3: Table Of Contents
Table of Contents Figures Tables Receiver Card Notices Customer Support Chapter 1 Introduction 1.1 Related Documents and Information 1.2 OEM7 Receiver Card Overview 1.2.1 OEM7 Family Card 1.2.2 Enclosure 1.2.3 GNSS Antenna 1.2.4 Power Supply 1.2.5 Optional External Frequency Reference 1.2.6 Data Communications Equipment 1.2.7 OEM719 Receiver Overview 1.2.8 OEM729 Receiver Overview...
Page 4 3.11 Interference Toolkit 3.11.1 Monitoring GNSS Signals 3.11.2 Disable/Enable Detection 3.11.3 Monitoring Signals Using a Command Line 3.11.4 Monitoring Signals Using NovAtel Connect 3.11.5 Remove Interference Signals 3.12 Logging and Retrieving Data Overview 3.12.1 Pass-Through Logging 3.12.2 Saving Logs to a File 3.12.3 Logging Using NovAtel Connect...
Page 5 7.4 Corrections Over CAN 7.4.1 Example for Receiving Corrections from Any Source 7.4.2 Example for Transmitting Corrections to 0x1C Node 7.5 NovAtel Messages Over CAN 7.6 Configuring OEM7 Receivers to Use OEM6 CAN Settings OEM7 Installation and Operation User Manual v14...
Page 6 9.8.2 Entering an Auth-Code Using NovAtel Web UI 9.8.3 Entering an Auth-Code Using the Command Line 9.9 Update the Web UI 9.9.1 Update the Web UI Content Using NovAtel Connect 9.9.2 Update the Web UI Content Using Web UI APPENDIX A OEM719 Technical Specifications A.1 OEM719 Performance Specifications...
Page 7 A.6 OEM719 Interface Connector A.6.1 P1701 Main Connector 20-Pin Header APPENDIX B OEM729 Technical Specifications B.1 OEM729 Performance Specifications B.2 OEM729 Mechanical Specifications B.3 OEM729 Electrical and Environmental Specifications B.4 OEM729 Data Communication Specifications B.5 OEM729 Strobe Specifications B.6 OEM729 Interface Connectors B.6.1 P1802 Main Connector 24-Pin Header B.6.2 P1803 Expansion Connector 16-Pin Header APPENDIX C OEM7600 Technical Specifications...
Page 8 F.4 CAN Controller Ports F.5 USB Interface F.6 Ethernet Port APPENDIX G Importance of Antenna Selection APPENDIX H Accessories and Replacement Parts H.1 Manufacturers’ Part Numbers H.1 USB Devices Supported H.1.1 Restrictions on connecting mass storage devices APPENDIX I Electrostatic Discharge (ESD) Practices I.1 Handling ESD Sensitive Devices I.2 Prime Static Accumulators I.3 Handling Printed Circuit Boards...
Page 9 Figures Figure 1: OEM7 Receiver System Figure 2: OEM719 Receiver Board Figure 3: OEM729 Receiver Board Figure 4: OEM7600 Receiver Board Figure 5: OEM7700 Receiver Board Figure 6: OEM7720 Receiver Board Figure 7: Mounting with Standoffs Figure 8: Mounting with Rails Figure 9: Mounting with Rails and Clamping Bars Figure 10: Mounting the High-Density, 60 Pin Connector Figure 11: Mounting the OEM7600...
Page 10 Figures Figure 36: Dynamic IP Address Configuration through a DHCP Server—OEM7 Receiver Figure 37: Base/Rover Ethernet Setup—OEM7 Receiver Figure 38: NTRIP System Figure 39: WinLoad’s Open Window Figure 40: Open File in WinLoad Figure 41: COM Port Setup Figure 42: OEM719 Dimensions Figure 43: OEM719 Keep-outs Figure 44: OEM719A Dimensions Figure 45: OEM719A Keep-outs...
Page 11 Tables Table 1: NovAtel Mounting Rails Table 2: OEM7 Communication and I/O Connectors Table 3: OEM7 Antenna Connectors Table 4: OEM7 Card Default Serial Port Configurations Table 5: Available USB Ports Table 6: USB Port Mode Table 7: Serial Ports Supported...
Page 12 Tables Table 36: OEM7600 Strobes Description Table 37: OEM7600 Strobe Electrical Specifications Table 38: OEM7700 Physical Description Table 39: OEM7700 Receiver Performance Table 40: OEM7700 Environmental Specifications Table 41: OEM7700 Power Requirements Table 42: OEM7700 RF Input/LNA Power Output Table 43: Data Communications Interface Table 44: OEM7700 Strobes Description Table 45: OEM7700 Strobe Electrical Specifications Table 46: OEM7720 Physical Description...
Page 13 Tables Table 72: Devices Tested for OEM7 USB Embedded Host Table 73: Static-Accumulating Materials OEM7 Installation and Operation User Manual v14...
Page 14: Receiver Card Notices
European Union (EU) Hereby, NovAtel Inc. declares that the radio equipment type OEM7 GNSS receiver is in compliance with Dir- ective 2014/53/EU The full text of the EU Declaration of Conformity may be obtained from the NovAtel website at: www.nova-...
Page 15 Waste Electrical and Electronic Equipment (WEEE) is a regulated area. Where the generation of waste cannot be avoided, it should be reused or recovered for its material or energy. WEEE products may be recognized by their wheeled bin label ( www.novatel.com/products/compliance/environmental-compliance/ for more information. RoHS...
Page 16 4. To ensure safe operation, a secondary lightning protection device must be used for in-building equipment installations with external antennas. The following device has been approved by NovAtel Inc.: Polyphaser - Surge Arrestor DGXZ+36NFNF-A...
Page 17 Receiver Card Notices Ref # Description Primary lightning protection device Secondary lightning protection device External antenna GNSS Receiver To ground Grounding plate or grounding point at the building’s entrance Acceptable choices for earth grounds, for central buildings, are: Grounded interior metal cold water pipe within five feet (1.5 m) of the point where it enters the build- Grounded metallic service raceway Grounded electrical service equipment enclosure Eight-foot grounding rod driven into the ground (only if bonded to the central building ground by #6,...
Page 18 Receiver Card Notices Ethernet Port The Ethernet port is a safety extra-low voltage (SELV) circuit only and is suitable for connection within a building only. Do not connect them to Telecommunications Network Voltage (TNV) circuits. Conventions The following conventions are used in this manual: Information that supplements or clarifies text.
Page 19: Customer Support
Customer Support NovAtel Knowledge Base If you have a technical issue, visit the NovAtel Support page at www.novatel.com/support. Through the Support page, you can contact Customer Support, find papers and tutorials or download current manuals and the latest firmware. Before Contacting Customer Support...
Page 20 If you are having a hardware problem, send a list of the troubleshooting steps taken and the results. Contact Information Log a support request with NovAtel Customer Support using one of the following methods: Log a Case and Search Knowledge: Website: www.novatel.com/support...
Page 21: Chapter 1 Introduction
Refer to our web site docs.novatel.com/OEM7 for the latest documentation. This manual does not cover receiver service and repair. Contact a local NovAtel dealer for service or repair inquir- ies (refer to Customer Support on page 19 for contact details). 1.2 OEM7 Receiver Card Overview...

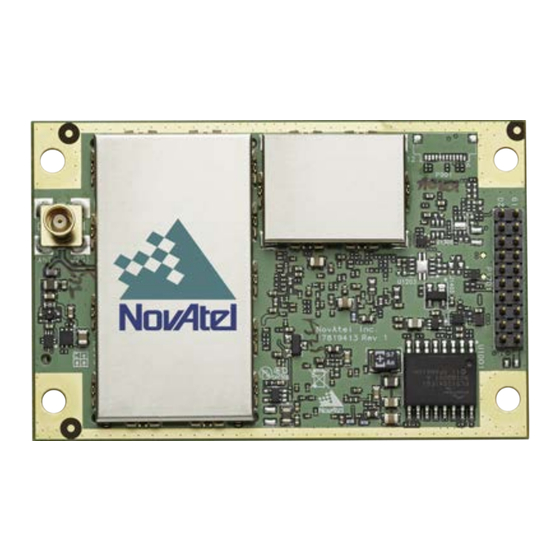

Page 22: Oem7 Family Card
Digital Section The heart of the digital section is NovAtel’s MINOS7 ASIC (Application Specific Integrated Circuit). The digital section digitizes and processes the IF signals to obtain a GNSS solution (position, velocity and time). It also pro- cesses the system I/O, shown in Figure 1: OEM7 Receiver System above.
Page 23: Data Communications Equipment
1.2.7 OEM719 Receiver Overview The OEM719 has the same form and fit as NovAtel’s OEM615™ receiver, with the following features: Multi-frequency/Multi-constellation: GPS L1 C/A, L1C, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A, L2P, L3, L5; BeiDou B1I, B1C, B2I, B2a, B3I;...
Page 24: Oem7600 Receiver Overview
Chapter 1 Introduction LVCMOS UART communications ports USB communications port (with virtual COM ports) Ethernet communications port PPP, RTK, SBAS and DGPS positioning solutions GLIDE and ALIGN positioning options SPAN GNSS+INS capable Enhanced interference mitigation Mechanical mounting rails Figure 3: OEM729 Receiver Board OEM729 technical specifications are provided in OEM729 Technical Specifications on page 149.
Page 25: Oem7700 Receiver Overview
OEM7600 technical specifications are provided in OEM7600 Technical Specifications on page 167. 1.2.10 OEM7700 Receiver Overview The OEM7700 is the same size as NovAtel’s OEM615™ receiver with the following features: Multi-frequency/Multi-constellation: GPS L1 C/A, L1C, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A, L2P, L3, L5; BeiDou B1I, B1C, B2I, B2a, B3I;...
Page 26: Oem7720 Receiver Overview
Chapter 1 Introduction 1.2.11 OEM7720 Receiver Overview The OEM7720 is the same size as NovAtel’s OEM617D™ receiver with the following features: Dual antenna inputs Multi-frequency/Multi-constellation: GPS L1 C/A, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A, L2P, L3, L5; BeiDou B1I, B1C, B2I, B2a; Galileo E1, E5 AltBOC, E5a, E5b;...
Page 27: Chapter 2 Oem7 Family Receiver Cards Installation
Each antenna has an environmentally sealed radome and all meet the European Union’s Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment (WEEE). If a non-NovAtel GNSS antenna is chosen, a typical antenna LNA gain between 26 dB to 30 dB is recommended in a rover station application.
Page 28: Choosing A Coaxial Cable
5 m, 15 m and 30 m antenna cable with TNC connectors on both ends (NovAtel part numbers GPS-C006, GPS-C016 and GPS-C032) 2.5 m and 5 m antenna cable with an SMA connector on one end and a TNC connector on the other (NovAtel part numbers 60723177 and 60723178) The SMA to TNC cables (60723177 and 60723178) are not recommended for permanent outdoor use.
Page 29: Card Installation Overview
OEM7720 Electrical and Environmental Specifications on page 213 2.5 Card Installation Overview When the appropriate equipment is selected, complete the following steps to set up and begin using the NovAtel GNSS receiver. 1. Ensure adequate ESD protection is used as described in Electrostatic Discharge (ESD) Precautions below.
Page 30: Planning The Mount Location
7.00 mm Mounting rails are available from NovAtel. OEM719B MMBX straight 7.00 mm 10.00 mm 12.00 mm See Table 1: NovAtel Mounting Rails on page 33 for the rails available. OEM7600 MMCX right angle 7.00 mm 7.00 mm 7.00 mm OEM7700 MMBX straight 7.00 mm...
Page 31: Mounting Options
Chapter 2 OEM7 Family Receiver Cards Installation The recommended minimum values in the previous table assumes no recesses or cut-outs in the interface or system board for antenna connection. A component keep-out area may be needed below the antenna connector on the mating interface or system board to facilitate minimum or suggested spacing.
Page 32: Figure 9: Mounting With Rails And Clamping Bars
Chapter 2 OEM7 Family Receiver Cards Installation Figure 9: Mounting with Rails and Clamping Bars The mounting holes in the OEM7 receiver cards accept M3 fasteners with a maximum projected head diameter of 7.5 mm (0.295"). For the exact spacing of the mounting holes, see Figure 42: OEM719 Dimensions on page 133, Figure 49: OEM729 Dimensions on page 152, Figure 54: OEM7700 Dimensions on page 189 and Fig- ure 57: OEM7720 Dimensions on page 210.
Page 33: Figure 10: Mounting The High-Density, 60 Pin Connector
OEM7 receiver to mounting rails using additional rails as clamping bars provides the most secure con- figuration for aggressive thermal and vibration applications. See Table 1: NovAtel Mounting Rails below for information about the OEM7 mounting rails available from NovAtel.
Page 34: Mounting The Oem7600
Chapter 2 OEM7 Family Receiver Cards Installation Rail Part Rail Use as Mounting Rail Use as Clamping Bar Number Height OEM719 OEM719 01019751 10 mm OEM7700 OEM7700 OEM7720 OEM7720 OEM719 01019752 12 mm OEM719 OEM7700 OEM7720 Ensure the IO connector height and antenna cable/connector height facilitate the desired board to board spacing and do not violate OEM7 receiver card height keep-out zones.
Page 35: Thermal Dissipation
If necessary, mounting rails can also be used on the con- nector side of the OEM7720 card. Refer to Figure 8: Mounting with Rails on page 31 and Table 1: NovAtel Mount- ing Rails on page 33 for mounting rail details.
Page 36: Vibration
Chapter 2 OEM7 Family Receiver Cards Installation Figure 12: OEM7720 Heat Spreader Mounting Geometry 2.6.7 Vibration OEM7 receivers are rated to 20 g RMS (MIL-STD_810G Method 514.6E-1, Category 24). However, for high vibra- tion installations, special considerations are required. For OEM719, OEM7700 and OEM7720 receiver cards to meet the 20 g vibration rating, the receiver card must be mounted using rails.
Page 37: Table 2: Oem7 Communication And I/O Connectors
Chapter 2 OEM7 Family Receiver Cards Installation Table 2: OEM7 Communication and I/O Connectors Receiver COM and I/O Connector Mating Connector 2 x 10 male header (2 mm pitch) 2 x 10 female socket (2 mm pitch) OEM719 See OEM719 Interface Connector on page 146 Main: 2 x 12 male header (2 mm pitch) Main: 2 x 12 female socket (2 mm pitch) Aux: 2 x 8 male header (2 mm pitch)
Page 38: Figure 13: Oem719 Connector And Indicator Locations
Chapter 2 OEM7 Family Receiver Cards Installation Figure 13: OEM719 Connector and Indicator Locations OEM7 Installation and Operation User Manual v14...
Page 39: Figure 14: Oem729 Connector And Indicator Locations
Chapter 2 OEM7 Family Receiver Cards Installation Figure 14: OEM729 Connector and Indicator Locations OEM7 Installation and Operation User Manual v14...
Page 40: Figure 15: Oem7600 Connector And Indicator Locations
Chapter 2 OEM7 Family Receiver Cards Installation Figure 15: OEM7600 Connector and Indicator Locations OEM7 Installation and Operation User Manual v14...
Page 41: Figure 16: Oem7700 Connector And Indicator Locations
Chapter 2 OEM7 Family Receiver Cards Installation Figure 16: OEM7700 Connector and Indicator Locations OEM7 Installation and Operation User Manual v14...
Page 42: Mounting The Gnss Antenna
See Receiver Card Interface Examples on page 227 for examples of these interface circuits. 2.8 Mounting the GNSS Antenna The OEM7 receiver is designed to operate with any NovAtel GNSS antenna. See Selecting a GNSS Antenna on page 27 for more information. When installing the antenna: Choose an antenna location with a clear view of the sky so each satellite above the horizon can be tracked without obstruction.
Page 43: Connecting The Antenna To The Receiver Card
Figure 17: OEM7720 Connector and Indicator Locations on the previous page. NovAtel generally uses the MMBX connectors with barrels for board-to-board mounting. These connectors allow a blind mate and are able to move slightly under vibration to reduce the potential for damage to either PCB.
Page 44: Antenna Lna Power
NovAtel antennas and coaxial cables meet receiver RF input gain requirements. NovAtel coaxial cables are designed to introduce no more than 10 dB loss and NovAtel antennas are equipped with built-in LNAs that provide 29 dB of gain to the satellite signal received.
Page 45 Chapter 2 OEM7 Family Receiver Cards Installation Model COM1 COM2 COM3 COM4 COM5 LVCMOS LVCMOS LVCMOS LVCMOS LVCMOS OEM7700 with flow control with flow control no flow control no flow control no flow control LVCMOS LVCMOS LVCMOS LVCMOS LVCMOS OEM7720 with flow control with flow control no flow control...
Page 46: Figure 18: Com3 And Usb Multiplexed On Oem719
1. INTERFACEMODE USB1 NONE NONE 2. INTERFACEMODE USB2 NONE NONE 3. INTERFACEMODE USB3 NONE NONE 4. MARKCONTROL MARK1 DISABLE 5. INTERFACEMODE COM3 NOVATEL NOVATEL 6. SAVECONFIG (optional) To enable USB, issue the following commands: 1. INTERFACEMODE COM3 NONE NONE 2. INTERFACEMODE USB1 NOVATEL NOVATEL 3.
Page 47: Figure 19: Oem729 Com3 Multiplexed With Event2 And Usergpio
To select RS-422, pull pin 2 of P1802 to 3.3 VDC during start-up. Do not apply 3.3 VDC directly to pin 2. NovAtel recommends using a 1 kΩ resistor to pull pin 2 high. See OEM729 Interface Connectors on page 162 for pin-out details for COM1 RS-232 and RS-422 configurations.
Page 48: Usb Ports
2. Issue the following command: SERIALCONFIG COM2 115200 N 8 1 CTS ON To enable COM5: 1. Issue the following command: SERIALCONFIG COM2 115200 N 8 1 N ON 2. Issue the following command: INTERFACEMODE COM5 NOVATEL NOVATEL ON Use any interface mode except NONE Refer to the OEM7 Commands and Logs Reference Manual for further command information.
Page 49: Ethernet Ports
Chapter 2 OEM7 Family Receiver Cards Installation If the USB port is being routed to a external device, ESD protection is needed. For an example of a USB inter- face circuit, see USB Interface on page 233. USB Modes The USB mode of a port (Device or Host) is set by the state of the UID pin. See OEM7600 Interface Connector on page 178, OEM7700 Interface Connector on page 198 and OEM7720 Interface Connector on page 219 for more information.
Page 50: Spi Ports
Chapter 2 OEM7 Family Receiver Cards Installation If the Ethernet port is being routed outside of the enclosure, an interface circuit is needed. For an example of an Ethernet interface circuit, see Ethernet Port on page 236. See OEM729 Technical Specifications on page 149, OEM7600 Technical Specifications on page 167, OEM7700 Technical Specifications on page 186 and OEM7720 Technical Specifications on page 206 for further information on Ethernet specifications and pin assignments.
Page 51 Chapter 2 OEM7 Family Receiver Cards Installation It can take about a minute for time status to reach FINESTEERING depending on number of satellites being tracked. This assumes the antenna is located in an open sky environment and the RF set up meets the requirements. OEM7 Installation and Operation User Manual v14...
Page 52: Chapter 3 Oem7 Receiver Operation
Chapter 3 OEM7 Receiver Operation Before operating the receiver for the first time, use the installation instructions in OEM7 Family Receiver Cards Installation on page 27. The following instructions are based on a configuration similar to the following figure. Figure 21: Basic OEM7 Receiver Connection Interfaces (example) The figure above does not show all necessary hardware.
Page 53: Usb Communications
OEM7 documentation (docs.novatel.com/OEM7) for instructions. NovAtel Connect - NovAtel Connect is a software application used to monitor and configure NovAtel receiv- ers. For information about installing and using NovAtel Connect, refer to the help file included with the applic- ation.
Page 54: Serial Port Communications
Chapter 3 OEM7 Receiver Operation 3.1.2 Serial Port Communications The receiver can communicate with a computer or terminal via a serial port. For communication to occur, both the receiver and the operator interface have to be configured properly. The receiver’s default port settings are: 9600 bps no parity 8 data bits...
Page 55: Ethernet Communications
Use any standard communications software package that emu- lates a terminal to establish bidirectional communications with the receiver. Examples include NovAtel Connect and PuTTY. All data is sent as raw 8-bit binary or ASCII characters.
Page 56: Icom Communications
Chapter 3 OEM7 Receiver Operation The Ethernet port must be configured before using. Refer to Ethernet Configuration on page 91 for configuration details. The Ethernet ports are Safety Extra-Low Voltage (SELV) circuits only and are suitable for connection within a building only. Do not connect them to Telephone Network Voltage (TNV) circuits. If intra-building connections are required, or the OEM7 receiver is installed in an outdoor enclosure, a suitably rated Ethernet router or switch should be installed between the receiver Ethernet port and the network connection.
Page 57: Getting Started
RXSTATUSEVENTA log ONNEW on all ports. See RXSTATUSEVENT Log on page 87 for more details. 2. If NovAtel Connect is unable to locate the receiver, use a different COM port to communicate with the receiver. When communication has been established, issue a FRESET STANDARD command. The original communications port should be ready for use.
Page 58: Transmitting And Receiving Corrections
Chapter 3 OEM7 Receiver Operation Ensure the computer does not sleep or hibernate during a logging session or data will be lost. 3.3 Transmitting and Receiving Corrections Corrections can be transmitted from a base station to a rover station to improve position accuracy. The base sta- tion is the GNSS receiver that acts as the stationary reference.
Page 59: Defining Antenna And Base Antenna
To receive corrections, a data link between the base station and the rover station is required. The base and rover stations can both be NovAtel receivers, however NovAtel receivers will work with some other brands. Contact Customer Support for further details (refer to Customer Support on page 19 for details).
Page 60: Rover Station Configuration
Chapter 3 OEM7 Receiver Operation log com2 rtcm1006 ontime 10 log com2 rtcm1019 ontime 120 saveconfig (optional) RTCM V3 with GLONASS serialconfig com2 19200 N 8 1 N on interfacemode com2 none rtcmv3 off fix position lat lon hgt (enter your own lat, lon, hgt) log com2 rtcm1004 ontime 1 log com2 rtcm1012 ontime 1 log com2 rtcm1006 ontime 10...
Page 61: Configuration Notes
2 1. Interface mode must be set to NOVATEL for the receiver to issue logs with an A or B suffix. 2. Using the receiver in NOVATEL mode consumes more CPU bandwidth than using the native dif- ferential messages as shown in Base Station Configuration on page 59.
Page 62: Align Heading Master And Remote Configurations
ALIGNAUTOMATION ENABLE COM2 230400 10 ON 3.4.2 Manual Set Up via COM2 Master: serialconfig com2 230400 N 8 1 N on interfacemode com2 novatel novatelx off movingbasestation enable log com2 novatelxobs ontime 1 log com2 novatelxref ontime 1 log headinga onnew...
Page 63: Glide
3.5.1 Dual-Frequency GLIDE NovAtel’s dual-frequency GLIDE technology adds to the superior pass-to-pass performance provided by single- frequency GLIDE. Dual-frequency GLIDE is ideal for agricultural and machine guidance applications where rel- ative positioning is critical.
Page 64: Prefer Accuracy
(e.g., WAAS or EGNOS) and applies the corrections from the service. On a simulator, leave the test mode para- meter off or specify NONE explicitly. For more on SBAS, refer to application note APN-051 Positioning Modes of Operation (additional Application Notes available at www.novatel.com/support/). OEM7 Installation and Operation User Manual v14...
Page 65: Enabling Ppp
10 km of shore. For more information about TerraStar ser- vices, visit www.novatel.com/products/terrastar-gnss-corrections. To obtain a subscription, contact your local NovAtel sales representative. The NovAtel product serial number (PSN) is needed to obtain a subscription. To obtain the receiver serial number, enter the following command: log version once <VERSION USB1 0 74.0 FINESTEERING 2045 336197.080 02028020 3681 15341...
Page 66 LBANDTRACKSTAT log will be 00c2, as shown in the example. The latest services and coverage can be obtained from www.novatel.com/products/novatel-correct- ppp/. For additional information on TerraStar activation, contact NovAtel Customer Service at www.novatel.com/support or download APN-061 NovAtel CORRECT with TerraStar from: www.nova-...
Page 67: Veripos Subscriptions
RTK ASSIST also requires a subscription to the RTK ASSIST service. To obtain a subscription, contact your local NovAtel sales representative or visit www.novatel.com/products/terrastar-gnss-corrections/. The NovAtel Product Serial Number (PSN) is needed to obtain a subscription. The PSN is available from the VERSION log.
Page 68: Transferring Time Between Receivers
RTK ASSIST may be lower. Additional information about enabling and using RTK ASSIST is available in the RTK ASSIST Applic- ation Note (available from our website: www.novatel.com/assets/Documents/Bulletins/APN-073-RTK- ASSIST.pdf). 3.10 Transferring Time Between Receivers The ADJUST1PPS command is used as part of the procedure to transfer time between receivers.
Page 69: Procedures To Transfer Time
When connecting two receivers to transfer time, disable responses on the COM port used to connect the receivers by issuing the following command on both receivers: interfacemode comX novatel novatel none Where comX is the port used on the receiver.
Page 70: Figure 25: Transfer Coarse Time From Fine Clock To Cold Clock Receiver
Chapter 3 OEM7 Receiver Operation Figure 25: Transfer COARSE Time from Fine Clock to Cold Clock Receiver Transfer FINE Time (<50 ns) from a Fine Clock to a Cold Clock GPS Receiver 1. Connect a COM, USB or Ethernet port from the fine clock receiver to the cold clock receiver (for example, COM2 on the fine clock receiver to COM3 on the cold clock receiver), as shown in Figure 26: Transfer FINE Time from Fine Clock to Cold Clock Receiver on the next page.
Page 71: Figure 26: Transfer Fine Time From Fine Clock To Cold Clock Receiver
Chapter 3 OEM7 Receiver Operation Figure 26: Transfer FINE Time from Fine Clock to Cold Clock Receiver Transfer FINE Time from a Fine Clock to a Warm Clock GPS Receiver 1. Connect the 1 PPS signal of the fine clock receiver to the Mark 1 input (Event1) of the warm clock receiver as shown in Figure 27: Transfer FINE Time from Fine Clock to Warm Clock Receiver on the next page.
Page 72: Figure 27: Transfer Fine Time From Fine Clock To Warm Clock Receiver
Chapter 3 OEM7 Receiver Operation Figure 27: Transfer FINE Time from Fine Clock to Warm Clock Receiver If Receiver 2 is not in coarsetime, the input is ignored. Figure 28: 1 PPS Alignment The examples shown in Figure 25: Transfer COARSE Time from Fine Clock to Cold Clock Receiver on page 70, Figure 26: Transfer FINE Time from Fine Clock to Cold Clock Receiver on the previous page and Figure 27: Transfer FINE Time from Fine Clock to Warm Clock Receiver above are for the transfer of time.
Page 73: Interference Toolkit
Detection on the next page for instructions. Detected interference can be viewed and different tracking modes with possible additional filters can be applied to mitigate the interference using NovAtel Connect. Detected inter- ference details can also be logged and analyzed using the command line interface.
Page 74: Disable/Enable Detection
3.11.2 Disable/Enable Detection The interference detection feature can be enabled/disabled from any command line or the command line within NovAtel Connect using the ITDETECTCONFIG command. To disable interference detection, enter: ITDETECTCONFIG none To enable interference on all RF paths, enter :...
Page 75: Monitoring Signals Using A Command Line
GNSS signals, use the ITSPECTRALANALYSIS command to enable and configure the spectral analysis. The spectrum can then be viewed by plotting the PSD samples in the ITPSDFINAL log. NovAtel Connect can also be used to view the spectrum. See Monitoring Signals Using NovAtel Connect on the next page.
Page 76: Monitoring Signals Using Novatel Connect
Due to the high volume of data, a higher bandwidth medium, such as USB or Ethernet, is recommended when monitoring signals using the Interference Toolkit. Start NovAtel Connect and open a connection to the OEM7 receiver. Scroll down to the Interference Toolkit and double-click on the Interference Toolkit tile.
Page 77: Remove Interference Signals
If an interference signal is present, the Interference Toolkit can reduce or eliminate the impact on GNSS tracking using the programmable High Dynamic Range (HDR), Bandpass or Notch filters. Contact www.novatel.com/where-to-buy/sales-offices to obtain mitigation functionality. High Dynamic Range Mode The High Dynamic Range (HDR) mode enables special signal processing to remove distortions from the spec- trum, providing a cleaner signal.
Page 78 To configure a bandpass filter, use the ITPROGFILTCONFIG command or the ITBANDPASSCONFIG com- mand. A bandpass filter can also be configured using NovAtel Connect. Example of a Notch Filter The following example shows interference at 1750 in the signal band.
Page 79 Interference Toolkit Commands and Logs The following are the commands and logs used by the Interference Toolkit to monitor, apply filters and mitigate interference. Commands and logs with the √ are available by default. Contact www.novatel.com/where-to-buy/- sales-offices to activate full mitigation features.
Page 80: Logging And Retrieving Data Overview
Data can be collected using NovAtel Connect or NovAtel Web User Interface. Refer to the Help available from within NovAtel Connect for comprehensive logging instructions. Refer to the online OEM7 documentation (doc- s.novatel.com/OEM7) for information about logging using NovAtel Web User Interface.
Page 81: Logging Using Novatel Connect
NovAtel Connect is a computer program used to configure and monitor NovAtel receivers. The Logging Control Window in NovAtel Connect provides an interface to configure logging and to collect logs from the receiver. The collected logs can be output to one of the receiver communication ports or stored on the computer running NovAtel Connect.
Page 82 Chapter 3 OEM7 Receiver Operation To open the Logging Control window: 1. Open NovAtel Connect. 2. Establish a connection to the receiver. 3. Click the button to open the Logging Control Window. Selecting the Logs to Collect The logs configured to be collected are shown in the bottom portion of the screen.
Page 83 1. Click the Stop Recording button. Change the Log File Settings When logging to a file on the NovAtel Connect computer, the file used is determined by the log file settings. To change the log file settings: 1. Click the button in the Logging Control Window.
Page 84: Additional Features And Information
File Name session to the existing log file. To allow NovAtel Connect to generate a unique name for each logging session, ensure the Auto check box is selected. NovAtel Connect will generate a new file for each logging session. The file is named with the product serial number (PSN) and the time when the logging session started.
Page 85: Status Indicator
Chapter 3 OEM7 Receiver Operation 3.13.2 Status Indicator OEM7 receiver cards have an LED indicator to provide receiver status. OEM719 Refer to Figure 13: OEM719 Connector and Indicator Locations on page 38 OEM729 Refer to Figure 14: OEM729 Connector and Indicator Locations on page 39 OEM7600 Refer to Figure 15: OEM7600 Connector and Indicator Locations on page 40 OEM7700...
Page 86: Chapter 4 Built-In Status Tests
Chapter 4 Built-In Status Tests The Built-In Status Test monitors system performance and status to ensure the receiver is operating within spe- cifications. The test detects an exceptional condition and informs the user through one or more indicators. The receiver status system is used to configure and monitor the indicators: 1.
Page 87: Rxstatusevent Log
Chapter 4 Built-In Status Tests reset. For more information about the error strobe signal, see OEM729 Strobe Specifications on page 160, OEM7600 Strobe Specifications on page 176, OEM7700 Strobe Specifications on page 196 or OEM7720 Strobe Specifications on page 217. An Error Strobe signal is not available on the OEM719. When the receiver is in an error state, information about the error is provided in the RXSTATUS log.
Page 88: Error Word
Chapter 4 Built-In Status Tests If the receiver status word indicates a problem, see Examining the RXSTATUS Log on page 108. 4.4.2 Error Word The error field contains a 32-bit word. Each bit in the word is used to indicate an error condition. Error conditions may result in damage to the hardware or erroneous data, so the receiver is put into an error state.
Page 89: Receiver Status Code
Chapter 4 Built-In Status Tests mask words are used to modify the behavior caused by a change in one of the bits in the associated status words. Each bit, in any mask, operates on the bit in the same position in the status word. For example, setting bit 3 in the priority mask changes the priority of bit 3 in the status word.
Page 90: Figure 34: Status Led Flash Sequence Example
Chapter 4 Built-In Status Tests Error bits and status bits that have been priority masked as errors cause the LED to flash a code in a binary sequence. The binary sequence is a six flash (0.5 second on and 0.25 second off per flash) sequence followed by a one second delay.
Page 91: Chapter 5 Ethernet Configuration
Chapter 5 Ethernet Configuration This chapter describes how to configure the Ethernet port on an OEM7 receiver. It provides the step-by-step pro- cess for connecting to the OEM7 receiver through the Ethernet interface, setting up a base/rover configuration through Ethernet connectivity and utilizing the NTRIP interface. The Ethernet port connections for a computer connected to the receiver are also described for Windows 7 operating systems.
Page 92: Static Ip Address Configuration-Receiver
1. Connect a computer to the OEM7 receiver using a null modem serial cable or USB cable. 2. Establish a connection to the receiver using either NovAtel Connect or another terminal program. This con- nection is used to send the commands in this procedure to the receiver.
Page 93: Static Ip Address Configuration-Windows 7
Chapter 5 Ethernet Configuration The command assigns the following values to the OEM7 receiver: IP address = 192.168.74.10 Subnet mask = 255.255.255.0 Gateway = 192.168.74.1 These settings are examples only. The settings appropriate to your system may be different. 6. Save the new Ethernet settings by entering: SAVEETHERNETDATA 7.
Page 94: Confirming Ethernet Setup
See Figure 35: Cross-Over Ethernet Cable Configuration—OEM7 Receiver on page 92. 2. Connect to the receiver using NovAtel Connect or any third party terminal program that supports TCP/IP con- nections. Use the static IP address and port number assigned to the OEM7 receiver in Static IP Address Configuration—Receiver on page 92.
Page 95: Base/Rover Configuration Through Ethernet Connectivity
Chapter 5 Ethernet Configuration NovAtel Connect version 2.0 or greater is required for OEM7 receivers. Download the latest NovAtel Connect software and documentation from www.novatel.com/novatel- connect. 3. Enable the Ethernet port by entering: ETHCONFIG ETHA AUTO AUTO AUTO AUTO 4. Obtain the IP address assigned to the OEM7 receiver by the DHCP server.
Page 96: Figure 37: Base/Rover Ethernet Setup-Oem7 Receiver
1. Connect your computer to both OEM7 receivers using null modem serial cables or USB cables. 2. Establish a connection to the receiver using either NovAtel Connect or another terminal program. This con- nection is used to send the commands in this procedure to the receivers.
Page 97: Large Ethernet Port Data Throughput
If done incorrectly, changing the Windows Registry may impair the operation of the computer. Editing the Windows Registry is for advanced Microsoft Windows users only. NovAtel Inc. is not able to provide any technical support for any actions taken regarding information found in Microsoft’s Knowledge Base.
Page 98: Chapter 6 Ntrip Configuration
6.1 NTRIP Configuration Over Ethernet The following procedure describes how to configure a NovAtel base and a NovAtel rover through a third party NTRIP caster. This configuration is recommended for optimal RTK performance. 1. Establish a connection to the receiver using either NovAtel Connect or another terminal program. This con- nection is used to send the commands in this procedure to the receiver.
Page 99 NCOMx GPGGA ONTIME 5, until data is received by the caster. For more information about Network RTK options and properties, refer to the application note APN-041 Network RTK APN-074: NTRIP on NovAtel OEM6/OEM7. The following is an NTRIP Client configuration example without the use of a Network RTK system:...
Page 100: Chapter 7 Can Bus
Chapter 7 CAN Bus The OEM7 receivers support the following CAN protocols: J1939 Transport and Extended Transport Protocol: used for corrections and NovAtel messages (both trans- mitting and receiving) NMEA2000: used for standard as well as NovAtel-proprietary messages (transmitting only) By default, CAN is disabled on OEM7 receivers.
Page 101: Default Configuration
Chapter 7 CAN Bus For information about these commands, see the OEM7 Commands and Logs Reference Manual. Details for the PGN messages can be found in the NMEA2000 specification which can be purchased directly from the National Marine Electronics Association (www.nmea.org/). 7.1 Default Configuration After a FRESET, the receiver has the following CAN configuration: All CAN physical ports are disabled...
Page 102: Example Of Enabling The Can Bus
Chapter 7 CAN Bus CANCONFIG CANx ON are entered. Use J1939STATUS log to determine the receiver's CAN status and the actual address claimed by a par- ticular node. Once the receiver is "on bus", it must be taken "off-bus" using CANCONFIG for any further configuration changes using J1939CONFIG.
Page 103: Address Claim Procedure
J1939CONFIG command. 7.3 NMEA2000 Logging OEM7 receivers support both a subset of the standard NMEA2000 PGNs, as well as NovAtel proprietary PGNs. All NMEA2000 logs are configured using the LOG command, where the COM port is a CAN port (CCOM). The CCOM port must be associated with a J1939 node using the CCOMCONFIG command.
Page 104: Corrections Over Can
A single CCOM port cannot be used for both Binary messages and corrections. If the CCOM port is configured as NOVATEL, all input is interpreted as NovAtel ASCII or Abbreviated ASCII. Unlike other COM ports, the receiver will not distinguish between ASCII and binary input.
Page 105: Configuring Oem7 Receivers To Use Oem6 Can Settings
It is recommended to use one dedicated CCOM port for NovAtel messages and another dedicated CCOM port for corrections. NovAtel UI configuration does not affect NMEA2000. Any CCOM port can be used for NMEA2000 logs irrespective of CCOMCONFIG settings. To configure NovAtel User Interface over CAN: 1.
Page 106 Chapter 7 CAN Bus A full address claim procedure with default values is initiated with the CANCONFIG ON command. The J1939CONFIG command can be used to modify the default address claim parameters including the Man- ufacturingCode (set to 603 in the SETCANNAME example above, now defaults to 305 in the new J1939CONFIG) but it's not necessary.
Page 107: Chapter 8 Troubleshooting
Try to resolve the problem using the troubleshooting guide in Table 9: Troubleshooting Based on Symptoms below, then try our Knowledge Base at www.novatel.com/support/. If you are still not able to resolve the prob- lem, see Customer Support on page 19 for troubleshooting logs and contact information.
Page 108: Examining The Rxstatus Log
Chapter 8 Troubleshooting Symptom Related Section See Transmitting and Receiving Corrections on page 58 and refer Differential mode is not working properly to the SERIALCONFIG command. There appears to be a problem with the Refer to the NVMRESTORE command. receiver’s memory Move the receiver to within an acceptable temperature range.
Page 109: Table 10: Resolving A Receiver Error Word
Chapter 8 Troubleshooting have actions to take when your receiver has an error flag in these words. If you are not able to resolve the con- dition, contact Customer Support on page 19. Table 10: Resolving a Receiver Error Word Bit Set Action to Resolve Issue a FRESET command (for bit 1, reload new firmware).
Page 110: Table 11: Resolving An Error In The Receiver Status Word
Chapter 8 Troubleshooting Bit Set Action to Resolve SoftLoad is in progress. See Updating Using SoftLoad Commands on page 121. You may be exceeding the receiver’s velocity limit. If so, reduce velocity. This error can only be cleared by resetting the receiver. Reload firmware using WinLoad or the SoftLoad commands.
Page 111: Examining The Aux1 Status Word
Chapter 8 Troubleshooting Bit Set Action to Resolve None. This bit is a status bit indicating if the receiver’s position has been manually fixed and does not represent a problem. Refer also to the FIX command. None. This bit indicates if c.lock steering has been manually disabled. Refer also to the FRESET command.
Page 112: High Temperature Environments
AGC error on RF1 through RF4 respectively. To resolve, ensure the antenna cable is connected and 14-17 signal input level is within specification. Contact NovAtel Customer Support on page 19 for additional information. Connect the receiver via Ethernet.
Page 113: Recovering From A Temperature Status Error
Chapter 8 Troubleshooting 8.3.2 Recovering from a Temperature Status Error The receiver must be reset or power cycled to recover from a receiver error such as a Temperature Status error. Log information is lost when the receiver is reset. Therefore, any logs required to identify and troubleshoot the error, such as the RXSTATUS log, should be collected before resetting the receiver.
Page 114: Safe Mode
Chapter 8 Troubleshooting < 1.555555582 1700 (Temperature 0x16) < 58.485961914 1600 Pay attention to the reading and the boundary limit status. Refer to Table: HWMONITOR Status Table in the HWMONITOR log section for a description of the Bound- ary Limit Status. 4. Use the suggestions in Mitigating High Receiver Temperature on the previous page to reduce the receiver temperature.
Page 115 Chapter 8 Troubleshooting suggested actions for the current Safe Mode State. 3. If the suggested actions do not resolve the issue, contact NovAtel Customer Support. OEM7 Installation and Operation User Manual v14...
Page 116: Chapter 9 Novatel Firmware And Software
Contact NovAtel Customer Support (support@novatel.com) for details on custom loader requirements. 9.1.2 Model Upgrades Model upgrades enable purchased receiver features. Contact a local NovAtel dealer to assist in selecting the upgrade options that best suit your GNSS needs at www.novatel.com/where-to-buy. Contact NovAtel Customer Support www.novatel.com/support NovAtel Sales to request a temporary upgrade authorization code for trial purposes.
Page 117: Authorization Code
YYMMDD, where YY = year, MM = month and DD =day. The date is the last day that the auth-code is valid and expires at the end of day, UTC time. Once the trial period has expired, a new auth-code will need to be obtained from NovAtel Customer Support (sup- port@novatel.com).
Page 118: Format Of Firmware Files
7XXXX-Firmware.zip for firmware to be installed on OEM7 receivers For convenience, unzip the update file to a GNSS sub-directory (for example, C:\GNSS\LOADER). If the firm- ware update file is password protected, NovAtel Customer Support provides the required password. The zip archive includes the following files: winload.exe...
Page 119: Figure 39: Winload's Open Window
Chapter 9 NovAtel Firmware and Software Figure 39: WinLoad’s Open Window When a file is selected, the filename appears in the main WinLoad display area and in the title bar (Figure 40: Open File in WinLoad below). Figure 40: Open File in WinLoad...
Page 120: Updating The Firmware Using Novatel Connect
Options | Optimized Loading. 9.5 Updating the Firmware Using NovAtel Connect To use NovAtel Connect to update the receiver firmware, the receiver must be connected to the computer run- ning NovAtel Connect using a serial (COM) port, USB port or Ethernet port.
Page 121: Updating The Firmware Using Novatel Web Ui
10. Click the UPLOAD button. 9.6 Updating the Firmware Using NovAtel Web UI To use NovAtel Web UI to update the receiver firmware, the receiver must be connected to the device running Web UI using a Wi-Fi or Ethernet connection.
Page 122: Softload Commands And Logs
The receiver stops tracking GNSS satellites during the SoftLoad process. Do not attempt to SoftLoad when GNSS satellite tracking on the unit is required. If the unit is connected to the NovAtel Connect utility, only the Console and ASCII Message windows may remain open in the Connect Utility.
Page 123: Sending Firmware Data
The *.shex file data may contain many gaps and jumps. For example, in many NovAtel *.shex files, data for address 0x000_00000 is stored near the very end of the file. Example Packaging Multiple S3 Records In A SOFTLOADDATA Command...
Page 124: Softload Update Method
Previous Address + Previous Num Bytes = 0x00000000 + 0x1C = 0x0000001C Add data to existing SOFTLOADDATA command The SOFTLOADDATA command must be sent as a NovAtel binary format command. 9.7.4 SoftLoad Update Method This section describes the sequence of commands that are issued to the receiver when updating using a *.shex file.
Page 125 Chapter 9 NovAtel Firmware and Software Manual for details on how to convert from S0 S-Records to SOFTLOADSETUP commands. b. S3 S-Records should be parsed and packaged into a SOFTLOADDATA command. 6. Send the SOFTLOADCOMMIT command after all data from the *.shex file has been transferred to the receiver.
Page 126: Softload Errors
Chapter 9 NovAtel Firmware and Software 9.7.5 SoftLoad Errors It is possible for errors to occur during the SoftLoad update. All command responses should be checked to verify all issued commands were accepted. The SoftLoad status should also be monitored in the SOFTLOADSTATUS log.
Page 127: Upgrading Using An Auth-Code
7. Click or tap the UPLOAD button. Once upload complete, Web UI automatically returns to the Main Window. 9.8.3 Entering an Auth-Code Using the Command Line The AUTH command is used to enter an auth-code. The upgrade can be performed directly through the NovAtel Connect command line or from any other communications program.
Page 128: Update The Web Ui
When the AUTH command is executed, the OEM7 receiver reboots. Issuing the LOG VERSION command con- firms the new upgrade model type and firmware version number. If communicating using NovAtel Connect, the communication path must be closed and reopened using the Device menu.
Page 129: Update The Web Ui Content Using Web Ui
The SSID and password for the receiver Wi-Fi are on a label on the receiver. 3. Open a web browser and enter any web address, for example, novatel.com (do not include "https"). 4. Click or tap the Cog button.
Page 130: Appendix A Oem719 Technical Specifications
Size 46 mm x 71 mm x 11 mm Weight 31 grams NovAtel Part Number Generic assembly OEM719 01019520 See the following sections for more information about the OEM719: OEM719 Performance Specifications on the next page OEM719 Mechanical Specifications on page 133 OEM719 Electrical and Environmental Specifications on page 140...
Page 131: Oem719 Performance Specifications
GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel-correct-ppp. Performance dependent on local observing conditions. Although hardware capable, GLONASS L5 is currently not available.
Page 132 APPENDIX A OEM719 Technical Specifications <0.5 s L1 (typical) Signal Reacquisition <1.0 s L2 and L5 (typical) Measurements up to 100 Hz Data Rates Position up to 100 Hz Time Accuracy 20 ns RMS Velocity Accuracy <0.03 m/s RMS Carrier Code L1 C/A 4 cm...
Page 133: Oem719 Mechanical Specifications
APPENDIX A OEM719 Technical Specifications A.2 OEM719 Mechanical Specifications Figure 42: OEM719 Dimensions below Figure 43: OEM719 Keep-outs on the next page Figure 44: OEM719A Dimensions on page 135 Figure 45: OEM719A Keep-outs on page 136 Figure 46: OEM719B Dimensions on page 137 Figure 47: OEM719B Keep-outs on page 138 Figure 48: OEM719 Mounting Surface on page 139 Figure 42: OEM719 Dimensions...
Page 134: Figure 43: Oem719 Keep-Outs
APPENDIX A OEM719 Technical Specifications Figure 43: OEM719 Keep-outs OEM7 Installation and Operation User Manual v14...
Page 135: Figure 44: Oem719A Dimensions
APPENDIX A OEM719 Technical Specifications Figure 44: OEM719A Dimensions OEM7 Installation and Operation User Manual v14...
Page 136: Figure 45: Oem719A Keep-Outs
APPENDIX A OEM719 Technical Specifications Figure 45: OEM719A Keep-outs OEM7 Installation and Operation User Manual v14...
Page 137: Figure 46: Oem719B Dimensions
APPENDIX A OEM719 Technical Specifications Figure 46: OEM719B Dimensions OEM7 Installation and Operation User Manual v14...
Page 138: Figure 47: Oem719B Keep-Outs
APPENDIX A OEM719 Technical Specifications Figure 47: OEM719B Keep-outs OEM7 Installation and Operation User Manual v14...
Page 139: Figure 48: Oem719 Mounting Surface
APPENDIX A OEM719 Technical Specifications Figure 48: OEM719 Mounting Surface The mounting surfaces are shown in gray. These mounting surfaces apply to all variants of the OEM719. These mounting surfaces are designed to work with mounting rails. For information about mounting the OEM719, refer to Mounting the Printed Circuit Board on page 29.
Page 140: Oem719 Electrical And Environmental Specifications
APPENDIX A OEM719 Technical Specifications A.3 OEM719 Electrical and Environmental Specifications Table 15: OEM719 Environmental Specifications Operating Temperature -40°C to +85°C Storage Temperature -55°C to +95°C Humidity 95% non-condensing Random Vibration MIL-STD-810G, Method 514.6, Category 24 (20 g RMS) Sinusoidal Vibration IEC 60068-2-6 Bump ISO 9022-31-06 (25 g)
Page 141 APPENDIX A OEM719 Technical Specifications +15 dB to +55 dB, 26 dB HDR disabled typical Firmware 7.04 and later +20 dB to +55 dB, 30 dB Cascaded HDR enabled typical antenna LNA gain (before +15 dB to +40 dB, 26 dB HDR disabled receiver) typical...
Page 142: Oem719 Data Communication Specifications
APPENDIX A OEM719 Technical Specifications A.4 OEM719 Data Communication Specifications Table 18: OEM719 Data Communication Interfaces COM1 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM1_Tx, COM1_Rx Electrostatic discharge protection COM2 Electrical format...
Page 143 APPENDIX A OEM719 Technical Specifications 250, 500 or 1000 kb/s Data rates CAN Bus throughput is determined by slowest device on the bus Signals supported CAN1Tx, CAN1Rx, CAN2Tx, CAN2Rx Electrical format Conforms to USB 2.0 Data rates Full-speed (12 Mb/s) Signals supported USB D (+), USB D (-) OEM7 Installation and Operation User Manual v14...
Page 144: Oem719 Strobe Specifications
APPENDIX A OEM719 Technical Specifications A.5 OEM719 Strobe Specifications Table 19: OEM719 Strobe Description Factory Strobes Input/Output Comment Default An input mark for which a pulse greater than 150 ns triggers certain logs to be generated. (Refer to the MARKPOS and MARK1TIME logs and Input ONMARK trigger.) Polarity is configurable using the MARKCONTROL Event1...
Page 145 APPENDIX A OEM719 Technical Specifications Current Strobe (mA) nRESET_IN VARF OEM7 Installation and Operation User Manual v14...
Page 146: Oem719 Interface Connector
APPENDIX A OEM719 Technical Specifications A.6 OEM719 Interface Connector A.6.1 P1701 Main Connector 20-Pin Header Signal Signal Signal Drive Description Name Type Direction (mA) No internal connection on OEM719 receiver. (This pin was the supply feed for the external GNSS antenna on the OEM6 family.
Page 147 APPENDIX A OEM719 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. VARF is the default. VARF: Output VARF: Variable Frequency Output. Rising or falling edge active. VARF/ 3.3V CAN1RX CMOS CAN1RX: a CMOS-level signal, requiring an external CAN CAN1RX: transceiver.
Page 148 APPENDIX A OEM719 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) COM2 Transmit Data (UART) 3.3V For SPAN applications, this pin can TXD2 Output CMOS be configured to output a timing signal periodically (generally 1PPS). COM2 Receive Data (UART) 3.3V RXD2 Input...
Page 149: Appendix B Oem729 Technical Specifications
Size 60 mm x 100 mm x 9 mm Weight 48 grams NovAtel Part Number Generic assembly OEM729 01019523 See the following sections for more information about the OEM729: OEM729 Performance Specifications on the next page OEM729 Mechanical Specifications on page 152 OEM729 Electrical and Environmental Specifications on page 155...
Page 150: Oem729 Performance Specifications
GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel-correct-ppp. Performance dependent on local observing conditions. Although hardware capable, GLONASS L5 is currently not available.
Page 151 APPENDIX B OEM729 Technical Specifications <0.5 s L1 (typical) Signal Reacquisition <1.0 s L2 and L5 (typical) Measurements up to 100 Hz Data Rates Position up to 100 Hz Time Accuracy 20 ns RMS Velocity Accuracy <0.03 m/s RMS Carrier Code L1 C/A 4 cm...
Page 152: Oem729 Mechanical Specifications
APPENDIX B OEM729 Technical Specifications B.2 OEM729 Mechanical Specifications Figure 49: OEM729 Dimensions below Figure 50: OEM729 Keep-outs on the next page Figure 51: OEM729 Mounting Surfaces on page 154 Figure 49: OEM729 Dimensions OEM7 Installation and Operation User Manual v14...
Page 153: Figure 50: Oem729 Keep-Outs
APPENDIX B OEM729 Technical Specifications Figure 50: OEM729 Keep-outs OEM7 Installation and Operation User Manual v14...
Page 154: Figure 51: Oem729 Mounting Surfaces
APPENDIX B OEM729 Technical Specifications Figure 51: OEM729 Mounting Surfaces The mounting surfaces are shown in gray. For information about mounting the OEM729, refer to Mounting the Printed Circuit Board on page 29. Assembly tolerances must be considered when using mounting rail features. OEM7 Installation and Operation User Manual v14...
Page 155: Oem729 Electrical And Environmental Specifications
APPENDIX B OEM729 Technical Specifications B.3 OEM729 Electrical and Environmental Specifications Table 23: OEM729 Environmental Specifications Operating Temperature -40°C to +85°C Storage Temperature -55°C to +95°C Humidity 95% non-condensing Random Vibration MIL-STD-810G, Method 514.6, Category 24 (20 g RMS) Sinusoidal Vibration IEC 60068-2-6 Bump ISO 9022-31-06 (25 g)
Page 156: Table 26: Oem729 External Oscillator Input
APPENDIX B OEM729 Technical Specifications +15 dB to +55 dB, 26 dB HDR disabled typical Firmware 7.04 and later +20 dB to +55 dB, 30 dB HDR enabled Cascaded antenna typical LNA gain (before +15 dB to +40 dB, 26 dB receiver) HDR disabled typical...
Page 157 APPENDIX B OEM729 Technical Specifications Input VSWR <2:1 Signal Level 0 dBm minimum to +13.0 dBm maximum Frequency Stability ±0.5 ppm maximum Wave Shape Sinusoidal OEM7 Installation and Operation User Manual v14...
Page 158: Oem729 Data Communication Specifications
APPENDIX B OEM729 Technical Specifications B.4 OEM729 Data Communication Specifications Table 27: Data Communications Interface COM1 Electrical format RS-232/RS-422 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM1_Tx, COM1_Rx, COM1_RTS, COM1_CTS Electrostatic discharge protection COM2 Electrical format...
Page 159 APPENDIX B OEM729 Technical Specifications Signals supported CAN1 and CAN2 Electrical format Conforms to USB 2.0 Data rates Full-speed (12 Mb/s) Signals supported USB D (+), USB D (-) ETHERNET Physical layer 10BASE-T/100BASE-TX OEM7 Installation and Operation User Manual v14...
Page 160: Oem729 Strobe Specifications
APPENDIX B OEM729 Technical Specifications B.5 OEM729 Strobe Specifications Table 28: OEM729 Strobes Description Factory Strobes Input/Output Comment Default Normally low. Active ERROR Output A high output on this pin indicates that the receiver is in an error state. For high information about the cause of the error, log the RXSTATUS log.
Page 161 APPENDIX B OEM729 Technical Specifications Current Strobe (mA) nRESET_IN VARF OEM7 Installation and Operation User Manual v14...
Page 162: Oem729 Interface Connectors
APPENDIX B OEM729 Technical Specifications B.6 OEM729 Interface Connectors B.6.1 P1802 Main Connector 24-Pin Header Signal Signal Signal Drive Description Name Type Direction (mA) Ground reference User GPIO. 3.3V Input/ USER1 CMOS Output Internal 10 kΩ pulldown. Variable Frequency output 3.3V Edges can be synchronized to the VARF...
Page 163 APPENDIX B OEM729 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT1 input Rising or falling edge triggered. 3.3V This input is used to provide a EVENT1 Input CMOS position or time data log based on an external trigger. Internal 10 kΩ...
Page 164 APPENDIX B OEM729 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. COM1_CTS is the default. COM1_ CTS: Input COM1_CTS: COM1 Clear To RS-232 COM1_ Send input. This is an optional flow CTS/ control signal for the COM1 UART COM1_ (±25V tolerant).
Page 165: P1803 Expansion Connector 16-Pin Header
APPENDIX B OEM729 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. COM1_TX is the default. COM1_ COM1_TX: COM1 Transmit Data Output output. (±25V tolerant) RS-232 For SPAN applications, this pin COM1_TX/ can be configured to output a COM1_ timing signal periodically (generally TXD+...
Page 166 APPENDIX B OEM729 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) ETH_ This is one half of the Ethernet Analog Input receive differential pair (100 Ω pair). ETH_ Center tap power for Ethernet BIAS magnetics. ETH_ This is one half of the Ethernet Analog Output transmit differential pair (100 Ω...
Page 167: Appendix C Oem7600 Technical Specifications
Size 35 mm x 55 mm x 13 mm Weight 31 grams NovAtel Part Number Generic assembly 01019807 See the following sections for more information about the OEM7600: OEM7600 Performance Specifications on the next page OEM7600 Mechanical Specifications on page 170 OEM7600 Electrical and Environmental Specifications on page 172...
Page 168: Oem7600 Performance Specifications
GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel-correct-ppp. Performance dependent on local observing conditions. Although hardware capable, GLONASS L5 is currently not available.
Page 169 APPENDIX C OEM7600 Technical Specifications <0.5 s L1 (typical) Signal Reacquisition <1.0 s L2 and L5 (typical) Measurements up to 100 Hz Data Rates Position up to 100 Hz Time Accuracy 20 ns RMS Velocity Accuracy <0.03 m/s RMS Carrier Code 4 cm 0.5 mm...
Page 170: Oem7600 Mechanical Specifications
APPENDIX C OEM7600 Technical Specifications C.2 OEM7600 Mechanical Specifications Figure 52: OEM7600 Dimensions below Figure 53: OEM7600 Interface Board Details on the next page In the following diagrams, the dimensions are in millimeters. Figure 52: OEM7600 Dimensions OEM7 Installation and Operation User Manual v14...
Page 171: Figure 53: Oem7600 Interface Board Details
APPENDIX C OEM7600 Technical Specifications Figure 53: OEM7600 Interface Board Details OEM7 Installation and Operation User Manual v14...
Page 172: Oem7600 Electrical And Environmental Specifications
APPENDIX C OEM7600 Technical Specifications C.3 OEM7600 Electrical and Environmental Specifications Table 32: OEM7600 Environmental Specifications Operating Temperature -40°C to +85°C Storage Temperature -55°C to +95°C Humidity 95% non-condensing Random Vibration MIL-STD-810G (CH1), Method 514.7, Category 24 (20 g RMS) Sinusoidal Vibration IEC 60068-2-6 Bump...
Page 173 APPENDIX C OEM7600 Technical Specifications +15 dB to +55 db, 26 dB HDR disabled typical Firmware 7.04 and later +20 dB to +55 db, 30 dB HDR enabled Cascaded antenna typical LNA gain (before +15 dB to +40 db, 26 dB receiver) HDR disabled typical...
Page 174: Oem7600 Data Communication Specifications
APPENDIX C OEM7600 Technical Specifications C.4 OEM7600 Data Communication Specifications Table 35: Data Communications Interface COM1 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM1_Tx, COM1_Rx, COM1_RTS, COM1_CTS Electrostatic discharge protection COM2 Electrical format...
Page 175 APPENDIX C OEM7600 Technical Specifications COM5 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM5_Tx, COM5_Rx Electrostatic discharge protection CAN Bus Electrical Format LVCMOS 1 Mbps maximum. Data rates CAN Bus throughput is determined by slowest device on the bus Signals supported CAN0 and CAN1...
Page 176: Oem7600 Strobe Specifications
APPENDIX C OEM7600 Technical Specifications C.5 OEM7600 Strobe Specifications Table 36: OEM7600 Strobes Description Factory Strobes Input/Output Comment Default Normally low. Active A high output on this pin indicates that the receiver is in an error ERROR Output high state. For information about the cause of the error, log the RXSTATUS log.
Page 177: Table 37: Oem7600 Strobe Electrical Specifications
APPENDIX C OEM7600 Technical Specifications Table 37: OEM7600 Strobe Electrical Specifications Current Strobe (mA) ERROR EVENT_IN1 (Mark ) EVENT_IN2 (Mark2) EVENT_IN3 (Mark3) EVENT_IN4 (Mark4) EVENT_OUT1 EVENT_OUT2 EVENT_OUT3 EVENT_OUT4 ME_RDY 0.55 POS_VALID nRESET_IN 2.55 0.55 OEM7 Installation and Operation User Manual v14...
Page 178: Oem7600 Interface Connector
APPENDIX C OEM7600 Technical Specifications C.6 OEM7600 Interface Connector C.6.1 P2001 Main Connector 60-Pin Socket Signal Signal Signal Drive Description Name Type Direction (mA) Power Input 3.3 V ±5% supply input Power Input 3.3 V ±5% supply input COM2 Transmit Data (UART) COM2_ 3.3V For SPAN applications, this pin can...
Page 179 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. COM5_RXD is the default. COM5_ COM5_RXD: COM5 Receive Data RXD/ 3.3V Input (UART). COM2_ CMOS COM2_CTS: COM2 Clear to Send Optional hardware flow control signal for the COM2 serial port.
Page 180 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Receiver Ready (Active High) Indicates to the host system that the receiver is ready to receive 3.3V ME_RDY Output commands. CMOS This signal is not asserted while booting or during a reset.
Page 181 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT4 (Mark4) Output Rising edge triggered. EVENT_ 3.3V Outputs a user-specified timing Output OUT4 CMOS signal. Can be synchronized with PPS. Supports Variable Frequency Output function. EVENT2 (Mark2) Output Rising edge triggered.
Page 182 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT3 (Mark3) input Rising or falling edge triggered. This EVENT_ 3.3V input is used to provide a position or Input CMOS time data log based on an external trigger.
Page 183 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) SPI_ 3.3V Serial Peripheral Interface Master Input MISO CMOS Input/Slave Output SPI_ 3.3V Serial Peripheral Interface Serial Output SCLK CMOS Clock Ground Ground reference Ground Ground reference USB1 signal.
Page 184 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) When the USB port mode is set to Host, this pin is an output. When the USB port mode is set to Device, this pin is an input. Host or Device mode is set using the USB_Port_Mode_Select pin (Pin 51).
Page 185 APPENDIX C OEM7600 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Ethernet Receive One half of the Ethernet receive ETH_ Analog Input differential pair. ETH_RX+ and ETH_RX- must be routed as a 100 Ω differential pair. Ethernet Transmit One half of the Ethernet transmit ETH_TX+ Analog...
Page 186: Appendix D Oem7700 Technical Specifications
Size 46 mm x 71 mm x 8 mm Weight 31 grams NovAtel Part Number Generic assembly OEM7700 01019525 See the following sections for more information about the OEM7700: OEM7700 Performance Specifications on the next page OEM7700 Mechanical Specifications on page 189 OEM7700 Electrical and Environmental Specifications on page 192...
Page 187: Oem7700 Performance Specifications
GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel-correct-ppp. Performance dependent on local observing conditions. Although hardware capable, GLONASS L5 is currently not available.
Page 188 APPENDIX D OEM7700 Technical Specifications <0.5 s L1 (typical) Signal Reacquisition <1.0 s L2 and L5 (typical) Measurements up to 100 Hz Data Rates Position up to 100 Hz Time Accuracy 20 ns RMS Velocity Accuracy <0.03 m/s RMS Carrier Code L1 C/A 4 cm...
Page 189: Oem7700 Mechanical Specifications
APPENDIX D OEM7700 Technical Specifications D.2 OEM7700 Mechanical Specifications Figure 54: OEM7700 Dimensions below Figure 55: OEM7700 Keep-outs on the next page Figure 56: OEM7700 Mounting Surfaces on page 191 Figure 54: OEM7700 Dimensions OEM7 Installation and Operation User Manual v14...
Page 190: Figure 55: Oem7700 Keep-Outs
APPENDIX D OEM7700 Technical Specifications Figure 55: OEM7700 Keep-outs OEM7 Installation and Operation User Manual v14...
Page 191: Figure 56: Oem7700 Mounting Surfaces
APPENDIX D OEM7700 Technical Specifications Figure 56: OEM7700 Mounting Surfaces The mounting surfaces are shown in gray. These mounting surfaces are designed to work with mounting rails. For information about mounting the OEM7700, refer to Mounting the Printed Circuit Board on page 29. Assembly tolerances must be considered when using mounting rail features.
Page 192: Oem7700 Electrical And Environmental Specifications
APPENDIX D OEM7700 Technical Specifications D.3 OEM7700 Electrical and Environmental Specifications Table 40: OEM7700 Environmental Specifications Operating Temperature -40°C to +85°C Storage Temperature -55°C to +95°C Humidity 95% non-condensing Random Vibration MIL-STD-810G, Method 514.6, Category 24 (20 g RMS) Sinusoidal Vibration IEC 60068-2-6 Bump ISO 9022-31-06 (25 g)
Page 193 APPENDIX D OEM7700 Technical Specifications +15 dB to +55 db, 26 dB HDR disabled typical Firmware 7.04 and later +20 dB to +55 db, 30 dB HDR enabled Cascaded antenna typical LNA gain (before +15 dB to +40 db, 26 dB receiver) HDR disabled typical...
Page 194: Oem7700 Data Communication Specifications
APPENDIX D OEM7700 Technical Specifications D.4 OEM7700 Data Communication Specifications Table 43: Data Communications Interface COM1 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM1_Tx, COM1_Rx, COM1_RTS, COM1_CTS Electrostatic discharge protection COM2 Electrical format...
Page 195 APPENDIX D OEM7700 Technical Specifications COM5 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM5_Tx, COM5_Rx Electrostatic discharge protection CAN Bus Electrical Format LVCMOS 1 Mbps maximum. Data rates CAN Bus throughput is determined by slowest device on the bus Signals supported CAN0 and CAN1...
Page 196: Oem7700 Strobe Specifications
APPENDIX D OEM7700 Technical Specifications D.5 OEM7700 Strobe Specifications Table 44: OEM7700 Strobes Description Factory Strobes Input/Output Comment Default Normally low. Active A high output on this pin indicates that the receiver is in an error ERROR Output high state. For information about the cause of the error, log the RXSTATUS log.
Page 197: Table 45: Oem7700 Strobe Electrical Specifications
APPENDIX D OEM7700 Technical Specifications Table 45: OEM7700 Strobe Electrical Specifications Current Strobe (mA) ERROR EVENT_IN1 (Mark ) EVENT_IN2 (Mark2) EVENT_IN3 (Mark3) EVENT_IN4 (Mark4) EVENT_OUT1 EVENT_OUT2 EVENT_OUT3 EVENT_OUT4 ME_RDY 0.55 POS_VALID nRESET_IN 2.55 0.55 OEM7 Installation and Operation User Manual v14...
Page 198: Oem7700 Interface Connector
APPENDIX D OEM7700 Technical Specifications D.6 OEM7700 Interface Connector D.6.1 P2001 Main Connector 60-Pin Socket Signal Signal Signal Drive Description Name Type Direction (mA) Power Input 3.3 V ±5% supply input Power Input 3.3 V ±5% supply input COM2 Transmit Data (UART) COM2_ 3.3V For SPAN applications, this pin can...
Page 199 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. COM5_RXD is the default. COM5_ COM5_RXD: COM5 Receive Data RXD/ 3.3V Input (UART). COM2_ CMOS COM2_CTS: COM2 Clear to Send Optional hardware flow control signal for the COM2 serial port.
Page 200 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Receiver Ready (Active High) Indicates to the host system that the receiver is ready to receive 3.3V ME_RDY Output commands. CMOS This signal is not asserted while booting or during a reset.
Page 201 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT4 (Mark4) Output Rising edge triggered. EVENT_ 3.3V Outputs a user-specified timing Output OUT4 CMOS signal. Can be synchronized with PPS. Supports Variable Frequency Output function. EVENT2 (Mark2) Output Rising edge triggered.
Page 202 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT3 (Mark3) input Rising or falling edge triggered. This EVENT_ 3.3V input is used to provide a position or Input CMOS time data log based on an external trigger.
Page 203 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) SPI_ 3.3V Serial Peripheral Interface Master Input MISO CMOS Input/Slave Output SPI_ 3.3V Serial Peripheral Interface Serial Output SCLK CMOS Clock Ground Ground reference Ground Ground reference USB1 signal.
Page 204 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) When the USB port mode is set to Host, this pin is an output. When the USB port mode is set to Device, this pin is an input. Host or Device mode is set using the USB_Port_Mode_Select pin (Pin 51).
Page 205 APPENDIX D OEM7700 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Ethernet Receive One half of the Ethernet receive ETH_ Analog Input differential pair. ETH_RX+ and ETH_RX- must be routed as a 100 Ω differential pair. Ethernet Transmit One half of the Ethernet transmit ETH_TX+ Analog...
Page 206: Appendix E Oem7720 Technical Specifications
Size 46 mm x 71 mm x 7.5 mm Weight 29 grams NovAtel Part Number Generic Assembly OEM7720 01019906 See the following sections for more information about the OEM7720: OEM7720 Performance Specifications on the next page OEM7720 Mechanical Specifications on page 210 OEM7720 Electrical and Environmental Specifications on page 213...
Page 207: Oem7720 Performance Specifications
GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel-correct-ppp. Performance dependent on local observing conditions. Although hardware capable, GLONASS L5 is currently not available.
Page 208 APPENDIX E OEM7720 Technical Specifications L1 C/A, L1C, L2C, L2P, L5 GLONASS L1 C/A, L2 C/A, L2P, L3,L5 BeiDou B1I, B1C, B2I, B2a Signals Tracked Secondary Antenna Galileo E1, E5 AltBOC, E5a, E5b NavIC (IRNSS) QZSS L1 C/A, L1C, L2C, L5 Hot: <20 s (Almanac and recent ephemeris saved and approximate position and time entered) Time to First Fix...
Page 209 APPENDIX E OEM7720 Technical Specifications Code Carrier L1 C/A 4 cm 0.5 mm L2 P(Y) 1.0 mm 8 cm 0.5 mm 8 cm 3 cm 0.5 mm L1 C/A 8 cm 1.0 mm GLONASS L2 P 8 cm 1.0 mm L2 C/A 8 cm 1.0 mm...
Page 210: Oem7720 Mechanical Specifications
APPENDIX E OEM7720 Technical Specifications E.2 OEM7720 Mechanical Specifications Figure 57: OEM7720 Dimensions below Figure 58: OEM7720 Keep-outs on the next page Figure 59: OEM7720 Mounting Surfaces on page 212 Figure 57: OEM7720 Dimensions OEM7 Installation and Operation User Manual v14...
Page 211: Figure 58: Oem7720 Keep-Outs
APPENDIX E OEM7720 Technical Specifications Figure 58: OEM7720 Keep-outs OEM7 Installation and Operation User Manual v14...
Page 212: Figure 59: Oem7720 Mounting Surfaces
APPENDIX E OEM7720 Technical Specifications Figure 59: OEM7720 Mounting Surfaces The mounting surfaces are shown in gray. These mounting surfaces are designed to work with mounting rails. For information about mounting the OEM7720, refer to Mounting the Printed Circuit Board on page 29. Assembly tolerances must be considered when using mounting rail features.
Page 213: Oem7720 Electrical And Environmental Specifications
APPENDIX E OEM7720 Technical Specifications E.3 OEM7720 Electrical and Environmental Specifications Table 48: OEM7720 Environmental Specifications Operating Temperature -40°C to +85°C Storage Temperature -55°C to +95°C Humidity 95% non-condensing Random Vibration MIL-STD-810G (CH1), Method 514.7, Category 24 (20 g RMS) Sinusoidal Vibration IEC 60068-2-6 Bump...
Page 214: Table 50: Oem7720 Rf Input/Lna Power Output
APPENDIX E OEM7720 Technical Specifications Table 50: OEM7720 RF Input/LNA Power Output Antenna Connector MMBX female, 50 Ω nominal impedance +15 dB to +55 dB, 26 dB HDR disabled typical Firmware 7.04 and later +20 dB to +55 dB, 30 dB HDR enabled Cascaded antenna typical...
Page 215: Oem7720 Data Communication Specifications
APPENDIX E OEM7720 Technical Specifications E.4 OEM7720 Data Communication Specifications Table 51: Data Communications Interface COM1 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM1_Tx, COM1_Rx, COM1_RTS, COM1_CTS Electrostatic discharge protection COM2 Electrical format...
Page 216 APPENDIX E OEM7720 Technical Specifications COM5 Electrical format LVCMOS 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400 or 460800 Data rates bit/s. Signals supported COM5_Tx, COM5_Rx Electrostatic discharge protection CAN Bus Electrical Format LVCMOS 1 Mbps maximum. Data rates CAN Bus throughput is determined by slowest device on the bus Signals supported CAN0 and CAN1...
Page 217: Oem7720 Strobe Specifications
APPENDIX E OEM7720 Technical Specifications E.5 OEM7720 Strobe Specifications Table 52: OEM7720 Strobes Description Factory Strobes Input/Output Comment Default Normally low. Active A high output on this pin indicates that the receiver is in an error ERROR Output high state. For information about the cause of the error, log the RXSTATUS log.
Page 218: Table 53: Oem7720 Strobe Electrical Specifications
APPENDIX E OEM7720 Technical Specifications Table 53: OEM7720 Strobe Electrical Specifications Current Strobe (mA) ERROR EVENT_IN1 (Mark ) EVENT_IN2 (Mark2) EVENT_IN3 (Mark3) EVENT_IN4 (Mark4) EVENT_OUT1 EVENT_OUT2 EVENT_OUT3 EVENT_OUT4 ME_RDY 0.55 POS_VALID nRESET_IN 2.55 0.55 OEM7 Installation and Operation User Manual v14...
Page 219: Oem7720 Interface Connector
APPENDIX E OEM7720 Technical Specifications E.6 OEM7720 Interface Connector E.6.1 P1901 Main Connector 60-Pin Socket Signal Signal Signal Drive Description Name Type Direction (mA) Power Input 3.2 to 5.0 V ±5% supply input Power Input 3.2 to 5.0 V ±5% supply input COM2 Transmit Data (UART) COM2_ 3.3V...
Page 220 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) This pin is internally multiplexed. COM5_RXD is the default. COM5_ COM5_RXD: COM5 Receive Data RXD/ 3.3V Input (UART). COM2_ CMOS COM2_CTS: COM2 Clear to Send Optional hardware flow control signal for the COM2 serial port.
Page 221 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Receiver Ready (Active High) Indicates to the host system that the receiver is ready to receive 3.3V ME_RDY Output commands. CMOS This signal is not asserted while booting or during a reset.
Page 222 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT4 (Mark4) Output Rising edge triggered. EVENT_ 3.3V Outputs a user-specified timing Output OUT4 CMOS signal. Can be synchronized with PPS. Supports Variable Frequency Output function. EVENT2 (Mark2) Output Rising edge triggered.
Page 223 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) EVENT3 (Mark3) input Rising or falling edge triggered. This EVENT_ 3.3V input is used to provide a position or Input CMOS time data log based on an external trigger.
Page 224 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) SPI_ 3.3V Serial Peripheral Interface Master Input MISO CMOS Input/Slave Output SPI_ 3.3V Serial Peripheral Interface Serial Output SCLK CMOS Clock Ground Ground reference Ground Ground reference USB1 signal.
Page 225 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) When the USB port mode is set to Host, this pin is an output. When the USB port mode is set to Device, this pin is an input. Host or Device mode is set using the USB_Port_Mode_Select pin (Pin 51).
Page 226 APPENDIX E OEM7720 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) Ethernet Receive One half of the Ethernet receive ETH_ Analog Input differential pair. ETH_RX+ and ETH_RX- must be routed as a 100 Ω differential pair. Ethernet Transmit One half of the Ethernet transmit ETH_TX+ Analog...
Page 227: Appendix F Receiver Card Interface Examples
APPENDIX F Receiver Card Interface Examples The OEM7 receiver cards provide a number of 3.3V CMOS-level I/O pins for status indication and timing: COMx: CMOS-level UART ports Ethernet: 10/100 Ethernet port CAN1 and CAN2: CMOS-level CAN ports (external CAN transceivers required) PPS: Output pulse providing time reference signal (software configurable output rate, defaults to 1 Pulse Per Second) EVENTx_OUT: Variable Frequency output (a software-configurable clock output similar to PPS, off by...
Page 228: Event_In, Event_Out And Pps Signal Protection
R9). If the additional surge protection is to be used on a design, the buffer must be included as well. This design has been used to protect EVENT_IN signals from EN61000-4-5 induced surges up to 2kV on several NovAtel enclosure products. If nanosecond-level timing is critical to the application, this protection circuit may be unsuit- able, as it causes a timing shift of a few microseconds to the EVENT signal (heavily dependent on temperature).
Page 229: Table 54: Event_In, Event_Out And Pps Pin Designation
APPENDIX F Receiver Card Interface Examples Table 54: EVENT_IN, EVENT_OUT and PPS Pin Designation OEM719 OEM729 OEM7600 OEM7700 OEM7720 Connector P1701 P1802 P1701 P2001 P1901 EVENT_IN1 EVENT_IN2 EVENT_IN3 – – EVENT_IN4 – – EVENT_ OUT1/VARF EVENT_OUT2 – – EVENT_OUT3 – –...
Page 230: Position Valid (Pv) Led Driver
F.2 Position Valid (PV) LED Driver The PV signal may be used to indicate that the receiver card has computed a valid position. Many NovAtel enclosure products use it to drive a green LED on the enclosure. It may also be used to monitor the status of the receiver with an external microcontroller.
Page 231: Communication Ports
APPENDIX F Receiver Card Interface Examples F.3 Communication Ports The COM ports on OEM7 receivers (except COM1 on the OEM729) are CMOS-level I/O pins only. These ports require the addition of an RS-232 or RS-422 transceiver to provide appropriate signal levels. Most RS-232 or RS- 422 transceivers will provide some ESD protection (for harsh environments, additional protection may be required).
Page 232: Can Controller Ports
APPENDIX F Receiver Card Interface Examples F.4 CAN Controller Ports OEM7 receivers provide 3.3 V CMOS-level CAN controller ports. An external CAN transceiver is required. The following figure shows a typical CAN transceiver implementation. The combination of ferrite beads and small-value capacitors are not necessarily required but may provide improved EMI performance.
Page 233: Usb Interface
APPENDIX F Receiver Card Interface Examples F.5 USB Interface This section describes the interface requirements for an OEM7 receiver card USB port. For general information about the OEM7 receiver card USB ports, see USB Ports on page 48. OEM7 receivers include an USB 2.0 device interface set to either Full-Speed (12 Mb/s) or High-Speed (480 Mb/s) transfer rate.
Page 234: Figure 64: Oem7 Usb Host Device Interface Example
APPENDIX F Receiver Card Interface Examples OEM719 OEM729 OEM7600 OEM7700 OEM7720 USB0_D+ USB1_D- USB1_D+ USB_ VBUS Table 61: USB Device Interface Example Bill of Materials Designator Manufacturer Manufacturer Part Number On Semiconductor ESD7L5.0DT5G On Semiconductor ESD5Z6.0T1G MMZ1005B800C Wurth Electronics 744230900 10104110-0001LF Figure 64: OEM7 USB Host Device Interface Example This pin is multiplexed with the COM3 receive signal and is not available when COM3 is enabled.
Page 235: Table 62: Usb Host Interface Pin Designation
APPENDIX F Receiver Card Interface Examples Table 62: USB Host Interface Pin Designation OEM719 OEM729 OEM7600 OEM7700 OEM7720 Connector P1701 P1802 P1803 P1701 P2001 P1901 USB0_D- USB0_D+ USB1_D- USB1_D+ USB_ VBUS Table 63: USB Host Interface Example Bill of Materials Designator Manufacturer Manufacturer Part Number...
Page 236: Ethernet Port
APPENDIX F Receiver Card Interface Examples F.6 Ethernet Port OEM7 receivers, except the OEM719, provide a 10/100 Ethernet port with auto-negotiation. The Ethernet inter- face is disabled by default and must be configured. See the Ethernet Configuration for instructions on Ethernet device configuration.
Page 237: Table 65: Ethernet Transformer Characteristics
APPENDIX F Receiver Card Interface Examples Table 65: Ethernet Transformer Characteristics Parameter Value Test Condition Turns ratio 1 CT : 1 CT Open-CCT inductance (minimum) 350 μH 100 mV, 100 kHz, 8 mA Leakage inductance (maximum) 0.4 μH 1 MHz (minimum) Inter-winding capacitance (minimum) 12 pF DC resistance (maximum)
Page 238: Appendix G Importance Of Antenna Selection
APPENDIX G Importance of Antenna Selection An antenna behaves both as a spatial and frequency filter, therefore, selecting the right GNSS antenna is critical for optimizing performance. An antenna must match the receiver’s capabilities and specifications, as well as meet size, weight, environmental and mechanical specifications for the intended application. Factors to consider when choosing a GNSS antenna include: 1.
Page 239: Figure 66: Plot Of Good And Poor Antenna Phase Center Variation Over Elevation Angle
APPENDIX G Importance of Antenna Selection Figure 66: Plot of Good and Poor Antenna Phase Center Variation over Elevation Angle 0-90° Many users can accept accuracies of less than a meter so these small phase center variations cause a neg- ligible amount of position error.
Page 240 APPENDIX G Importance of Antenna Selection OEM7 Installation and Operation User Manual v14...
Page 241: Appendix H Accessories And Replacement Parts
APPENDIX H Accessories and Replacement Parts The following tables list the replacement parts available for your NovAtel OEM7 receiver. For assistance or to order additional components, contact your local NovAtel dealer or Customer Support. Table 67: OEM7 Receivers NovAtel Part Part Description...
Page 242: Table 69: Gnss Antenna Cables
ARINC-743 bolt pattern GNSS-303L-A (GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2/B3, Galileo E1/E5a/E5b/E6, NavIC L5 and L-Band) Table 69: GNSS Antenna Cables NovAtel Part Part Description GPS-C006 5 meters – TNC to TNC cable GPS-C016 15 meters – TNC to TNC cable GPS-C032 30 meters –...
Page 243: Manufacturers' Part Numbers
APPENDIX H Accessories and Replacement Parts H.1 Manufacturers’ Part Numbers The following original manufacturer’s part numbers are provided for information only and are not available from NovAtel as separate parts. Product Part Description Part Number Johnson 133-3711-202 OEM719 J201, MCX jack receptacle...
Page 244: Restrictions On Connecting Mass Storage Devices
APPENDIX H Accessories and Replacement Parts The devices in the following table have been tested by NovAtel and confirmed to be compatible with the USB host system on OEM7 receivers. Table 72: Devices Tested for OEM7 USB Embedded Host Class Type...
Page 245: Appendix I Electrostatic Discharge (Esd) Practices
APPENDIX I Electrostatic Discharge (ESD) Practices Various electrical and electronic components are vulnerable to ESD. These include discrete components, hybrid devices, Integrated Circuits (ICs) and Printed Circuit Boards (PCBs) assembled with these devices. I.1 Handling ESD Sensitive Devices ESD sensitive devices must only be handled in static controlled locations. Some recommendations for such handling practices follow: Handling areas must be equipped with a grounded table, floor mats and wrist strap.
Page 246: Handling Printed Circuit Boards
APPENDIX I Electrostatic Discharge (ESD) Practices Table 73: Static-Accumulating Materials formica (waxed or highly resistive) finished wood Work Surfaces synthetic mats writing materials, note pads and so on wax-finished Floors vinyl common clean room smocks Clothes personal garments (all textiles) non-conductive shoes finished wood Chairs...
Page 247 OEM7 Installation and Operation User Manual v14...

This manual is also suitable for:

Oem719 Oem729 Oem7600 Oem7700 Oem7720 Oem719a ... Show all

Novatel OEM7 Series Installation And Operation Manual

Chapter 1 Introduction

Chapter 2 OEM7 Family Receiver Cards Installation

Chapter 3 OEM7 Receiver Operation

Chapter 4 Built-In Status Tests

Chapter 5 Ethernet Configuration

Chapter 6 NTRIP Configuration

Chapter 7 CAN Bus

Chapter 8 Troubleshooting

Chapter 9 Novatel Firmware and Software

APPENDIX A OEM719 Technical Specifications

APPENDIX B OEM729 Technical Specifications

APPENDIX C OEM7600 Technical Specifications

APPENDIX D OEM7700 Technical Specifications

APPENDIX E OEM7720 Technical Specifications

Quick Links

Need help?

Questions and answers

Related Manuals for Novatel OEM7 Series

Summary of Contents for Novatel OEM7 Series
