Summary of Contents for Novatel MT 4000

  • Page 1: User Guide

    GSM2448UG001 MT 4000 User Guide Version: 1.03 16 October, 2013...
  • Page 2 New Materials. The user of such New Materials assumes all risk (known or unknown) of such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a revocable and limited license to use such New Materials in connection with the products for which they are intended.
  • Page 3 Copyright © 2013 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Novatel Wireless.
  • Page 4: Warranty Information

    Warranty Information [Revised: 11/11/2010] This warranty applies to (a) products sold directly by Novatel Wireless M2M, unless a different warranty is specified in a written agreement between Novatel Wireless M2M and the purchaser; and (b) products sold to end users through a distributor authorized by Novatel...
  • Page 5 (iii) caused by use of any materials not supplied by Novatel Wireless M2M, or by use of the product other than in accordance with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes.
  • Page 6 NOVATEL WIRELESS'S SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE FOR NOVATEL WIRELESS TO REPAIR OR REPLACE THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATEL WIRELESS...
  • Page 7: Regulatory Compliance

    Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B.
  • Page 8: Rohs Compliance

    PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. Novatel Wireless M2M disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party. Novatel Wireless M2M strongly recommends that all installations, hookups, transmissions, etc., be...
  • Page 9 Battery Information And Safety Requirements NOTE: Failure to comply with all of the following precautions could: Cause personal injury or property damage Cause abnormal chemical reactions which would make the battery overheat, smoke, distort, leak, or catch on fire Destroy internal protections built into the battery Shorten battery life Reduce battery performance Precautions...
  • Page 10: Table Of Contents

    Table of Contents 1 Introduction Description Technical Specifications General Radio Technology Packet Data Environmental Components Protocols Part Numbers Document References Certifications Additional Features 2 Features And Functions GPS Measurements LEDs 22 Pin IO Connector The 1-Wire® Interface Power Power Consumption Low-Power Sleep Mode Bench Testing / Programming Battery Disconnect...
  • Page 11 Optional Software Features Garmin Fleet Management Interface (GFMI) 3 Installation SIM Card Access Opening The Device Inserting The SIM Closing The Device Device Installation Device Mounting Mounting Methods Device Orientation 4 Network Test Procedure Configuring The Modem Verifying Server Connectivity 5 Accesories Mounting Bracket Cables...
  • Page 12: Introduction

    Introduction Description Technical Specifications novatelwireless.com...
  • Page 13: Description

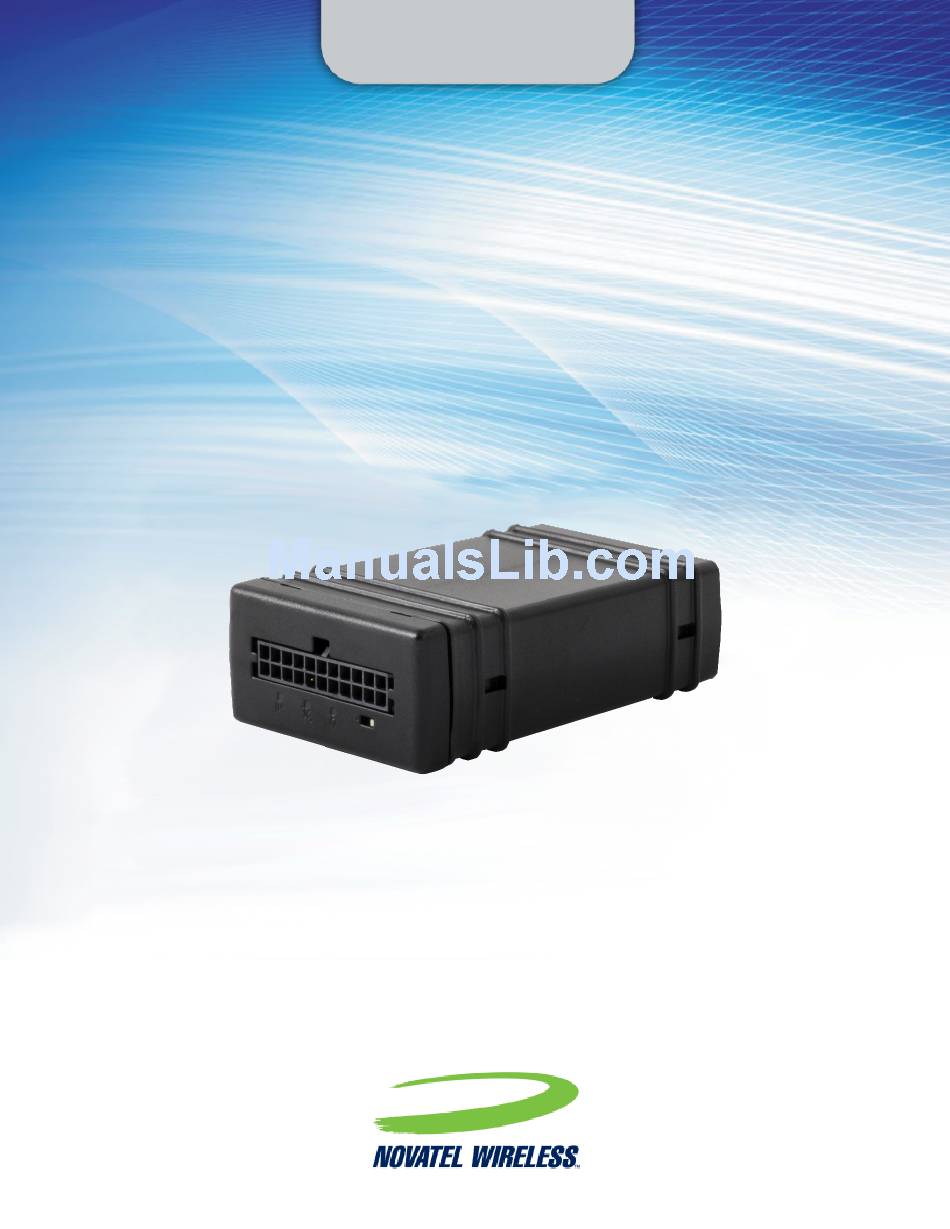

    GPS, quad-band GSM antennas, an internal SIM holder, 22-pin I/O connector, and three LED indicators. Figure 1-1 MT 4000 The MT 4000 has a printed label on the top of the device. The figure below shows the information included on the label. Figure 1-2 MT 4000 Label...
  • Page 14: Technical Specifications

    Technical Specifications General Name: MT 4000 Model: RGSM2448 Approvals: FCC, PTCRB, CE, GCF, eMark, RoHS, Industry Canada Housing: Rugged textured plastic enclosure UL94-Vo fire Weight: Without Battery: 74 grams With Battery: 82 grams Dimensions: 82 x 52 x 26.4 mm...
  • Page 15: Components

    GPS TX interval GPS content Maximum speed exceeded Geo-fencing virtual odometer Types of reporting: Binary Timed Alarm Status change Event Distance Driver behavior. Part Numbers GSM2448-00 MT 4000 w/ Backup Battery GSM2448-00 MT 4000 w/o Backup Battery BRK4100 Mounting bracket novatelwireless.com...
  • Page 16: Document References

    Accelerometer Guide Application Note ENF0000AN009 Low Power Sleep Mode Application Note ENF0000AN002 FOTA Application Note ENF0000CB001 API Reference ENF0000XG001 GFMI Technical Guide ENF0000AN014 Access the Novatel Wireless M2M Test Server ENF0000AN010 MT Decoding NMEA Messages ENF0000AN018 1-Wire Interface Certifications FCC: PTCRB: GCF: 3.43.1...
  • Page 17: Features And Functions

    Features And Functions LEDs 22 Pin IO Connector The 1-Wire® Interface Power Accelerometer Device Check-in Optional Software Features novatelwireless.com...
  • Page 18: Gps

    Buffered GPS message feature Geo-fencing (helps secure devices within a defined location) You can configure Novatel Wireless M2M MT 4000 to send GPS messages to a remote user (server) when a device enters or exits a geo-fenced area. Configure the geo-fence feature with 2 AT Commands: AT$GEOFNC and AT$EVENT.
  • Page 19: Leds

    Indicates power to the GPS module. LED is on ~1 second after powered on and the GPS module is PWR: operational. LED is off when powered off or when the MT 4000 enters Low-Power Sleep mode. Note: If you disable the GPS module, you must apply power for this LED to turn on.
  • Page 20: 22 Pin Io Connector

    22 Pin IO Connector The 22-Pin I/O Connector provides the following functionality: Pin # User Name Description Ear (-) Ear Phone - Note: This is an output only that is connected directly to the modem. Input voltages should not be applied. Ear (+) Ear Phone + Note: This is an output only that is connected directly to the modem.
  • Page 21 Pin # User Name Description Output 3 Power In Vehicle Power from 12 or 24 V Vehicles Power In Vehicle Power from 12 or 24 V Vehicles Digital Digital Input #3 (GPI10) Input #3 RS-232 RS-232 RTS In Note: -25 VDC to 25 VDC RS-232 TX RS-232 TX In Note: -25 VDC to 25 VDC RS-232 RX RS-232 RX Out...
  • Page 22 Pin(s) Label Function Description Conditions Min Norm Max Units Ear (-/+) Differential Audio Out (+/-) Differential resistive load (ZLOAD) Ω Ear (-/+) Differential Audio Out (+/-) Differential Maximum capacitor load. Ear (-/+) Differential Audio Out (+/-) Common mode Minimum resistive load kΩ...
  • Page 23: The 1-Wire® Interface

    1-Wire Application Note (ENF0000AN018). Power The MT 4000 accepts 9-32 VDC with a minimum of 2 amps input power, which allows you to use the device on both 12 V and 24 V vehicles per SAE specifications. This also protects 24 V vehicles when you need to jump-start them.
  • Page 24: Bench Testing / Programming

    Battery Disconnect Use the MT 4000 Battery Disconnect Switch to remove battery power to the device (battery models only). Move the switch toward the dot to turn the battery on. Move the switch away from the dot to turn the battery off.
  • Page 25: Accelerometer

    If the switch remains in the ON position with no external power applied for an extended period of time, this may cause the battery to significantly lose its charging capabilities. Accelerometer The MT 4000 has two three-axis digital accelerometers, which provide the following features: Motion reporting Accelerometer assisted towing alert Driver behavior reporting...
  • Page 26: Optional Software Features

    Novatel Wireless M2M sales representative. Garmin Fleet Management Interface (GFMI) GFMI provides the MT 4000 with a Wireless Network back-end to allow the Garmin Portable Navigation Device (PND) to communicate with a server. Garmin has defined and published the GFMI Control Specification. The GFMI defines the message protocol that is supported by the PND over the 9600 baud serial line.
  • Page 27: Installation

    Installation SIM Card Access Device Installation Device Mounting Device orientation novatelwireless.com...
  • Page 28: Sim Card Access

    SIM Card Access The MT 4000 includes an on-board SIM carrier. There is no external access to the SIM. SIM Installation procedures include: Opening the Device Inserting the SIM Closing the Device Opening The Device To prevent damaging the device, use the Metal Lever (Novatel Wireless M2M part number K1T2418) when opening the MT 4000.
  • Page 29: Inserting The Sim

    Inserting The SIM To insert the SIM (GSM/GPRS models only), follow these steps: The MT 4000 device does not come with a SIM card.. You must obtain the SIM from the GSM/GPRS service provider and have it provisioned for data by the operator.
  • Page 30: Closing The Device

    Figure 3-4 MT 4000 SIM Holder with SIM Installed (Lower Left) 3. Replace the cover as described in the next section. Closing The Device To replace the MT 4000 cover, follow these steps: 1. Insert the PCB Assembly into the Housing. The GPS antenna should face the Label side of the Housing.
  • Page 31 Figure 3-7 Assembled Device novatelwireless.com...
  • Page 32: Device Installation

    Device Installation The MT 4000 case includes molded anchor points for mounting as shown in the figure below. Always mount the device with the correct side facing skyward as shown in the figure below. Ground should be connected first. Failure to connect ground to the MT 4000 before connecting auxiliary devices may result in damage to the attached I/O device.
  • Page 33: Device Mounting

    Device Mounting The MT 4000 case includes molded anchor points for mounting as shown in the figure below. Always mount the device with the correct side facing skyward as shown in the figure below. To ensure proper accelerometer operation, you must securely mount the MT 4000.
  • Page 34: Device Orientation

    Mounting Bracket 1. Secure mounting bracket to desired mounting surface using one of the following methods: three (3) # 6 screws cable ties of 0.19” wide (4.75 mm) double-sided tape 2. Insert device into mounting bracket with the connector end at the mount opening. The device can be inserted label side up or down.
  • Page 35 The orientation parameters are used to convert the accelerometer axes to the vehicle axes so that acceleration and deceleration along the vehicle centerline (front-to-back) can be measured separately from the side-to-side and up-and down accelerations. Figure 3-10 MT 4000 Orientation novatelwireless.com...
  • Page 36: Network Test Procedure

    Network Test Procedure Configuring the Modem Verifying Server Connectivity novatelwireless.com...
  • Page 37: Configuring The Modem

    Configuring The Modem Use the following instructions to configure the Novatel Wireless M2M modem to communicate with the Novatel Wireless M2M test server using UDP. First, consider the following: Most configurations are Mobile Originate only. A mobile modem initiates a conversation with a remote server before it can talk to the modem.
  • Page 38 GPRS Registration Information which includes the APN (Access Point Name) Username, and Password (if applicable) should come from the service provider of the SIM. Example: APN = isp.cingular or public IP Username (If necessary) Username = ISP@CINGULARGPRS.COM Password (If necessary) Password = CINGULAR1 The following commands listed below are how the GPRS registration information should be programmed into the device.
  • Page 39: Verifying Server Connectivity

    Step 4: Configure the modem to talk to the Novatel Wireless M2M Test Server. This example will use the following information: --Modem ID/name = “My_MT_Test” --Remote Server IP address = http://apitest.nvtl.com/UDPAPP/ --Remote Server IP port = 1721 The following commands listed below are how the device should be programmed to communicate with the Novatel Wireless M2M Test server.
  • Page 40 Figure 4-1 apitest.enfora.com/enforaapp/ Window 2. Enter the Server port in the port command box. In this case it is 1721 as defined in AT$UDPAPI=,1721 3. Enter the name used in the Modem ID (MDMID) command in the box. 4. Select Connect. novatelwireless.com...
  • Page 41 6. Enter the following command in the Command/Data text box: ATI 7. Click on the Submit button. 8. Verify that you see the modem response: Novatel Wireless, Inc. If so, you have successfully configured the modem to talk with the server.
  • Page 42: Accesories

    Accesories Mounting Bracket Cables novatelwireless.com...
  • Page 43: Mounting Bracket

    For more information on mounting, see the Device Installation section in this User Guide. Figure 5-1 Mounting Bracket (BRK4100) Cables Two MT 4000 cable accessories are available: CAB2448-01 and CAB2448-02. Both cables interface to the MT 4000 using the serial connector as shown below. novatelwireless.com...
  • Page 44: Power Cable

    Figure 5-2 22-pin Cable Connector Power Cable The power cable for the MT 4000, CAB2448-01, includes a fuse and ignition sense. Figure 5-3 Power Cable The connector pin-out on the cable is shown below: Figure 5-4 Connector pin-out novatelwireless.com...
  • Page 45: Integration And Development Cable

    Integration And Development Cable The Integration and Development cable, CAB2448-02, is used for programming and testing the device. It contains an RS232 interface, I/O header, and audios leads. Figure 5-5 Cable Schematic The Serial To DB9 Wiring Guide Connector Wire Color 6/7 Ground 5 Ground Orange 22 Rx 2 RXD...
  • Page 46 1- Wire I/F ADC In #2 ADC In #1 Digital Input #2 Digital Input #1 Digital Output #2 Digital Output #1 Digital Output #3 Digital Input #3 No Connect Power Ground novatelwireless.com...
