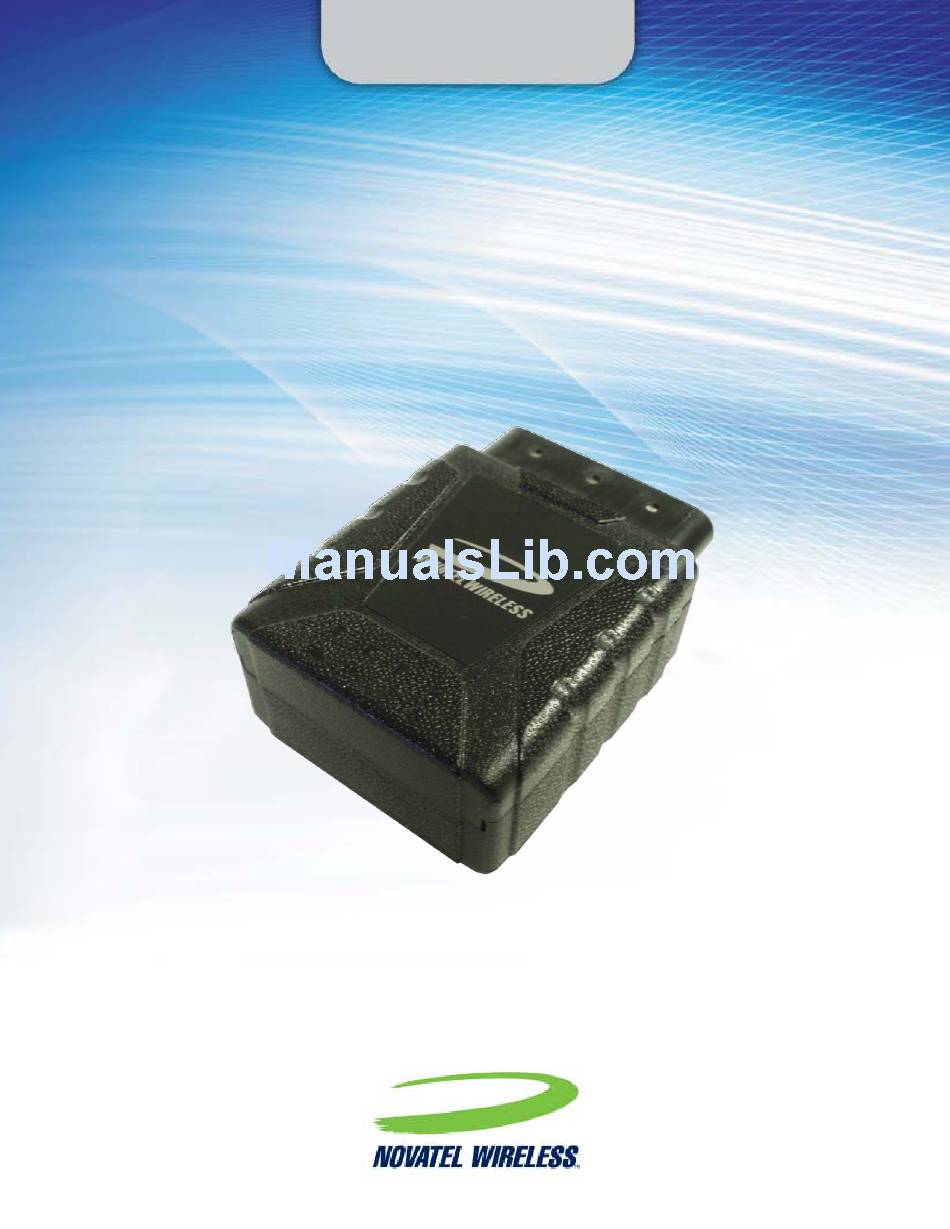

Page 1: User Guide
MT3060UG001 MT 3060 User Guide Version: Draft 30 September, 2013... - Page 2 New Materials. The user of such New Materials assumes all risk (known or unknown) of such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a revocable and limited license to use such New Materials in connection with the products for which they are intended.
- Page 3 Copyright © 2013 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Novatel Wireless.
-
Page 4: Warranty Information
Warranty Information [Revised: 11/11/2010] This warranty applies to (a) products sold directly by Novatel Wireless M2M, unless a different warranty is specified in a written agreement between Novatel Wireless M2M and the purchaser; and (b) products sold to end users through a distributor authorized by Novatel... - Page 5 (iii) caused by use of any materials not supplied by Novatel Wireless M2M, or by use of the product other than in accordance with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes.
- Page 6 NOVATEL WIRELESS'S SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE FOR NOVATEL WIRELESS TO REPAIR OR REPLACE THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATEL WIRELESS...
-
Page 7: Regulatory Compliance
Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B, Part 22, and Part 24 of the FCC rules. -
Page 8: Industry Canada
RF exposure levels are below the recommended levels at distances of 6.7 cm between the antenna and user. Novatel Wireless M2M hereby declares that the GSM2398 is in compliance with the essential requirements and other provisions of the Directive 1999/5/EC. - Page 9 PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. Novatel Wireless M2M disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party. Novatel Wireless M2M strongly recommends that all installations, hookups, transmissions, etc., be...
-
Page 10: Table Of Contents
Table of Contents 1 Introduction Description Technical Specifications General Radio Technology Packet Data Environmental Components Protocols Part Numbers Document References Additional Features On-Board Diagnostics Overview 2 Features And Functions LEDs Power Accelerometer GSM Radio CDMA Radio New Event Reporting Vehicle Identification Number (VIN) Excessive Engine Speed (RPM) Vehicle Speed Vehicle Battery Voltage (Low Battery Warning) - Page 11 Trip Odometer Reporting Idle Time Reporting Low Fuel Alert Driver Behavior Acceleration Driver Behavior Deceleration (Harsh Braking) Motion Detection OBDII Basic Event Data Right/Left Turn (Lateral Acceleration) Up / Down (Vertical Acceleration) AT Commands Over SMS Store/Transmit Event Data Synchronize RTC Time With GPS Time Reporting Frequency 3 Installation SIM Access (GSM2398 Only)
-
Page 12: Introduction
Introduction Description Technical Specifications On-Board Diagnostics Overview - 1 -... -
Page 13: Description

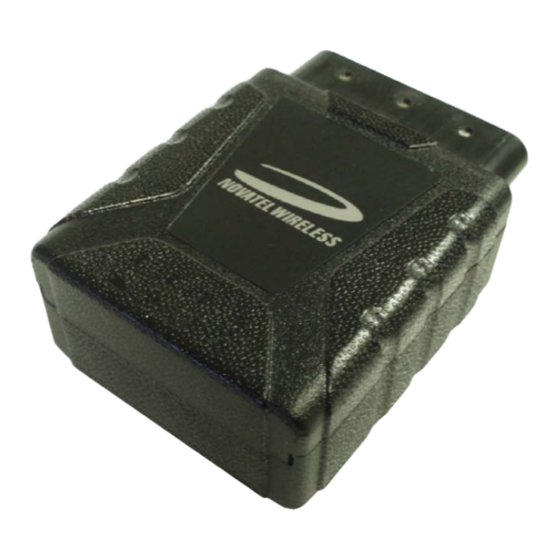

Description Novatel Wireless designed the MT 3060 for the Usage-Based Insurance (UBI), telematics, and fleet management markets. The MT 3060 has a rugged plastic housing and includes a disconnect alert feature that uses an in-device backup battery. The MT 3060 is available in GSM/GPRS, 1xRTT, and HSDPA versions. - Page 14 Figure 1-2 MT 3060 Label - 3 -...
-
Page 15: Technical Specifications
Technical Specifications General Name: MT 3060 Model: RTT2211, GSM2398 Approvals: FCC, CE, RoHS2, Industry Canada Housing: Rugged textured plastic enclosure UL94-Vo fire Dimensions: 55 x 49 x 29 mm Battery: Rechargeable lithium-ion battery (230mAh) Recharge Temperature Range 0 to +45ºC... -
Page 16: Components
AT commands, UDP API, FOTA Internal Protocols: UDP API, TCP API API Control/Status: AT commands, UDP API, TCP API, AT commands over SMS Part Numbers GSM2398-00 (GSM/GPRS) RTT2211-00 (CDMA 1xRTT) UMT2212-00 (HSDPA + GPRS/Edge) CAB2374-01 (J1962 extension cable) Document References GSM2398AT001... - Page 17 Geo-Fence RTC Alarm SMS Indication IP Status Memory Full Percentage GPS Distance - 6 -...
-
Page 18: On-Board Diagnostics Overview
On-Board Diagnostics Overview The Novatel Wireless M2M MT 3060 connects to a vehicle's On-Board Diagnostics (OBDII) port and monitors the OBDII system using communication protocols. An On-Board Diagnostics (OBD) system controls engine functions and serves as the diagnostic control network of the vehicle. -
Page 19: Features And Functions
Features And Functions LEDs Power Accelerometer GSM Radio CDMA Radio New Event Reporting AT Commands Over SMS - 8 -... -
Page 20: Gps
GPS functions include: NMEA update with all data points Novatel Wireless M2M Binary Packets Buffered GPS message feature Geo-fencing Virtual odometer LEDs The MT 3060 includes LEDs to indicate OBDII, Network, and GPS status. The following figures show the MT 3060 OBD II connector and LEDs. -
Page 21: Power
Figure 2-2 MT 3060 LEDs The following table describes the LED operation. MT 3060 LEDs The OBD LED will flash at a fast rate when the unit is first connected to the OBD port for power. Once a (Red) protocol is discovered through the OBD port, the LED will flash at a slow rate. The GPS LED will flash at a fast rate when the unit is acquiring a satellite fix. -
Page 22: Gsm Radio
BC1-1900 MHz – US PCS New Event Reporting The MT 3060 has additional event reporting not supported by other Novatel Wireless M2M products. For general event reporting information and for detailed information about these new events, refer to the MT 3060 AT Command Document (GSM2398AT001). -
Page 23: Excessive Engine Speed (Rpm)
Excessive Engine Speed (RPM) Excessive engine speed alerts are triggered when the engine speed (in RPM) exceeds a defined RPM level (in ¼ RPM increments) for a defined period of time in seconds (e.g., 30 seconds). The MT 3060 has three definable thresholds. Unnecessary wear and tear on the Powertrain Control Module (PCM) may occur if constant or frequent excessive engine speed is reported. -
Page 24: Check Engine Light (Mil Alert)
Check Engine Light (MIL Alert) When the vehicle's “Check Engine” light illuminates, this indicates that a vehicle issue requires attention for diagnosis and/or repair. This is also known as a Malfunction Indicator Light (MIL). A user can configure a device to detect a MIL issue via the OBDII protocol, and to send an alert when the device detects such an issue. -
Page 25: Driver Behavior Acceleration
Driver Behavior Acceleration Rapid acceleration events can be triggered when one of four available thresholds are exceeded as determined by the accelerometer in milli-Gs (e.g., 0.75) for a defined period of time in seconds (e.g., 30 seconds). The event will clear if the acceleration falls below the threshold for a defined period of time. -
Page 26: Right/Left Turn (Lateral Acceleration)
10 seconds. AT$DVBVAL=1,1200,1,30,10 AT Commands Over SMS A user can send AT commands to the MT 3060 via SMS. Please refer to Novatel Wireless M2M Application Note ENF0000AN012 - AT Commands Over SMS for details. Store/Transmit Event Data The user can configure the MT 3060 to store event-generated data in its internal memory to be sent over the air to a remote server. ... -
Page 27: Synchronize Rtc Time With Gps Time
Example: Assume there are 50 unread messages in the message queue and the total number of messages in the message queue is 100. This means that the first 50 messages have been read while the last 50 messages have not been read. If a user sends AT$GPSLOGRD=0,1,51 then the total number of unread messages drops down to 49 after successful transmission of that message. -
Page 28: Installation
Installation SIM access (GSM2398 Only) Activating The Device Device Installation Accelerometer Calibration - 17 -... -
Page 29: Sim Access (Gsm2398 Only)
Opening The Device To prevent damaging the device, we highly recommend that you use the Metal Lever (Novatel Wireless M2M part number KIT2418-01) when opening the MT 3060. To open the MT 3060, follow these steps: 1. Insert the tool into the opening and gently push until that corner of the lid unsnaps as shown below. - Page 30 3. Carefully slide the cover off the device Figure 3-2 MT 3060 With Cover Partially Removed When removing the cover take care not to damage the antennas. The antennas are situated in the top housing and at the rear of the device. Figure 3-3 MT 3060 With Cover Removed MT 3060 Antennas Bluetooth Antenna (Not currently supported)
-
Page 31: Inserting The Sim
Inserting The SIM The SIM card is not provided with the MT 3060 device. The SIM must be obtained from the GSM/GPRS service provider and must be provisioned by the operator for data. Always take care to protect the SIM. Without the SIM installed, the MT 3060 modem is not able to communicate with the network. -
Page 32: Closing The Device
Closing The Device Replace the MT 3060 cover using the following steps: 1. Place the MT 3060 cover onto the base of the device as shown in the following figure. 2. Apply gentle downward pressure to the back of the cover first, and carefully slide the cover into place. -
Page 33: Sprint Activation
Sprint Activation: To activate with Sprint, the user must contact Sprint and provide the MEID of the device. After the MEID is provided to Sprint, the user will need to power on the device when instructed by the carrier. The device will automatically activate when it attaches to the network. -
Page 34: Accelerometer Calibration
Figure 3-6 Typical OBDII Socket Location The device starts the accelerometer auto-calibration process immediately after the device is installed and the vehicle's ignition is turned on. Accelerometer Calibration The accelerometer undergoes an automatic calibration sequence on the first drive after any of the following events: Device installation Software upgrade... - Page 35 1. Make sure the vehicle is parked on level ground prior to installing the MT 3060. 2. Drive the vehicle in a straight path on level ground during the automatic calibration. An inclined surface will put part of the gravity vector into the XY plane, which will affect the acceleration thresholds.
-
Page 36: Accessories
Accessories Backup Battery Metal lever - 25 -... -
Page 37: Backup Battery
The following accessories are available for the MT 3060: Part Name Part Number Metal Lever ASA-3000-0001 Backup Battery Backup Battery The primary function of the backup battery in the MT 3060 is to allow a user to be notified when the device is removed from the vehicle. Input Event 63 can be used to trigger an output event that can be configured in the same manner as the other output events. - Page 38 Figure 4-2 Flat Head Screwdriver - 27 -...
