ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver
wrench , and a rubber mallet

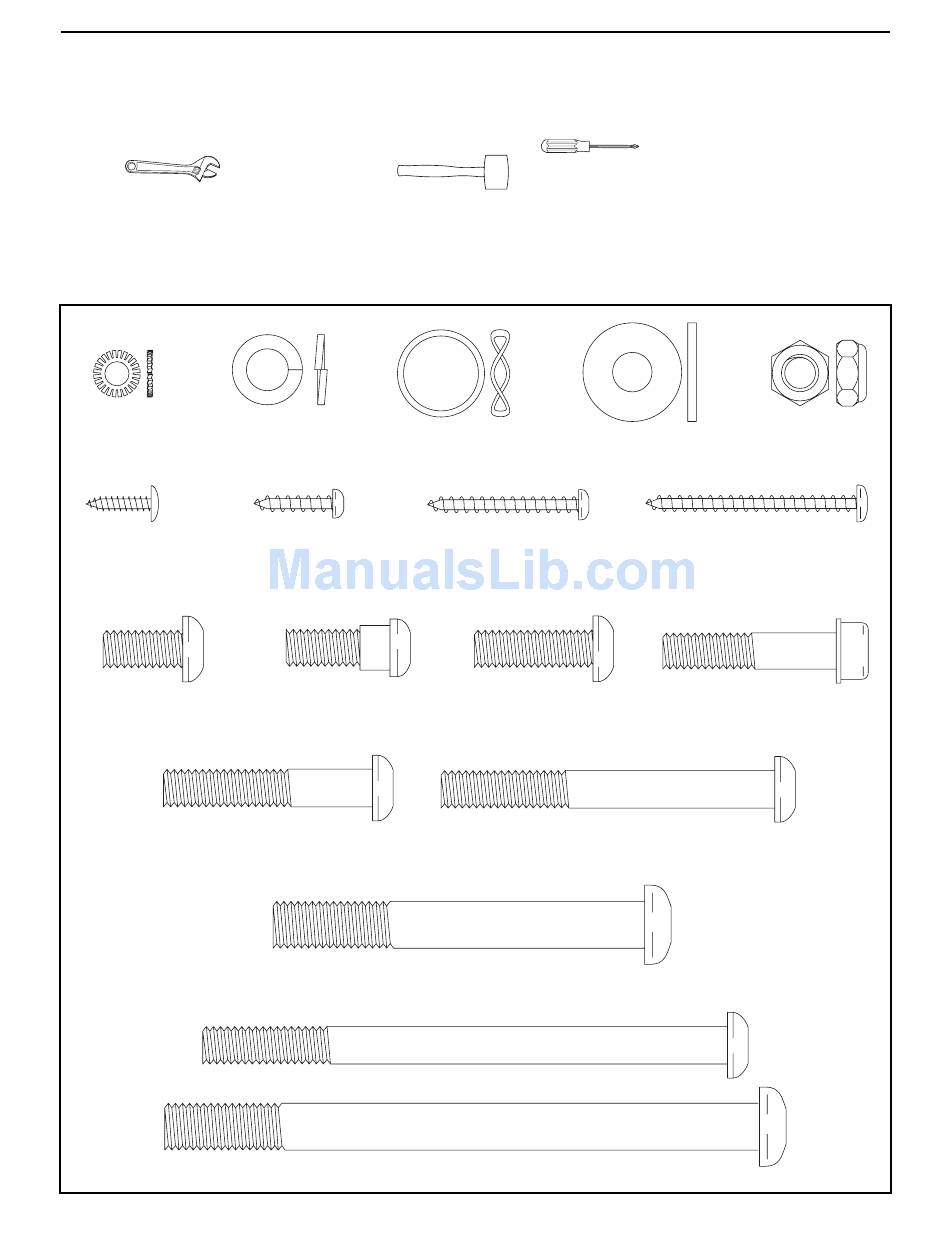

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 28 and 29. The number follow-
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-assem-
bled. If a part is not in the parts bag, check to see if it has been pre-assembled.
Star Washer
Washer (90)–3
(112)–8
M4 x 14mm
Screw (104)–8
M8 x 15mm Button
Screw (116)–8
M8 x 41mm Button
Bolt (78)–4
M8 Split
Wave Washer
M4 x 16mm
Round Head
Screw (101)–14
M8 x 23mm Shoulder
Screw (115)–4
M10 x 82mm Button
M8 x 112mm Button Bolt (125)–2
M10 x 127mm Button Screw (83)–2
.
M8 Washer
(111)–2
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm Button
Screw (84)–4
M8 x 69mm Button
Bolt (80)–1
Screw (82)–2
5
, an adjustable
M8 Jamnut
(88)–6 (79)–7
M4 x 45mm
Screw (108)–2
Hub Screw (87)–8
