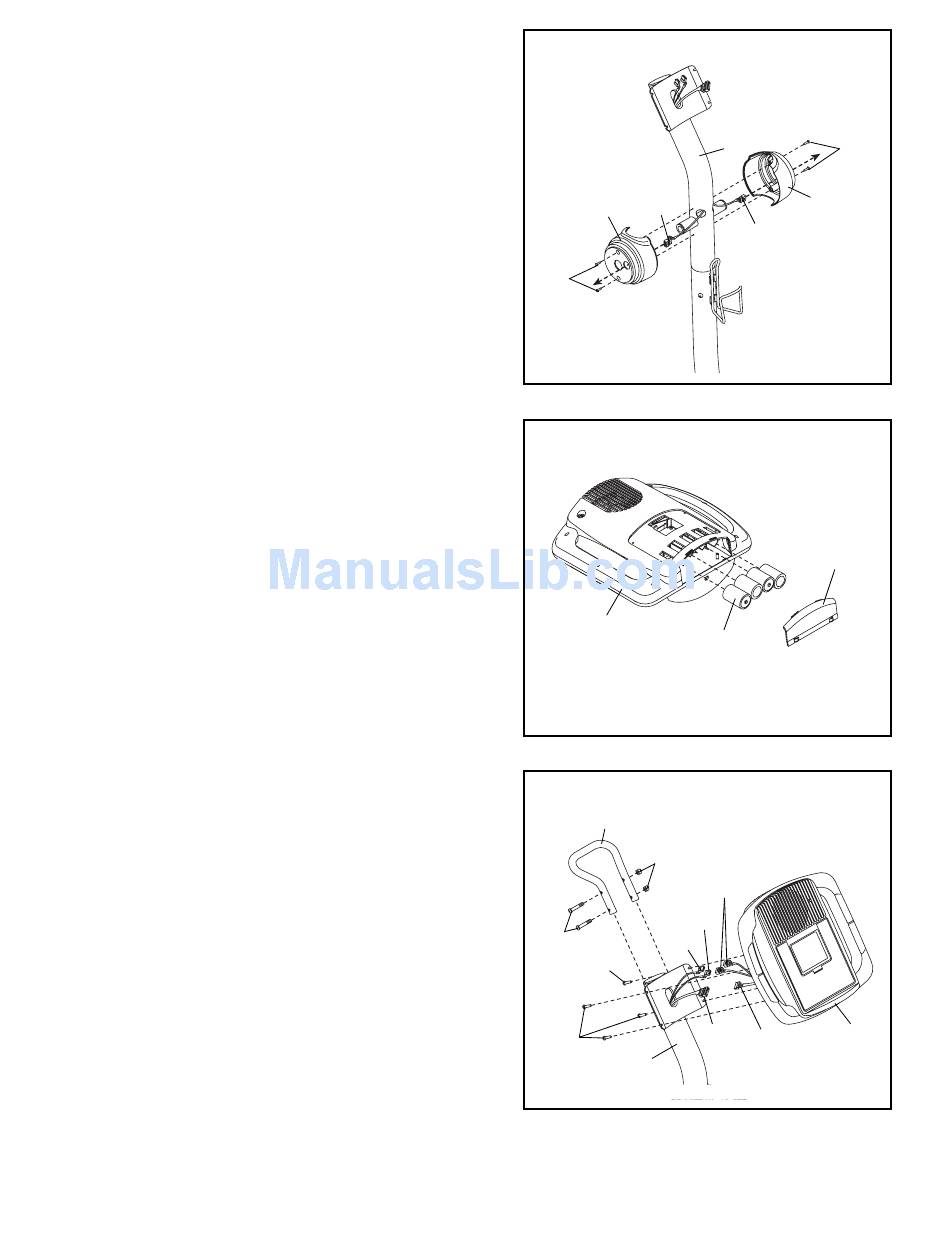

6. Orient the Left Upright Cover (17) as shown, and hold it
against the Upright (3). Insert the Left Extension Wire
(135), which is marked with a tag, through the Left
Upright Cover. Attach the Left Upright Cover with two
M4 x 16mm Round Head Screws (101). Avoid pinch-
ing the Left Extension Wire.
Repeat this step for the Right Upright Cover (130)
and the Right Extension Wire (136).
7. The Console (5) requires four 1.5V "D" batteries; alka-
line batteries are recommended. Remove the battery
cover and insert four batteries into the Console. Make
sure that the batteries are oriented as shown by
the diagrams inside the battery compartment.
Then, reattach the battery cover.
Note: The Console (5) can be operated with an option-
al power supply instead of batteries. To purchase a
power supply, call the telephone number on the
front cover of this manual. Plug one end of the
power supply into the jack at the front of the elliptical
exerciser. Plug the other end of the power supply into
an appropriate outlet that is properly installed in accor-
dance with all local codes and ordinances.
8. While another person holds the Console (5) near the
Upright (3), connect the wire harness on the Console
to the Upper Wire Harness (48). Then, connect the
Left and Right Extenstion Wires (135, 136), which are
marked with tags, to the left and right controller wires
on the Console, which are also marked with tags.
Insert the excess wire harness into the Upright.
Attach the Console (5) to the Upright (3) with four
M4 x 16mm Round Head Screws (101). Avoid pinch-
ing the wire harnesses and the extension wires.
Attach the Transport Handle (4) to the Upright (3) with
two M8 x 112mm Button Bolts (125) and two M8
Jamnuts (79).
6
135
17
101
7
5
8
4
125
101
101
3
8
Avoid pinching the
extension wires
during this step
3
130
136
Battery
Cover
Batteries
Avoid pinching the
wires during this step
79
Controller
Wires
135
136
48
Wire
Harness
101
5
