Pro-Form 790 Hr Elliptical User Manual page 11

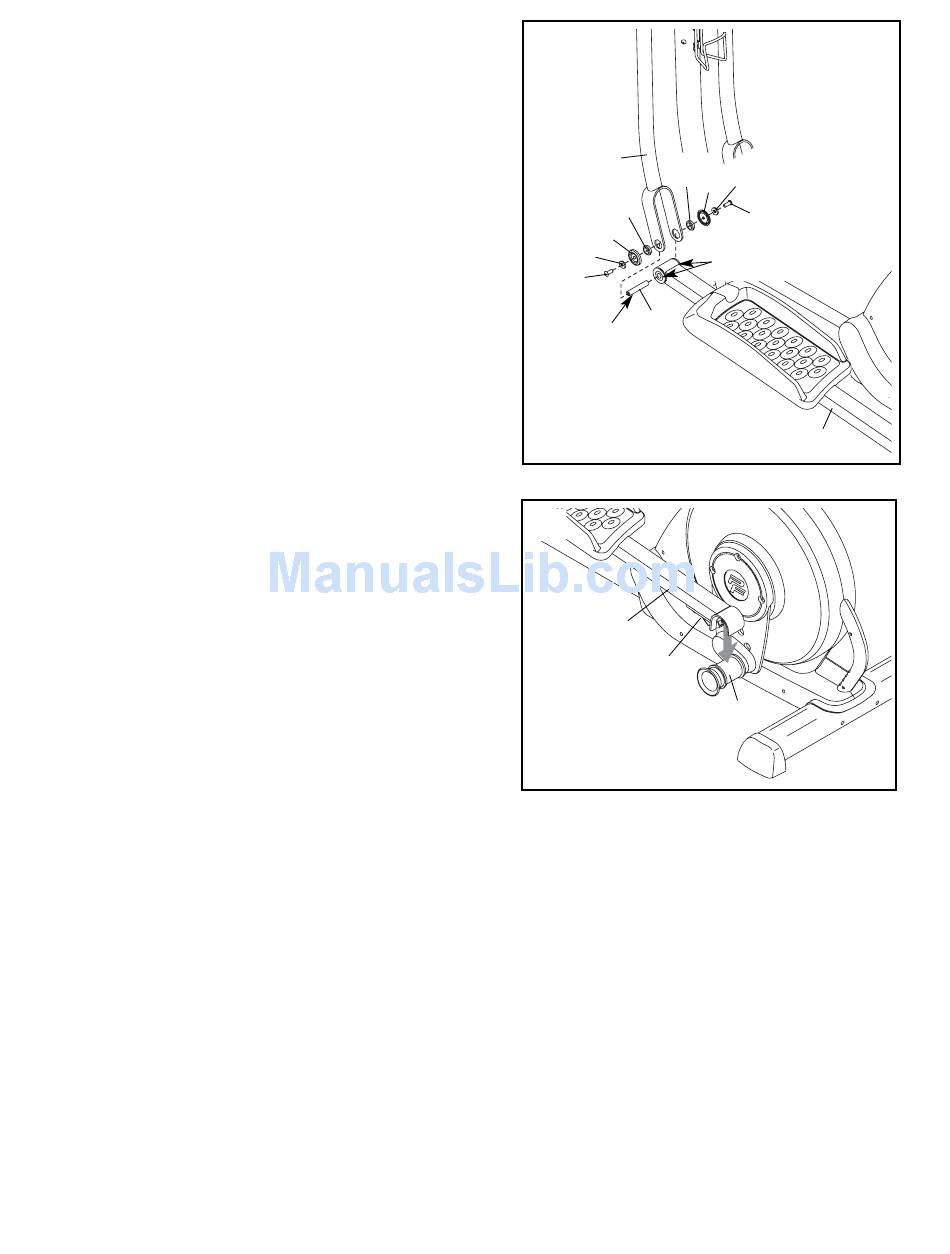

14. Apply a small amount of grease to one of the Pedal
Leg Axles (32) and to the two Pedal Leg Bushings
(33) in the Left Pedal Leg (14).
Next, slide a 5mm Spacer (77), an M8 Washer (88),
and a Pedal Leg Cover (31) onto an M8 x 23mm
Shoulder Screw (115), and tighten the Shoulder
Screw a few turns into the Pedal Leg Axle (32).
While another person holds the front end of the Left
Pedal Leg (14) inside the bracket on the Left Upper
Body Arm (11), insert the Pedal Leg Axle (32) into
both parts. Next, slide a 5mm Spacer (77), an M8
Washer (88), and a Pedal Leg Cover (31) onto anoth-
er M8 x 23mm Shoulder Screw (115), and tighten the
Shoulder Screw a few turns into the Pedal Leg Axle.
Make sure that the two Spacers are in the sides of
the bracket on the Left Upper Body Arm. Then,
tighten both Shoulder Screws.
Repeat this step on the other side of the elliptical
exerciser.
15. Lift the latch on the underside of the Left Pedal Leg
(14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the latch, and make
sure that the Left Pedal Leg is securely connected to
the Crank Bushing Sleeve.
Connect the Right Pedal Leg (not shown) in the
same way.
See step 5. Tighten the M8 x 69mm Button Bolt
(80) and the two M8 x 23mm Button Screws (84).
16. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
14
11
77
31
88
115
Grease
15
14
Latch
11
77
88
31
115
33–Grease
32
14
43
