4.2 Main Function

To select any of the pre-set functions, press the MENU button up to when the required one is
shown on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main functions without
any change after idling 8 seconds. To go back to the functions without any change press the

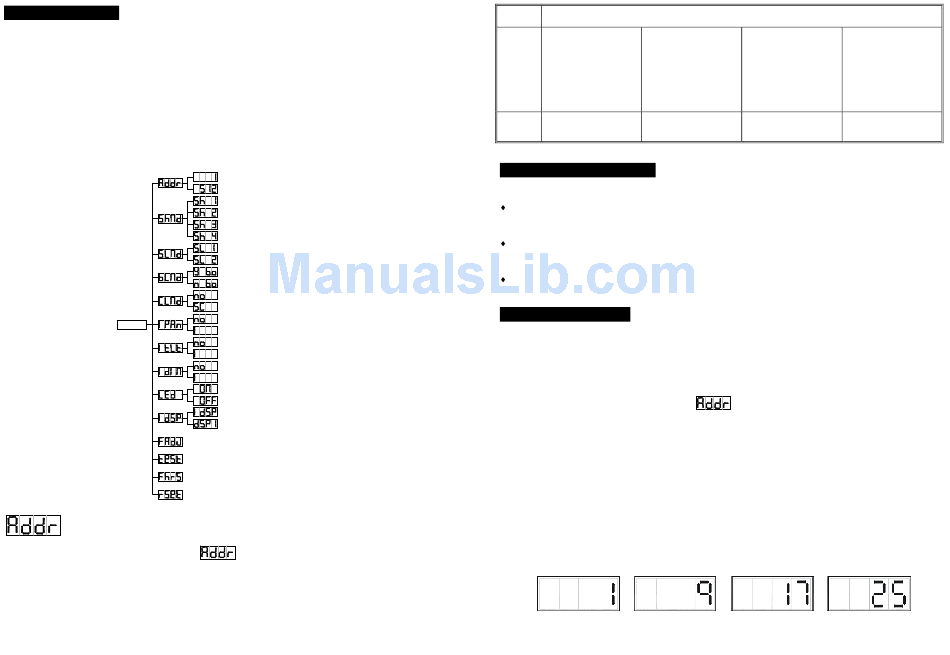

MENU button. The main functions are shown below:
MENU
DMX512 Address Setting
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press the ENTER button to setup or automatically
return to the main functions without any change after 8 seconds. To go back to the functions
without any change press the MENU button again.
DMX512 Address Setting
Show mode 1
Show mode 2
Show mode 3
Show mode 4
Slave Mode " Normal "
Slave mode " 2 Light Show "
Blackout Mode " Yes Blackout "
Blackout Mode " No Blackout "
Normal Color
Split Color
Pan Normal
Pan Inversion
Tilt Normal
Tilt Inversion
Dimmer Normal
Dimmer Inversion
LED on
LED off
Display Normal
Display Inversion
Focus Adjust
Self-Test
Fixture Hours
Reset
is showing on the display. Pressing ENTER
Stand by Blackout the unit
Strobe X/Y moving show
1.Gobo/Color sync. mode selection
strobe ( Show 1 ~ Show 4 )
Function 2.Sync. strobe Please refer to Show
3.Two-light strobe mode in 4.2 Main
Function.
Sound 1 Sound 2
Mode
(LED off ) (LED normal blinking)
5.3.1 iSolution Operation
Consistent DMX configuration enable iMove to be linked together with iRock and iShow
and controlled at the same time.
DMX address can be set remotely by iLead controller ( please refer to the user manual
of iLead controller ). No need to calculate the DMX channels of each fixture in the chain.
Automatic switching between DMX function and built-in stand alone programs.
5.3.2 DMX Controller
9D
An universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep ENTER button pressed up to when the
display stops blinking or storing automatically 8 seconds later. To go back to the functions
without any change press the MENU button again. Please refer to the following diagram to
address your DMX512 channel for the first 4 units.
DMX address can be setting remotely by IL-0824 controller. No need to calculate the DMX
channels of each fixture in the chain.
Color/Gobo selection X/Y moving setting
1. Hold on for gobo 1.Pan position
change. 2.Tilt position
2. Press shortly for 3.Dimmer
color change. First set Master unit,
then set Slave units'
position.
Slow/Sound 3 Position/ Latch
(LED on) (LED fast blinking)
is showing on the display. Pressing ENTER
